Drum Machine

•

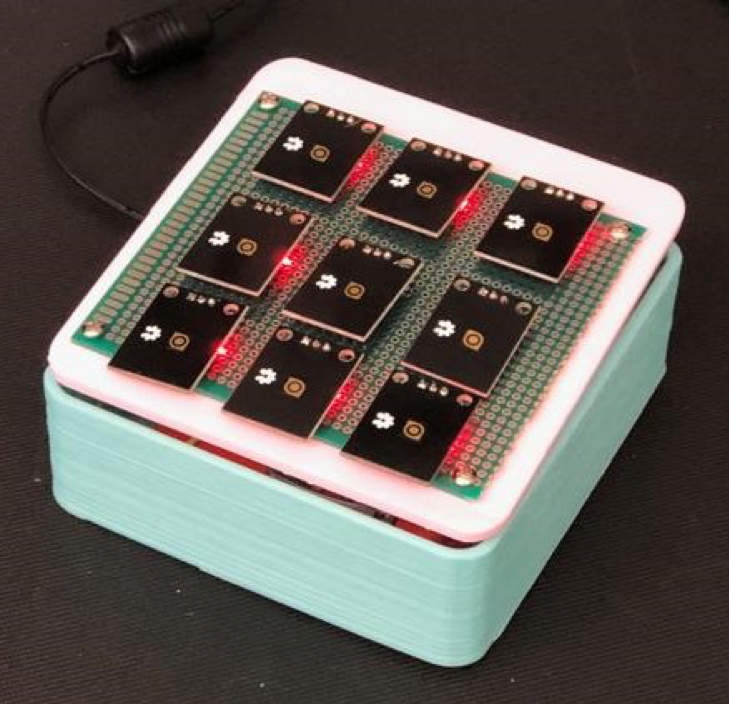

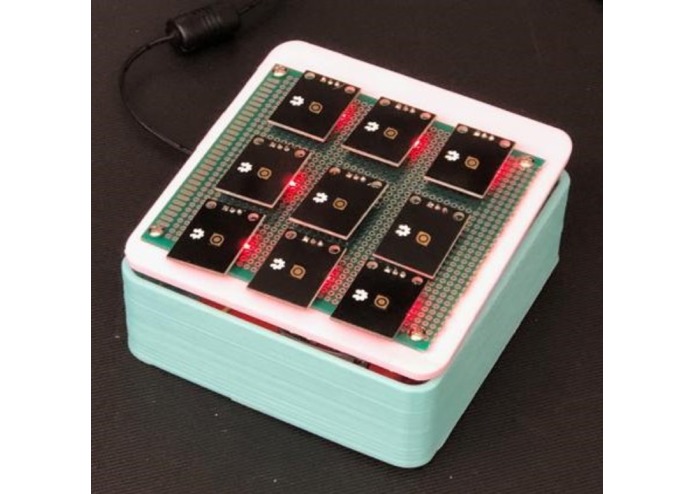

  Final design

•

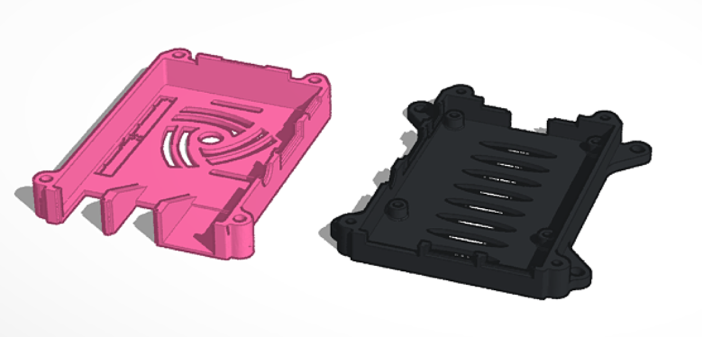

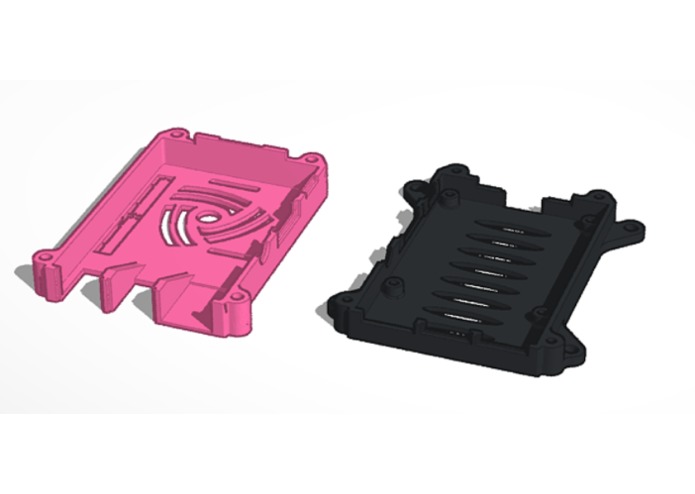

  3D printed raspberry pi case

•

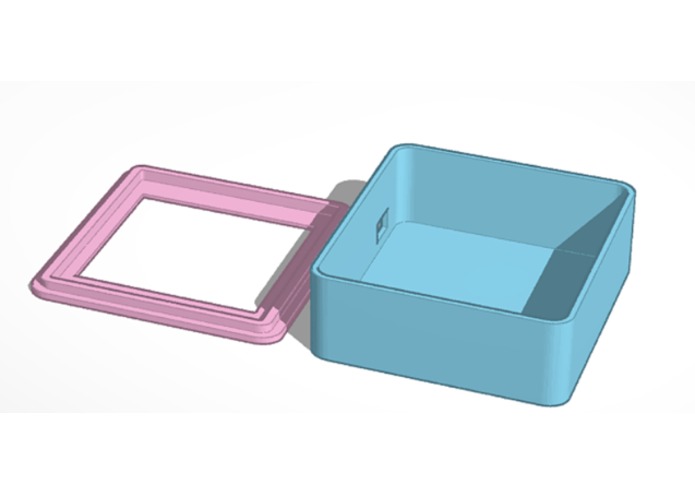

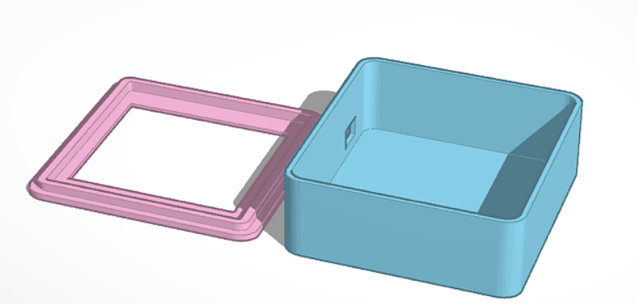

  3D printed device enclosure

Drum Machine is a one size fits all solution for professional music prototyping and amateur music production. It allows the user to prototype on the go whenever the inspiration hits. Our project expands on capabilities already offered in industry-standard systems by adding a voice control element. This is a desired feature that makes controlling the Drum Machine much more convenient and amateur-friendly.

Our Voice Controlled Drum Machine is a PoC project with features that are scalable and easy to integrate into the mass-produced design.

Product Functional Features:

1. A matrix of nine touch sensors allows the user to create a sequence of sounds to be played
2. Switch between three handpicked sounds sets: drums, beats, and piano
3. User can select a mode for the Drum Machine which would determine the set of sounds assigned to the matrix, the selection is made using a voice command to the Google Home
4. The sound is played on the Bluetooth speaker connected to the device

Built With

• 3dprinting
• adafruit
• cloud
• google-home
• ifttt
• python
• raspberry-pi
