Inspiration

Due to the COVID 19 pandemic, we have seen the world move from physical to online mediums of interaction. This is a door bell system which can alert us whenever someone presses the button. During online video calls like Zoom, Google Meet or Skype, we might not be able to hear someone calling us at our house or even we might miss the doorbell. As the button is pressed, an alert message window would be displayed over the computer screen along with a loud beeping sound. Also, it would send a telegram message to the telegram account which is connected to the system.

What it does

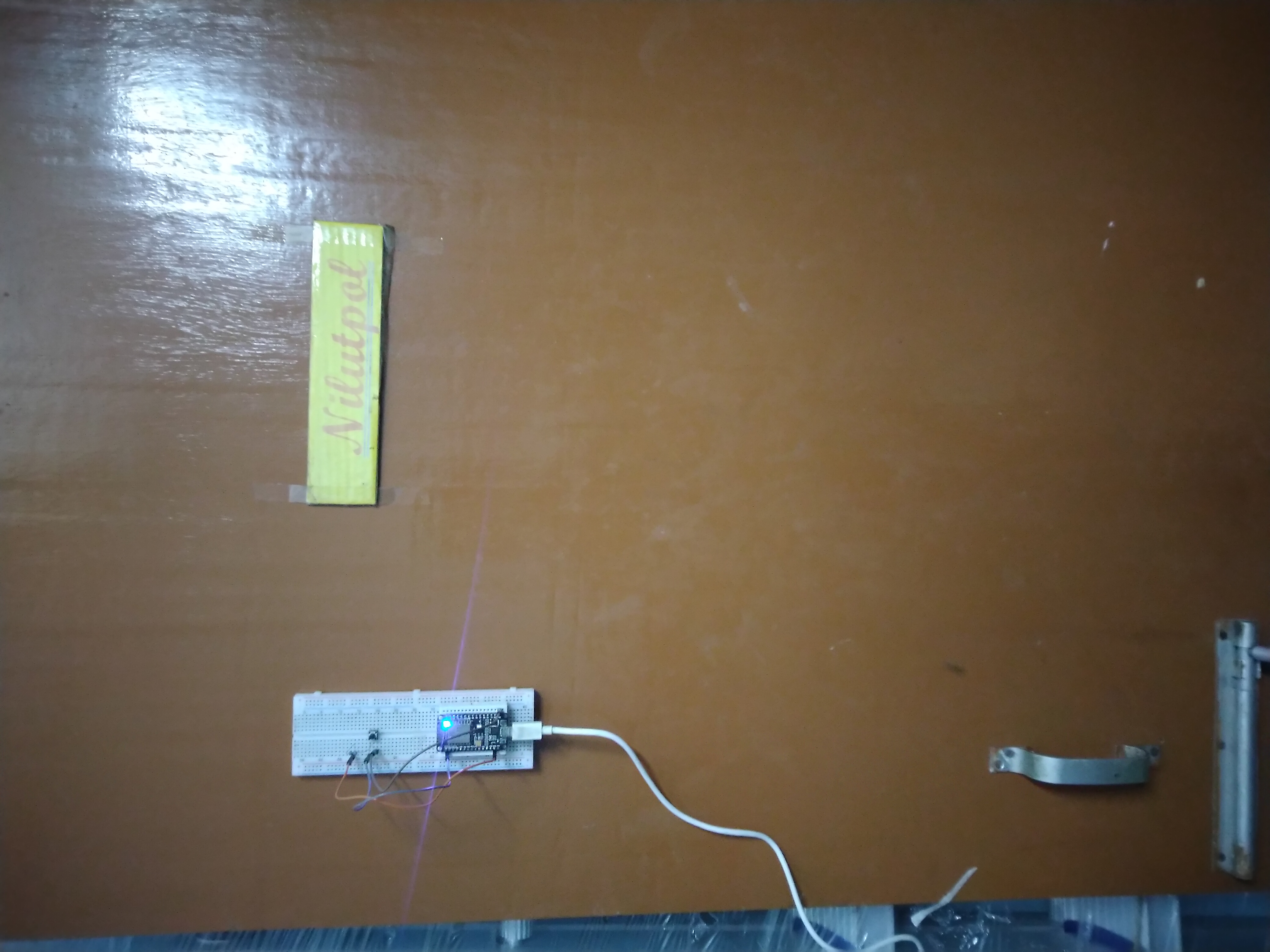

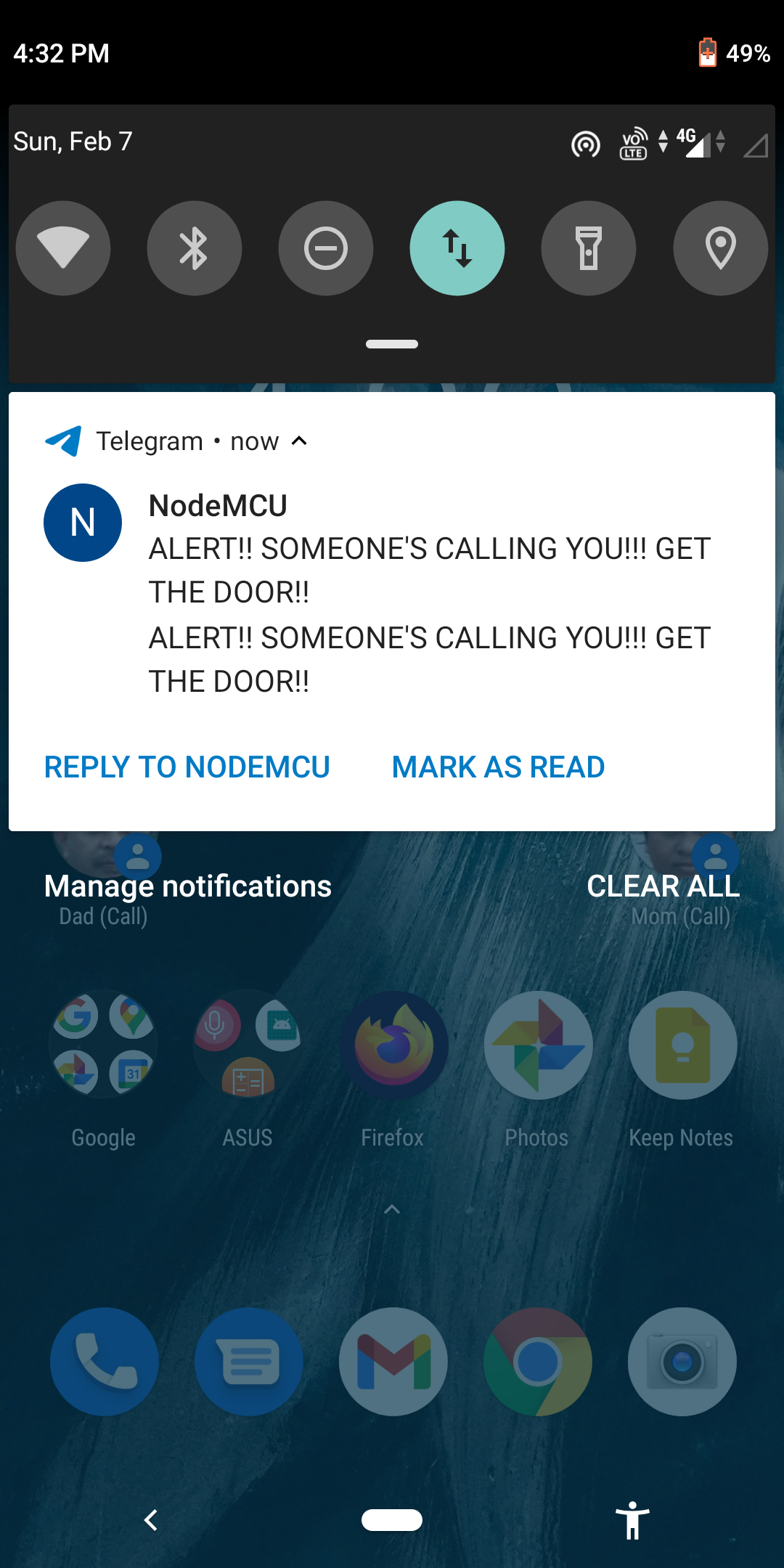

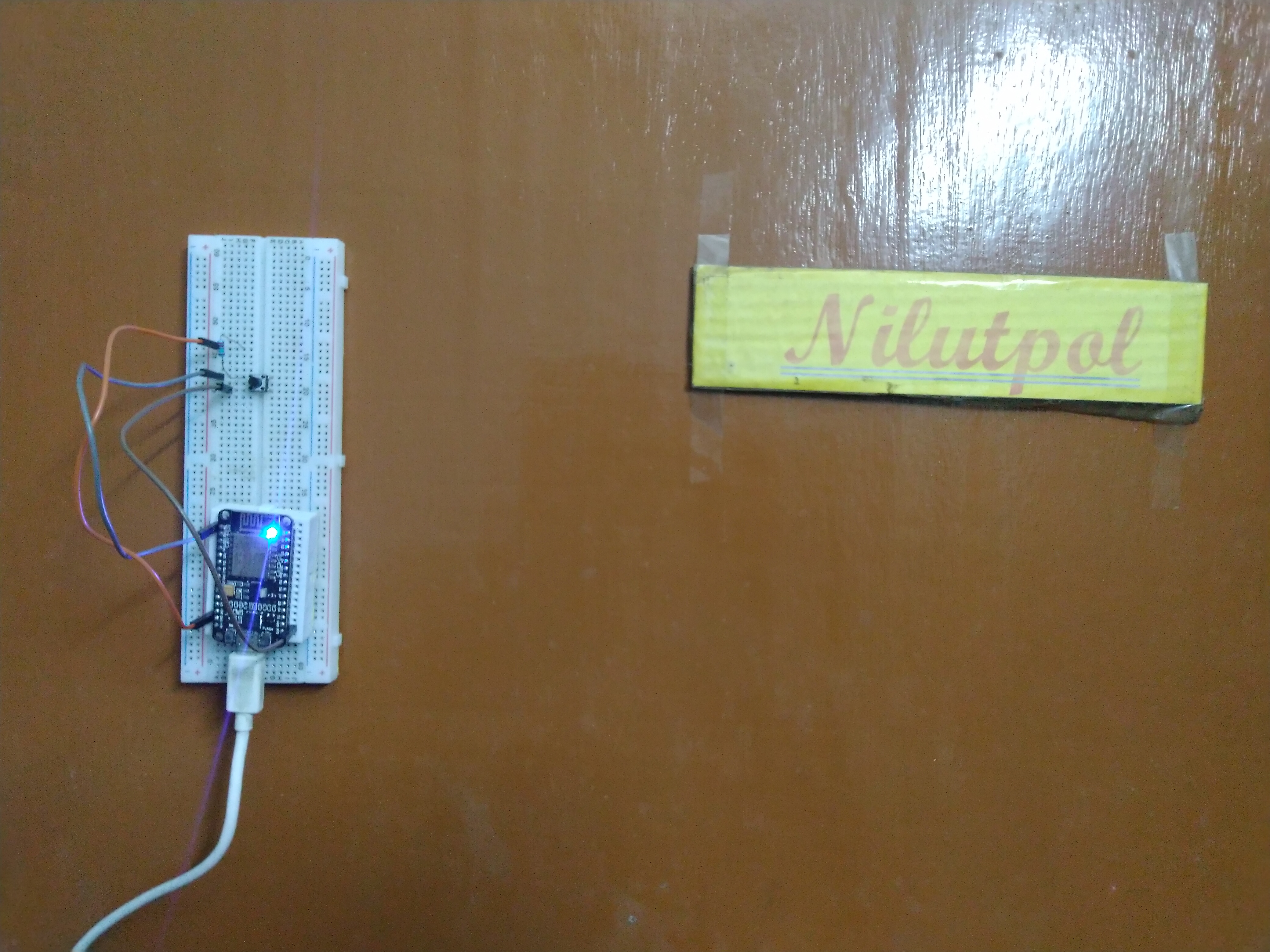

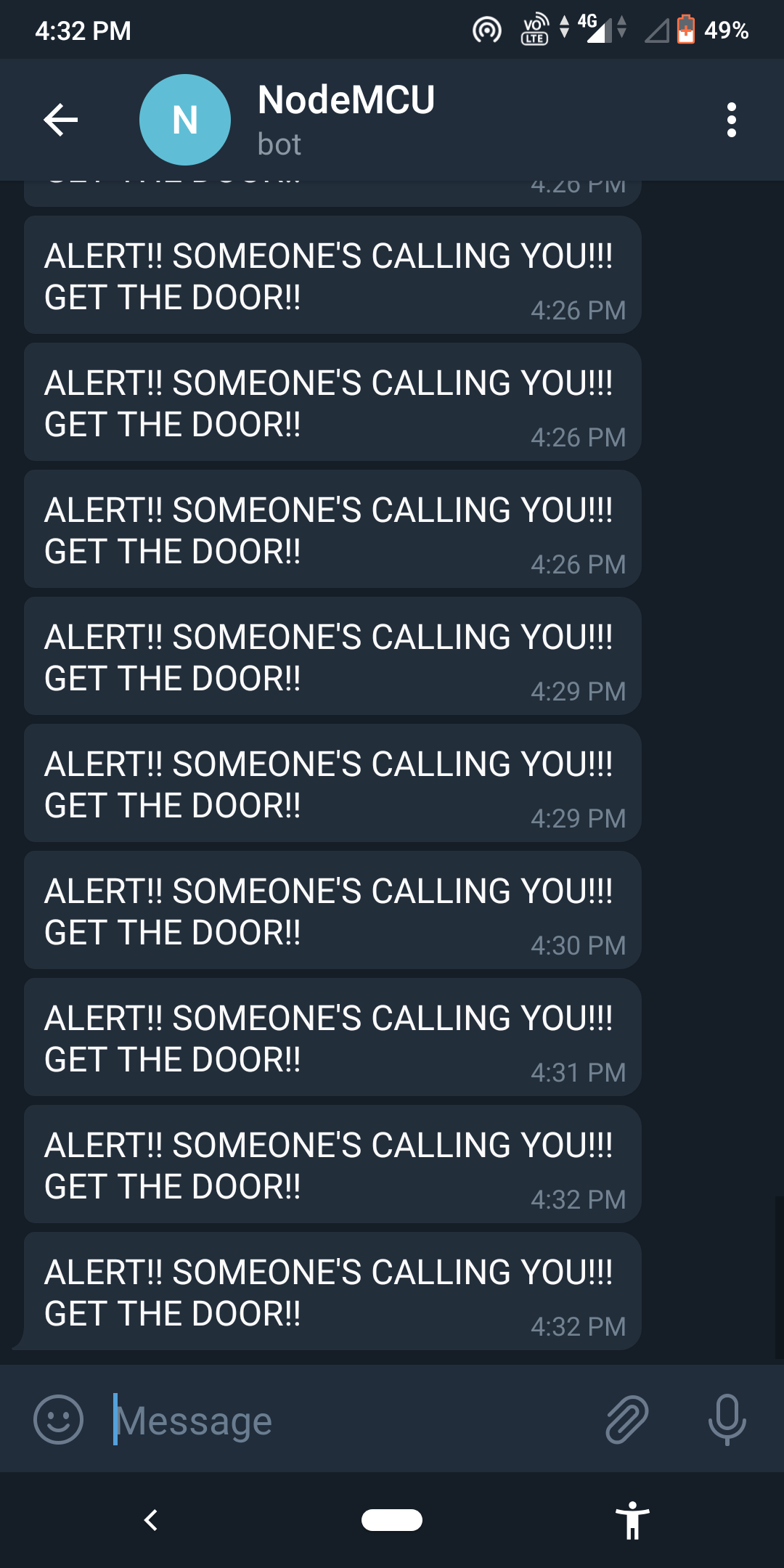

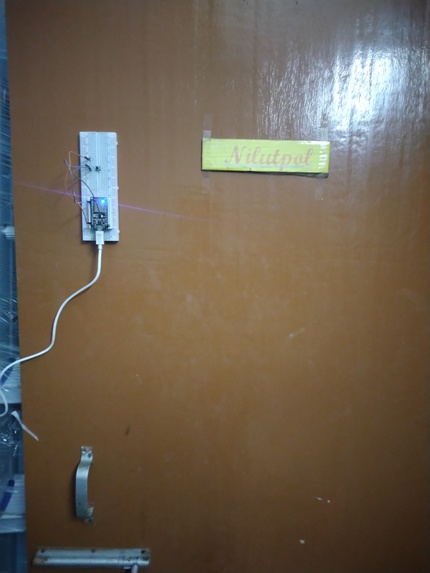

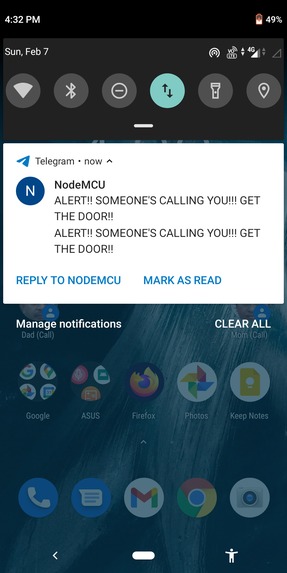

The host PC and the ESP8266 board are connected to the same WiFi network. Whenever the button connected to the ESP8266 board is pressed, a alert window message is displayed over the screen along with a loud beep sound. Immediately a Telegram message is sent to the Telegram BOT connected with the code. So even if someone is attending the online video call on a smartphone, they would get an alert over Telegram.

How we built it

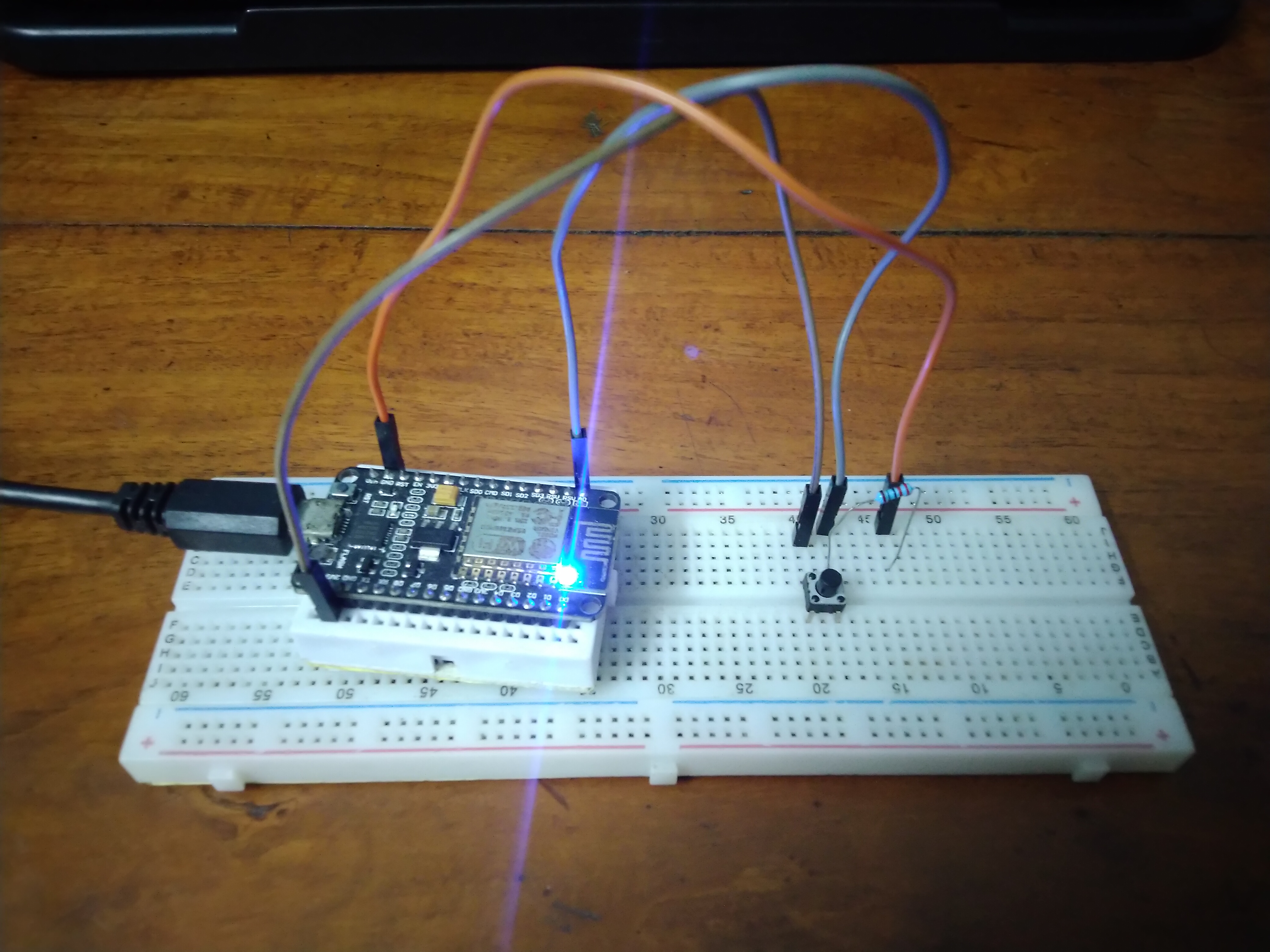

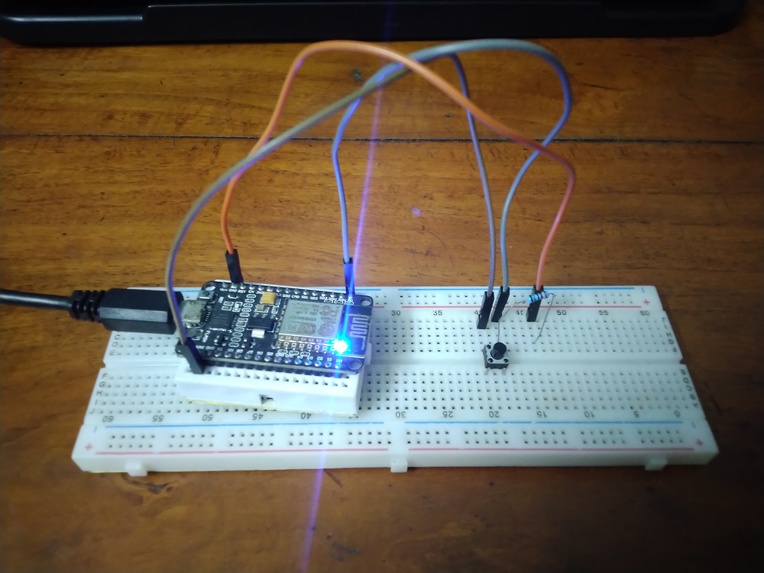

The project is made by using an ESP8226 WiFi board. A push button is connected to the board. The main communication protocol for the project is based on MQTT protocol over WiFi. The MQTT broker is run on the host PC and then the python subscriber node is started. The publisher node is run on the ESP8266 board. The publisher node on ESP8266 sends a message to the subscriber python node on the host PC through the MQTT broker. Depending on the message received by the subscriber python node, whenever the button is pressed, an alert window made with Python Tkinter library is displayed. A beep sound is produced using the python OS beep class. Then with the help of requests, a message is sent to the the Telegram message bot.

Challenges we ran into

As MQTT protocol was quite new for me, I had to go through several online materials for it. The integration of telegram bot with Arduino code was a bit laborious.

Accomplishments that we're proud of

With the attached Youtube video demo, we can see the full functionality of the project. The project is working successfully as planned. Initially, I didn't plan the Telegram bot part, but I decided to integrate it for more functionality.

What we learned

This project works on the MQTT protocol over WiFi. I got to learn the concepts of MQTT protocols, subscribers, publishers and broker. Also, I learned about creating Telegram bots and how to integrate them with python.

What's next for DoorBell For Online Video Calls

I wish to make a 3D printed case for the system and attach it to my door. My university classes have started two weeks back and this would prove to be a great help for me.
