Doggin' Around

•

•

•

•

•

•

Inspiration

Everyone has read a comic and wished it ended differently. We wanted to let you step inside the panel and change it.

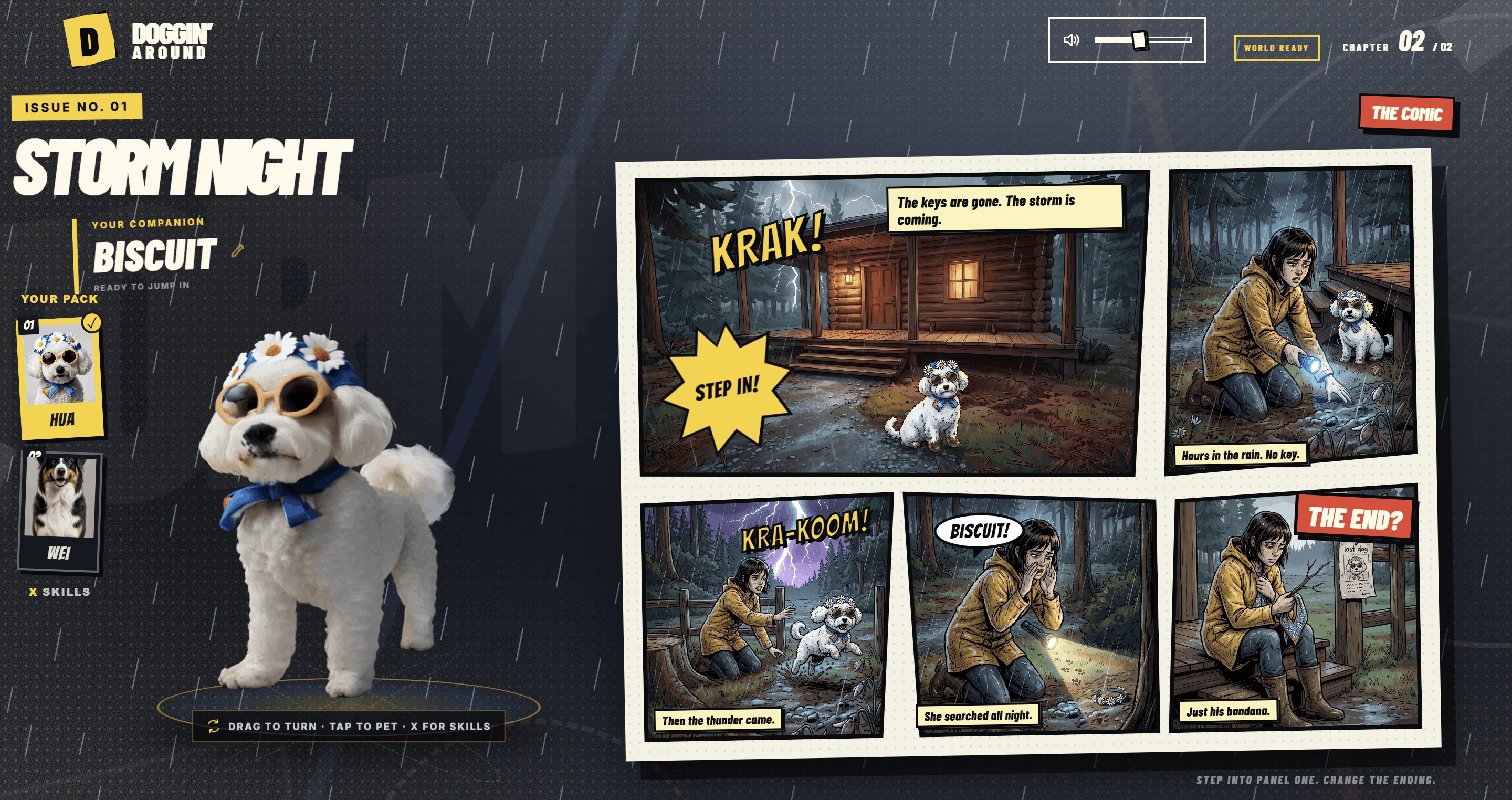

Huawei's challenge provided photographs of two dogs, and the white dog wearing sunglasses, flowers, and a blue bow became the hero of our comic, Storm Night: locked out as a storm rolls in, he's the only one who knows where the spare key is buried. Read it as drawn and the night ends badly. Step into the first panel, play it in 3D, and the comic redraws itself with a new ending. For that to work, the comic's hero needed a little life: a dog that could look around, respond to us, do tricks, and bring a ball back.

That meant solving several problems together. A comic page has to be read: who is in it, where one scene ends and the next begins, and which panel becomes a place you can walk into. And the photo showed the dog's personality, but it did not show its complete body or explain how it should move. We needed to reconstruct its appearance, give it an underlying skeleton, and make those pieces work together.

This became Doggin' Around, a comic you can walk into, built on image-to-3D research running in the browser. Along the way, we explored two different modelling approaches for its characters: generating a rig and detailed appearance separately, and fitting an anatomical dog model before optimizing its appearance.

What it does

Doggin' Around turns a comic page into a world you can step into, and lets what you do there change how the story ends.

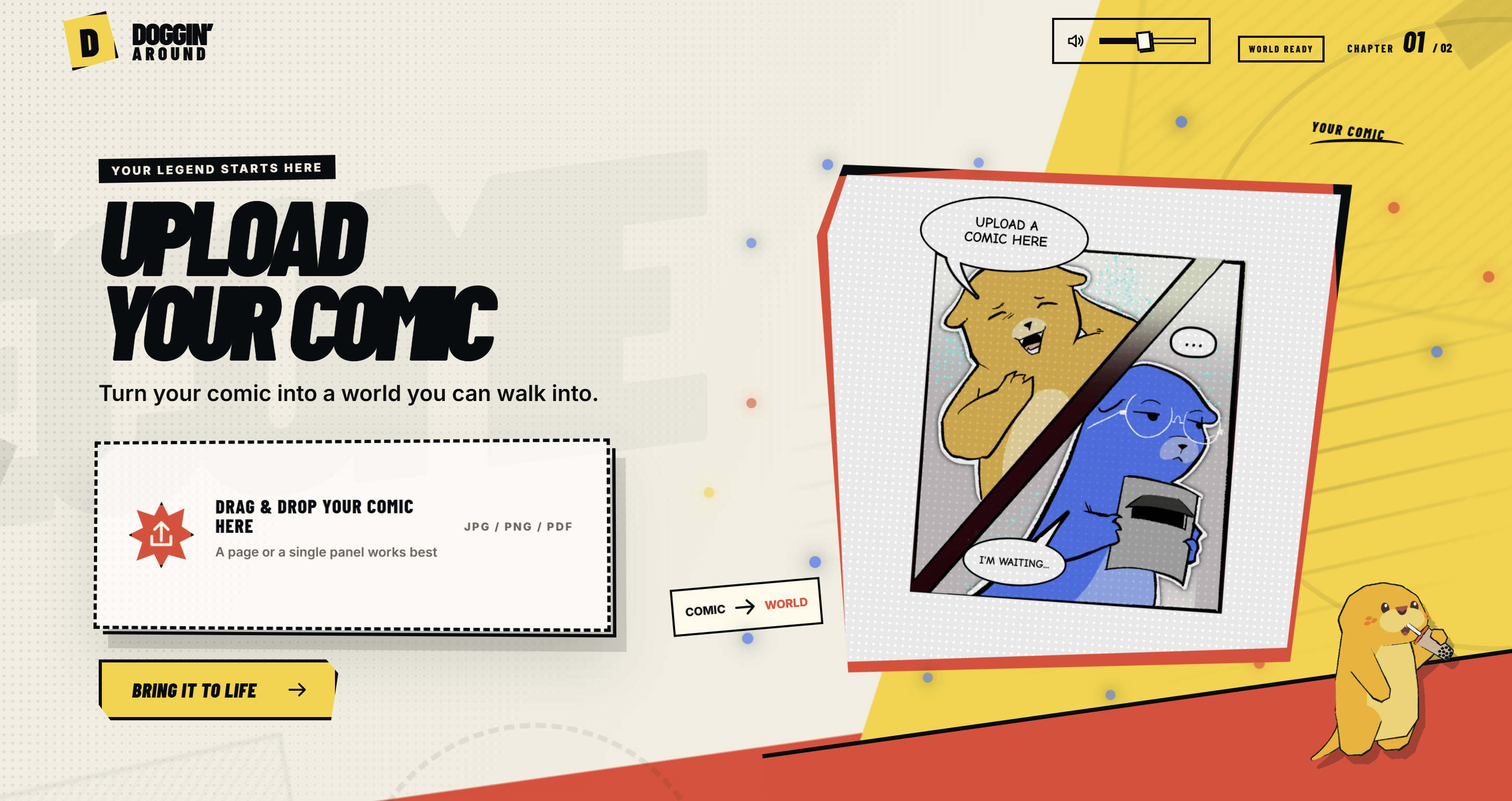

• Read the comic. Upload the page and the pipeline goes to work: it detects the characters, separates the page into its scenes, lifts the hero out of his panel, and builds him from every side into a rigged 3D character.

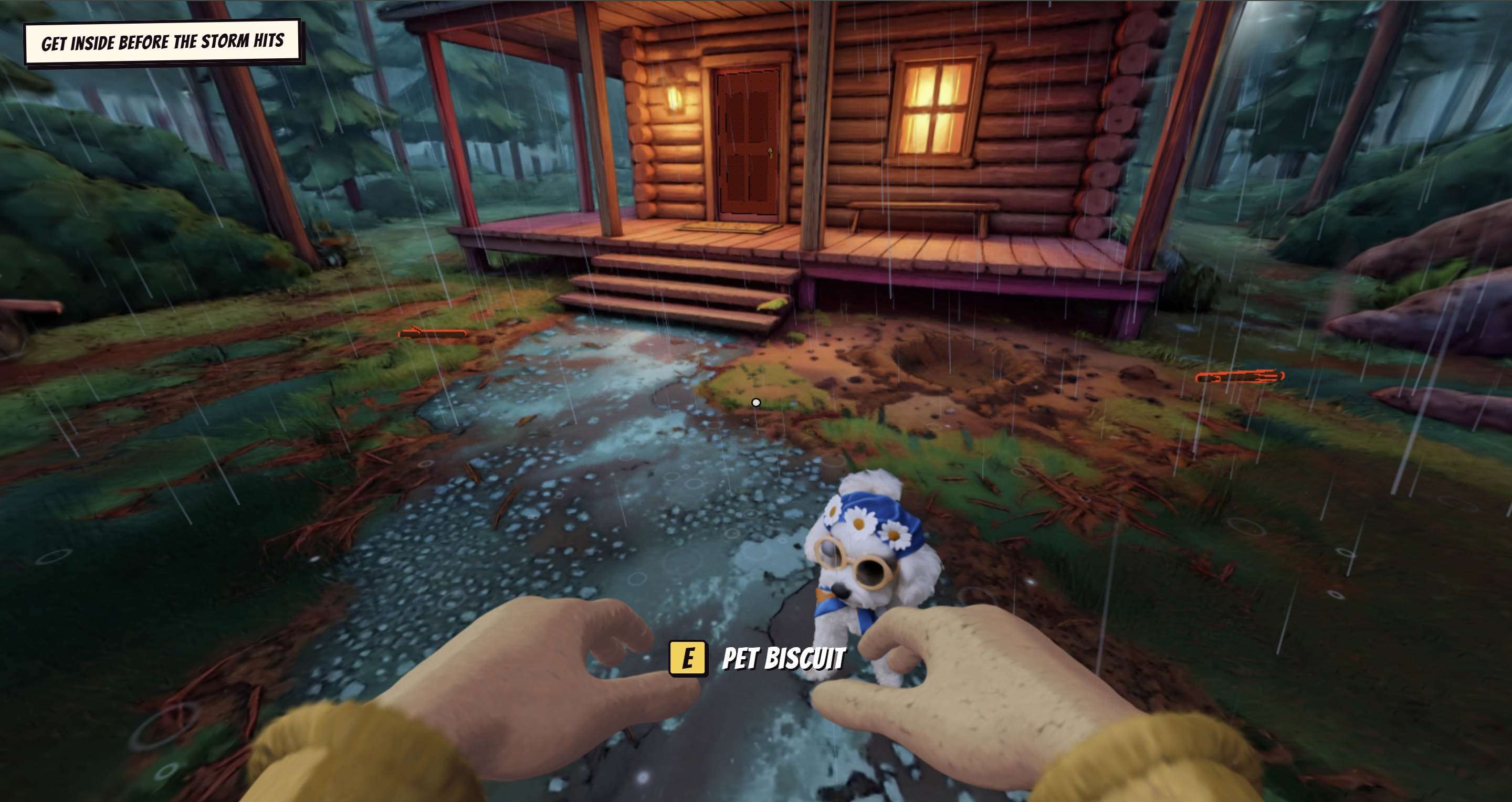

• Step into the panel. The dog leaps into panel 1, and the panel dissolves into a first-person 3D world built from that scene, in the rain, with the dog at your side.

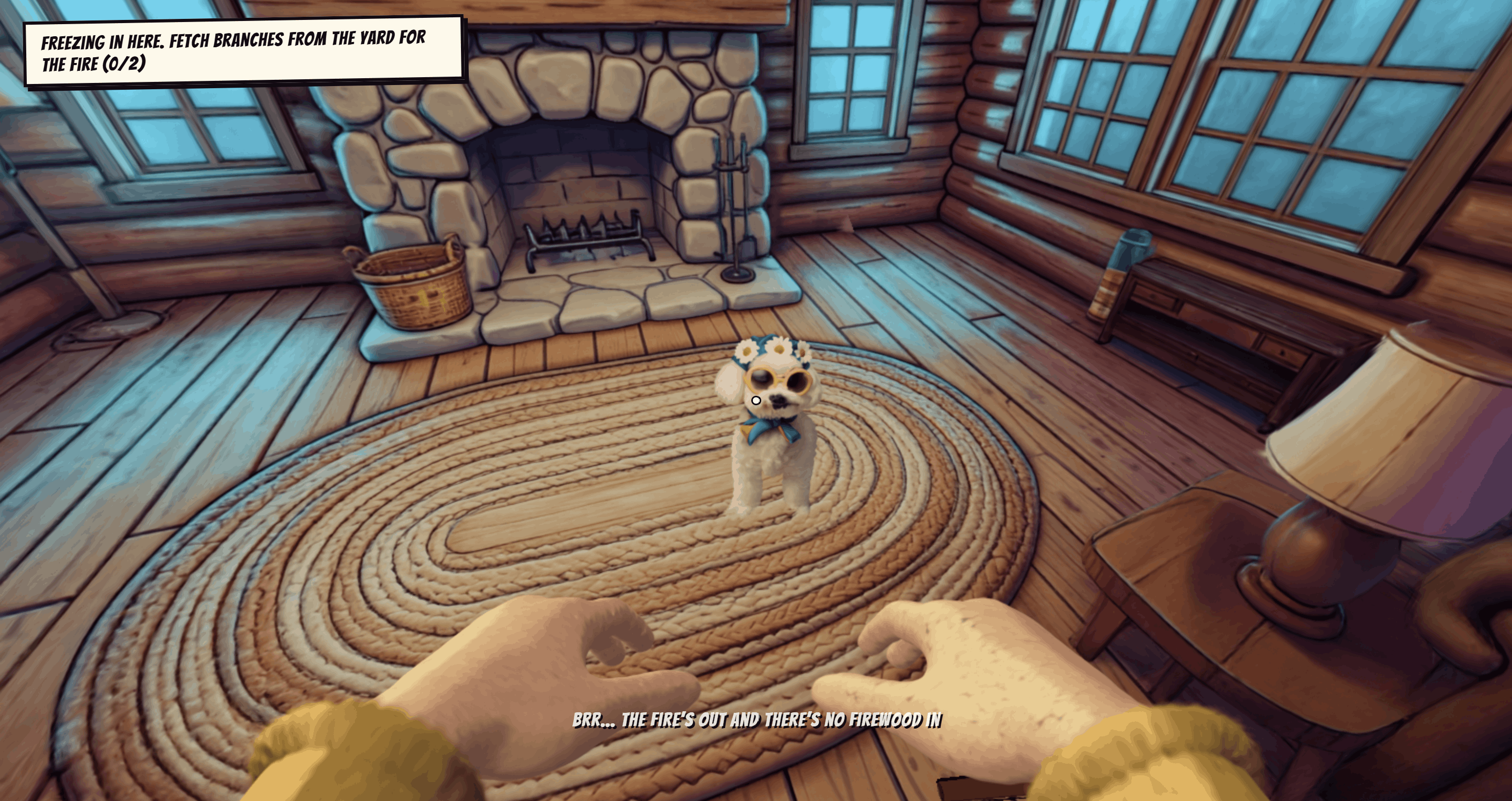

• Change the ending. Get him to dig up the buried key, unlock the cabin, gather firewood and light the fire. Back on the page, the panels after the one you played redraw into a happier ending.
• Talk to it. Hold F and say "Biscuit, sit!"

Inside the comic, your companion is fully interactive:

• Give it something to do. Huawei's white dog has 29 actions, including sitting, running, digging, shaking hands, high fives, backflips, and Gangnam-style dancing.
• Play fetch. Throw a ball and the dog turns toward it, walks or runs after it, slows down, reaches toward the ball, picks it up, and carries it home.
• Catch its attention. The dogs glance around naturally and briefly follow your cursor. Their head movement continues smoothly through animation changes.
• Inspect how it works. Switch between the detailed Gaussian appearance, the underlying mesh, and the skeleton. Adjust animation speed and rendering density, pause a pose, or compare the source photographs.
• Try compatible models. Import an animated GLB with a supported skeleton and animation structure.

Huawei also provided the seated Tricolor dog photograph. Our local research demo brings that second dog to life with 12 actions. Its licensed research assets are excluded from public production builds.

Model generation currently happens offline. The browser loads the prepared assets and handles rendering, animation, and interaction.

From photos to interactive 3D dogs

Huawei white dog

Before: Huawei's original cropped photograph	After: our full-body Gaussian dog

Huawei Tricolor dog

Before: the original seated photograph	After: our standing Gaussian reconstruction

How we built it

From comic page to playable world

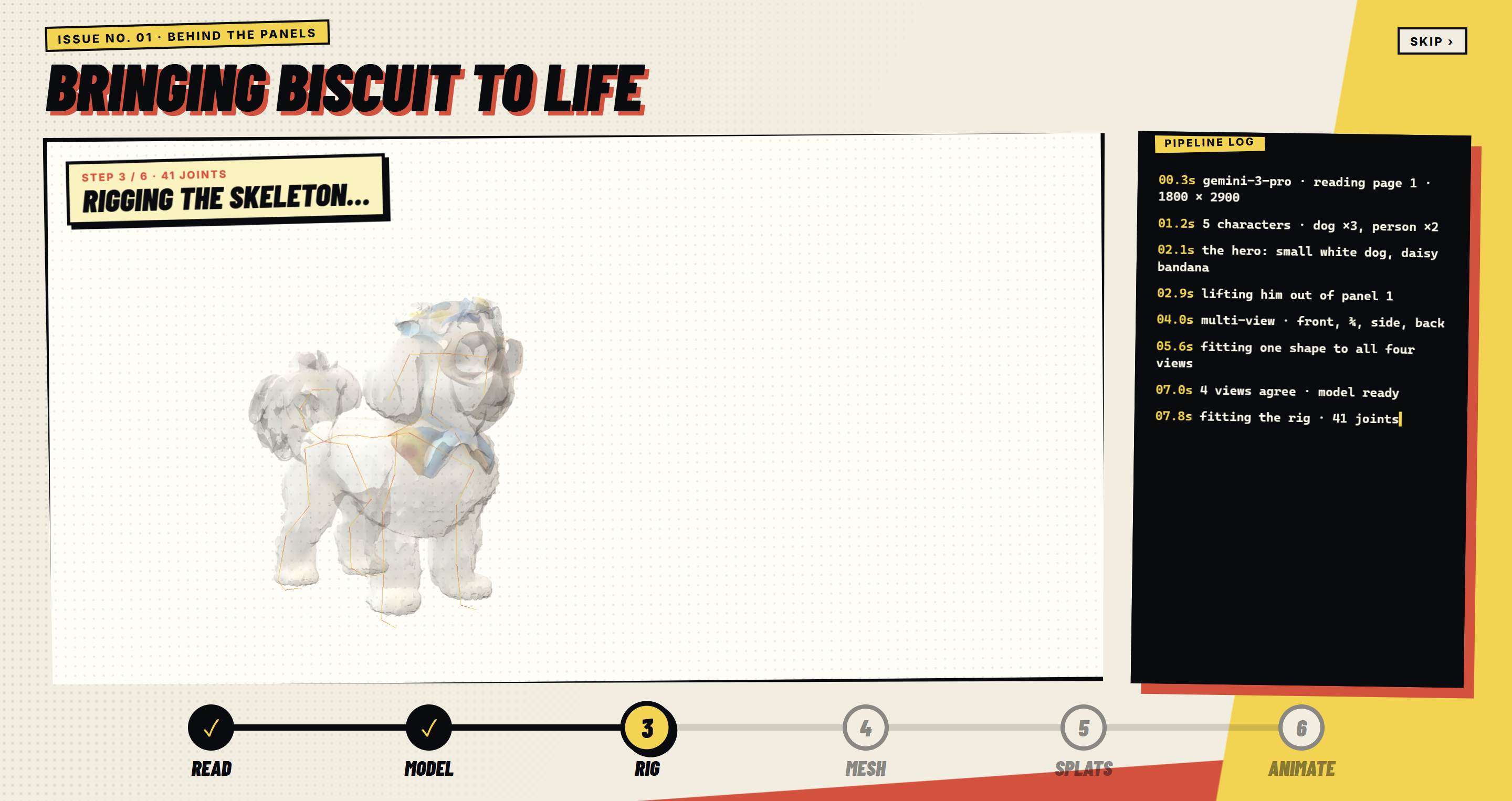

The pipeline reads the page the way you would: it detects the characters, separates the page into its scenes, and lifts the hero out of his panel, then builds him from every side into a rigged 3D character. Storm Night's pages and panels were painted with Gemini from our own scene plates and the dog's reference, so every panel is drawn from a scene we can also build in 3D. For the panel you step into, World Labs' Marble turns that scene into a walkable Gaussian-splat world with a collision mesh. Rapier handles the physics, and Spark renders the world, the dog, and the first-person hands together. Gemini also paints the in-between frames that dissolve the panel into the live 3D view. Voice commands use ElevenLabs' realtime speech-to-text.

The characters

Both dogs use 3D Gaussian Splatting for their detailed appearance. Think of a Gaussian as a tiny, soft-edged 3D shape with its own color, size, and transparency. Tens of thousands of these shapes combine to represent the dog's coat and facial details.

The two dogs use different structures to make those shapes move.

	Huawei white dog	Huawei Tricolor dog
Body and skeleton	AniGen-generated model with 41 joints	BITE-fitted D-SMAL model with 35 joints
Detailed appearance	50,000 selected TripoSplat Gaussians	37,525 Gaussians from our reconstruction pipeline
Animation connection	Gaussians follow the skeleton	Gaussians follow the deforming mesh

The math behind the dogs

Several mathematical models connect the photographs, 3D bodies, fur, and animation:

• 3D Gaussian Splatting represents the coat with soft 3D ellipsoids. Each Gaussian uses a center, covariance, color, and opacity. The renderer projects them to the screen and blends them from front to back.

G(x) = alpha * exp(-0.5 * (x - mean)^T * covariance^-1 * (x - mean))

• Linear blend skinning moves the white dog's Gaussians with its skeleton. Each Gaussian receives up to four joint influences whose weights add to one.

new position = sum(weight[j] * joint transform[j] * position)

• BITE and D-SMAL fitting describe the Tricolor dog through adjustable shape, limb, pose, scale, translation, and vertex-offset parameters. This lets us change the seated fit into a standing dog while preserving its estimated anatomy.

vertices = scale * alignment * SMAL(shape, limbs, pose, offsets) + translation

• Surface-bound deformation attaches each Tricolor Gaussian to its ten nearest mesh faces. Closer faces receive more influence through normalized inverse-distance weights.

weight[k] = (1 / max(distance[k], 1e-8)) / sum(1 / max(distance, 1e-8))

• Image reconstruction loss teaches the rendered dog to match the reference views. We combine pixel error with structural similarity, then add geometric penalties that keep the mesh and Gaussians stable.

photo loss = 0.8 * L1 + 0.2 * (1 - SSIM)

• Quintic easing smooths pose changes, head glances, takeoffs, and landings. Its velocity and acceleration reach zero at both ends, which prevents visible snapping.

h(t) = 6t^5 - 15t^4 + 10t^3

Approach 1: Build the Huawei dog's rig and appearance separately

We began by generating a full-body reference from Huawei's cropped portrait, preserving the recognizable face and accessories while making the hidden legs and back plausible.

We used AniGen to generate a textured model and skeleton. We then used TripoSplat to generate a more detailed Gaussian appearance from the reference.

Our own binding code aligned the two outputs and connected the Gaussians to the skeleton. We gave the glasses, flowers, head covering, and bow appropriate head or neck attachments so they followed the dog's movement. After comparing several densities, we selected 50,000 splats, prioritizing the face and accessories.

Approach 2: Fit Huawei's Tricolor dog anatomy, then optimize its appearance

For Huawei's second dog, we started with its seated photograph and used BITE to estimate its body shape and pose through D-SMAL, an adjustable 3D dog model. We converted that fitted body into a standing pose.

A generated standing reference then went through Microsoft's TRELLIS-image-large to create a detailed appearance reference.

We independently implemented the core reconstruction and mesh-binding methods described in SMAL-pets, a paper coauthored by researchers at Huawei and Jagiellonian University. Our implementation adapts those methods to our own preparation, animation, and browser pipeline.

The reconstruction used 96 synthetic views, with eight reserved for validation:

1. Build a stable body. For 15,000 optimization steps, the Gaussians stayed attached to the dog's surface while its shape and appearance improved together.
2. Recover coat detail. For another 25,000 steps, the Gaussians could move away from the surface to better represent the coat.
3. Refine the fur. We ran a 1,000-step DGE editing pass using 20 views. We inspected the result and retained the improvements that preserved the dog's identity.

The final model contains 37,525 Gaussians. Each follows ten nearby mesh faces, allowing the appearance to move with the body.

Animation and browser integration

We authored and refined motion in Blender, including weight shifts, paw contact, head movement, and transitions. Huawei's walking and running also use retargeted Labrador motion-capture data, credited under CC BY 4.0.

For Huawei's Tricolor dog, we baked the complete animated mesh at 30 frames per second. The browser updates its face transforms on the CPU, while a custom Spark GPU modifier moves, rotates, and scales the Gaussians.

The application uses TypeScript, Three.js, Spark, and Vite. Reconstruction uses Python, PyTorch, PyTorch3D, and gsplat.

We ran the GPU work on temporary RunPod machines, used published checkpoints from Hugging Face, and preserved the results before terminating the machines. Codex assisted with implementation, debugging, and tool coordination. Vitest, Playwright, and Biome supported testing and code quality.

Challenges we ran into

A panel has to become a place. A comic panel is one drawn moment. We had to build a world from the same scene, line its opening view up with the panel closely enough to dissolve one into the other, and keep the story's cause and effect (the buried key, the cold cabin) playable.

One photograph leaves a lot unseen. Our first direct reconstruction of Huawei's cropped portrait produced an eight-joint rig. Creating a full-body reference gave the model enough information to produce a much more useful 41-joint skeleton. The hidden anatomy remains a plausible reconstruction.

A detailed appearance still needs a movement system. Generated Gaussians arrive as a static model. We had to align them with an animatable structure and keep the fur, face, and accessories attached during movement.

Small motion errors were immediately noticeable. Sliding paws, a floating ball, or a head snapping back to one angle made the dog feel less convincing. We added contact corrections, matched travel speed to gait, connected fetch to the mouth position, and preserved gaze through action changes. Jump also needed a deliberate sequence: front paws lift first, all four paws become airborne, then the front paws land before the hind paws.

More refinement did not always preserve the dog. The full DGE edit softened Tricolor's tan markings and eye detail. We kept the original face and body, retained the improved tail geometry, and restored its dark fur color.

Research tools needed substantial integration work. We resolved Python, CUDA, and library compatibility issues, checked coordinate systems, and compared Python deformation with the browser implementation. We also had to keep detailed rendering fast enough for live interaction.

Accomplishments that we're proud of

We built a comic you can step into and rewrite, and two working modelling pipelines for its characters, connected to the same interactive playground.

Huawei's white dog preserves its distinctive accessories across 29 actions. Huawei's Tricolor dog demonstrates our implementation of SMAL-pets' core reconstruction methods, with full mesh animation and detailed Gaussian appearance.

Both selected models reached 60 FPS in Chrome at 1440 × 960 on our test Mac. We verified animation transitions, paw contact, gaze, pause behavior, fetch, model switching, and density changes through numerical checks and browser tests.

The Tricolor GPU run also stayed within our budget, with a conservative compute and storage estimate of US$2.96 against a US$10 limit.

Most of all, we are proud of the small details: the panel dissolving into the world you step into, the ending redrawing itself, the dog noticing the cursor, planting its paws, reaching down for the ball, and smoothly returning to its next action.

What we learned

We learned how much work sits between an image-to-3D result and an interactive character. Appearance, anatomy, animation, and behavior each need attention, and their connections matter just as much.

We also learned how to turn a research method into a working application. That involved implementing mathematical ideas, adapting older code, checking results numerically, and making deliberate choices when generated outputs changed the dog's identity.

Visual inspection and automated tests complemented each other. Tests caught unstable transitions and incorrect transforms. Watching the dogs from different angles caught details that numbers alone could miss.

The most useful lesson was to evaluate the whole experience. A seamless step into the panel, a recognizable face, believable paw contact, and a smooth head turn all contribute to whether the story feels like one you are inside.

What's next for Doggin' Around

We want to make the whole process live, so someone can upload any comic, choose the panel whose ending they want to change, and play it, with its characters built through a guided workflow.

Our next priorities are:

• Run character detection, scene separation, and world generation live for any uploaded comic.
• Improve reconstruction across more breeds, body shapes, and poses.
• Preserve distinctive markings and fine coat detail more consistently.
• Grow voice control from keyword commands into natural-language direction.
• Expand interaction with toys and environments through physics and collision handling.
• Reduce loading time and improve performance on mobile devices.
• Make a shareable generation workflow using assets and models with suitable redistribution rights.

Longer term, we want any comic to become a story people can step into and rewrite, and these dogs to become characters people can bring into their own games, stories, and virtual spaces.
