DevFlow AI — Understand Any Codebase Instantly Inspiration Every developer knows the pain of opening an unfamiliar GitHub repo for the first time. You stare at hundreds of files, cryptic folder names, and a README that's either missing or out of date. New hires spend weeks ramping up. Open-source contributors abandon issues because they can't find their bearings. Code reviewers approve PRs they don't fully understand.

We wanted to build the tool we wished existed: paste a GitHub URL, get an instant AI-powered audit of the entire codebase — architecture, complexity, health, security risks, and a chat interface to ask anything about the code.

What it does DevFlow AI is an AI co-pilot for understanding any GitHub repository:

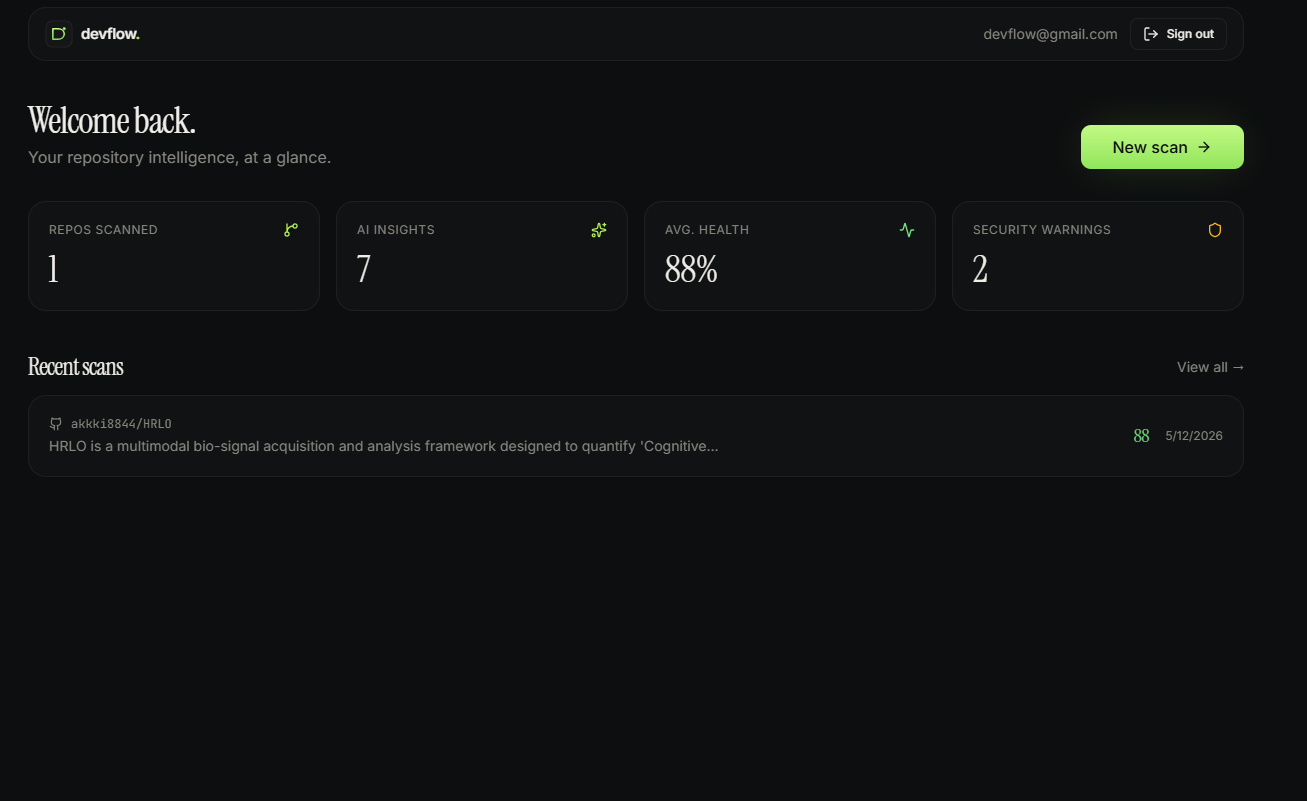

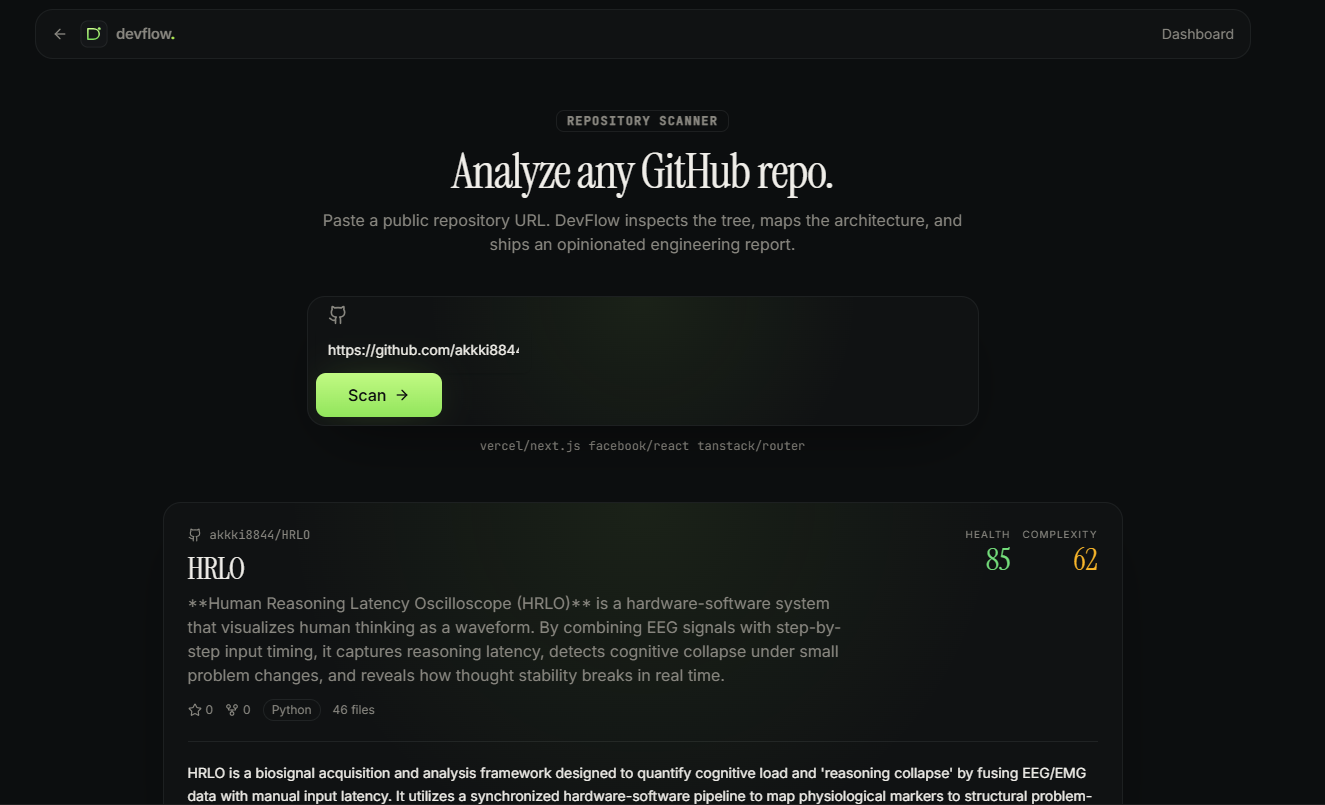

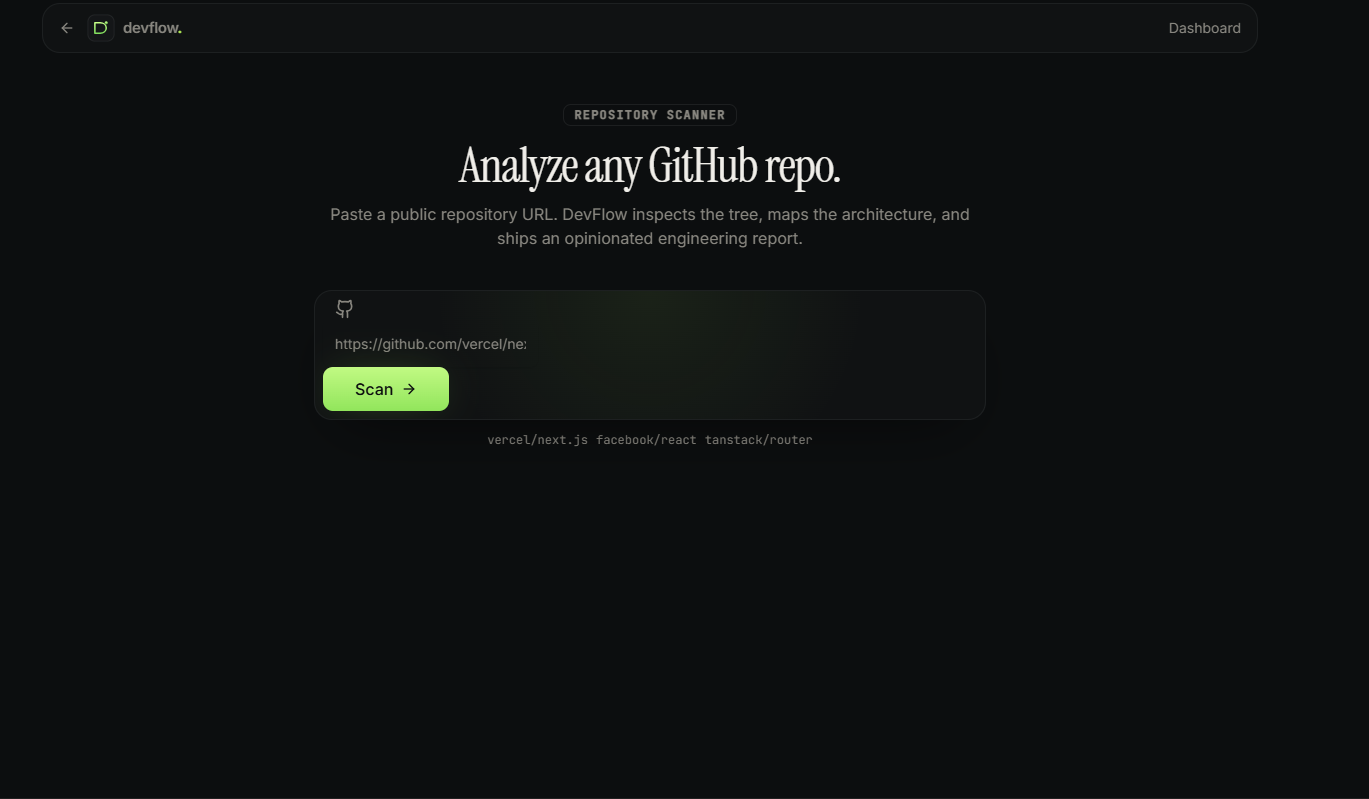

Instant repo audit — paste a public GitHub URL and get a structured analysis: summary, tech stack, architecture overview, complexity score (0–100), and health score (0–100). Security & risk warnings — surface potential issues, outdated dependencies, and architectural smells. AI Repo Chat — ask questions like "Where is auth handled?" or "Explain the data flow for checkout" and get grounded answers. Beautiful dashboard — track every scan you've run, with charts, history, and exportable insights. How we built it The stack is intentionally lean and modern:

Frontend — React 19 + TanStack Start (SSR + file-based routing) with Tailwind CSS v4 and shadcn/ui. We designed a fully custom dark-mode design system with a violet→cyan signature gradient, glass cards, and Framer Motion micro-interactions. Backend — Lovable Cloud (managed Postgres + Auth + Edge Functions) for persistence, RLS-secured tables (profiles, repo_scans, chat_threads, chat_messages), and server-side logic via TanStack createServerFn. AI layer — Lovable AI Gateway streaming google/gemini-2.5-flash for repo analysis and chat. We pass a structured JSON schema in the prompt and validate responses with Zod for reliable, typed output. GitHub ingestion — unauthenticated GitHub REST API to fetch repo metadata, file tree, and key files. Optional user PAT for higher rate limits and private repos. The core scan pipeline:

// src/lib/scanner.functions.ts const result = await generateText({ model: gateway("google/gemini-2.5-flash"), system: "You are a senior staff engineer auditing a repo. Return JSON only.", prompt: buildPrompt(repoMeta, fileTree, readme), });

const analysis = analysisSchema.parse(JSON.parse(result.text)); await supabase.from("repo_scans").insert({ user_id, repo_url, results: analysis }); What we learned Structured output is harder than it looks. Our first version used Output.object() and broke silently across models. Switching to a JSON-prompt + Zod parse made the pipeline rock-solid. SSR-safe server functions matter. TanStack Start's import protection caught a half-dozen sneaky client-only modules leaking into server bundles — a great forcing function for clean architecture. Design is a feature. Spending the time on a real design system (gradients, glass, motion) made every other feature feel 10× more polished. RLS is non-negotiable. Every table has row-level security from day one. No shortcuts. Challenges we ran into Build-time import protection failures — TanStack Start refuses to bundle client-only code into the server. We refactored the router and Supabase client setup multiple times until the boundaries were clean. AI reliability — early versions hallucinated fields and broke the UI. We added a strict Zod schema, retries, and human-readable error messages for rate limits (429) and credit exhaustion (402). GitHub API limits — unauthenticated requests cap at 60/hour. We added clear 403/429 error states and a settings page for users to add a personal access token. Streaming + persistence — coordinating streamed AI tokens with database writes without dropping data took a few iterations to get right. What's next Architecture visualization with React Flow (interactive node graph of the codebase). Contributor insights dashboard with commit/PR analytics. AI-generated README and migration guides, exportable as PDF. Team workspaces with shared scan history.

Built With

  • ai-sdk
  • edge-functions
  • framer-motion
  • github-rest-api
  • google-gemini
  • lovable-ai-gateway
  • lovable-cloud
  • lucide-react
  • postgresql
  • react
  • react-19
  • recharts
  • row-level-security
  • shadcn-ui
  • supabase
  • supabase-auth
  • tailwindcss
  • tailwindcss-v4
  • tanstack-query
  • tanstack-router
  • tanstack-start
  • typescript
  • vite
  • zod
