Modern codebases are becoming increasingly complex, often feeling like impenetrable “black boxes” to new contributors—or even seasoned developers jumping into a new module.

We were inspired by the idea of a “Mind Map for Code”:
a tool that goes beyond raw source files and provides a high-fidelity, interactive intelligence overlay revealing:

  • Hidden architecture
  • Data relationships
  • Team contributers and velocity for any repository.

What It Does

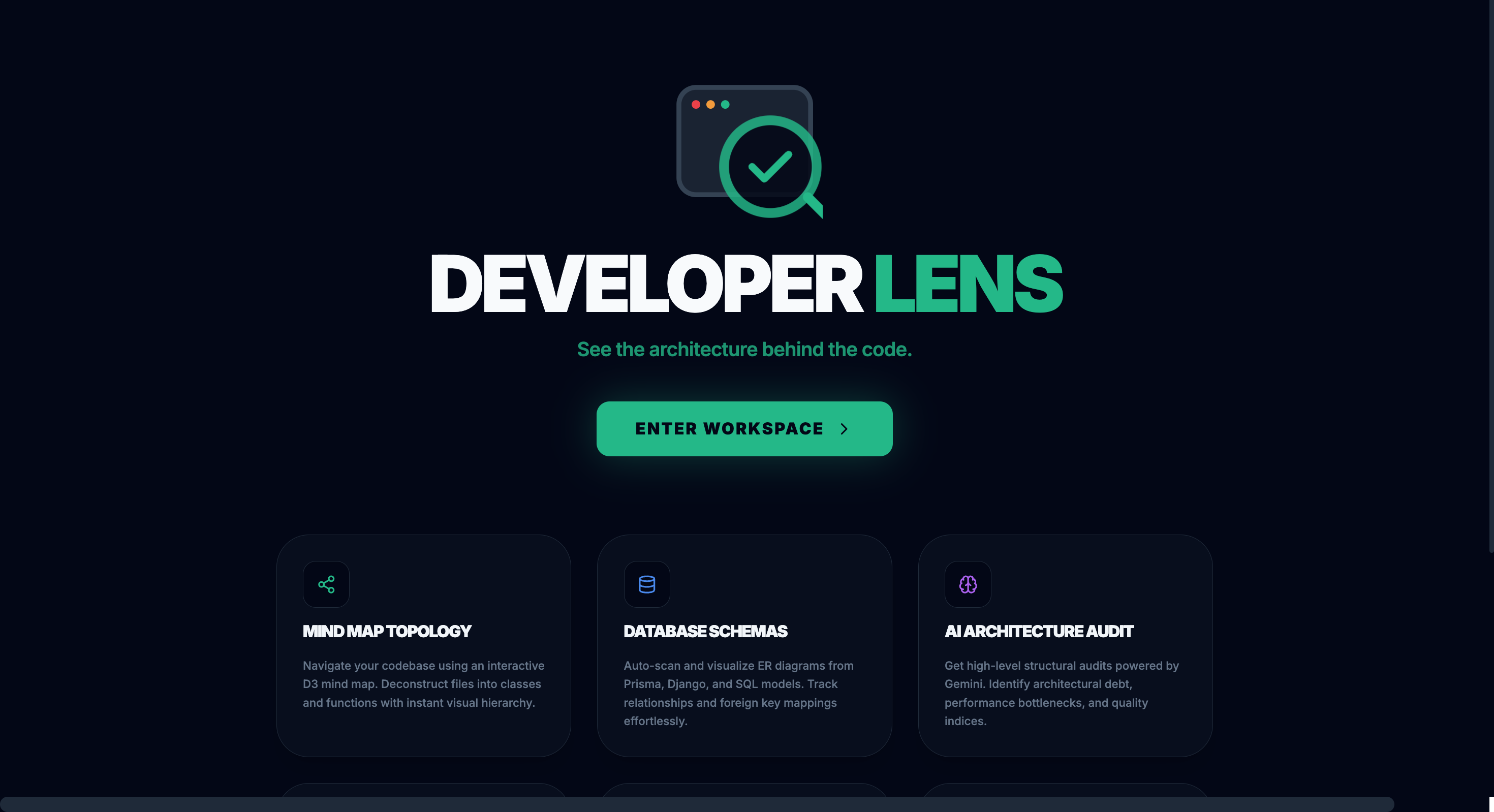

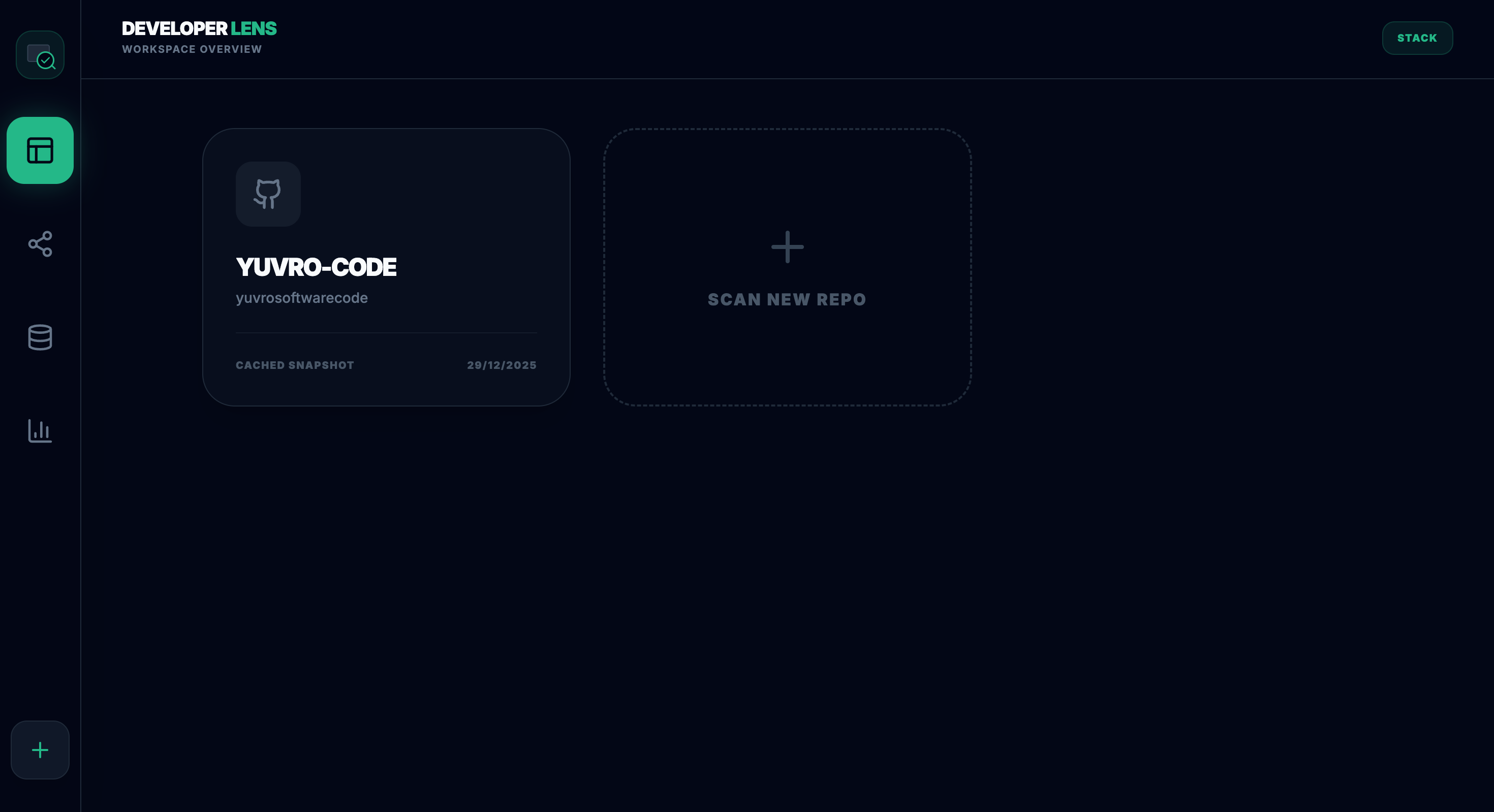

Developer Lens is an AI-powered architectural visualization platform that transforms any GitHub repository into a multi-dimensional mental map through four distinct Lenses:

  • Tech Stack Lens

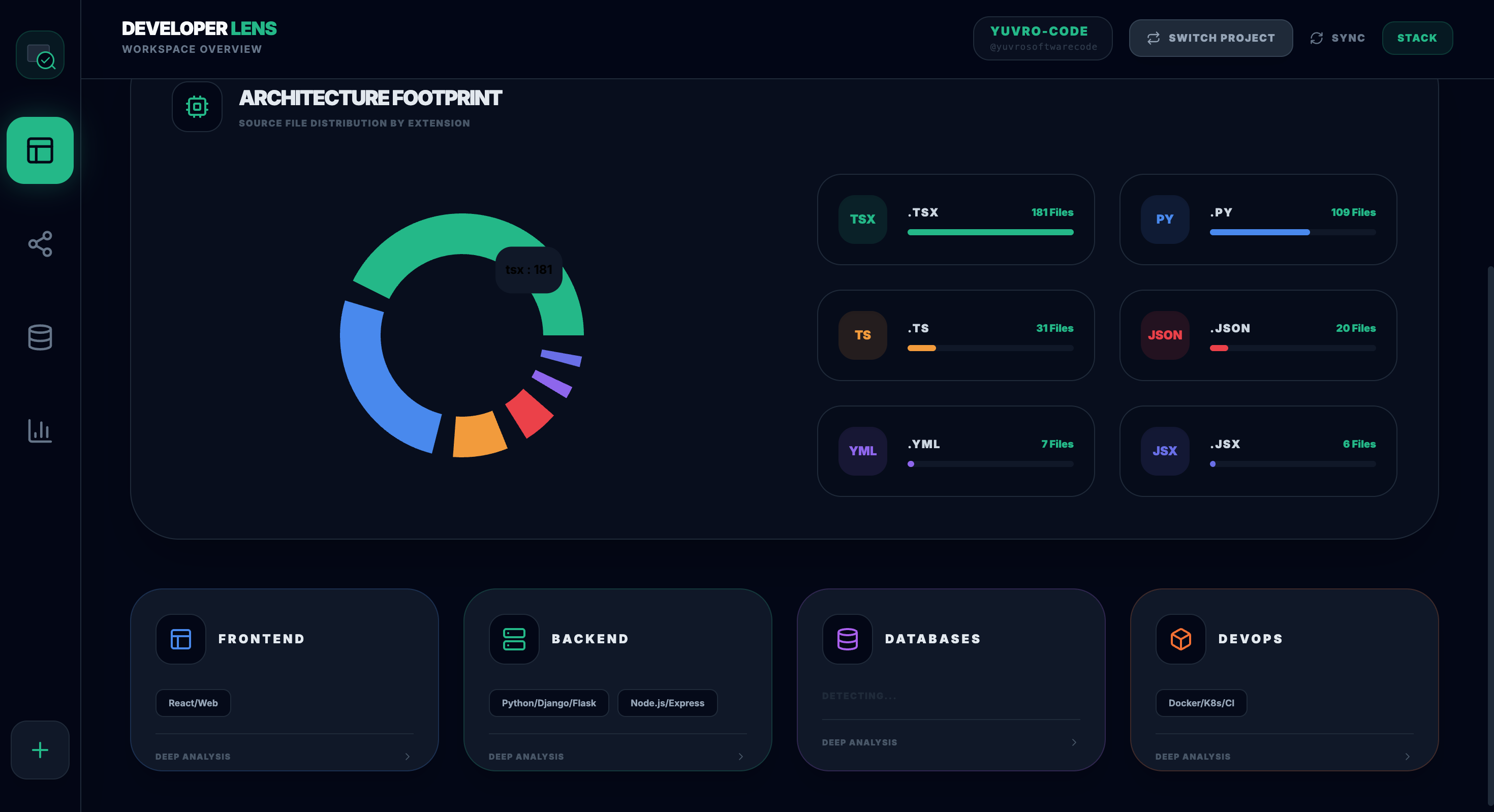

    • AI-driven analysis of:
    • Core architecture
    • Design patterns
    • Frameworks and libraries

  • Structural Topology Lens

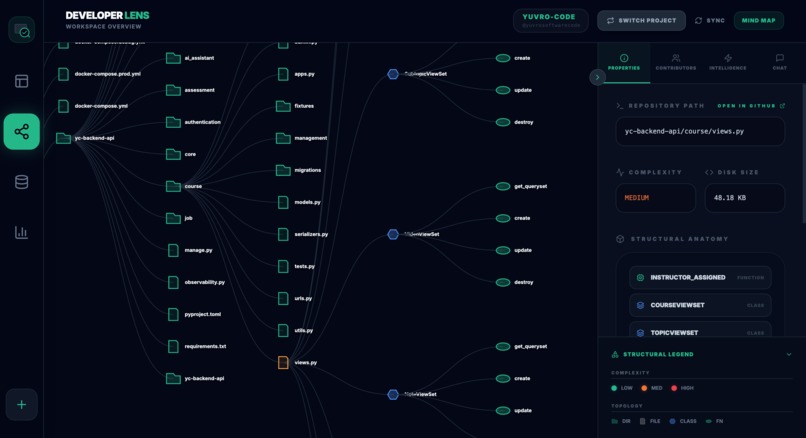

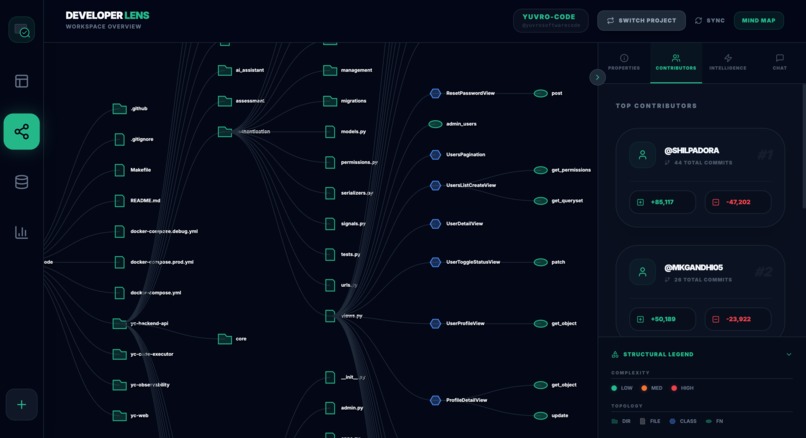

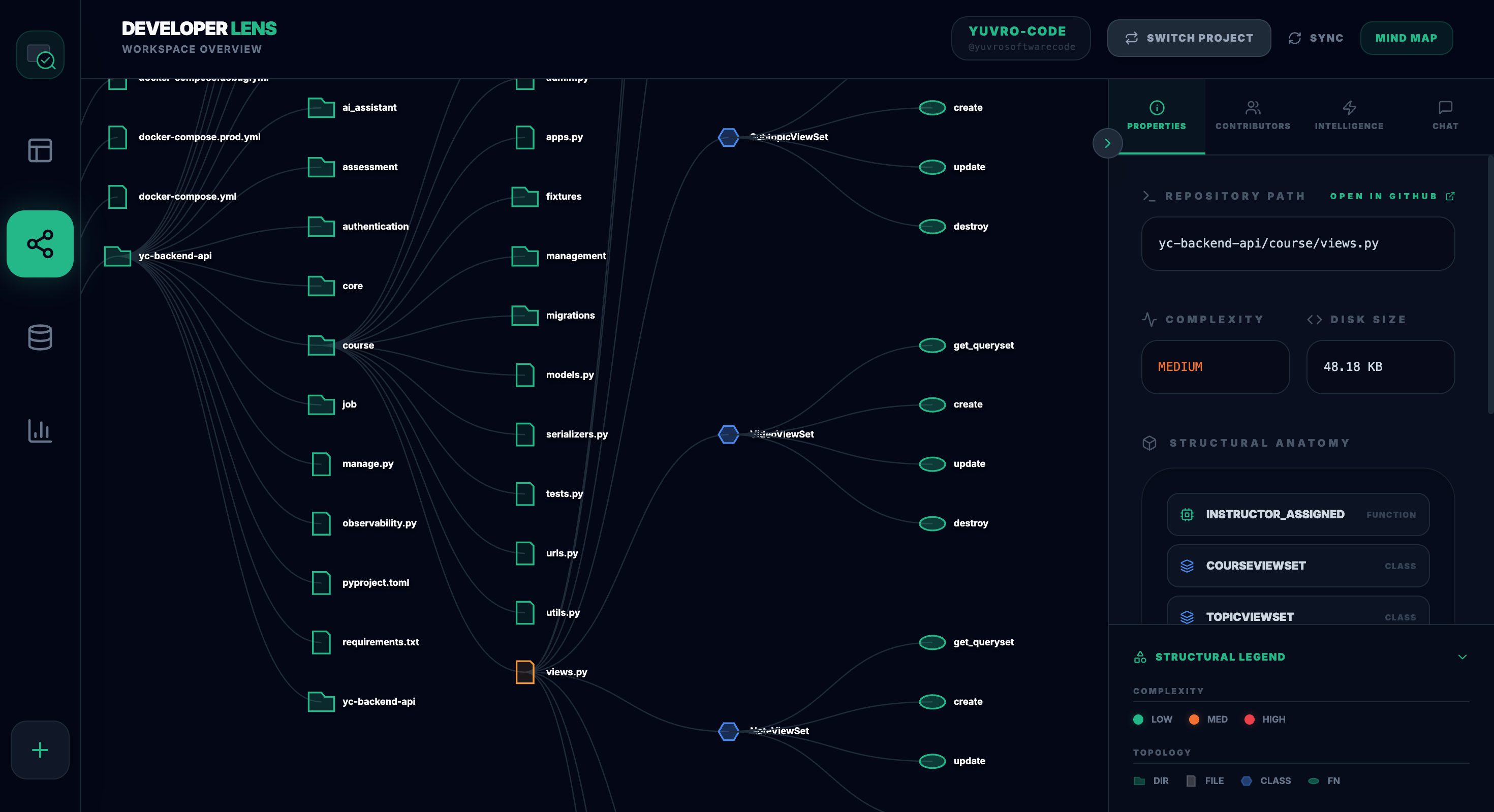

    • Dynamic D3-based Mind Map
    • Breaks directories down into:
    • Files
    • Classes
    • Methods
    • Functions

  • Database Schema Lens

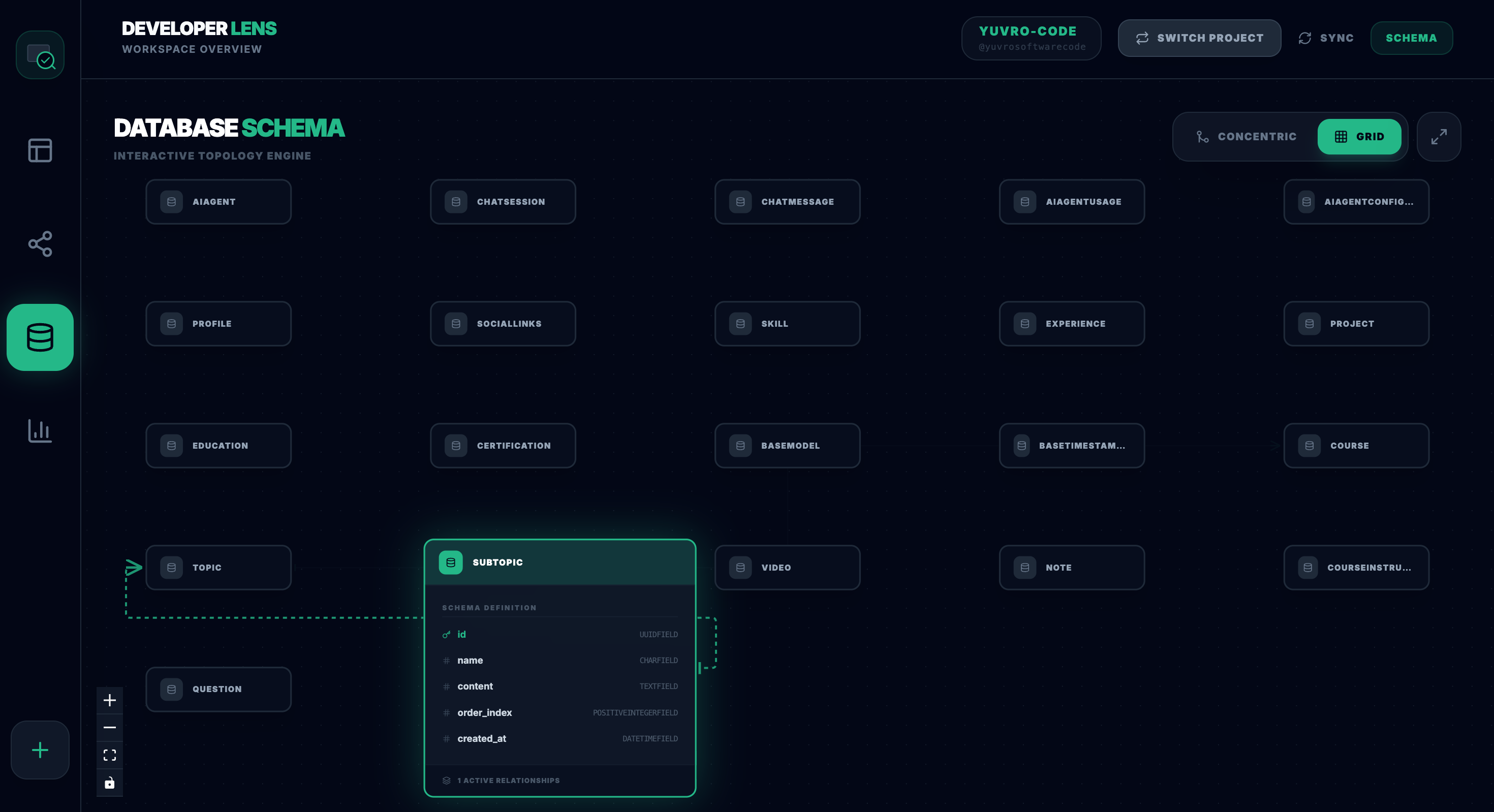

    • ReactFlow-powered ER diagrams
    • Intelligent layouts:
    • Grid
    • Concentric
    • Automated Crow’s Foot relationship markers

  • Git Analytics Lens

    • Deep insights into:

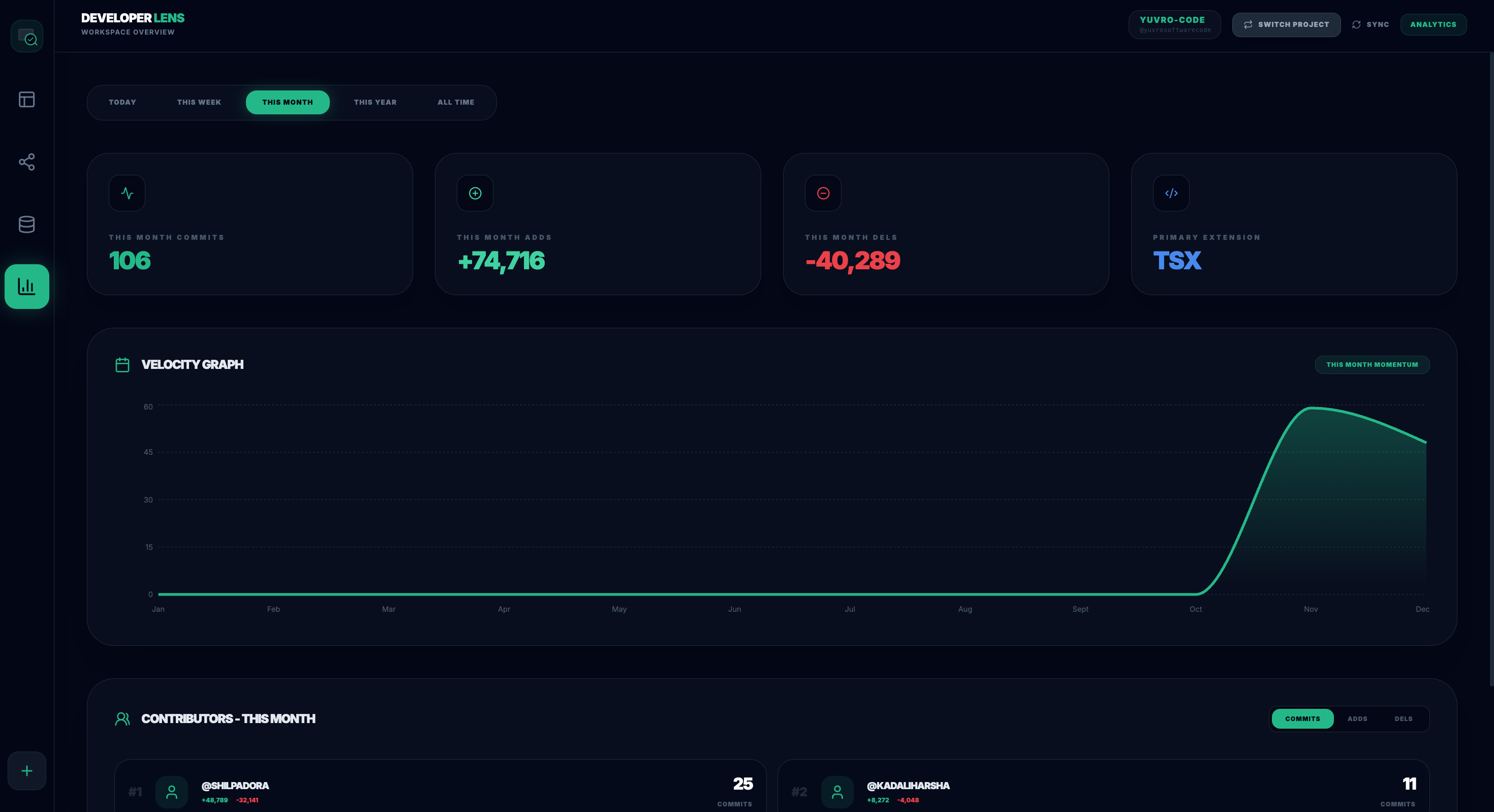

    • Commit velocity
    • Contributor impact
    • Codebase growth over time

  • Intelligence Sidecar

    • Built-in AI chat
    • Lets you “talk” to your codebase to:
    • Understand logic flow
    • Identify bugs
    • Explore architectural decisions

How We Built It

The platform uses a modern, high-performance stack focused on visual excellence and developer experience:

  • Tools / IDE

  • Frontend

    • React
    • TypeScript
    • Vite (for lightning-fast builds)

  • Topology Engine

    • D3.js for hierarchical mind-mapping
    • ReactFlow for interactive database modeling

  • AI Core

    • Google Gemini 1.5 Pro
    • Integrated via @google/genai SDK
    • Used for:
    • Architectural reasoning
    • Conversational context

  • Data Layer

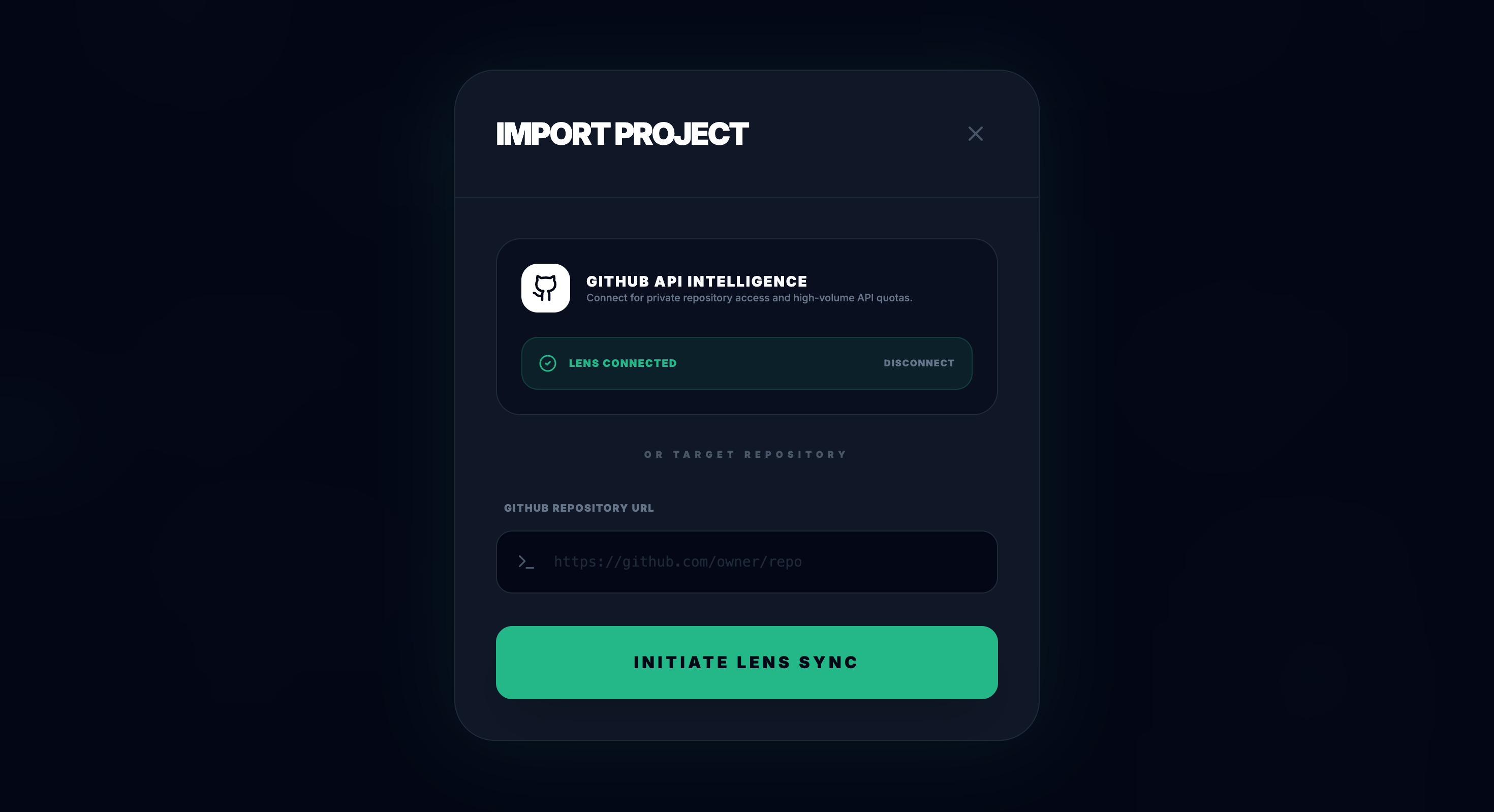

    • Direct GitHub API integration
    • Real-time repository scanning
    • Metadata extraction

  • Layout Logic

    • Dagre engine
    • Automated positioning for complex trees and flows

Challenges We Ran Into

  • Universal Code Parsing

    • Extracting meaningful structure across:
    • Python
    • JavaScript
    • TypeScript
    • Required building a robust abstract parser
    • Needed to distinguish:
    • Async methods
    • Variables
    • Functions
    • Classes

  • Database Relationship Visualization

    • Initial approach used manual SVG pathing
    • Quickly became unmaintainable
    • Migrated mid-project to ReactFlow
    • Massive refactor
    • Essential for:
      • Orthogonal routing
      • Clean line-crossing
      • Professional-grade diagrams

Accomplishments We’re Proud Of

  • Built a language-agnostic parsing system capable of extracting meaningful architectural structure
  • Successfully migrated an entire schema visualization system mid-project
  • Achieved:
    • Clean orthogonal routing
    • Scalable ER diagrams
    • High-fidelity visual clarity for complex systems

What We Learned

  • Visual Hierarchy Matters

    • Simply rendering nodes is not enough
    • Effective visualization requires:
    • Interactive highlighting
    • Progressive disclosure
    • Hiding complexity until requested

  • AI Grounding Is Critical

    • Learned how to feed:
    • Directory structures
    • Dependency graphs
    • Into LLMs to get:
    • Accurate architectural explanations
    • Actionable insights instead of hallucinations

What’s Next for Developer Lens

  • Backend Persistence Engine

    • Move beyond localStorage
    • Node.js / Go + PostgreSQL
    • Persistent storage for:
    • Project analytics
    • AI insights
    • Schema history

  • Team Collaboration

    • Shared workspaces
    • Real-time annotations on:
    • Mind Maps
    • Database Schemas

  • Multi-Cloud Support

    • GitHub (current)
    • GitLab
    • Bitbucket
    • Local directory scanning

  • Direct-to-Editor Integration

    • Click a node → open exact line in:
    • VS Code
    • JetBrains IDEs

  • PR Intelligence

    • A dedicated Review Lens
    • Visualizes:
    • Pull Request impact
    • Changes to overall system topology
