Compliant Prosthetic Finger Design

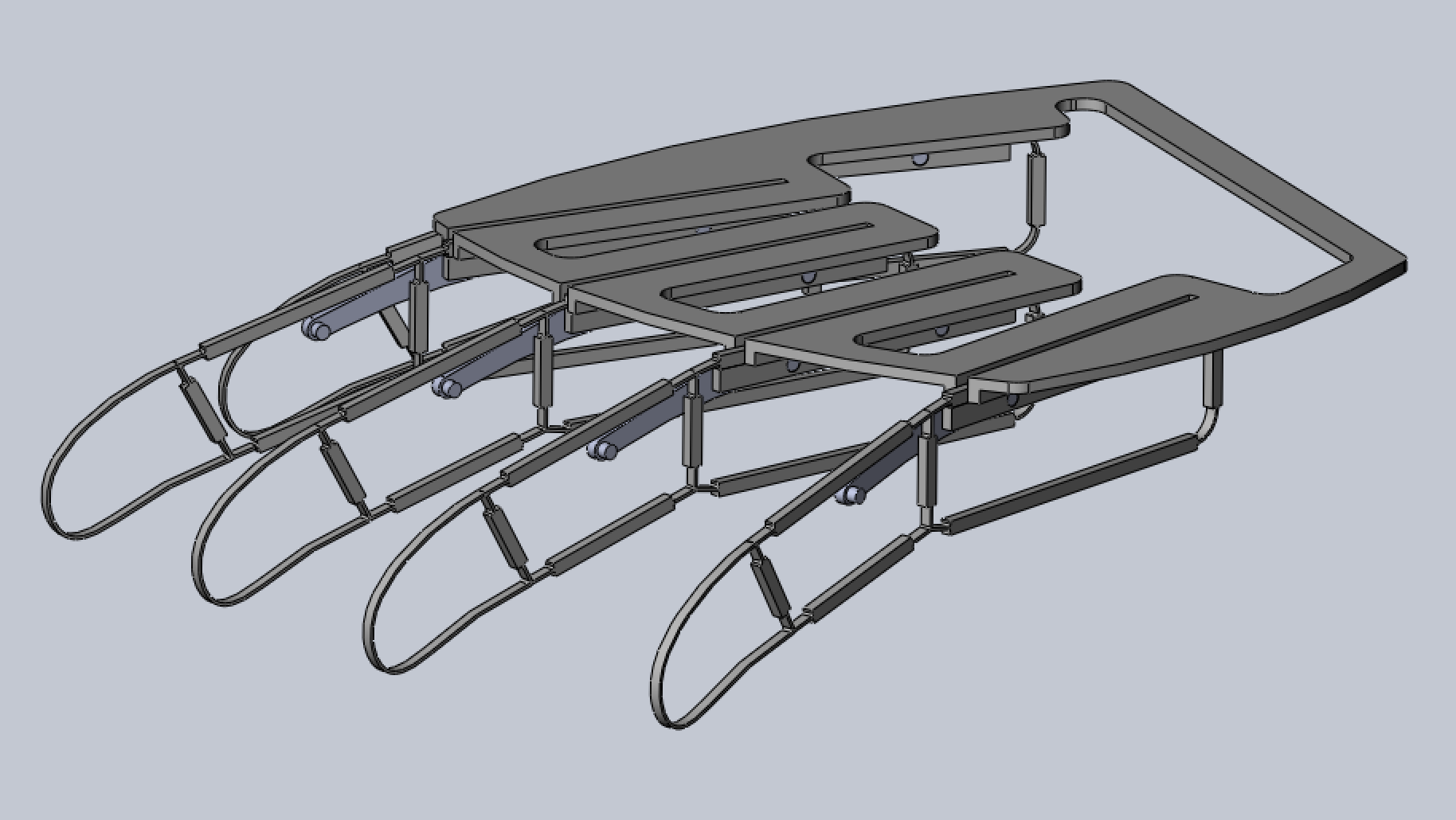

Complete Hand Model

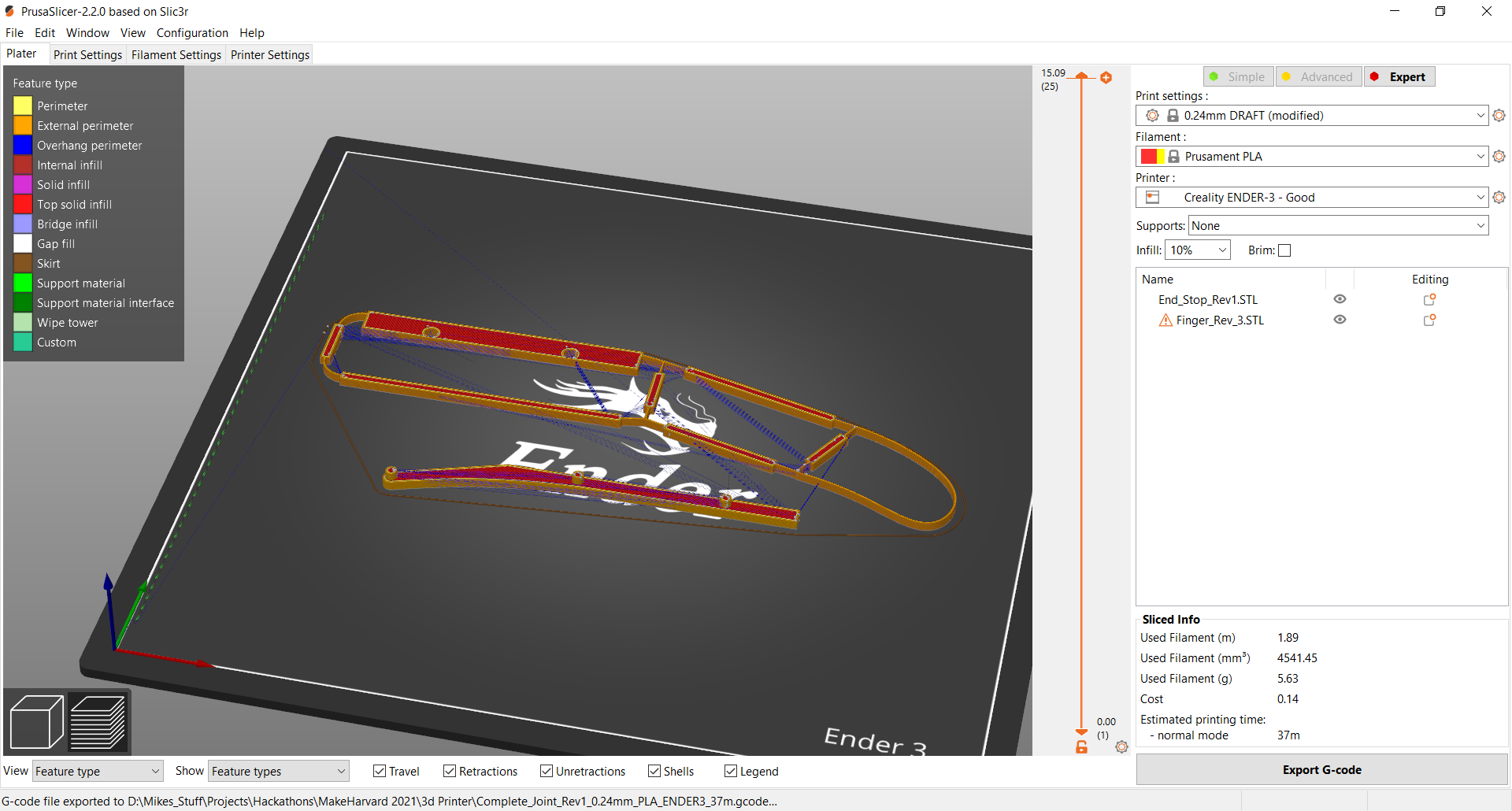

Slicing of A Design

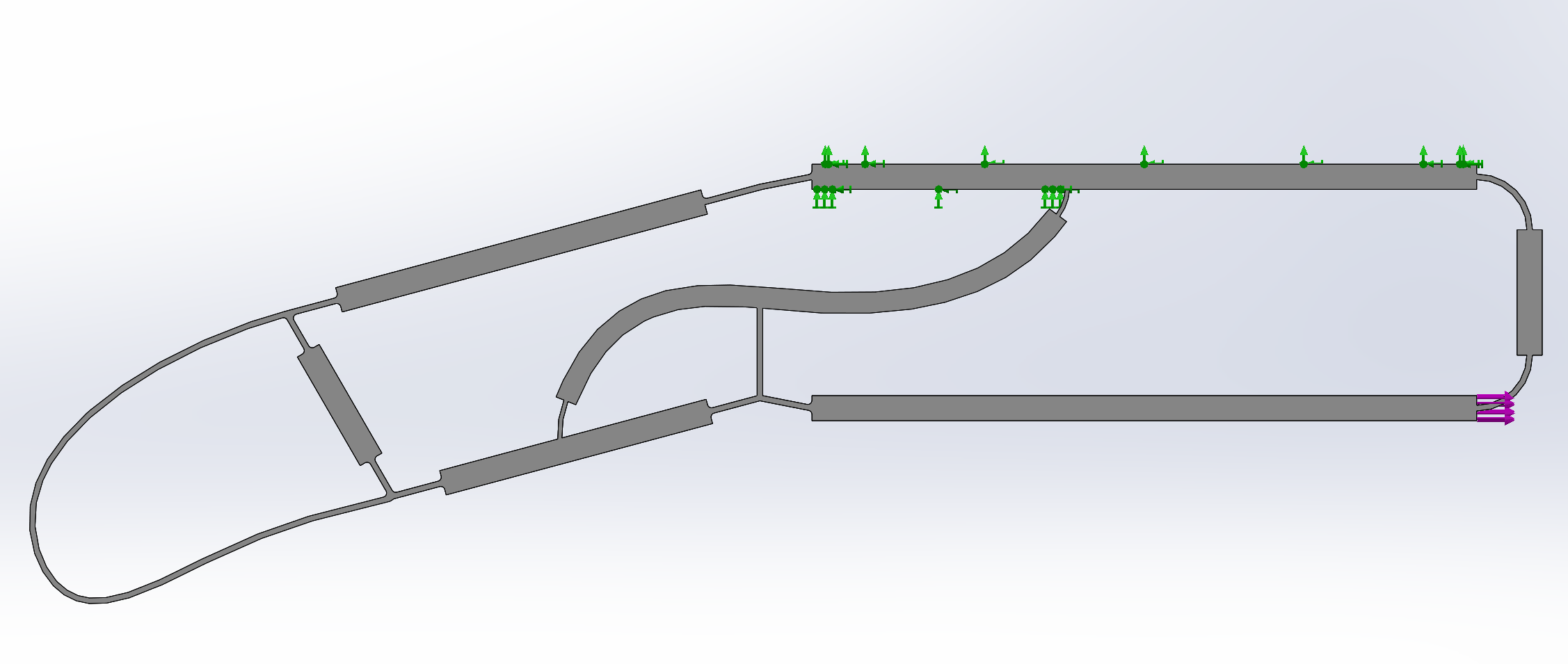

FEA of a Test Design

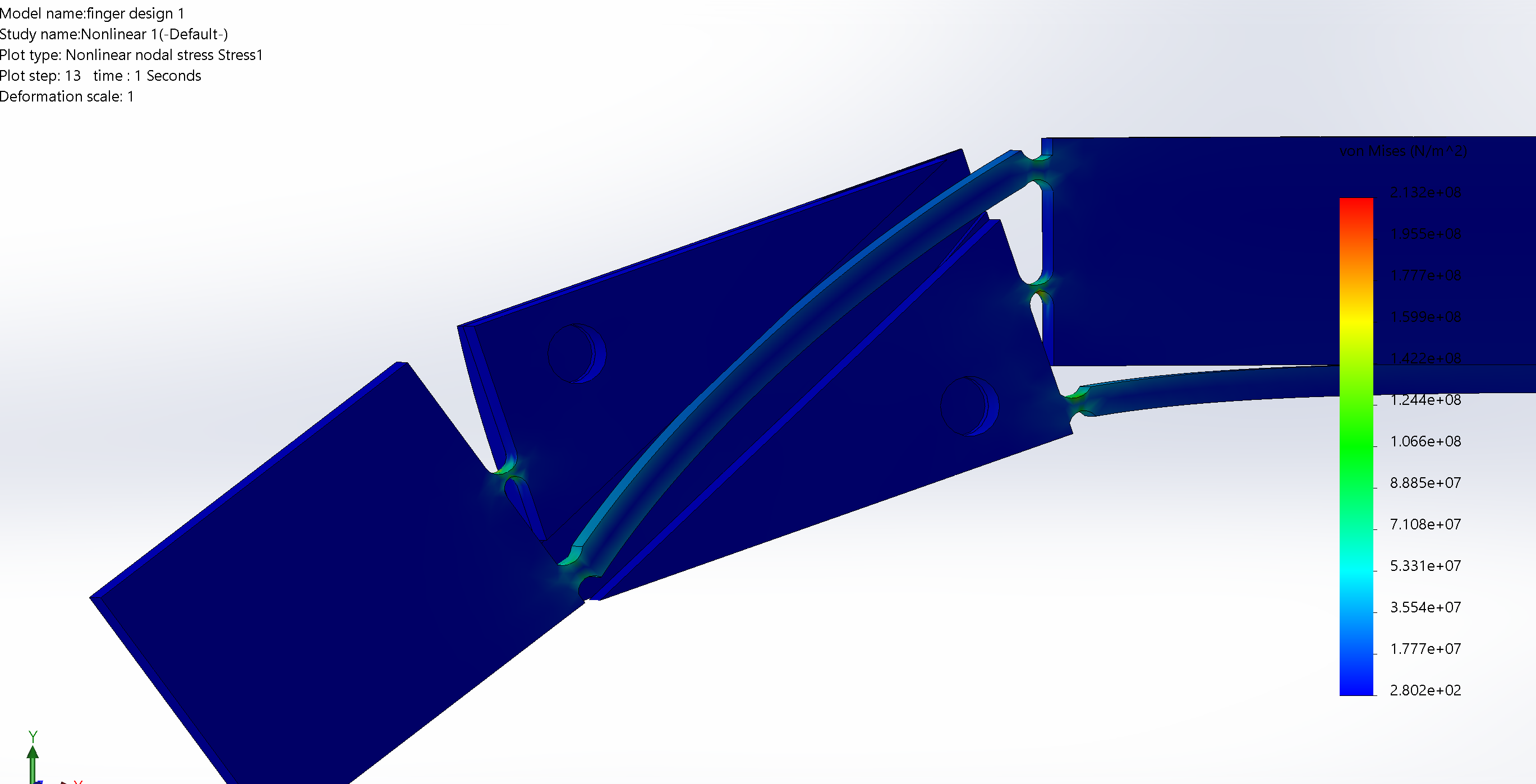

Another FEA of Possible Design
FEA of Possible design

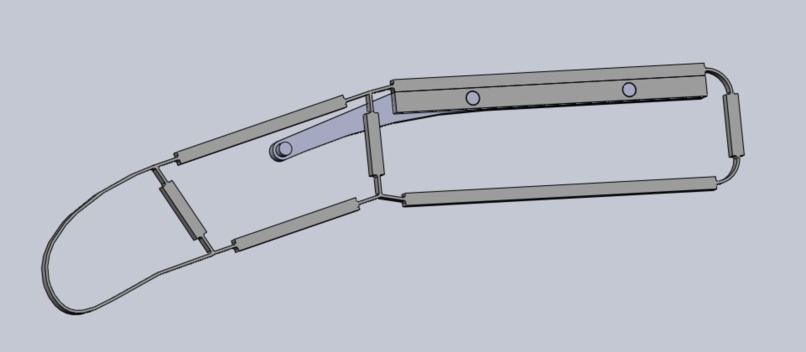

Final Design

Inspiration

Scott is a mechanical engineer who has been working on myoelectric prosthetic hand development and wanted to explore the usage of compliant mechanisms to create a simple, cost-effective solution for finger movements. Brian and Michael are electrical engineers with a passion for creation of novel designs with 3d printing and rapid prototyping techniques.

What It Does

The prosthetic finger utilizes compliant flexure joints culminating in a mechanism with naturalistic finger kinematics that has the benefits of: a reduced parts count (a "print-in-place" design), being light-weight and cost effectiveness -- make it more accessible and practical for the millions of amputees in low socioeconomic situations.

How We Built It

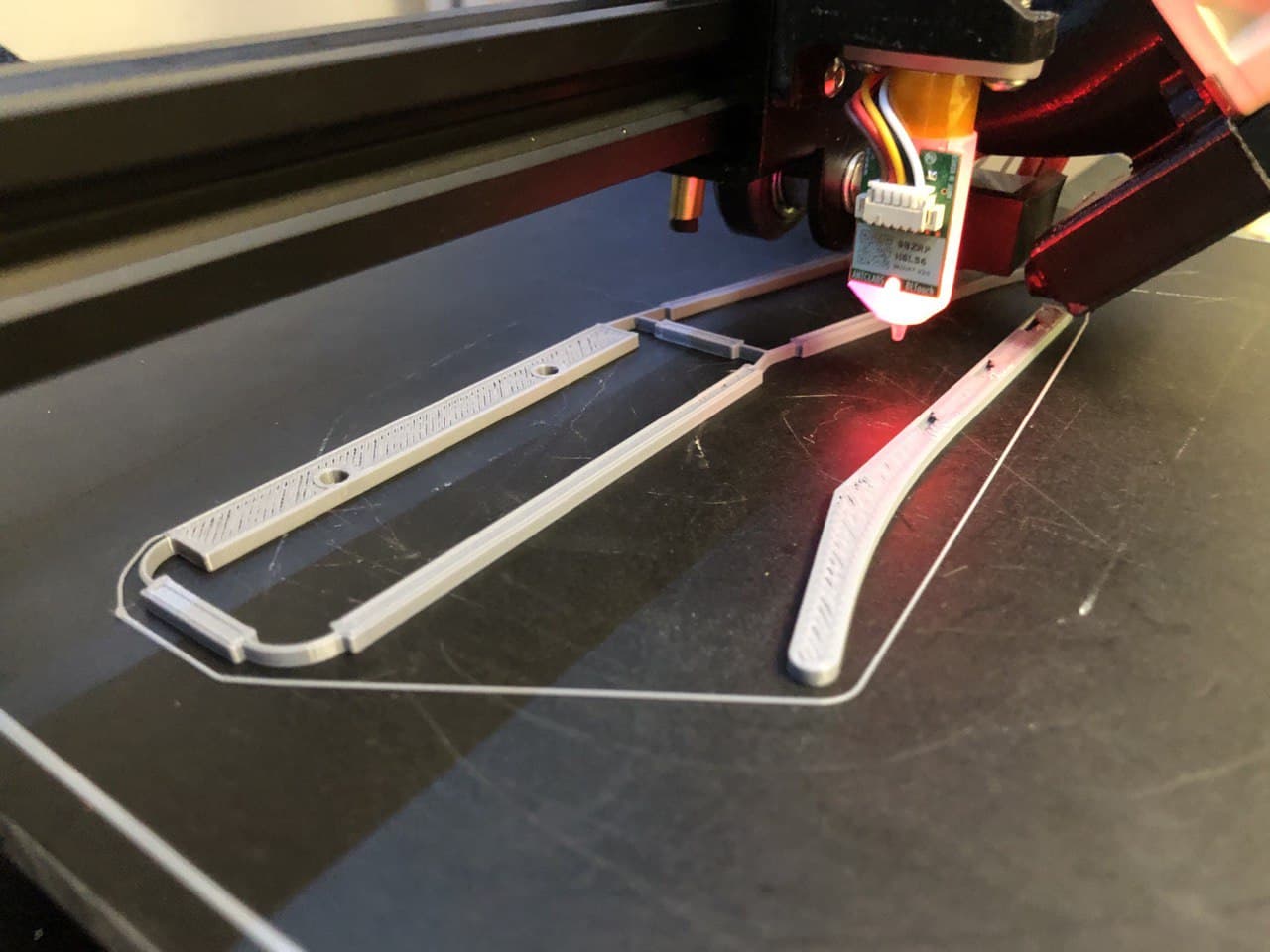

All design and simulation were done with Solidworks. Parts were fabricated on x2 Ender 3 3d printers with PLA and the Prusa Slicer in order to optimize print times. Our workflow was very collaborative even though we were 500+ miles away; we were able to go through several iterations together.

Challenges

We were not previously well-versed in compliant mechanisms other than watching a cool Veritasium video link. After reading several research papers, we came up with a basic framework and began designing our own flextures. Utilizing traditional parametric based CAD for design of compliant mechanisms was difficult, as was learning how to properly evaluate our joints in FEA simulations.

Accomplishments

We are proud of the fact that we have multiple iterative designs of a compliant mechanism for a prosthetic finger. We believe we have made promising strides toward our ultimate goal of developing a simple prosthetic design that can be widely accessible to individuals in low-income situations.

What We Learned

Brian worked on generating 3d printable designs within Solidworks while Michael utilized his 3d printer skills in order to create rapid prototypes. Scott learned the basics of FEA (Finite Element Analysis) in order to determine where our printable designs could use reinforcement in order to stand up to forces within the real world, and how we might optimize the design moving forward.

What's next for Design of a Compliant Mechanism for Prosthetics

We plan on further exploring the usage of these compliant mechanisms and refining the design. This concept can also possibly be integrated with Scott’s current myoelectric prosthetic hand.
