Deck Detective

Hit
Double Down
Stand

Inspiration

Our fascination with blackjack goes beyond just playing the game; we're intrigued by the mathematics and strategy that underpin it. We noticed that while many resources teach basic blackjack strategies, few offer interactive, real-time learning experiences that incorporate advanced concepts like card counting and strategy deviations. We wanted to create a tool that demystifies these complex strategies and makes learning them engaging and accessible. This inspired us to develop DeckDetective, an educational platform that combines computer vision with strategic gameplay to help players at all levels improve their understanding of blackjack.

What It Does

DeckDetective is an interactive educational tool designed to teach users optimal blackjack strategies through real-time simulation and feedback. Utilizing a camera, the system captures live images of the player's hand and the dealer's upcard. It then:

Detects and Recognizes Cards: Uses computer vision algorithms to identify the rank and suit of each card in play.
Provides Real-Time Strategy Suggestions: Offers immediate recommendations based on basic blackjack strategy, including when to hit, stand, double down, split pairs, or surrender.
Integrates Card Counting: Tracks the running count and calculates the true count to adjust strategy suggestions dynamically.
Incorporates Strategy Deviations: Advises players when to deviate from basic strategy based on the true count, introducing advanced strategic concepts.

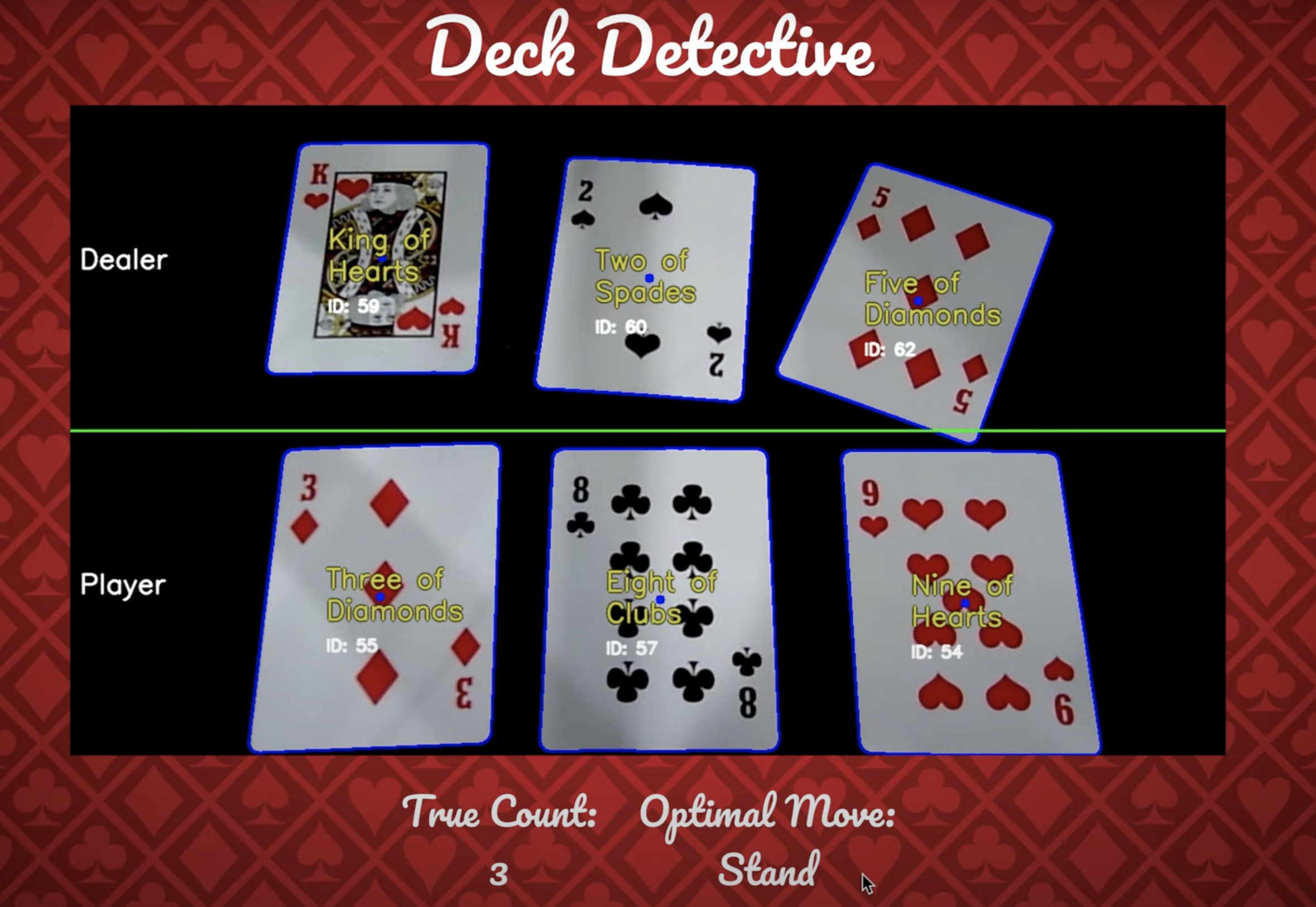

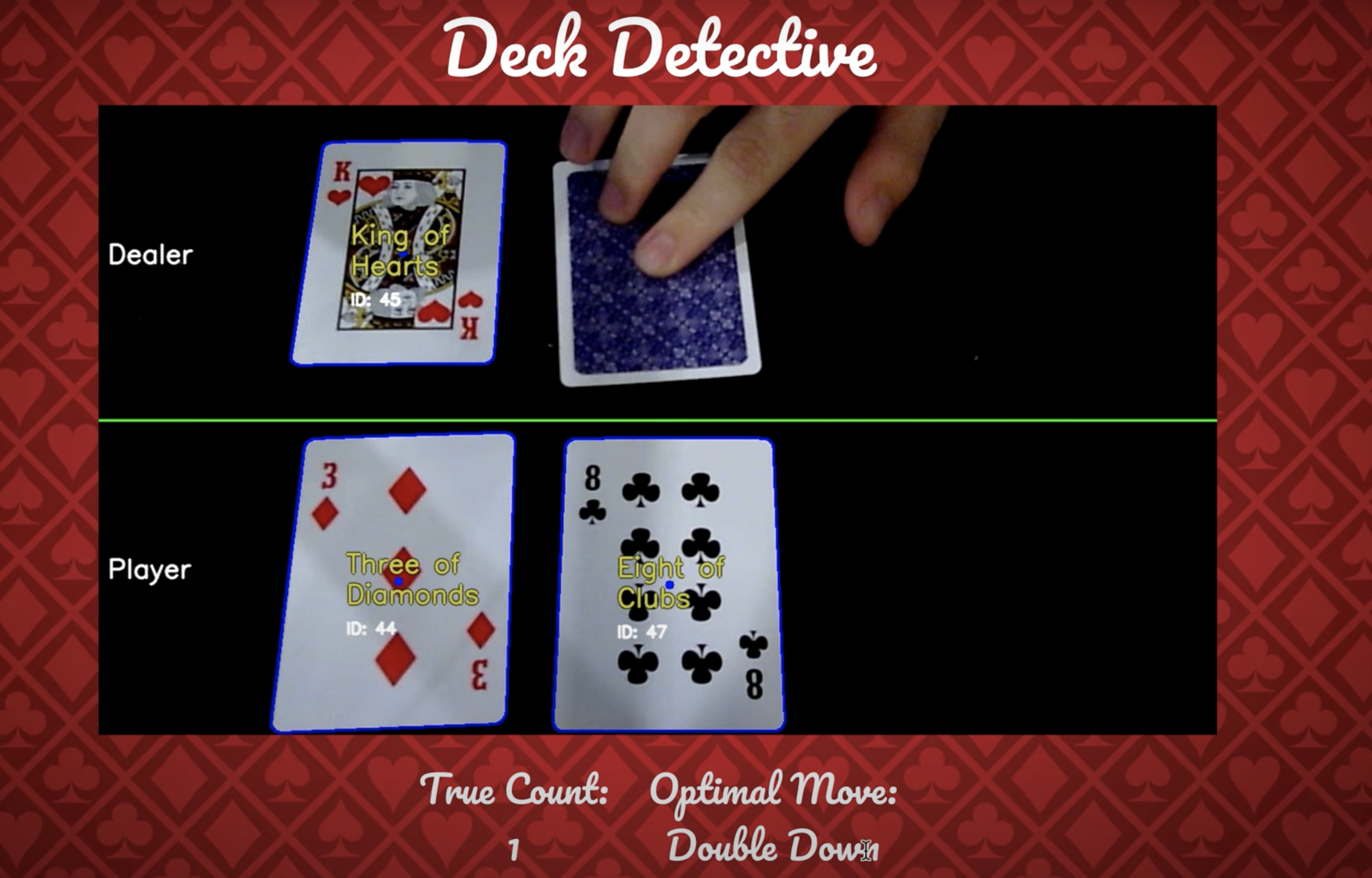

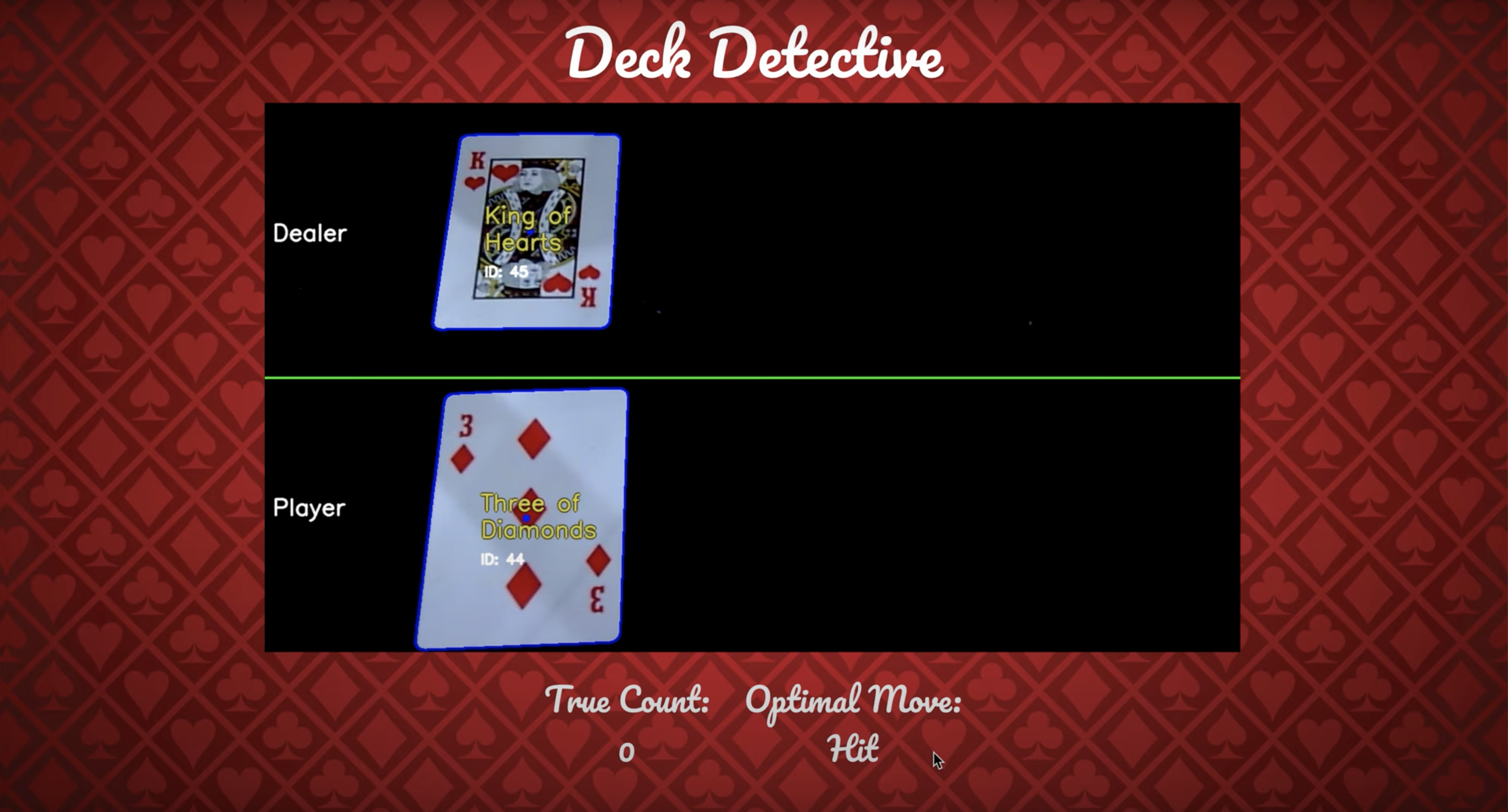

Visual Aids: Displays a live video feed with annotations, including detected cards, suggested actions, and visual separators between player and dealer areas.

How We Built It

We built DeckDetective using a combination of computer vision techniques, machine learning, and programming tools:

Computer Vision with OpenCV: Utilized OpenCV for image processing tasks such as thresholding, contour detection, and perspective transformation to isolate and recognize playing cards from the video feed.
Card Recognition Algorithms: Developed algorithms to match detected card images against a training set of card templates, accurately identifying the rank and suit.
Python Programming: Wrote the core application in Python, leveraging its libraries for image processing and real-time video capture.
Basic Strategy and Card Counting Logic: Implemented blackjack basic strategy rules and card counting logic within the program, allowing it to calculate running counts, true counts, and suggest optimal actions.
User Interface: Created an overlay on the video feed to display suggestions, counts, and other relevant information directly to the user.
Testing and Iteration: Conducted extensive testing with different lighting conditions and card positions to improve the robustness and accuracy of the card detection and recognition system.

Challenges We Ran Into

Building DeckDetective presented several challenges:

Card Recognition Accuracy: Ensuring accurate card detection and recognition was difficult due to varying lighting conditions, angles, and occlusions. We had to fine-tune our image processing parameters and improve our matching algorithms.
Real-Time Performance: Processing video frames quickly enough to provide real-time feedback required optimization of our code and algorithms to minimize latency.
Integrating Complex Strategies: Translating the nuanced rules of blackjack strategy and card counting into code was challenging, especially when accounting for strategy deviations based on the true count.
User Interface Design: Designing an intuitive and informative overlay that didn't distract from the learning experience required careful consideration of visual elements and information hierarchy.
Resource Limitations: Working within the constraints of standard webcams and computing resources meant we had to optimize our application for efficiency without sacrificing functionality.

Accomplishments That We're Proud Of

Successful Card Detection and Recognition: Achieved a high accuracy rate in detecting and recognizing cards in real-time, even under less-than-ideal conditions.
Real-Time Strategy Feedback: Developed a system that provides immediate and accurate strategy suggestions, enhancing the user's learning experience.
Integration of Advanced Concepts: Successfully incorporated card counting and strategy deviations into the tool, offering users insights into more sophisticated aspects of blackjack strategy.
User-Friendly Interface: Created a clean and informative visual overlay that effectively communicates important information without overwhelming the user.
Educational Impact: Developed a tool that can serve as a valuable resource for anyone looking to improve their understanding of blackjack, from beginners to advanced players.

What We Learned

Deepened Understanding of Computer Vision: Gained hands-on experience with image processing techniques and the challenges involved in real-time object detection.
Complexity of Game Strategy Implementation: Learned how intricate and nuanced implementing game strategies can be, especially when incorporating real-time data and advanced concepts like card counting.
Importance of User Experience: Recognized the critical role of a well-designed user interface in enhancing the educational value and overall usability of the tool.
Optimization Techniques: Improved our skills in optimizing code for performance, which is crucial for real-time applications.
Collaboration and Problem-Solving: Enhanced our ability to work as a team to overcome technical challenges and integrate different components into a cohesive application.

What's Next for DeckDetective

We see DeckDetective as a platform with significant potential for growth and enhancement:

Mobile Application Development: Expand the tool into a mobile app, making it more accessible and convenient for users to practice and learn on the go.
Enhanced Card Counting Training: Include tutorials and practice modes specifically focused on teaching users how to count cards effectively.
Multiplayer Simulation: Introduce features that allow multiple users to engage with the tool simultaneously, simulating real table conditions.
Additional Game Variations: Incorporate other casino games or blackjack variants, providing a broader educational scope.
Improved AI and Machine Learning: Utilize machine learning models to enhance card recognition accuracy and adapt to different decks or card styles.
Feedback and Analytics: Offer users detailed feedback on their decisions over time, helping them track their progress and identify areas for improvement.
Community and Sharing: Build a community around DeckDetective where users can share strategies, tips, and experiences.

Our ultimate goal is to make DeckDetective not just a tool but a comprehensive learning platform that empowers users to master blackjack strategies confidently and enjoyably.
