DATAFORENSIC AI

The organizational memory engine for DataHub: an agent that investigates data incidents, proves the root cause with evidence, and turns every resolution into reusable knowledge.

Comment

Inspiration

When a data metric breaks, the symptom is never where the cause is.

Revenue drops 18.5%, and someone has to reconstruct, by hand and under pressure: which dataset feeds that number, which pipeline writes it, what changed upstream, what else consumes it, who owns those assets, and what a safe fix looks like. We have all done that reconstruction. It takes an hour on a good day.

What bothered us is that it gets repeated from scratch every single time. The lineage, the schemas, the ownership, the change history — all of it already exists in DataHub. The context is not missing. What is missing is anything that reasons through it and gives the conclusion back.

So the resolution ends up in a ticket, the reasoning in a Slack thread, and the next person facing the same failure mode starts from zero. We wanted to build the thing that stops that from happening.

What it does

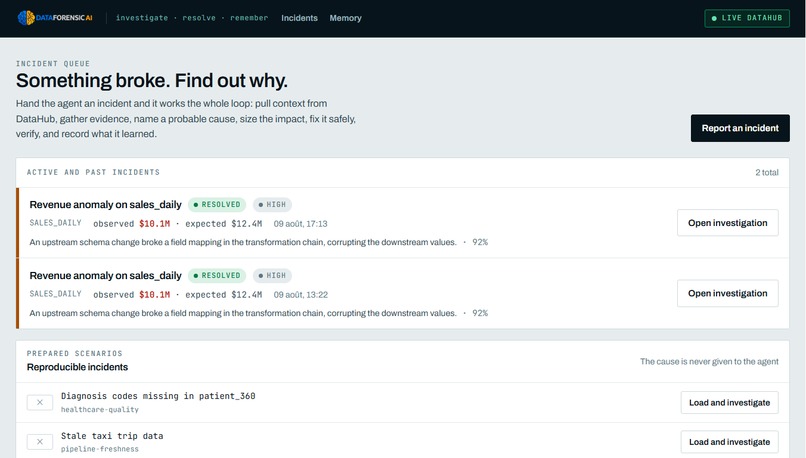

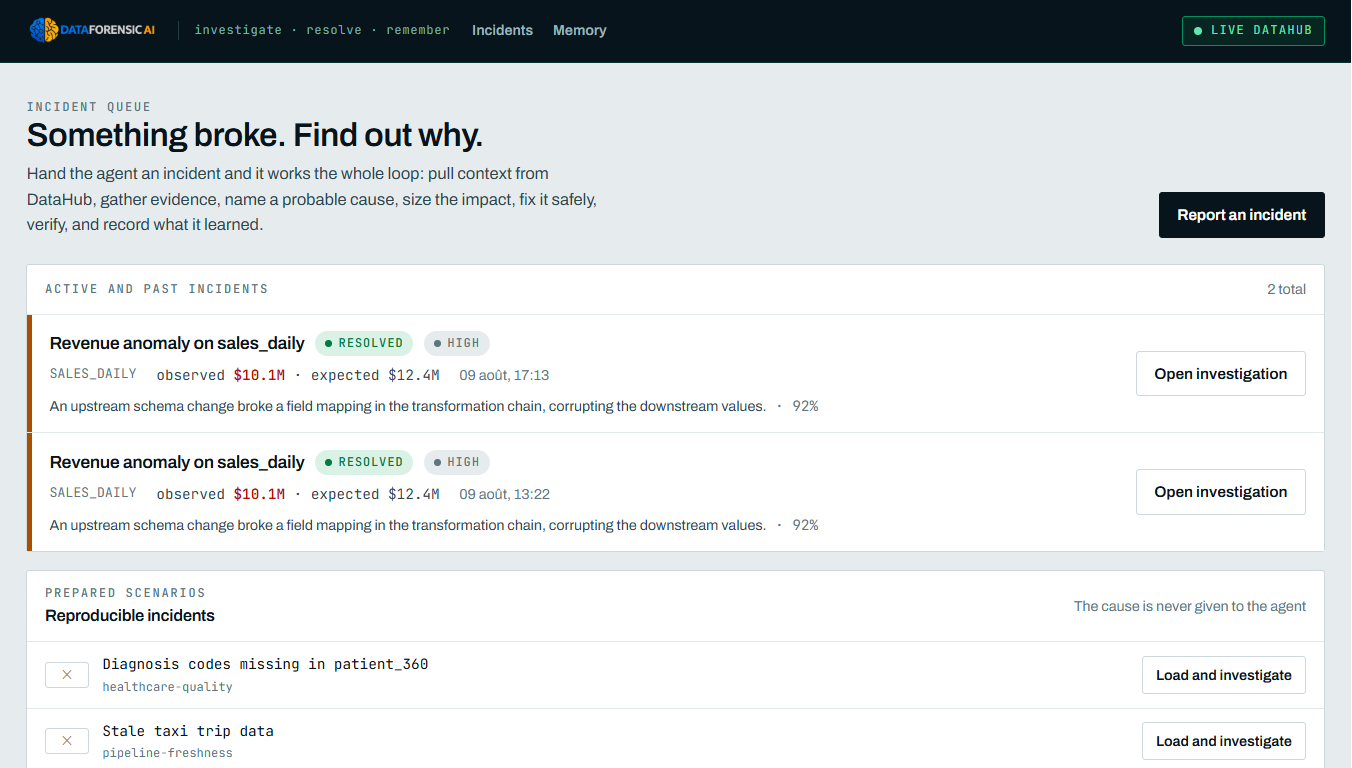

DATAFORENSIC AI takes an incident and runs the whole operational loop a data engineer would run by hand:

Incident → Context → Evidence → Root cause → Impact → Remediation → Verification
                                                                        ↓
                        future incidents start here  ←  Knowledge Pattern

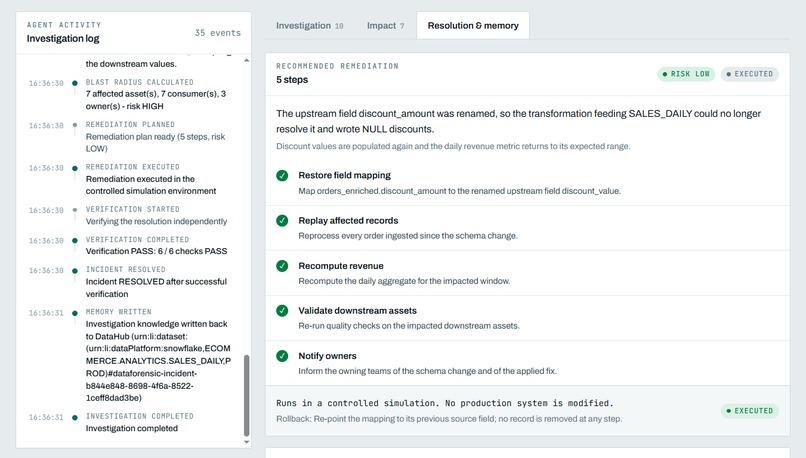

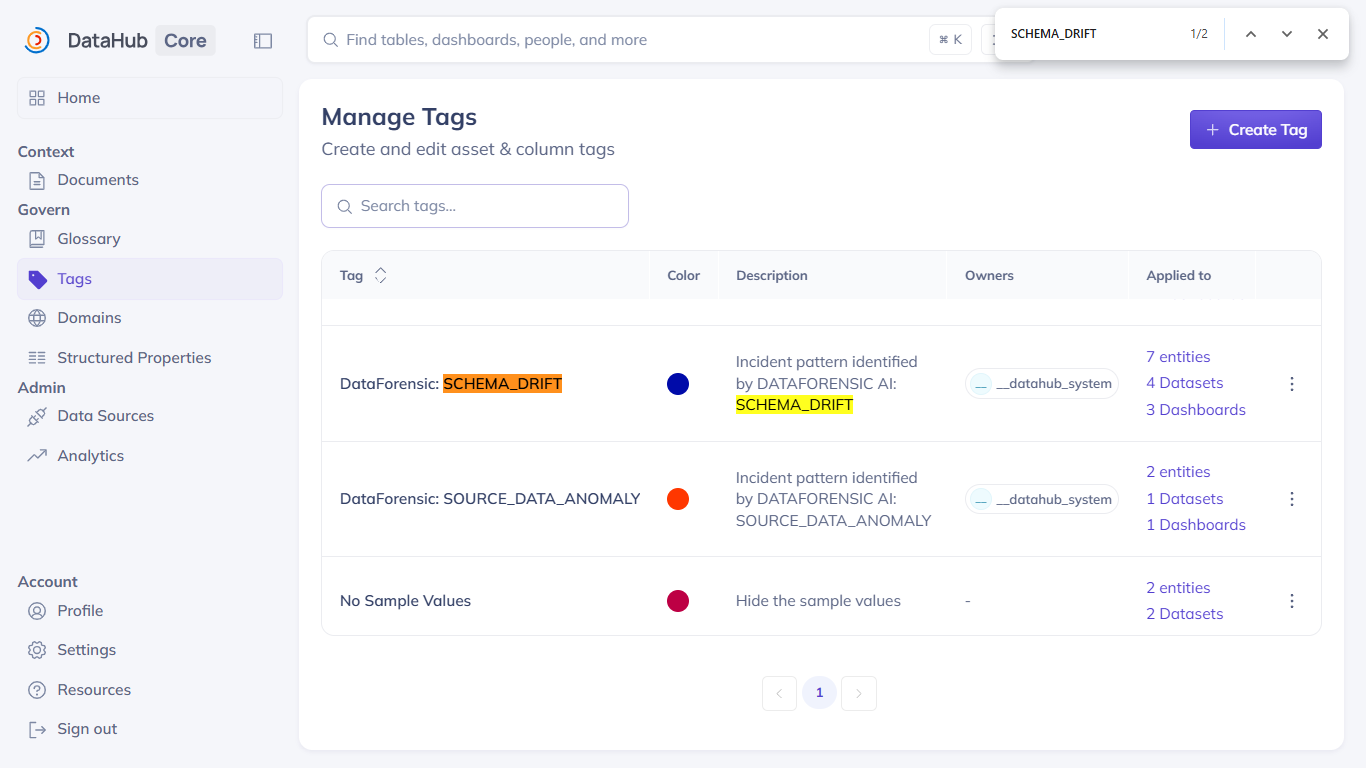

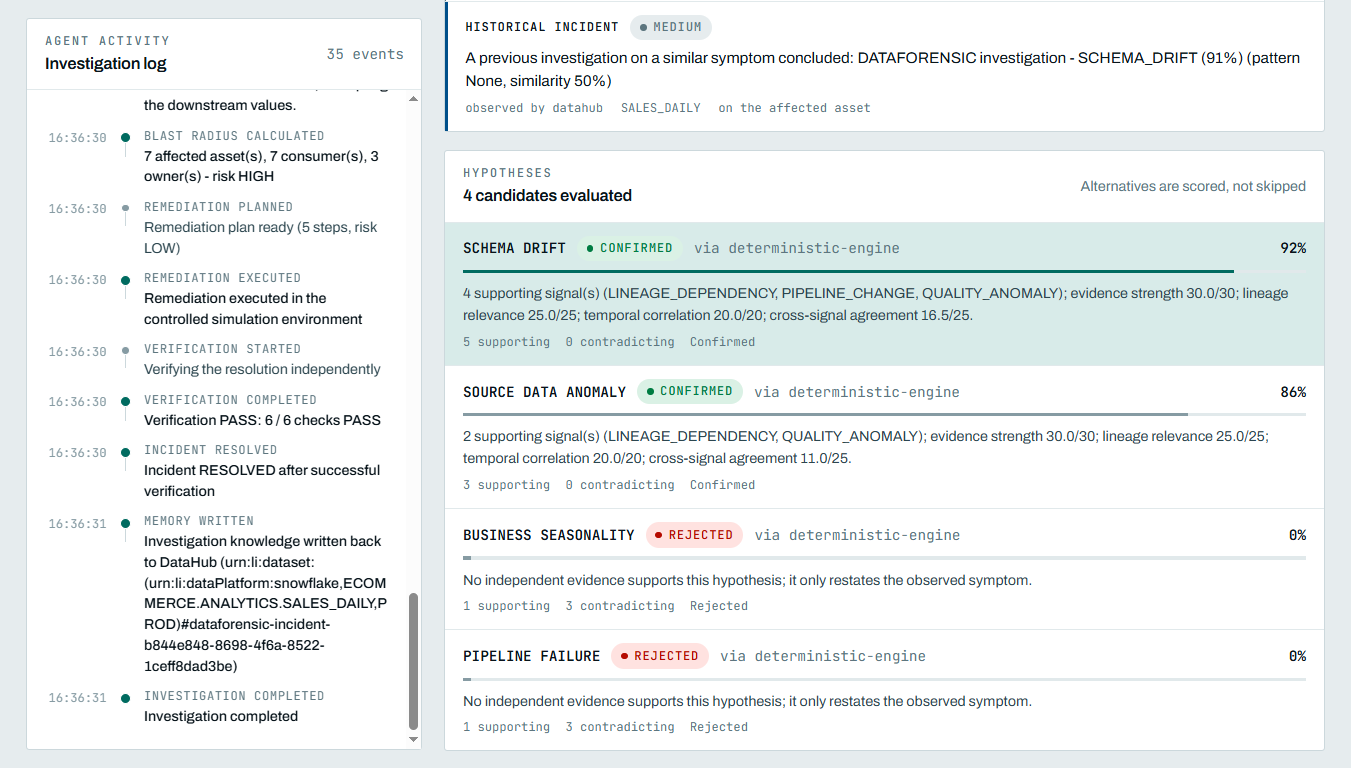

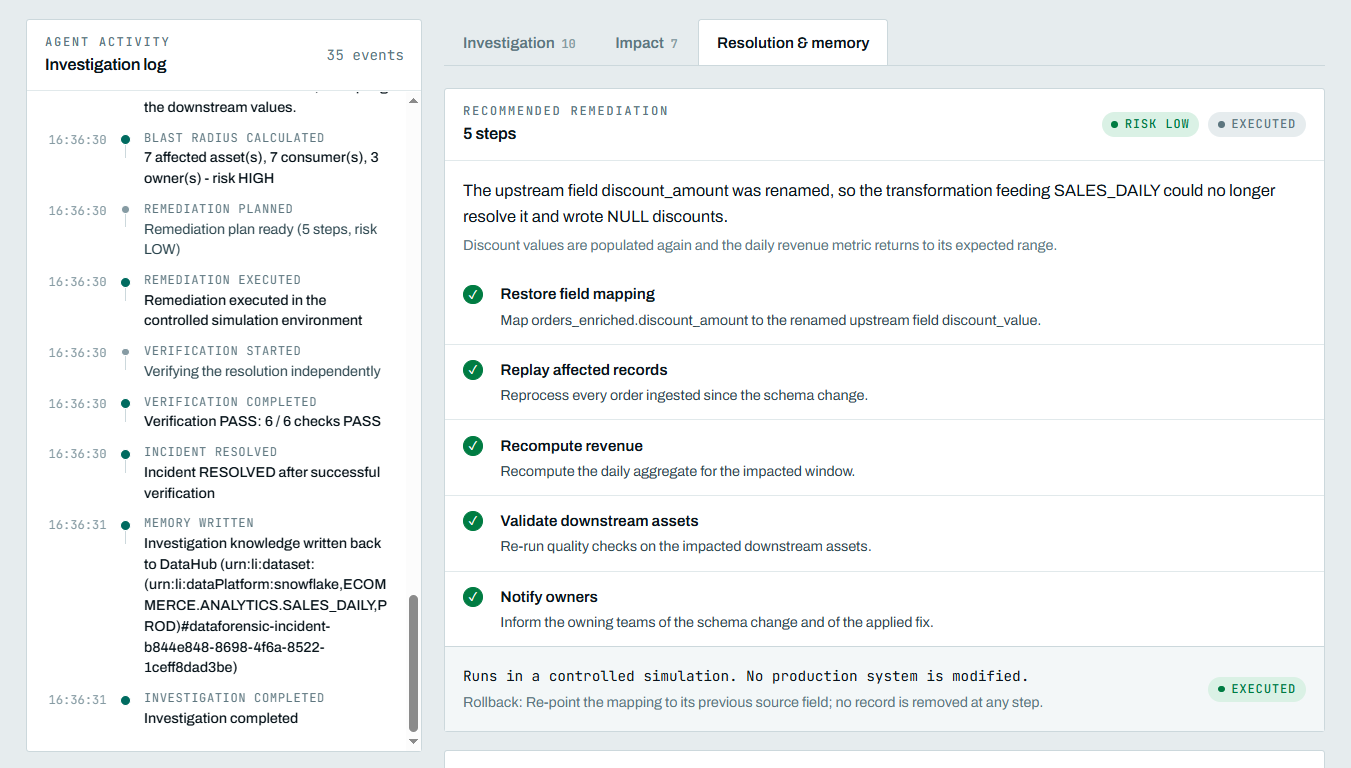

It pulls asset context, schemas, lineage, ownership and quality signals from DataHub; collects evidence with timestamps and provenance; generates and scores competing hypotheses; names a probable root cause with a visible confidence breakdown; computes the blast radius from real lineage; proposes and executes a remediation in a controlled simulation; verifies the outcome; and writes the finished investigation back into DataHub as a tag and a report the next investigation can find.

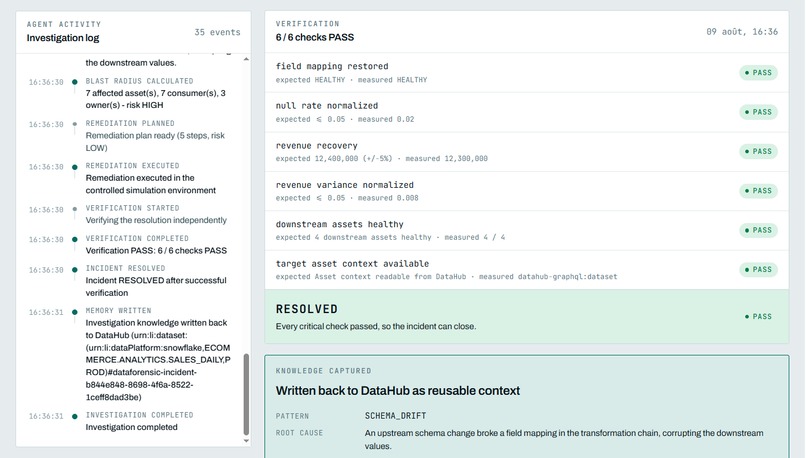

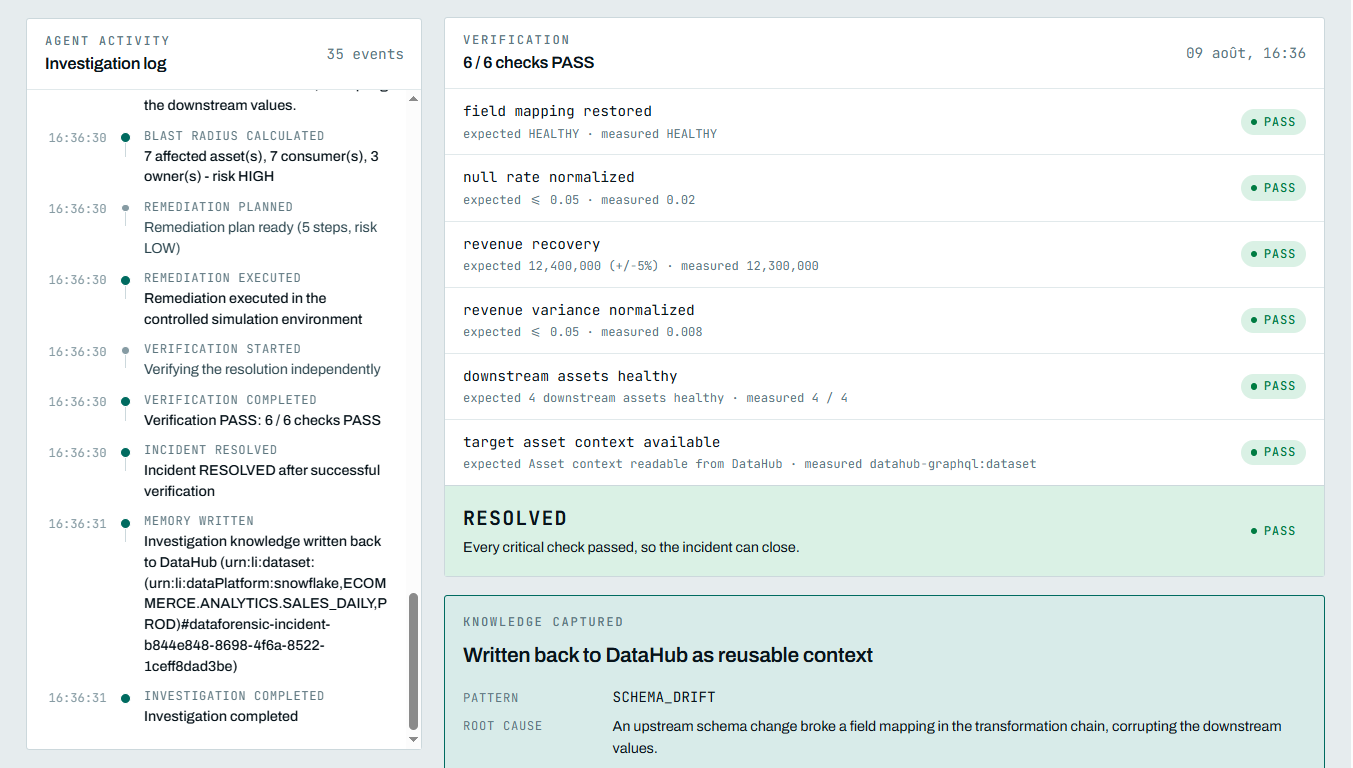

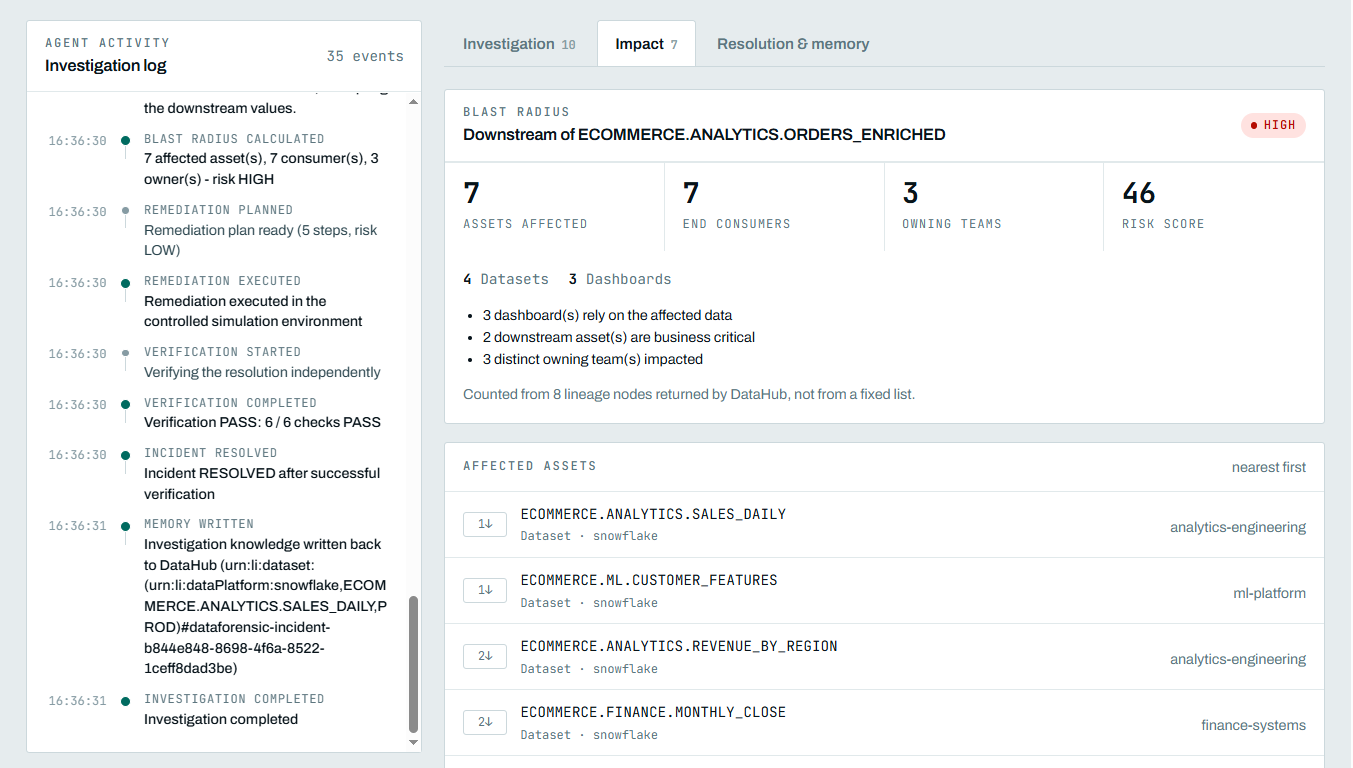

On the golden scenario it reaches SCHEMA_DRIFT at 92–97% confidence, traces the chain from an ERP field rename to a broken mapping to NULL discounts to a corrupted revenue aggregate, walks the downstream lineage to 7–9 affected assets across 3 owning teams, and passes every verification check before the incident is allowed to resolve.

Two things make it more than an investigation tool.

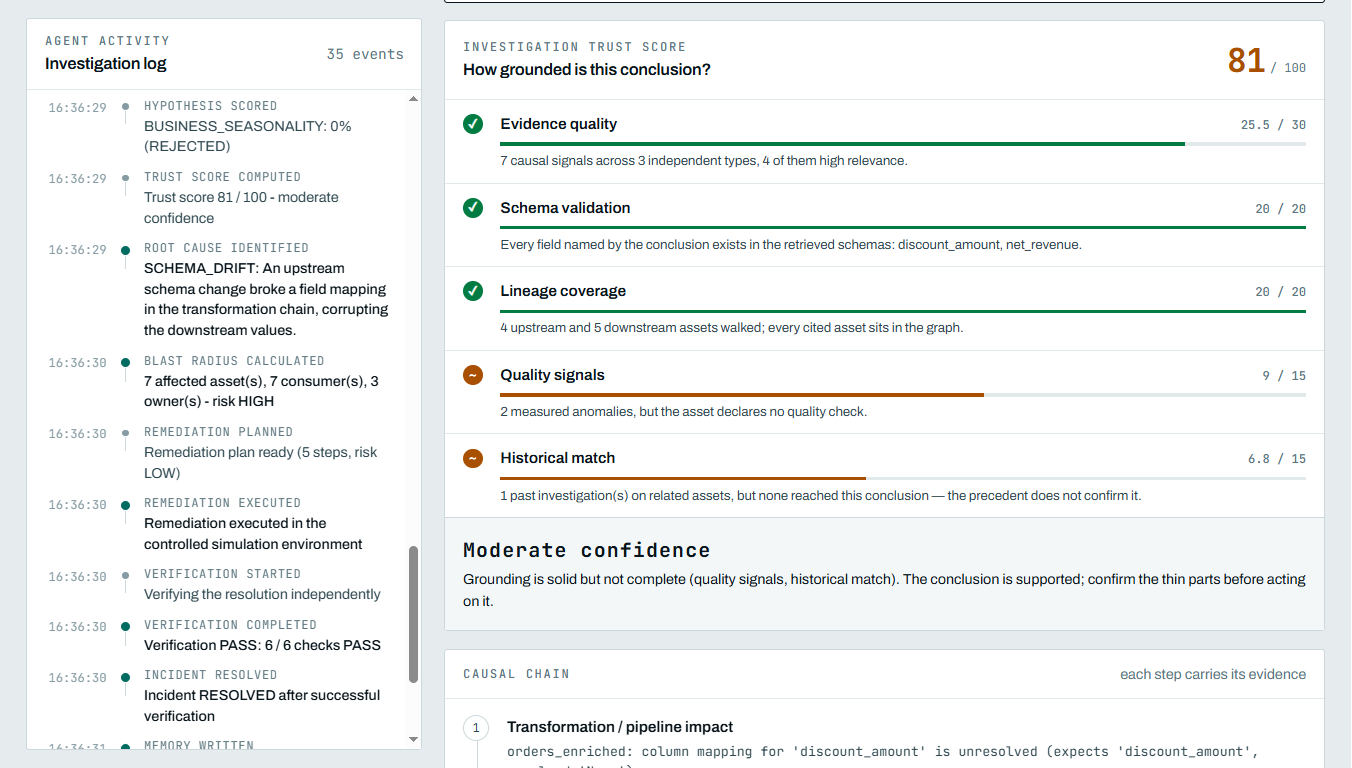

It exposes a second number. Confidence says how strongly the evidence points at this cause. The Investigation Trust Score answers a different question: how much of this investigation was grounded in retrieved context at all — evidence quality, schema validation, lineage coverage, quality signals, historical precedent. The two are allowed to disagree, and that is the point. An investigation can be 97% confident and barely grounded, which is exactly what a thin context and a lucky correlation look like from the inside.

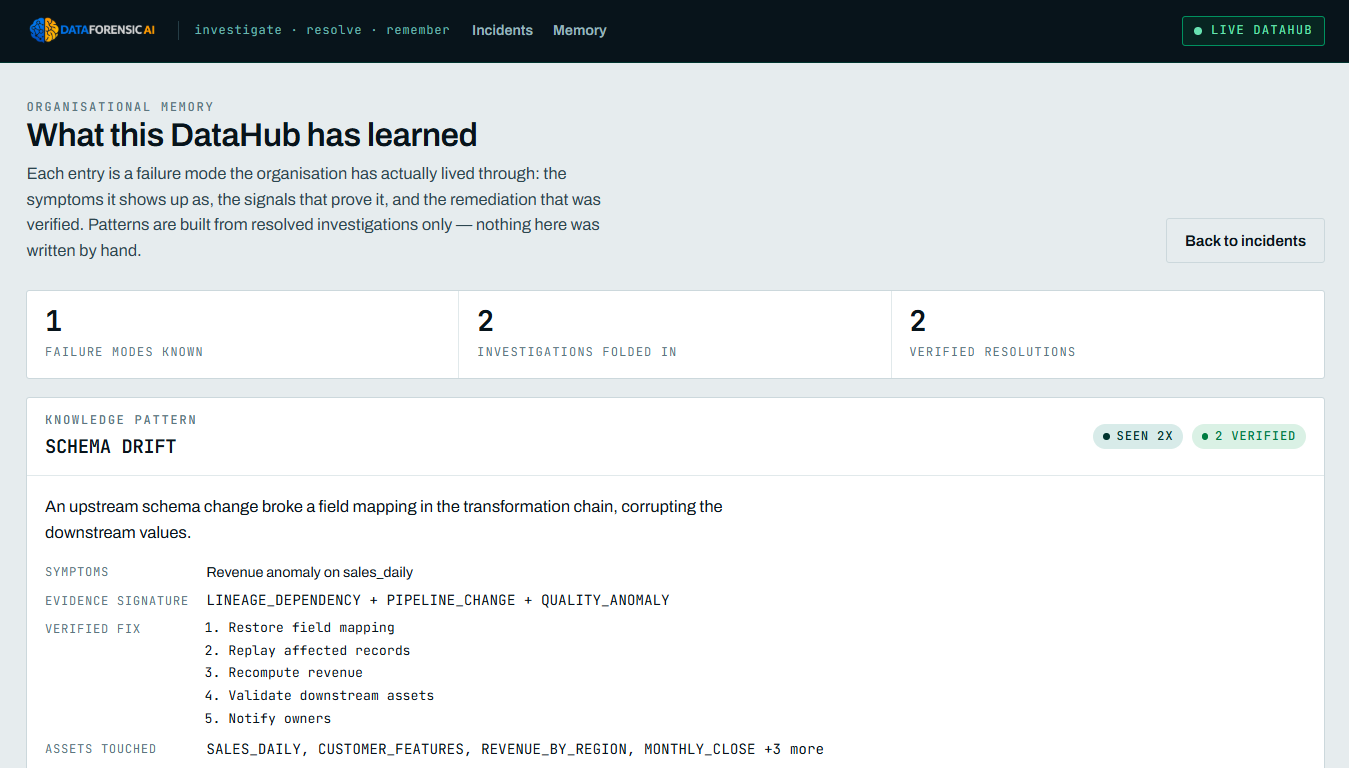

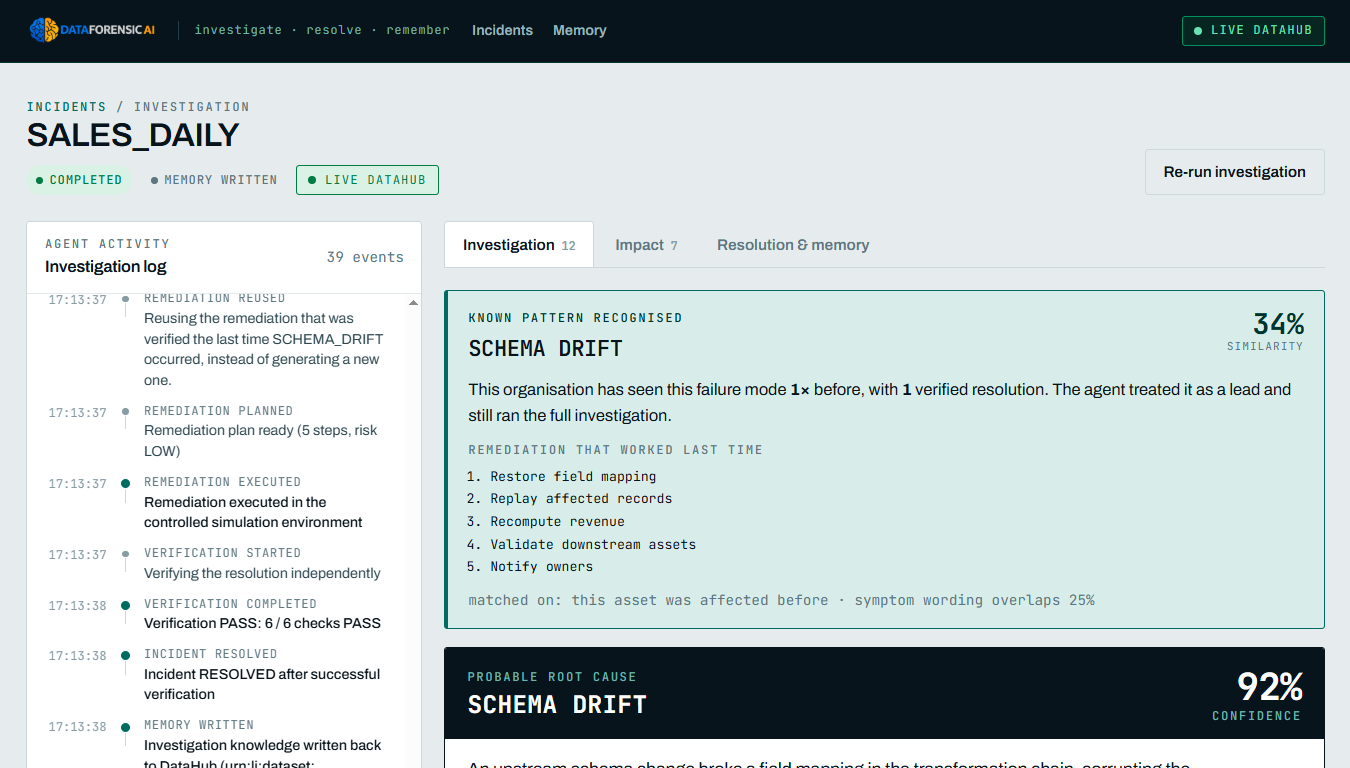

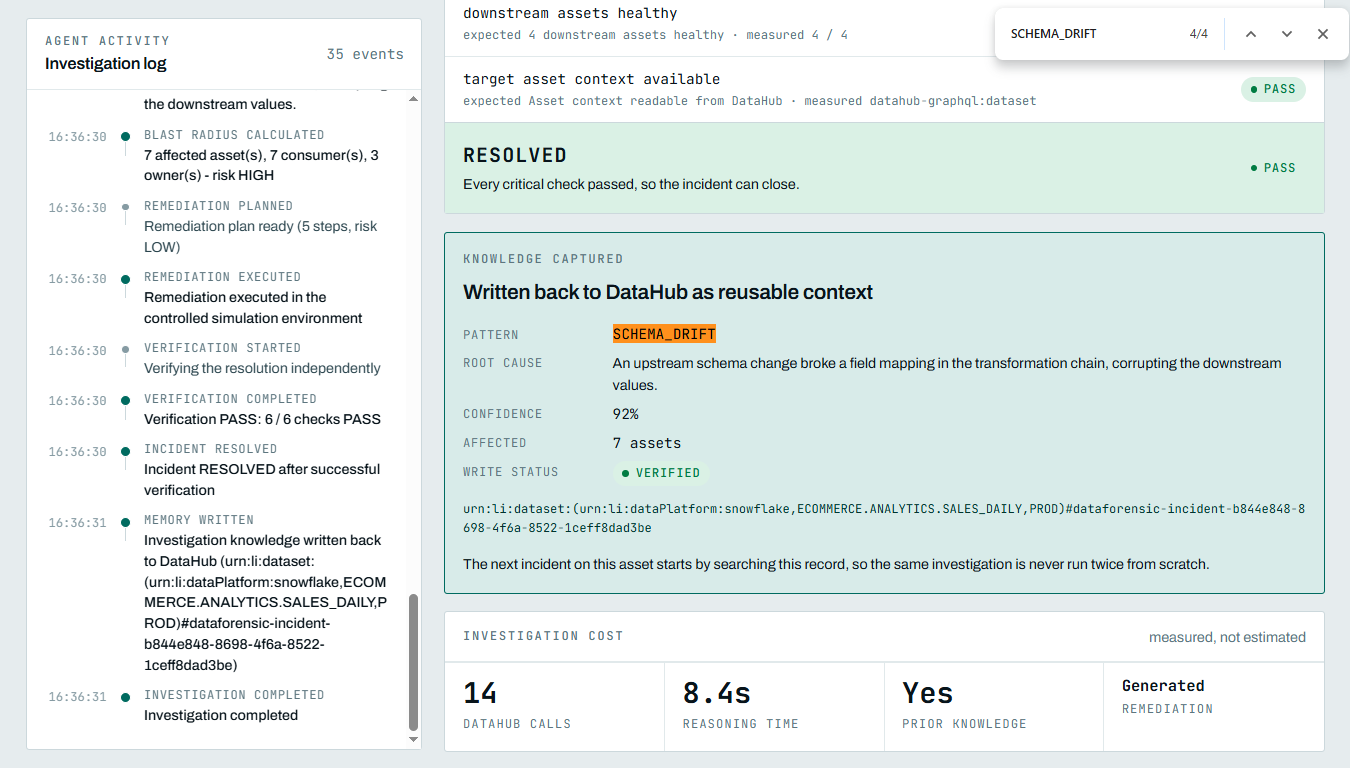

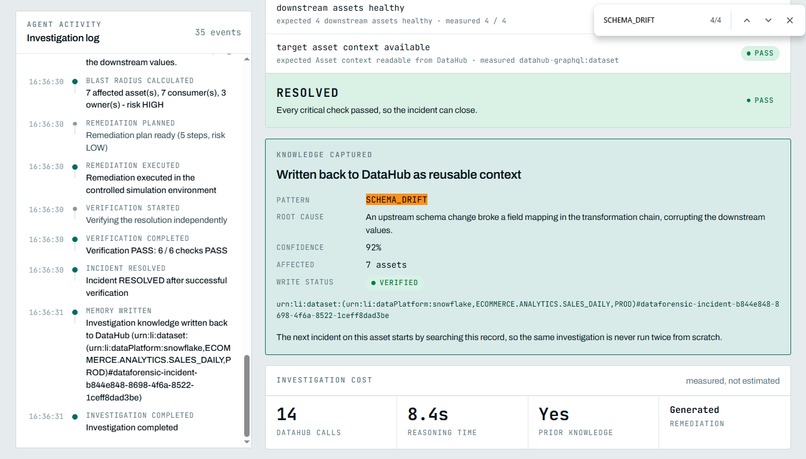

It remembers. Every resolved investigation is folded into a knowledge pattern: the symptoms the failure mode shows up as, the evidence signature that proves it, and the remediation that was actually verified. The second time the same failure mode appears, the pattern is recognised before any work starts and the verified plan is replayed instead of regenerated — while the agent still gathers its own evidence and still scores every alternative.

How we built it

A FastAPI backend hosts the agent; a Next.js frontend renders the investigation as it happens over Server-Sent Events. PostgreSQL holds application state. DataHub holds everything that matters about the data.

The reasoning engine is deterministic and rule-based. Rules describe shapes of signals, never scenarios — a schema change on a path to the target, an unresolved column mapping, failed or late pipeline runs, quality anomalies on graph source nodes. Confidence is a visible sum:

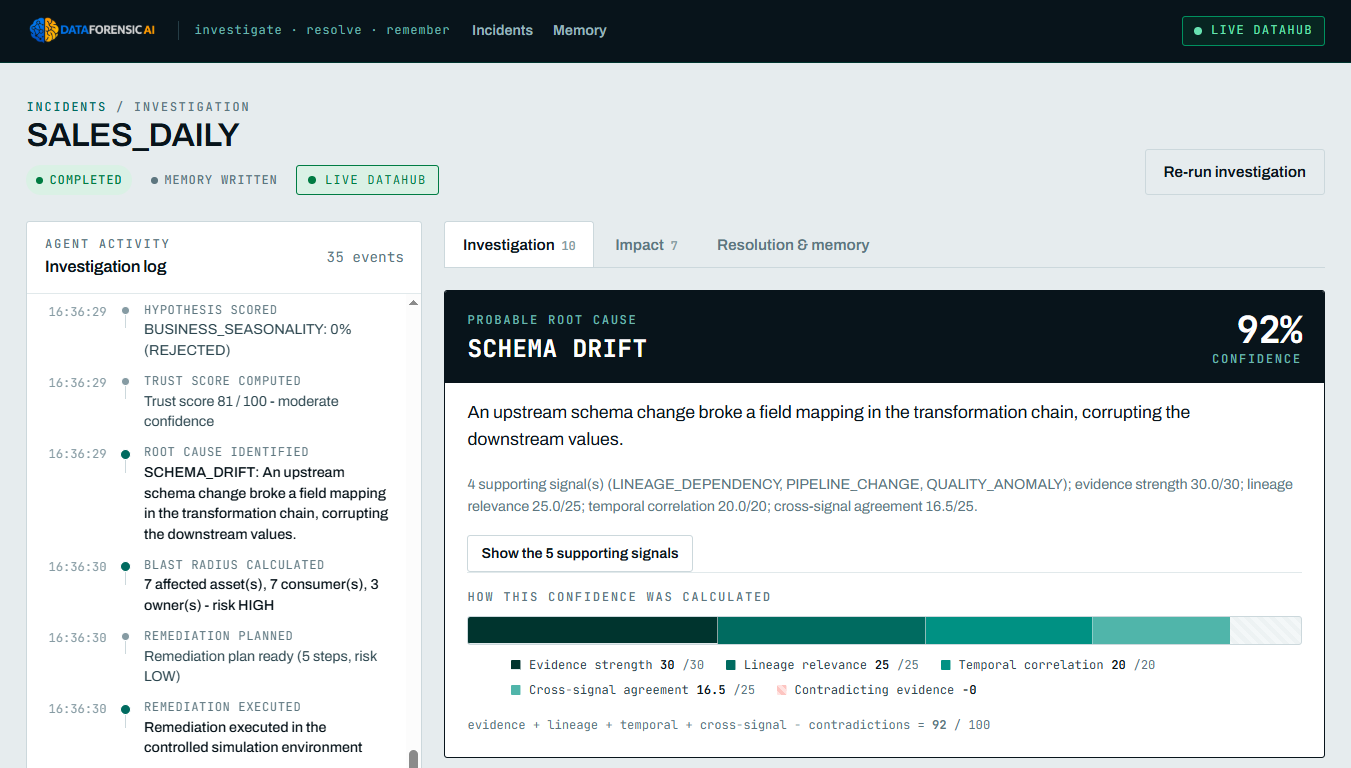

$$\text{confidence} = E + L + T + X - C$$

where $E$ is evidence strength (max 30), $L$ lineage relevance (25), $T$ temporal correlation (20), $X$ cross-signal agreement (25) and $C$ the penalty for contradicting evidence. The reported symptom is deliberately excluded from $X$ — the thing being explained cannot corroborate its own explanation — which is why the golden scenario scores 97 and not 100.

An LLM is optional and strictly advisory (LLM_PROVIDER=none by default). When configured, it may only propose additional candidate hypotheses that cite evidence IDs the agent actually collected; proposals citing nothing are discarded and the rejection is logged to the timeline.

DataHub is reached through the MCP Server first (search, get_entities, list_schema_fields, get_lineage), with GraphQL and the Timeline API behind it for the two dimensions MCP does not expose at all: the change timeline and assertion history. Temporal correlation depends entirely on the former, so the second path is part of the design rather than a safety net.

Five rules are enforced in the code rather than in a prompt: no root cause without non-symptom evidence; no hidden actions; no silent tool failures; risk classified server-side with real production writes refused by configuration; and RESOLVED unreachable in the state machine except through a passing verification.

147 automated tests cover the invariants, all three scenarios end to end, the HTTP golden path with SSE resume, and the failure modes.

Challenges we ran into

Almost every hard problem came from deploying it for real, and almost none of them looked like what they were.

The MCP server is a stdio process. The Streamable HTTP endpoint documented by DataHub is a Cloud feature; DataHub Core ships a stdio server meant for Claude Desktop. We put a gateway in front of it — and then discovered that mcp-server-datahub cannot install on a musl base at all, because its google-re2 dependency publishes manylinux wheels only. The failure was silent in the worst way: the gateway started, answered its health endpoint, and only its child process was dead. We now build a Debian-based bridge image with the server installed at build time.

A stale session is indistinguishable from a healthy reply. After recreating the bridge, our client kept presenting a session id the gateway no longer knew. It was answered with HTTP 200 and an empty body — the exact shape a working gateway uses when it replies on the stream — so the handshake timed out forever while a fresh probe from the same container succeeded first try.

The timeline was invisible in the browser while every server test passed. Each SSE frame carried event: evidence_found. EventSource.onmessage only fires for unnamed frames, and there is no wildcard listener, so nothing ever rendered. Our tests parsed data: lines directly and were perfectly green.

Seeding a catalog became the cause. Emitting the demo graph into a live DataHub wrote schema changes dated today. Against a scenario dated months earlier, those arrived as a dozen signals, out-voted the correct SOURCE_DATA_ANOMALY on the healthcare scenario, and produced a root cause naming a field that had merely been added. Two gates now stand between the timeline and a causal claim: a change after the incident is dropped, and a change must be able to break a consumer — a rename, a type change, a removal — to support schema drift.

Green tests that could not fail. The suite ran at LOG_LEVEL=CRITICAL, so logger.info returned before building a record and never triggered the reserved-key collision that crashed production. The DataHub-unavailable tests stubbed a provider that returned a failed result, while production raised — so a real connection error ended an investigation as FAILED with a traceback instead of BLOCKED with a reason. Both classes of test now exercise the path they claim to.

Accomplishments that we're proud of

The trust score earns its keep. Its first run scored 75/100 with schema validation only partial, because the agent had named a field whose schema it never read. We did not soften the check — we made the agent read upstream schemas. A metric that finds a real weakness on its first day is worth keeping.

Three scenarios, one engine, three conclusions. revenue-collapse → SCHEMA_DRIFT; pipeline-freshness → FRESHNESS_STALENESS with no schema change anywhere; healthcare-quality → SOURCE_DATA_ANOMALY with a healthy mapping. No scenario-specific code exists. Remove the schema-change evidence from the first and SCHEMA_DRIFT collapses on its own — there is a test for exactly that.

Nothing is claimed that is not reported. The context-source badge renders what the API reports, never an inference; a failed MCP handshake is visible with its reason; a write-back that DataHub refuses is reported as such, and the pattern is still learned locally so the learning loop does not depend on one token having tag-write permission.

Verification is structural, not aspirational. RESOLVED cannot be reached except through a passing verification, because the state machine has no edge to it from anywhere else.

What we learned

That the distance between "the API answers" and "the thing works" is where all the time goes. GMS returned 200 while its search backend was unreachable. The bridge returned ok on /healthz with a dead process behind it. A status endpoint reported a startup snapshot long after the world had changed. Each one looked healthy from exactly the angle we were checking.

That a test only protects the path it exercises. Ours were green through a production crash, a browser-invisible timeline, and an unwrapped transport error.

And that verifying claims is cheaper than repairing them. Halfway through we audited every DataHub-specific assertion in the repository against the official documentation and found several we had invented — tool names, Timeline API parameter names, container names, an image that does not exist. That audit lives in the repo as docs/datahub-api-verification.md, recording what is verified, what is not, and how the code degrades when the unverified parts are wrong.

What's next for DATAFORENSIC AI

Recognising patterns across related assets, not just exact matches — a failure mode that hit orders_enriched should be recognisable when it hits its sibling.

Proposing DataHub assertions from resolved incidents. Every investigation ends knowing which measurement would have caught the problem earlier. Writing that back as an assertion turns the memory from a lookup into prevention.

Contributing upstream. The repository already contains a reusable DataHub Skill for the non-opinionated half of an incident investigation, and an MCP bridge that makes the stdio server reachable over HTTP on DataHub Core. Neither has been submitted upstream yet, and neither is claimed as a contribution — but the bridge in particular solves a problem anyone self-hosting will hit.
