Computer Vision Gesture DJ Board

NOTE: Loom didn't give permissions to download video, so it is just a Loom link for demo.

Inspiration

● DJ Vision - Our Story

We've spent countless hours trying to create music in FL Studio, only to hit the same walls again and again: expensive equipment and a steep learning curve. Professional DJ controllers cost $500-$2000, and mastering the software takes months of practice. We kept asking ourselves—why does creativity have to be locked behind such high barriers?

That frustration became our inspiration. What if anyone with a webcam could DJ? What if natural hand gestures replaced complex button combinations? We wanted to democratize music mixing and make it accessible to everyone, regardless of budget or technical skill.

This project pushed us into uncharted territory across multiple domains:

Computer Vision & Machine Learning

MediaPipe Hand Landmarker: We learned how to integrate Google's pre-trained ML model to detect 21 hand landmarks in real-time at 30+ FPS
Gesture Recognition: Built state machines to classify hand postures (palm, fist, pinch, finger counts) and convert positions into control signals
Temporal Smoothing: Implemented EMA (Exponential Moving Average) filtering to stabilize jittery hand movements:

$$\text{smoothed}_t = \alpha \cdot \text{raw}t + (1-\alpha) \cdot \text{smoothed}{t-1}$$

Web Audio API & Real-Time Processing

Tone.js Architecture: Mastered the Web Audio API through Tone.js to build dual independent audio engines
Multi-Stem Playback: Learned to synchronize vocals, drums, and bass tracks with independent gain control
Signal Chain Design: Implemented professional audio routing:

$$\text{Stems} \rightarrow \text{Gains} \rightarrow \text{Mix Bus} \rightarrow \text{Filter} \rightarrow \text{Master} \rightarrow \text{Limiter} \rightarrow \text{Output}$$

Low-Latency Control: Achieved sub-30ms response time from gesture to audio change through direct engine control

Event-Driven Architecture

Decoupled Systems: Built an event bus pattern to separate gesture detection from audio processing
Priority Hierarchies: Designed gesture mode detection with conflict resolution (pinch > transport > blend > stems)
State Management: Learned to synchronize React UI state with real-time audio engine state through polling

React & TypeScript Best Practices

Performance Optimization: Used useEffect hooks with proper dependency arrays to prevent memory leaks
Ref Management: Leveraged useImperativeHandle for parent-child component communication
Type Safety: Enforced strict typing across gesture events, audio interfaces, and UI components

How we did it

Phase 1: Gesture Detection Foundation

Camera Integration: Set up webcam access with proper permissions and mirrored video display
MediaPipe Setup: Loaded the Hand Landmarker model and configured detection parameters
Posture Classification: Built PostureDetector class to identify palm, fist, pinch, and finger counts using landmark geometry
Gesture Modes: Implemented GestureModes state machine with per-hand tracking for dual-deck control

Phase 2: Audio Engine Architecture

Dual-Deck Design: Created DeckAudioEngine class for independent Deck A and Deck B
Stem Loading: Implemented multi-stem loading with URL verification and error handling
Audio Graph: Connected Tone.js nodes: Player → Gain → Filter → Master Gain → Limiter → Destination
Transport Control: Built play/pause with position tracking using performance.now() for accurate timing

Phase 3: Event System

Event Bus: Created publish-subscribe pattern for decoupled communication
Event Router: Built router.ts to subscribe once and forward events to correct deck engines
Gesture Mapping: Defined event types: PLAY, PAUSE, TEMPO_SET, FILTER_SWEEP, STEM_TOGGLE, CROSSFADER_SET
Mirrored Control: Mapped right hand → Deck A, left hand → Deck B (compensating for camera mirror)

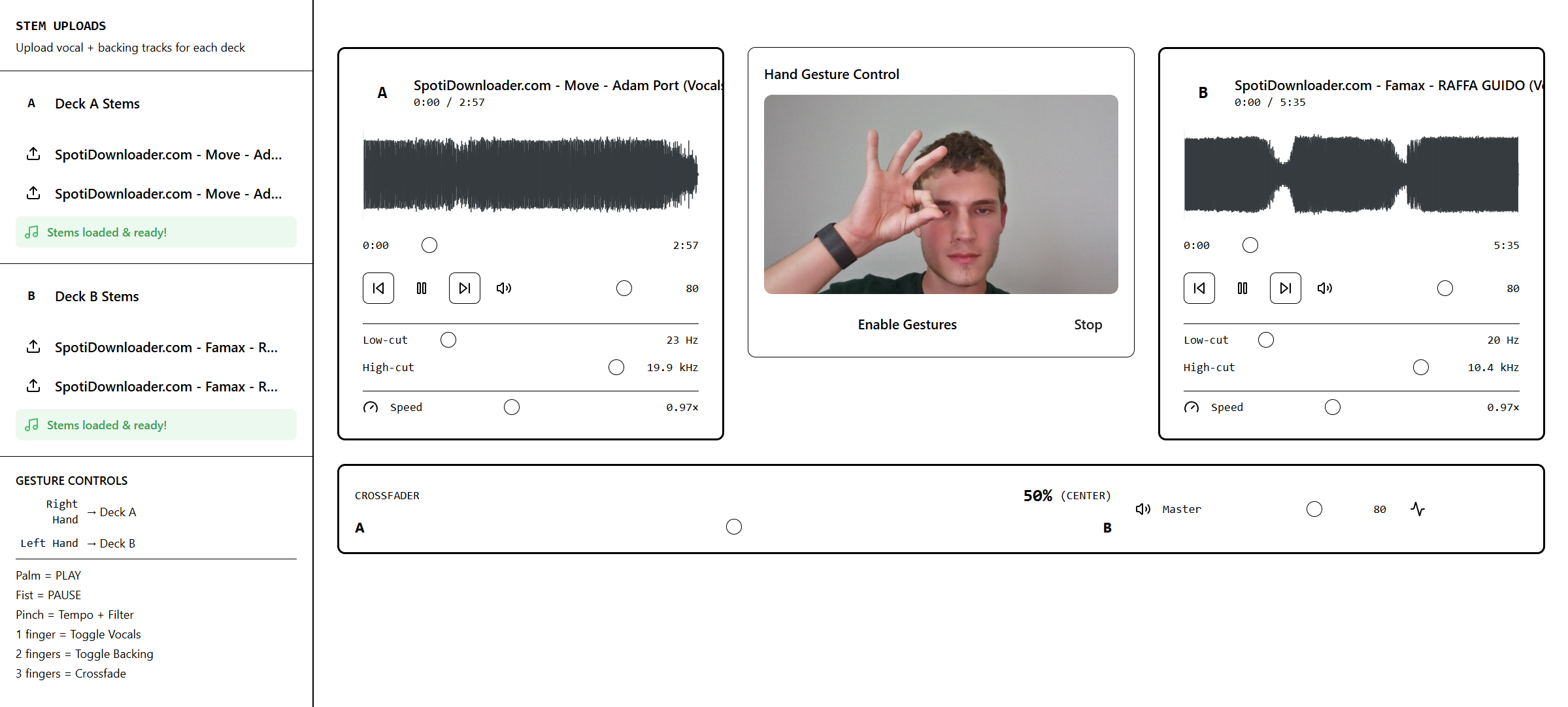

Phase 4: UI Integration

Component Design: Built Deck, Library, MasterBar, Waveform, and VUMeter React components
State Synchronization: Added 100ms polling to sync UI sliders with gesture-controlled engine state
Direct Control: Connected UI buttons to engines using same code path as gestures
Visual Feedback: Implemented real-time waveform display, VU meters, and crossfader percentage

Phase 5: Refinement & Polish

Gesture Tuning: Added hold duration requirements (400-600ms) to prevent accidental triggers
Cooldown Systems: Implemented 800ms cooldown for stem toggles to prevent crossfade interference
Filter Mapping: Linked low-cut/high-cut UI sliders bidirectionally with gesture filter sweep
Tempo Sync: Made tempo changes broadcast to both decks simultaneously for synchronized playback

Challenges we faced

Challenge 1: Gesture Conflicts & False Positives

Problem: When releasing from 3-finger crossfade, the hand briefly showed 2 fingers, accidentally triggering stem toggles. Similarly, holding 1 finger would toggle vocals on/off rapidly.

Solution:

Implemented gesture priority hierarchy so crossfade blocks stem detection
Added hold duration requirements (400ms for stems, 600ms for transport)
Created one-shot-per-hold behavior initially, then switched to cooldown system (800ms) for better UX
Result: Deliberate gestures work perfectly, accidental triggers eliminated

Challenge 2: Jerky, Unresponsive Controls

Problem: After UI integration, tempo and filter controls became jerky and unresponsive. The tempo would only change by tiny amounts instead of smoothly sweeping 0.8x to 1.2x.

Root Cause: // WRONG: App.tsx was intercepting events and transforming values case 'TEMPO_SET': handlePlaybackRateStep((event.value - 1.0) * 0.1) // Tiny delta!

Solution:

Removed all gesture event handlers from App.tsx
Gave exclusive audio control to router.ts which calls engines directly
App.tsx now only handles UI-only events (like updating crossfader display)
Result: Smooth, responsive control restored—original behavior recovered

Challenge 3: UI State Desynchronization

Problem: Pressing palm gesture to play didn't update the play/pause button. Gesture-controlled tempo didn't move the speed slider. The UI was "blind" to gesture control.

Solution: // Added 100ms polling in deck.tsx useEffect(() => { const engine = deckId === "A" ? engineA : engineB

const pollState = () => {
  const actualIsPlaying = engine.isPlaying()
  if (actualIsPlaying !== isPlaying) {
    setIsPlaying(actualIsPlaying) // Sync button state
  }

  const state = engine.getState()
  if (Math.abs(state.tempoFactor - playbackRate) > 0.01) {
    setPlaybackRate(state.tempoFactor) // Sync slider
  }
}

const interval = setInterval(pollState, 100)
return () => clearInterval(interval)

}, [deckId, isPlaying, playbackRate]) Result: UI now reflects gesture control perfectly, whether controlled by hand or button click.

Challenge 4: Audio Latency & Synchronization

Problem: Initial implementation had 200-500ms lag between gesture and audio response. Dual-deck playback wasn't sample-accurate.

Solution:

Bypassed adapter layer for direct engine control from router
Used Tone.now() + lookahead for scheduled playback: const when = Tone.now() + 0.03 // 30ms lookahead player.start(when, offset)
Synchronized tempo across both decks in router instead of per-deck
Result: Sub-30ms latency, smooth crossfading, perfect sync

Challenge 5: Filter Slider Disconnect

Problem: Gesture filter sweep (pinch + horizontal motion) didn't move the low-cut/high-cut sliders. Manual slider adjustment didn't affect the filter.

Solution: Built bidirectional mapping between engine filter value (0-1) and UI slider percentages: // Gesture → Sliders (in polling loop) const mapFilterToSliders = (filterValue: number) => { if (filterValue < 0.5) { // Lowpass: cut highs return { lowCut: 0, highCut: 25 + (75 * (filterValue / 0.5)) } } else { // Highpass: cut lows return { lowCut: 75 * ((filterValue - 0.5) / 0.5), highCut: 100 } } }

// Sliders → Gesture (in handlers) const handleLowCutChange = (value: number) => { const filterValue = 0.5 + (value / 75) * 0.5 // Map to 0.5-1.0 engine.setFilter(filterValue) } Result: Perfect two-way synchronization—gesture controls sliders, sliders control filter.

Challenge 6: Stem Toggle "Stuck" State

Problem: After toggling vocals off with 1 finger, holding 1 finger again wouldn't toggle back on. The stem was "stuck" until you released completely to idle.

Root Cause: // WRONG: One-shot flag prevented re-toggling if (this.stemToggleFired) return; // Blocked!

Solution:

Removed stemToggleFired flag entirely
Added 800ms cooldown between toggles
Reset hold timer after each successful toggle: if (now - this.lastStemToggle < 800) return; // Cooldown // ... toggle logic ... this.lastStemToggle = now; this.stemHoldStartTime = now; // Reset for next hold Result: Can toggle stems on/off repeatedly; crossfade gestures don't interfere.

Technical Achievements

Real-Time Performance: 30+ FPS gesture detection with sub-30ms audio latency
Dual-Hand Processing: Simultaneous independent control of two decks
Professional Audio Quality: Multi-stem mixing with filters, limiter, and gain staging
Zero External Dependencies: All processing happens in the browser—no server needed
Robust State Management: Event-driven architecture handles complex gesture interactions gracefully

What we're proud of

Accessibility: We genuinely lowered the barrier to DJing—$0 cost, 5-minute setup
Technical Depth: Combined ML, audio processing, and React into a cohesive system
User Experience: Natural gestures feel intuitive, even for first-time users
Problem Solving: Overcame every technical challenge through systematic debugging and architecture improvements
Production Quality: Built with TypeScript, proper error handling, and professional code structure

This project taught us that the best solutions come from scratching your own itch. We wanted to make music without breaking the bank—and we did.
