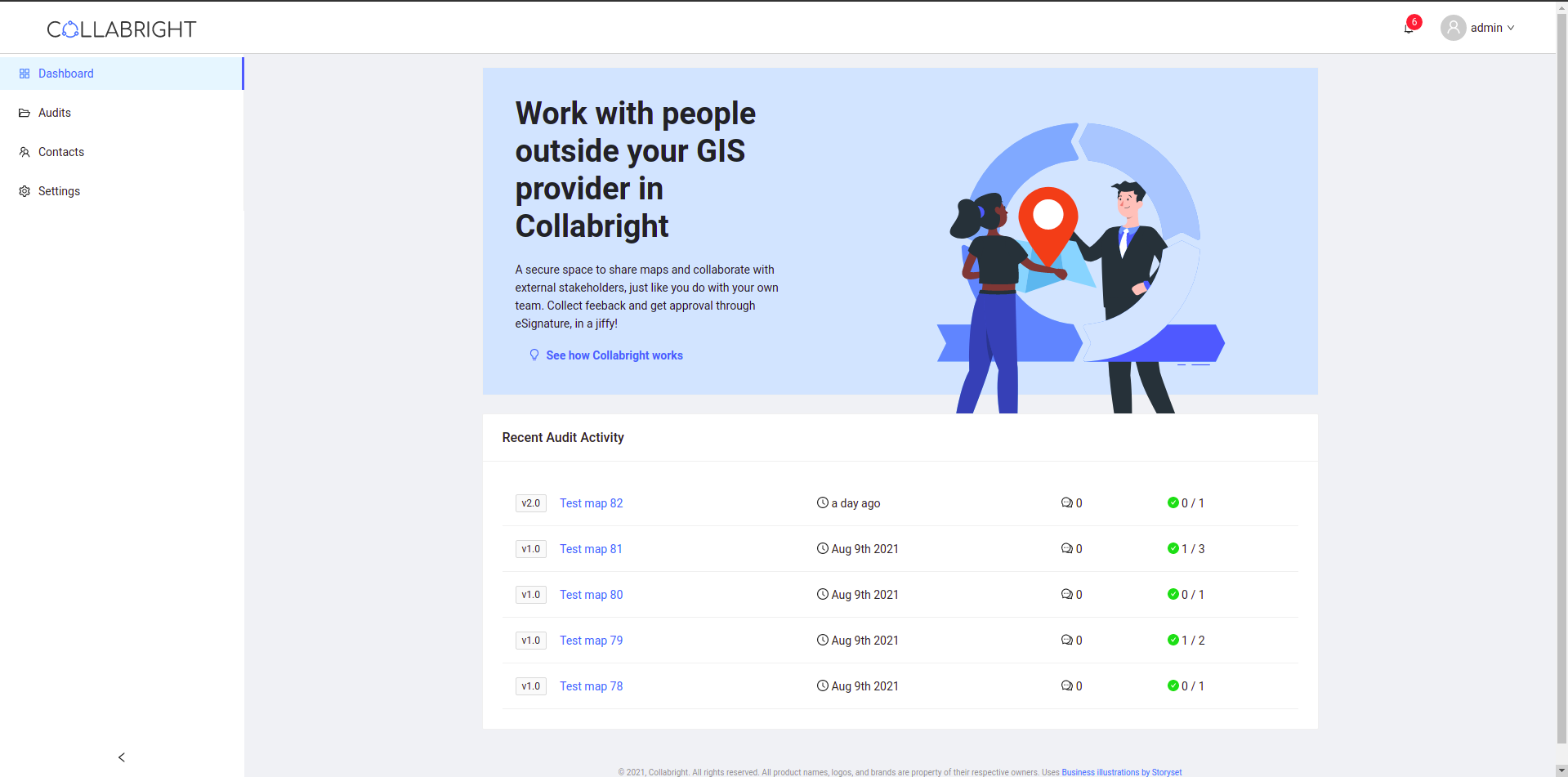

[GIS User View] Dashboard
-

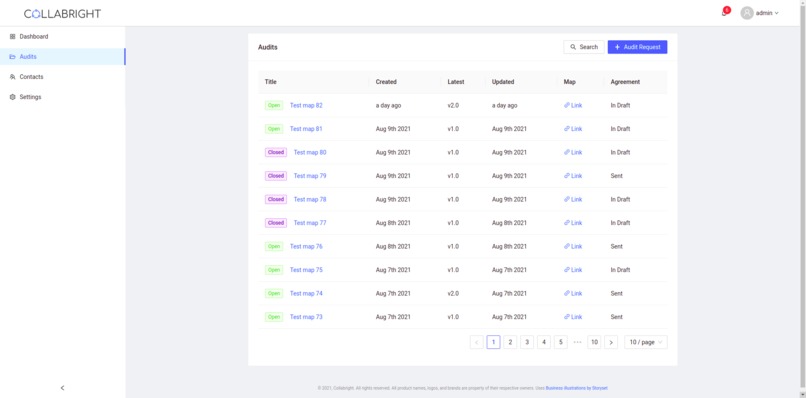

[GIS User View] All Audits
-

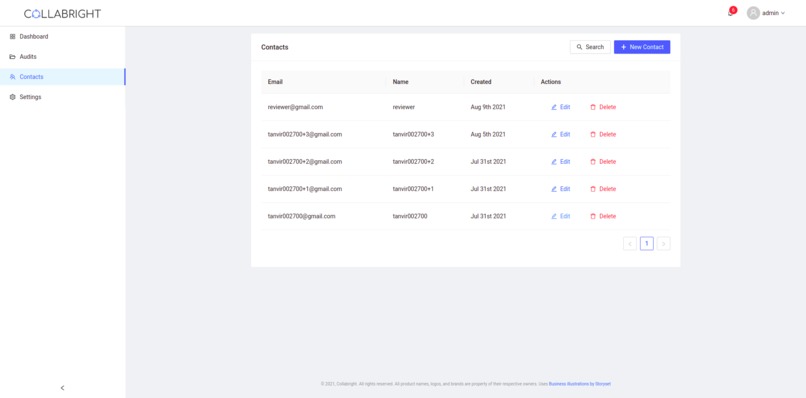

[GIS User View] Contact List
-

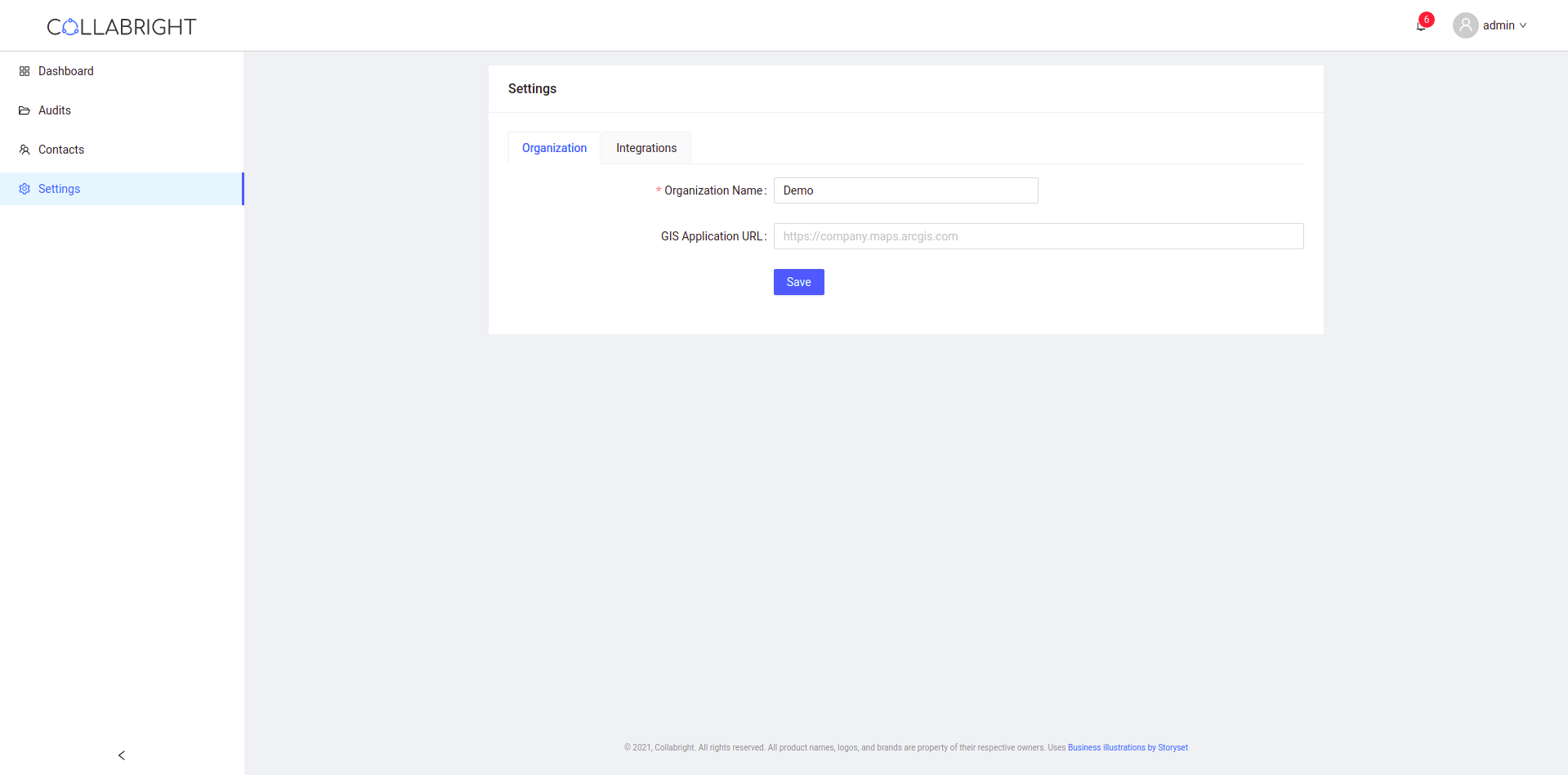

[GIS User View] Org Settings
-

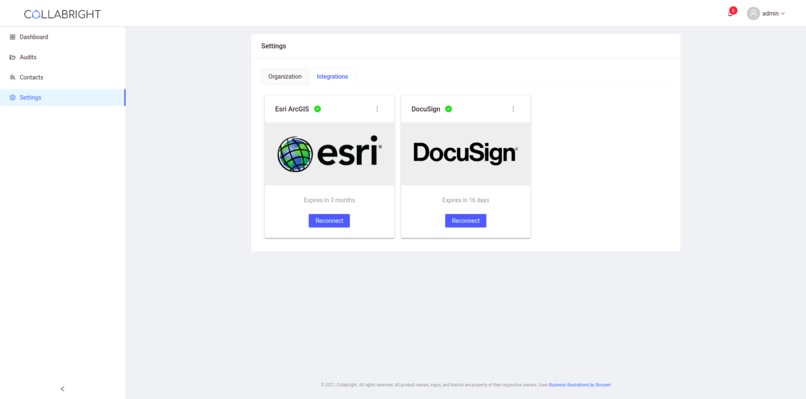

[GIS User View] Integrations
-

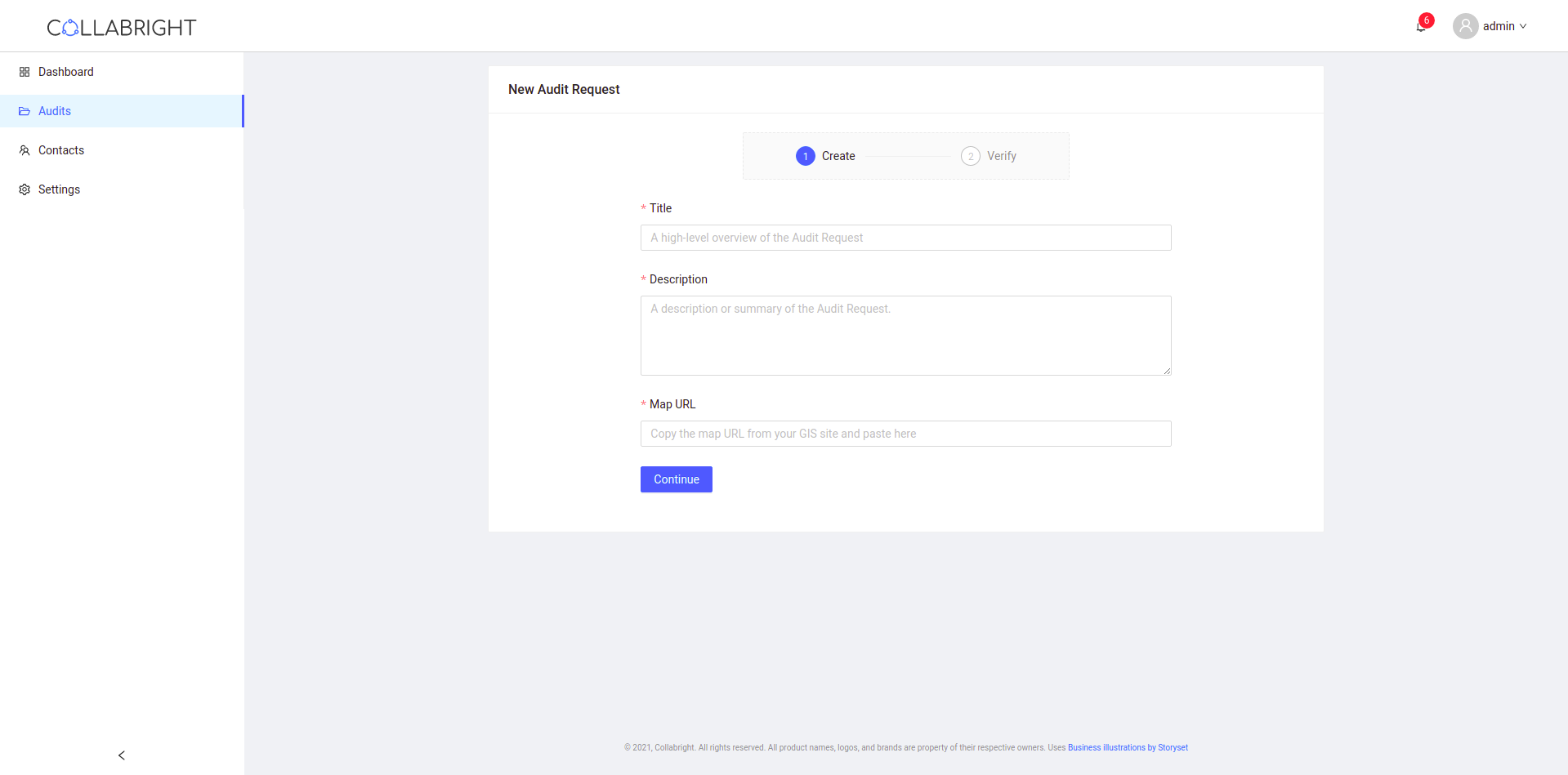

[GIS User View] Create New Audit
-
[GIS User View] Version Release Confirmation
-
[GIS User View] Audit Details
-
[GIS User View] Interactive Map
-

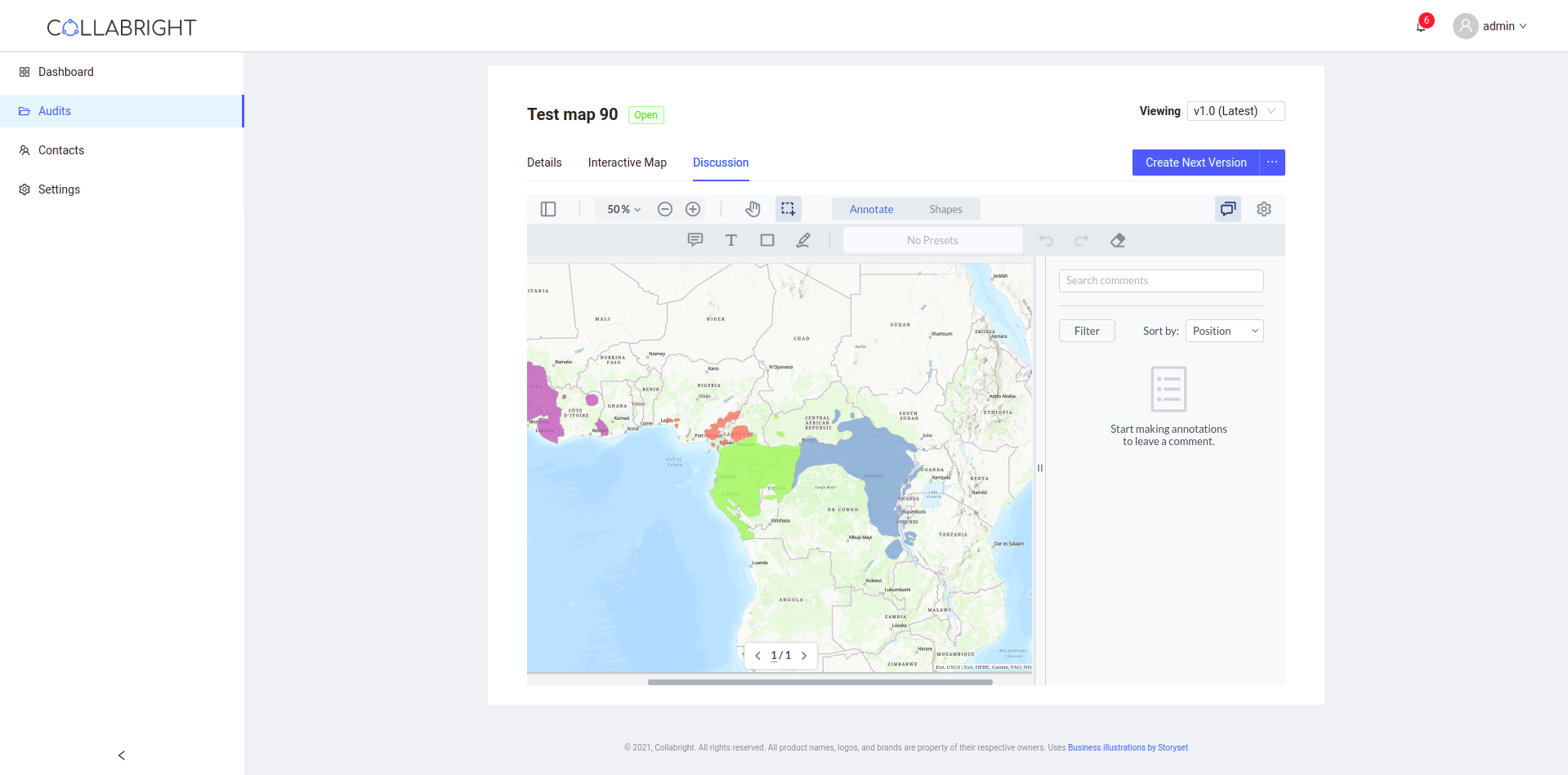

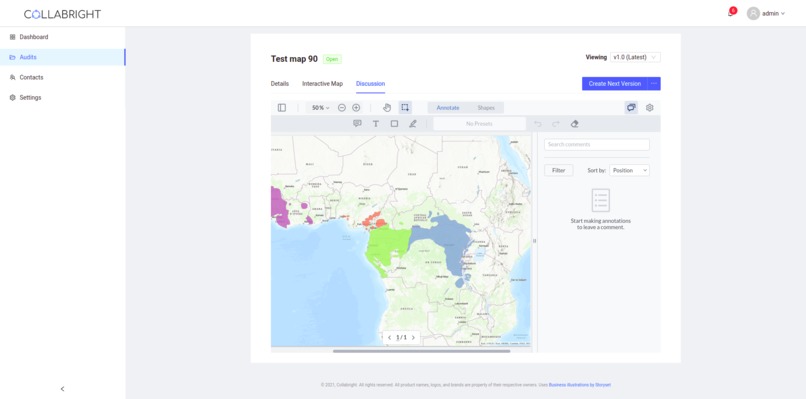

[GIS User View] Discussion
-

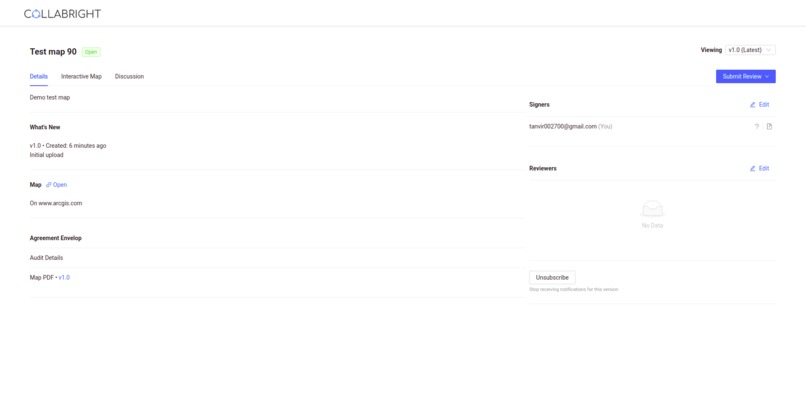

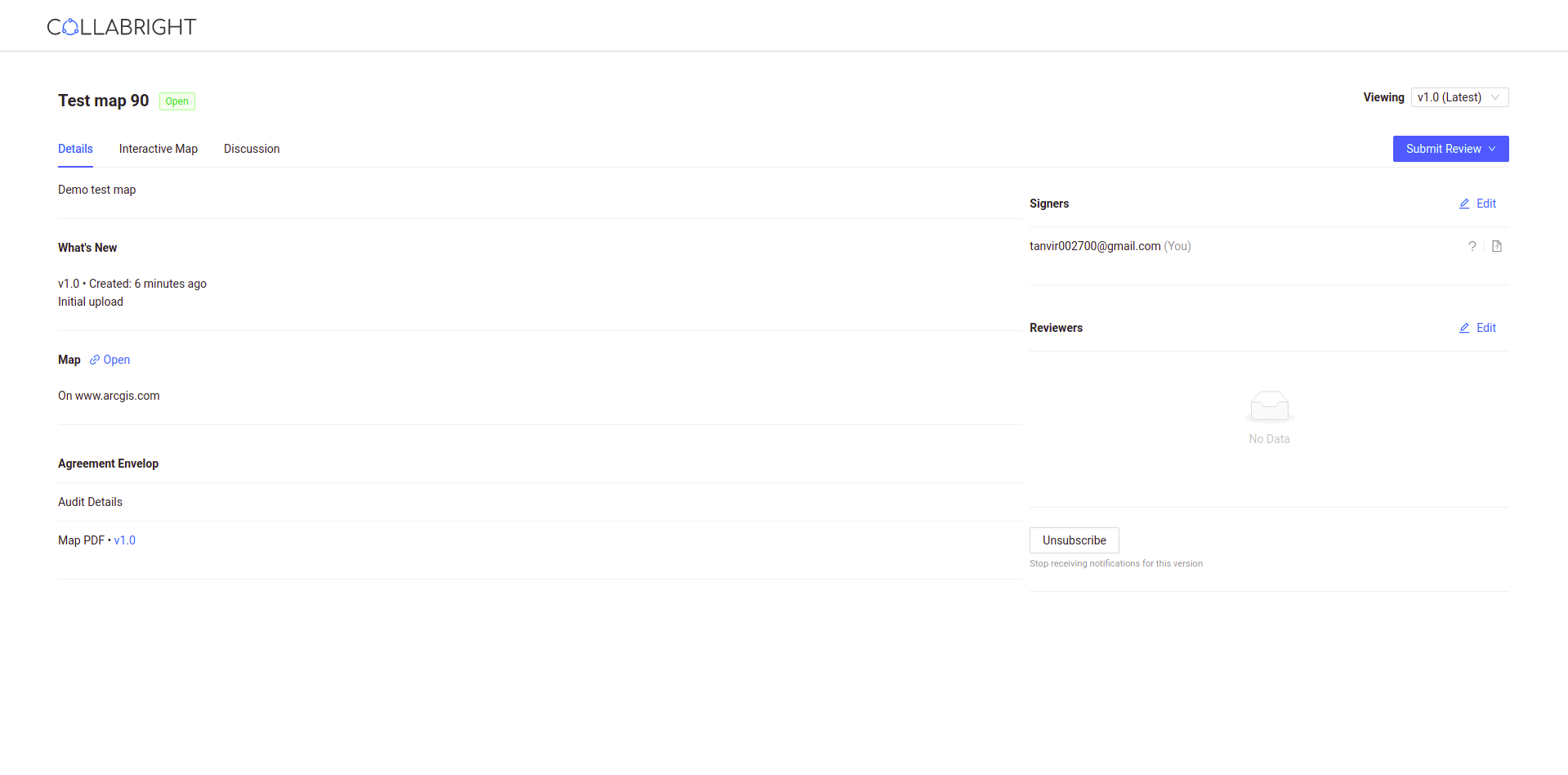

[Reviewer/Signer View] Audit Details
-

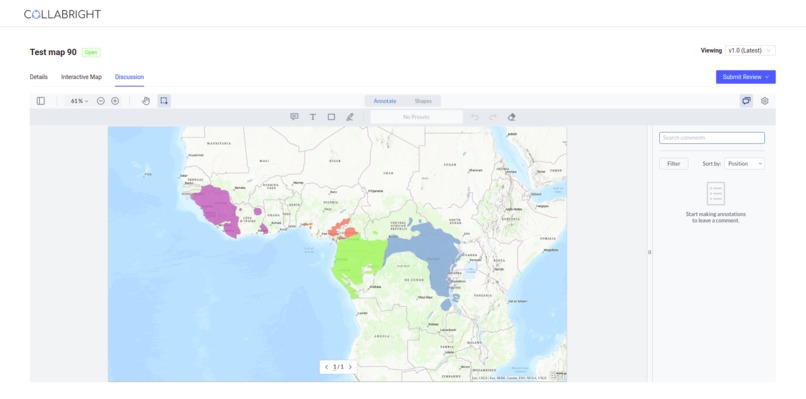

[Reviewer/Signer View] Discussion
-

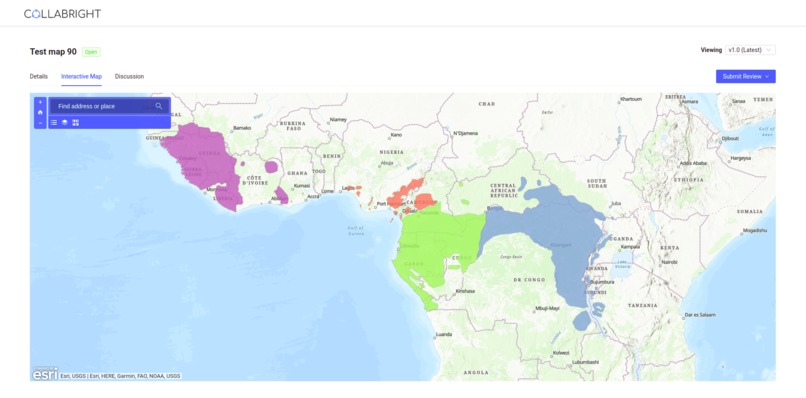

[Reviewer/Signer View] Interactive Map
Collabright
The problem
Collaborative Conservation Planning is an important process in the Jane Goodall Institute. But the GIS users face a lot of trouble when they want to collaborate with external stakeholders and subject matter experts to improve a map. The inefficiency and manual handling of the collaboration process in the Institute's current workflow is the problem that we intend to solve.
Even though they want to share an interactive mapping experience with the stakeholders, bringing people from different technical backgrounds over to a system as complex as GIS isn't the best of options. And making a work-in-progress map publicly available is not desired either.
So they have to take a screenshot/ PDF export of the map and email it to everyone. Of course, they can't interact with an image/PDF file. And they can't annotate the map inside an email either. The only way to collaborate is to send emails back and forth.
Multiple review cycles often mean going through a very long thread of emails and keeping track of which feedback have been addressed and which are left. It's very possible that some notes and comments get lost in the translation.
Since there is no structured way to keep track of progress, it becomes very difficult to get a top-level view of the overall process. This can lead to human error, disagreements, and unnecessarily lengthy review process.
Learn more about the obstacles the institute face during a Collaborative Conservation Planning process as described by Dr. Lilian Pintea in this video:
The solution
Collabright is a collaboration platform that sits right between the GIS and e-signature services with integrated version management, approval, and e-signature flow. It allows users to create a virtual audit based on a map and invite external stakeholders as reviewers. Reviewers can comment and annotate on each version of a map while each version and review history is kept in sync with the e-signature envelope for the final sign-off.
See the full demo: https://youtu.be/75aKAiwrdYA?t=72
Features
Simple integrations
- 🗺️ One-click integration with ArcGIS (OAuth 2.0)
- ✍️ One-click integration with DocuSign (OAuth 2.0)
Audit
- 🖊️ Create an Audit based on a GIS map
- 🔗 Only the map URL is required to create an Audit
- ✍️ An audit will be associated with a DocuSign envelope for the final sign-off by reviewers
Version management
- 📎 Unlimited versions of a map can be attached to an Audit
- 🌍 Map definition is fetched from ArcGIS when a version is released
- 🖱️ Interactive map is built based on the definition for each version
- 🖨️ PDF version of the map is generated to update the Docusign envelope
- 🚀 Release next version when ready
- 🤖 The latest map will be fetched automatically when you release the next version
- 📝 Release as many versions of the map as required
- 💬 Annotate and comment directly on the map in each version
- 🦖 All history associated with a version is kept
- 👀 Switch between map versions to see the review history and comments
Reviewers
- 👥 Invite unlimited reviewers to review Audit
- ✍️ Signers will be able to review and will be added to the associated DocuSign envelope as recipients
- 👌 Non-signer reviewers will be only able to review
- 📧 Reviewers will get personal and secure review link
- 🙅♀️ Reviewers will not require accounts to review
- ✅ Reviewers are able to submit their reviews (Accept/Request Change)
Comments and Annotations
- 💬 Both GIS User and reviewer can annotate and comment on each version of the map
- 🖍️ Draw circles, rectangles, polygons, etc on each version of the map
- 💭 Reply to comments and annotations
- ✅ Resolve comments, mark as complete
- 🦖 Can comment in a past version of the map
Instant notifications
- 💬 Email and In-app notification to GIS user when a reviewer makes a comment
- ✅ Email and In-app notification to GIS user when a reviewer submits a review
- 🔃 Email notification to the reviewer when a new version of the map is released
Integrated eSignature workflow
- ✉️ DocuSign envelope is created and Audit's metadata is added for future reference
- ✍️ Audit Signers are added automatically as envelope's recipients
- 🔃 Envelope is updated automatically with the latest version's PDF of the map
- 🖊️ GIS user can open and edit the envelope manually
- 🔐 Full privacy and control over the envelope
Adding as contact
- 👥 Add repetitive reviewers as Contact, add name and email
- 🔎 Added contacts can be looked up using name and email during adding as reviewers
- 🤖 Contact automatically added when a new reviewer is invited to the system
How we built it
- ArcGIS OAuth - https://developers.arcgis.com/documentation/mapping-apis-and-services/security/oauth-2.0/
- Esri Viewer - https://github.com/Esri/Viewer
- ArcGIS API for JavaScript - https://developers.arcgis.com/javascript/latest/
- ArcGIS REST API - https://developers.arcgis.com/rest/
- DocuSign OAuth - https://developers.docusign.com/platform/auth/
- DocuSign eSignature API - https://developers.docusign.com/docs/esign-rest-api/
- DocuSign Embedded sending - https://developers.docusign.com/docs/esign-rest-api/esign101/concepts/embedding/
- DocuSign Webhooks - https://developers.docusign.com/platform/webhooks/
- Webviewer - https://github.com/pdftron/webviewer-ui
Source Code
This project is open-source and available under the GPL-3.0 License.
Clone using Git
Clone the repository from Gitlab
git clone git@gitlab.com:mehamasum/collabright.git
Server Setup
Python 3.6 or later needed.
goto project root
cd YOUR_PROJECT_ROOT_DIRECTORY
setup python virtual environment for project
virtualenv -p python3.6 .venv
activate virtual environment
source .venv/bin/activate
# for linux
.venv/Scripts/activate
# for windownsset environment variables
cp .sample.env .env
Make sure postgress is running and set DATABASE_URL in .env
Make sure mailhog is running and set EMAIL_* in .env
docker run -p 8025:8025 -p 1025:1025 mailhog/mailhog
Make sure redis is running and set REDIS_URL in .env
docker run -p 6379:6379 redis
install backend (api) dependencies
pip install -r requirements.txt
migrate database with the application models
python manage.py migrate
run backend server
python manage.py runserver 0.0.0.0:8000
run celery
celery -A collabright worker -l INFO
Client Setup
Node.js 10.13 or later needed.
install frontend dependencies
npm i
run dev server
npm start
What's next for Collabright
- Search with ElasticSearch
- More secure Webhook deployment
- Some small TODO features
