Clinical Note Guard

A QA layer that catches AI hallucinations in clinical notes before a clinician signs off.

Comment

Start here

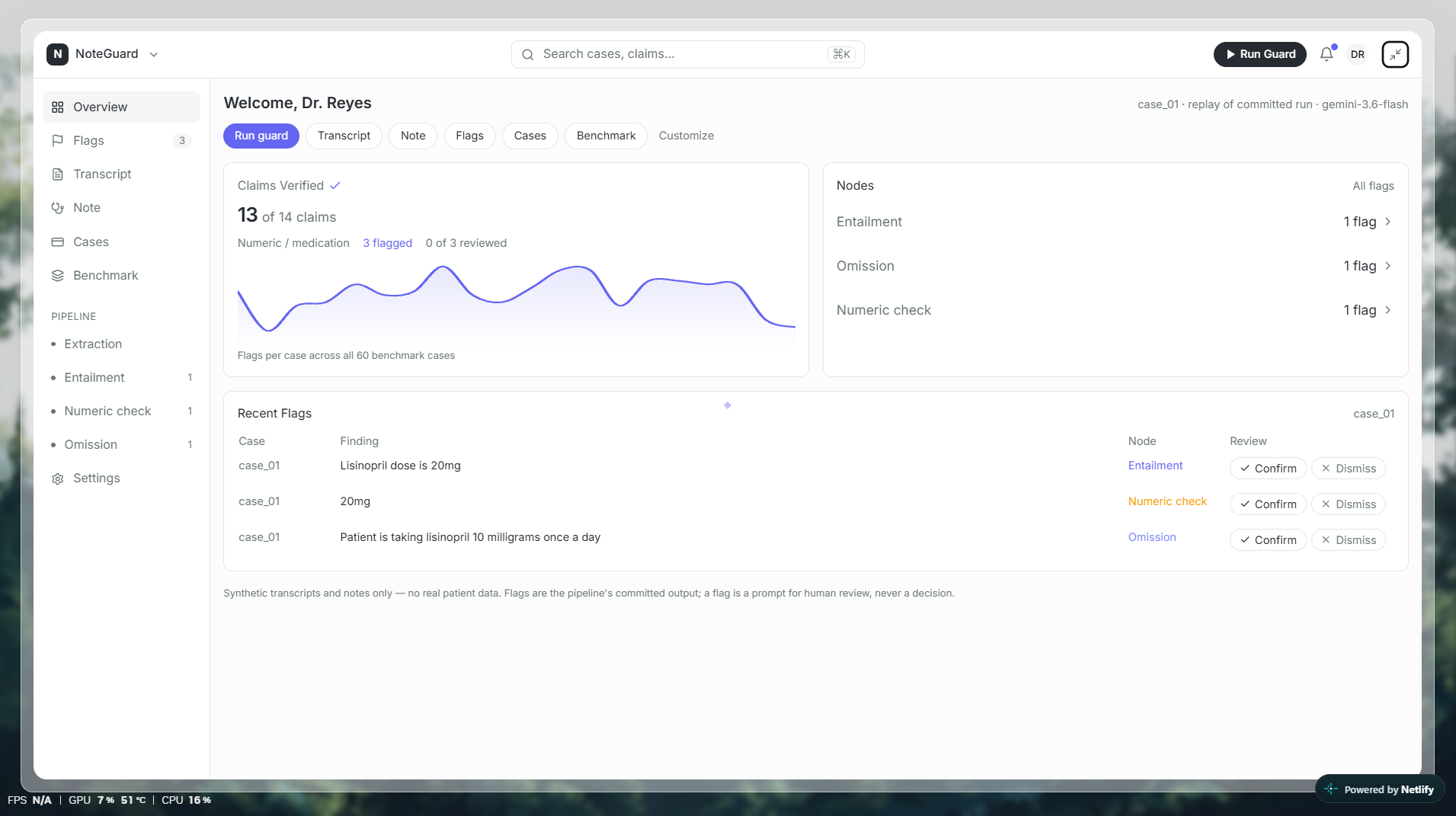

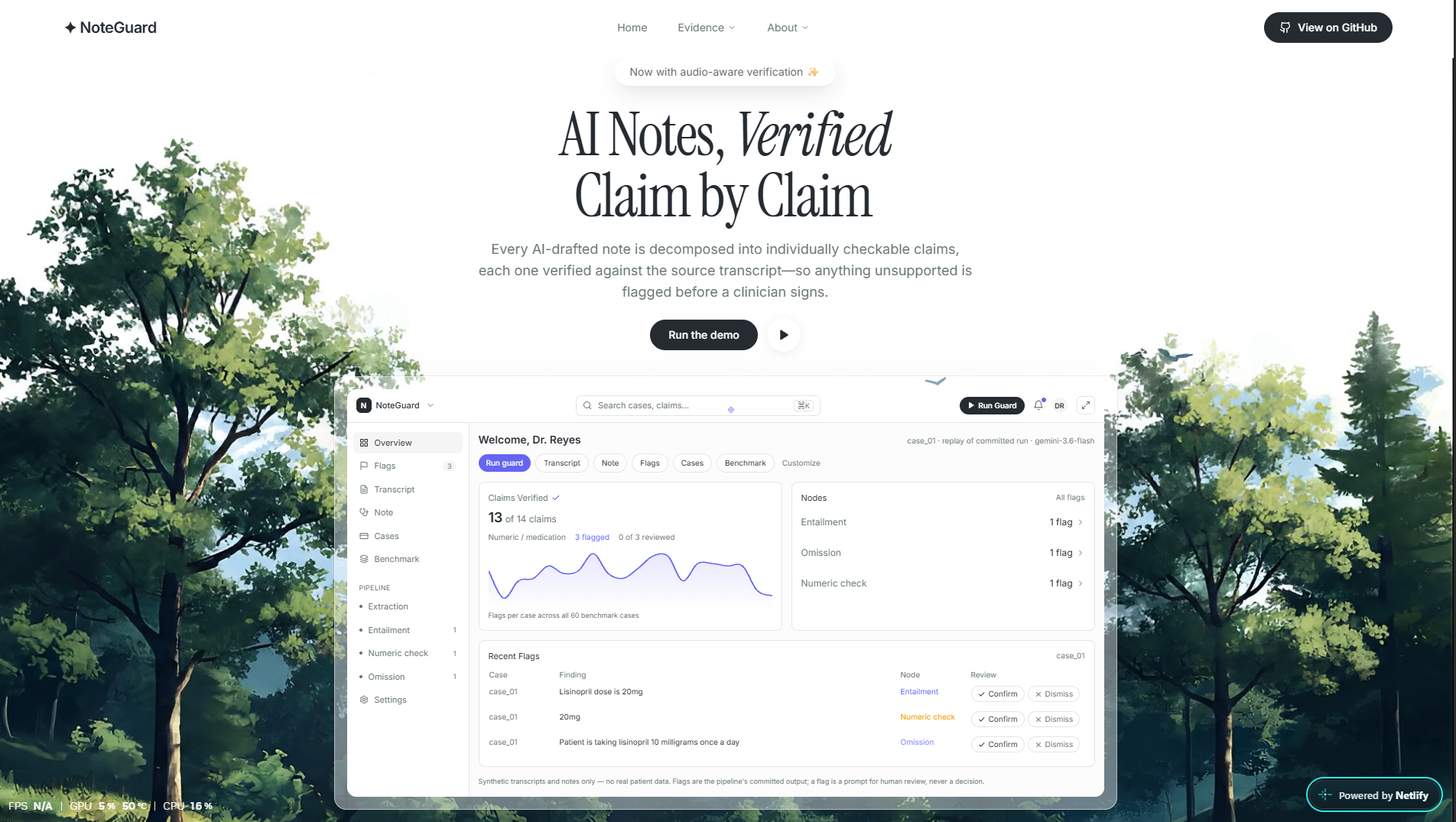

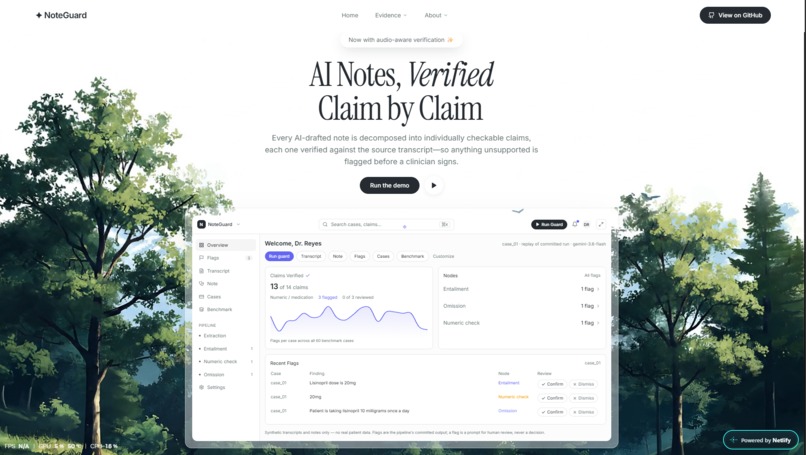

  • See it run: https://clinicalnoteguard.netlify.app — the console on the homepage replays the real committed evaluation over all 60 benchmark cases. Nothing in it is simulated in the browser.

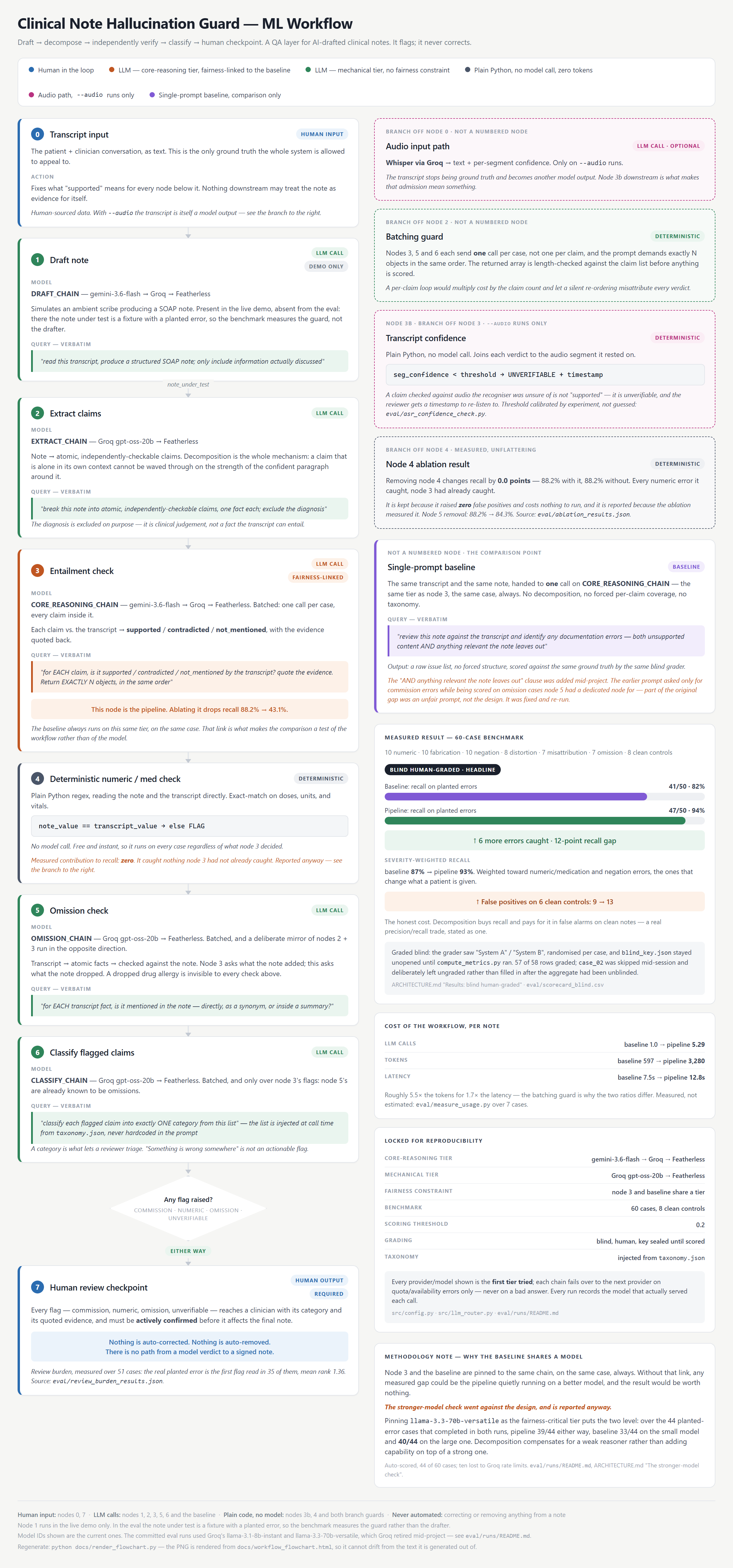

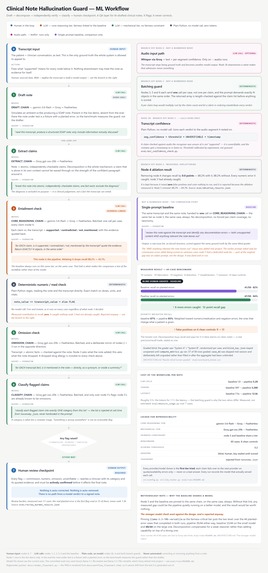

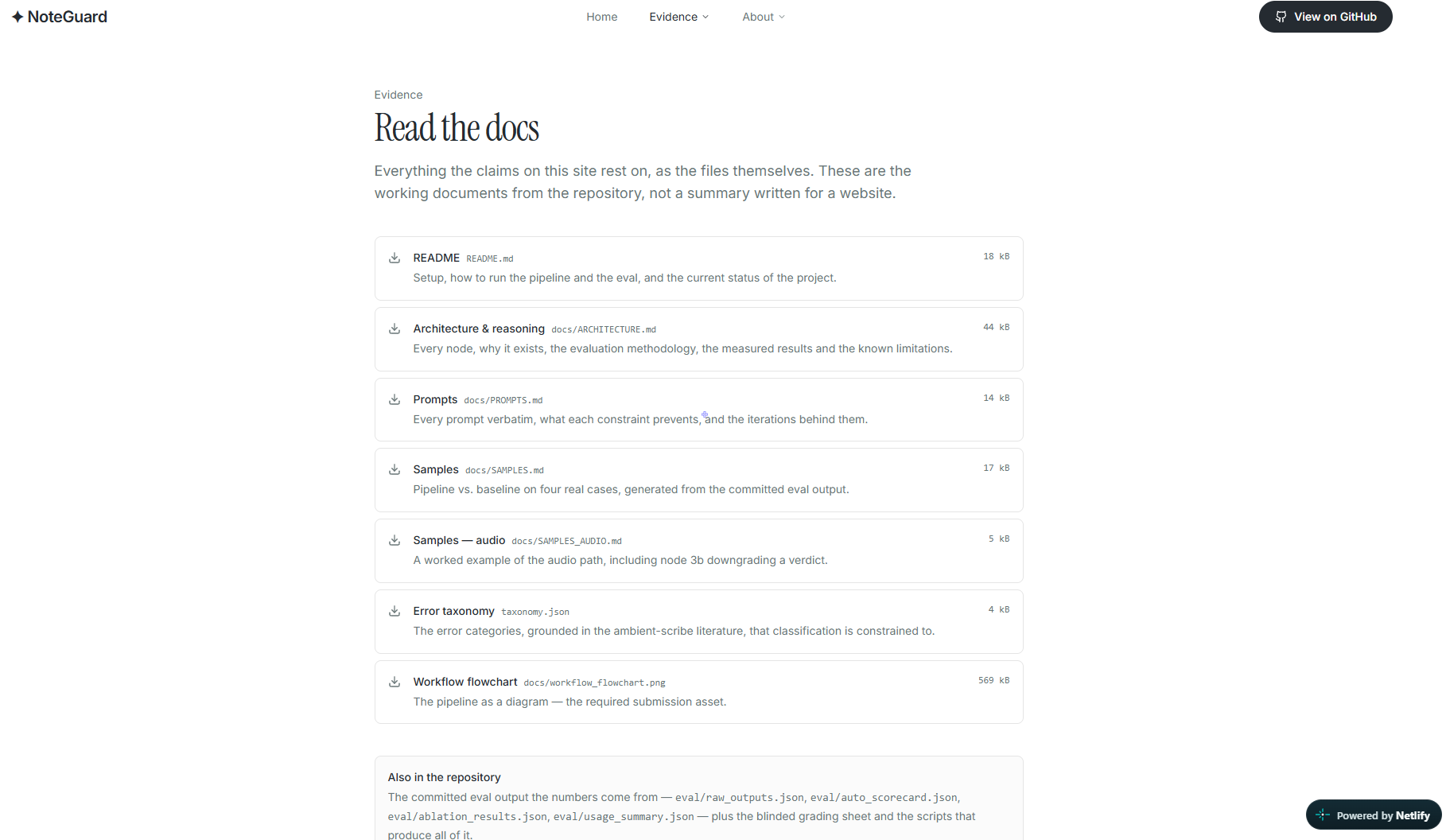

  • The required files: workflow flowchart · samples vs. single-prompt · per-node documentation · every prompt verbatim
  • The headline number: 94% of planted errors caught, against a single prompt's 82% — graded blind by a human, key sealed until scoring ran.
  • The number we'd rather you heard from us: that advantage disappears on a 10x larger reasoning model. It's below, under "Then we tested that claim on a stronger model."

Inspiration

AI "ambient scribe" tools that draft clinical notes from doctor-patient conversations are one of the most actively deployed categories of healthcare AI right now. Studies on AI-generated clinical documentation have found meaningful hallucination rates — fabricated symptoms, altered severity, wrong doses, flipped negations. Every clinical body involved agrees AI-drafted notes need human review before signing. The open problem is that reviewing a whole note by eye, hoping to catch what's wrong, is slow and unreliable. We wanted to build the systematic check that review can actually lean on.

This project does not diagnose patients or recommend treatment. It's a documentation-reliability tool that keeps clinical judgment with a human at every step. All data used anywhere in the project is synthetic — invented transcripts about fictional patients. No real patient data is used or needed anywhere.

What it does

Instead of trusting one model call to draft a note and hoping it's accurate, the pipeline decomposes the note into individually-verifiable claims, checks each one against the source transcript independently, and flags anything unsupported before it reaches a human reviewer. It catches both errors of commission (something in the note that wasn't said) and omission (something said that the note left out) — across a taxonomy grounded in the ambient-scribe literature: fabrication, distortion, omission, misattribution, numeric/medication errors, and negation errors.

How we built it

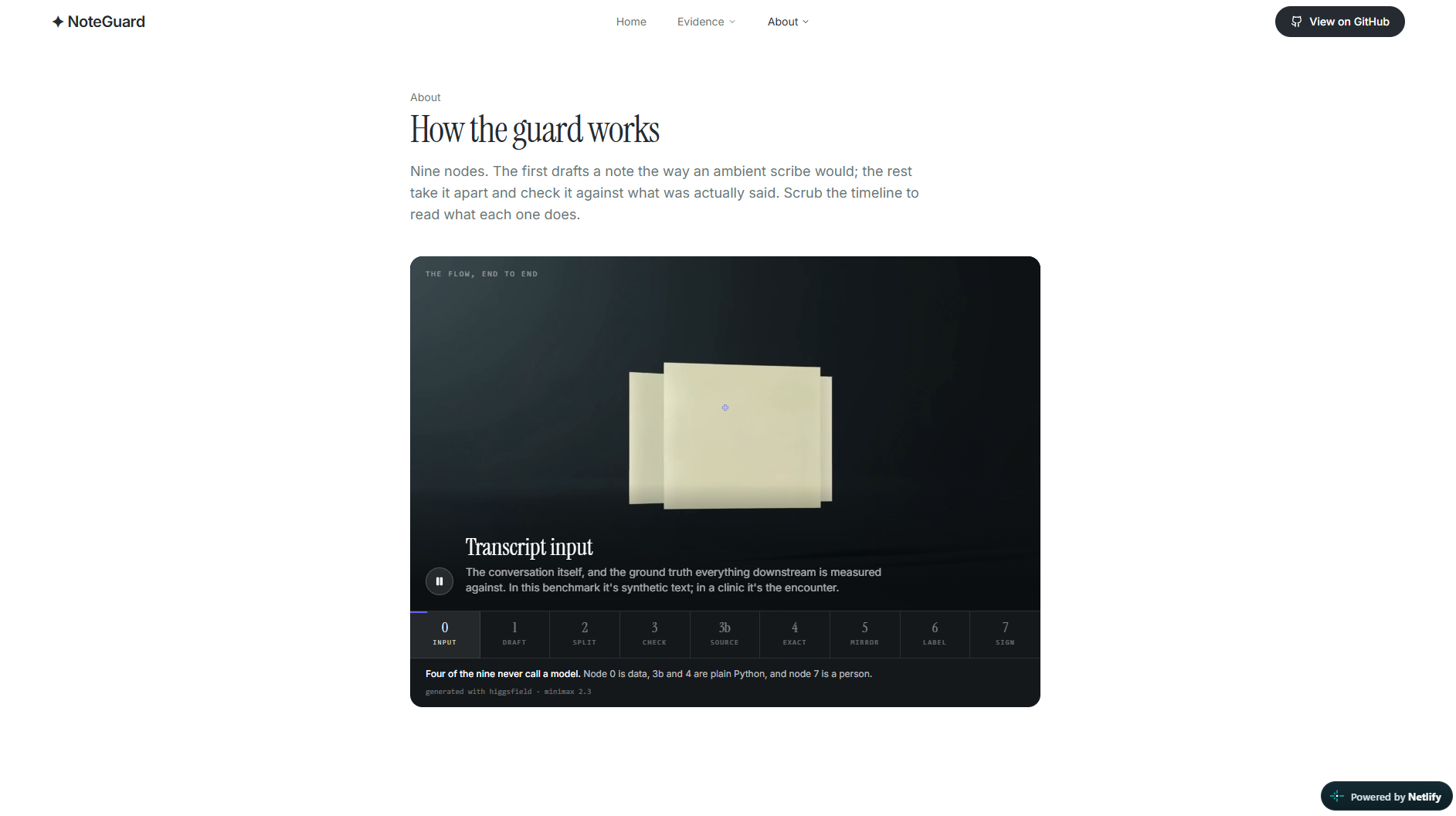

Nine nodes, each doing one job instead of asking a single prompt to do everything at once. Node 0 is the transcript itself and node 3b only runs in audio mode (both described below); these seven run on every note:

  1. Draft the note from the transcript (simulates the ambient scribe)
  2. Extract atomic claims from the note
  3. Entailment check — batch-verify every claim against the transcript, supported / contradicted / not_mentioned, with a quoted evidence excerpt
  4. Deterministic numeric/medication check — plain regex, no LLM, because exact doses and vitals don't need a model's judgment
  5. Omission check — the mirror image of 2+3: extract facts from the transcript and check whether the note covers each one
  6. Classify every flagged claim into the fixed taxonomy
  7. Human review checkpoint — required, not optional; nothing is finalized without a person confirming it

Multi-provider failover (Gemini → Groq → Featherless) keeps the pipeline running through free-tier rate limits, with the core-reasoning comparison against our single-prompt baseline fairness-linked to the same provider per case so the comparison isn't accidentally testing two different models. A dedicated node (3b) treats the transcript itself as a model output rather than ground truth when running in audio mode — downgrading claims resting on low-confidence transcription to "unverifiable" instead of silently trusting a bad transcript.

We built a 60-case synthetic benchmark (numeric/medication errors, fabrication, negation, distortion, misattribution, omission, and clean controls), a blinded scorecard workflow for human grading, and an automated scoring proxy for fast iteration.

Results

Across 56 cases, graded blind by a human — every case shown as "System A" and "System B", randomised per case, with the key sealed until scoring ran:

Recall Severity-weighted recall False positives (6 controls)
Pipeline 47/50 (94%) 93% 13
Baseline (single prompt) 41/50 (82%) 87% 9

The automated proxy used during development predicted this almost exactly — 88% vs 76%, the same 12-point gap — which says the cheap scorer was a trustworthy instrument for the comparison it was used for, and harsher than a human on both systems in absolute terms.

The pipeline catches meaningfully more planted errors than a single open-ended prompt, even after fixing the baseline prompt to be omission-aware so the comparison isn't just measuring an unfair baseline. The trade-off: more false positives on clean notes, since decomposing into many atomic claims creates more independent chances for an over-literal judgment to misfire.

Then we tested that claim on a stronger model, and it didn't hold

What still holds: on the model this actually runs on, the guard catches 94% of planted errors against a single prompt's 82%, graded blind. What follows narrows that claim rather than retracting it — and we ran the experiment against ourselves rather than around it.

The result above used a 7B model for the reasoning both systems depend on. We re-ran everything with a 70B model pinned in its place — about ten times the parameters — and scored both runs with the same matcher over the 44 planted-error cases that completed in both:

Core-reasoning model Pipeline Baseline Gap
Qwen2.5-7B 39/44 (89%) 33/44 (75%) +14 pts
Llama-3.3-70B 39/44 (89%) 40/44 (91%) −2 pts

The pipeline scored identically on both. The baseline went from 33 to 40 once it had a competent model behind it — and two of the five cases it gained are omissions, the failure mode our pipeline has a whole dedicated node for.

The honest reading: decomposition compensates for a weak reasoner rather than adding capability on top of a strong one. Structure substituted for model quality here; it did not compound with it. And the pipeline pays ~5.5× the tokens to arrive at the same place.

That narrows our claim rather than erasing it. The blind-graded result is real on the model that run used, and "worth a great deal when your reasoner is weak" is the situation any team on a free tier is actually in. What it stops being is a general claim that workflow structure beats a single good prompt. We'd rather report that than have a judge discover it — and the experiment was in our own README as an open question before we ran it.

(Caveats: auto-scored rather than blind human-graded, 44 of 60 cases — ten lost to rate limits, not difficulty — and one run per model. Detail in eval/runs/README.md.)

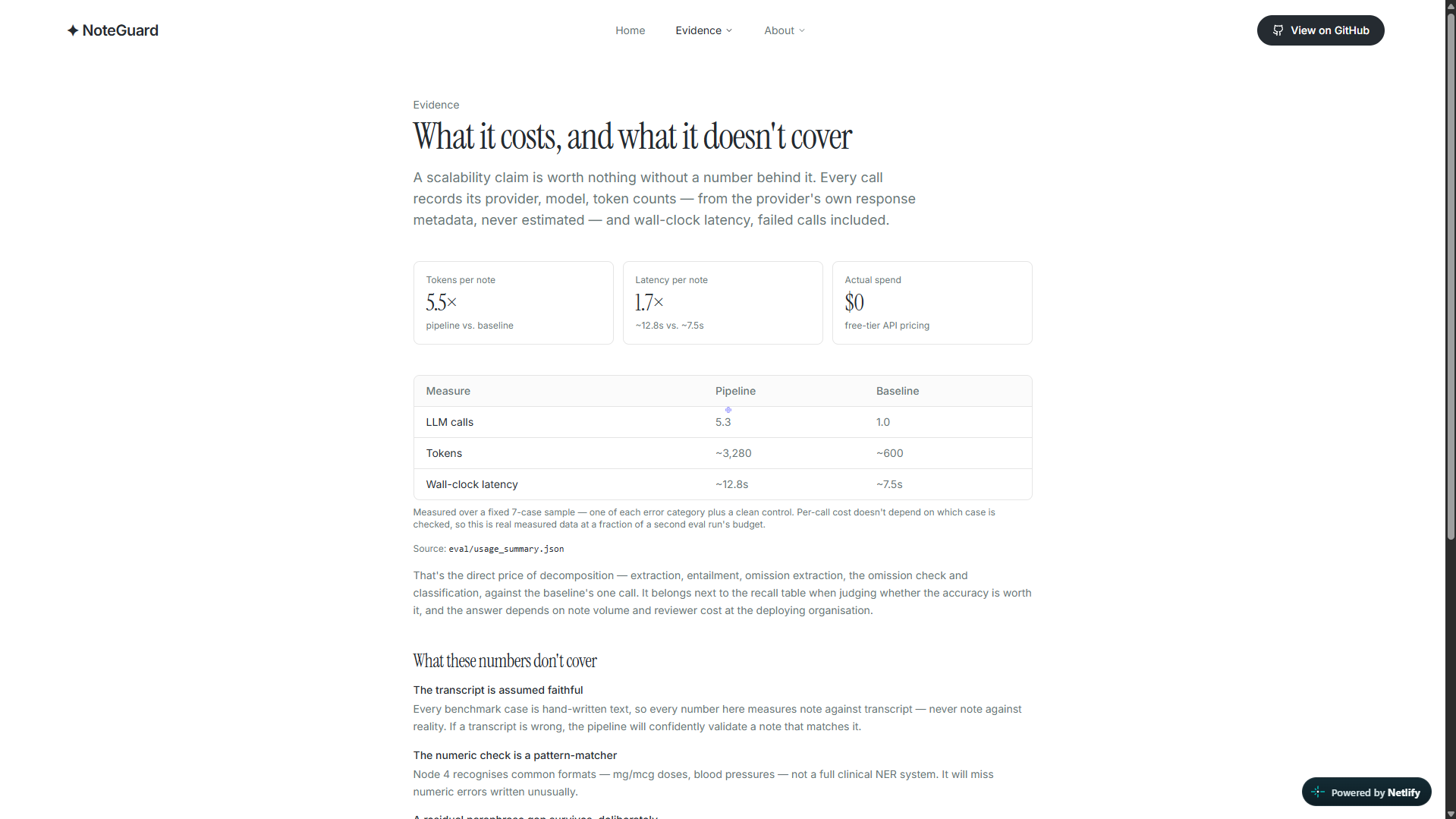

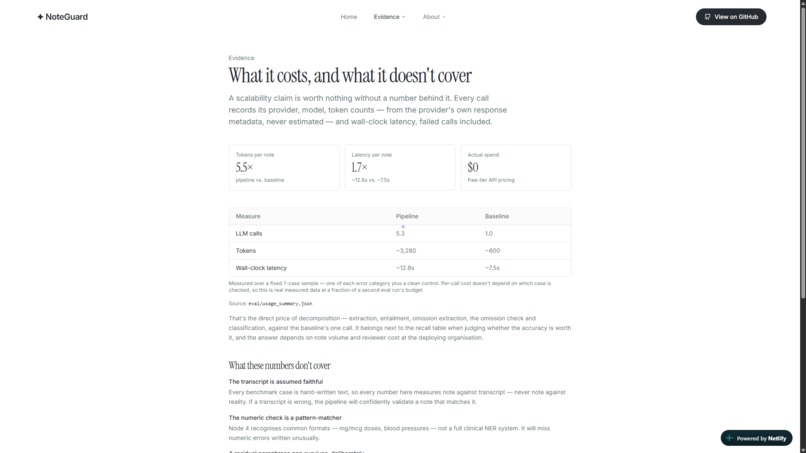

What it costs, and what it would take to run for real

Measured, not estimated — src/usage.py records provider, model, token counts (from the provider's own response metadata) and wall-clock latency on every call, failed calls included:

Per note checked Pipeline Baseline
LLM calls 5.3 1.0
Tokens ~3,280 ~600
Latency ~12.8s ~7.5s

So the guard costs ~5.5x the tokens and ~1.7x the latency of a single prompt. Whether that trades well depends on note volume and reviewer cost at the deploying organisation — a question this project deliberately does not answer on anyone's behalf. Actual spend to build and evaluate all of it: $0, on free tiers.

Scaling it is an integration problem rather than a research one. The pipeline is provider-agnostic by construction (src/llm_router.py), so a hospital running an on-premise model swaps one config entry rather than rewriting nodes, and the two deterministic nodes never call a model at all. The real gates are the ones any clinical-documentation tool faces: a BAA with whoever serves the model, or a self-hosted one; latency inside the seconds a clinician will actually wait at sign-off; and a false-positive rate low enough that reviewers keep reading the flags. That last one is ours to fix, and it is the honest weakness — 13 false positives across 6 clean controls.

Challenges we ran into

  • Free-tier rate limits mid-eval. Gemini's 20-request/day cap meant a single 60-case run burns through the quota almost immediately, so most of a given run's core-reasoning judgments come from the failover model rather than Gemini. We built the router to fail over automatically and log which provider actually handled each case, rather than silently assuming the intended model ran.
  • An unfair baseline was inflating our own result. Our baseline prompt originally only asked about commission errors while being scored on omission cases the pipeline had a dedicated node for. Fixing that closed part of the recall gap — the honest number is smaller than the first one we measured, and we kept the fix.
  • A too-small benchmark. An 18-case starter set meant a 2-case swing read as an 8–13 point swing in the headline recall number — not a believable margin. We expanded to 60 cases specifically to make the measured gap trustworthy rather than noise.
  • Malformed JSON from smaller models mid-batch, and a single failing case discarding an entire eval run — both hardened against directly in run_eval.py after hitting them for real.
  • A provider withdrew two models mid-project. Groq retired both models we were using, hours after a 60-case run that had been using them successfully. Our failover chain was built for providers going down, not for models being removed — a retired model returns 404, which we'd classified as a caller bug worth surfacing rather than an availability problem worth routing around, so calls died with a working fallback sitting unused in the same chain. Fixed narrowly: 404s that name the model now fail over; a 404 from a bad URL still surfaces. The replacement model's free tier caps at 8,000 tokens/minute against the ~580,000 a 60-case run needs, which makes a complete second evaluation run arithmetically impossible on a free tier. That ceiling is stated in eval/runs/README.md rather than left implied.
  • The transcript isn't ground truth in audio mode. A verdict is only as good as the audio it was checked against, so node 3b calibrates a confidence threshold (via a dedicated degradation experiment) instead of trusting ASR output blindly.

Accomplishments we're proud of

  • Node ablation shows real evidence for which pipeline nodes are earning their keep — including one node (deterministic numeric check) contributing zero additional recall on this benchmark, and reporting that honestly instead of hiding it.
  • A full cost/latency measurement of pipeline vs. baseline, not an estimate.
  • A reproducibility fix: pinning temperature after discovering that temperature alone swung a run between very different results.

What we learned

Decomposition-then-verify beats a single "find the errors" prompt when the underlying reasoner is weak — and stops beating it when the reasoner is strong. That was not the answer we expected, and finding it required running the experiment against our own claim rather than around it.

The other lesson is that fairness in an eval — same provider per case, same information in both prompts, an honest baseline — matters as much as the pipeline design. Two separate times, the first version of a number we were proud of turned out to be measuring an unfair comparison rather than a real advantage.

What's next

  • Finish the stronger-model check properly. It's auto-scored over 44 of 60 cases, with ten lost to rate limits. Re-running those and blind-grading the result would put that finding on the same footing as the headline number.
  • Tune node 5's notion of "clinically relevant", which currently flags genuinely important omissions and borderline ones at the same weight — the main driver of the false-positive rate.
  • Test whether node 4 earns its place on a model other than this one. It contributed zero marginal recall here; if that holds across models, it's defence-in-depth rather than coverage, and should be justified as such or dropped.
