City of Code

•

•

•

Inspiration

I’ve often found myself staring at massive GitHub repositories trying to understand their structure — thousands of files, deeply nested folders, and overwhelming complexity. I wanted a better way to visualize code, something more intuitive than scrolling through endless directories.

So I started thinking: what if code could be seen like a real city? The towering skyscrapers could represent core modules, the quiet neighborhoods could represent utility files, and the bustling districts could highlight frequently updated parts of the codebase.

That’s when I built the idea of giving every repository its own skyline — a visual way to explore and understand complex codebases.

What it does

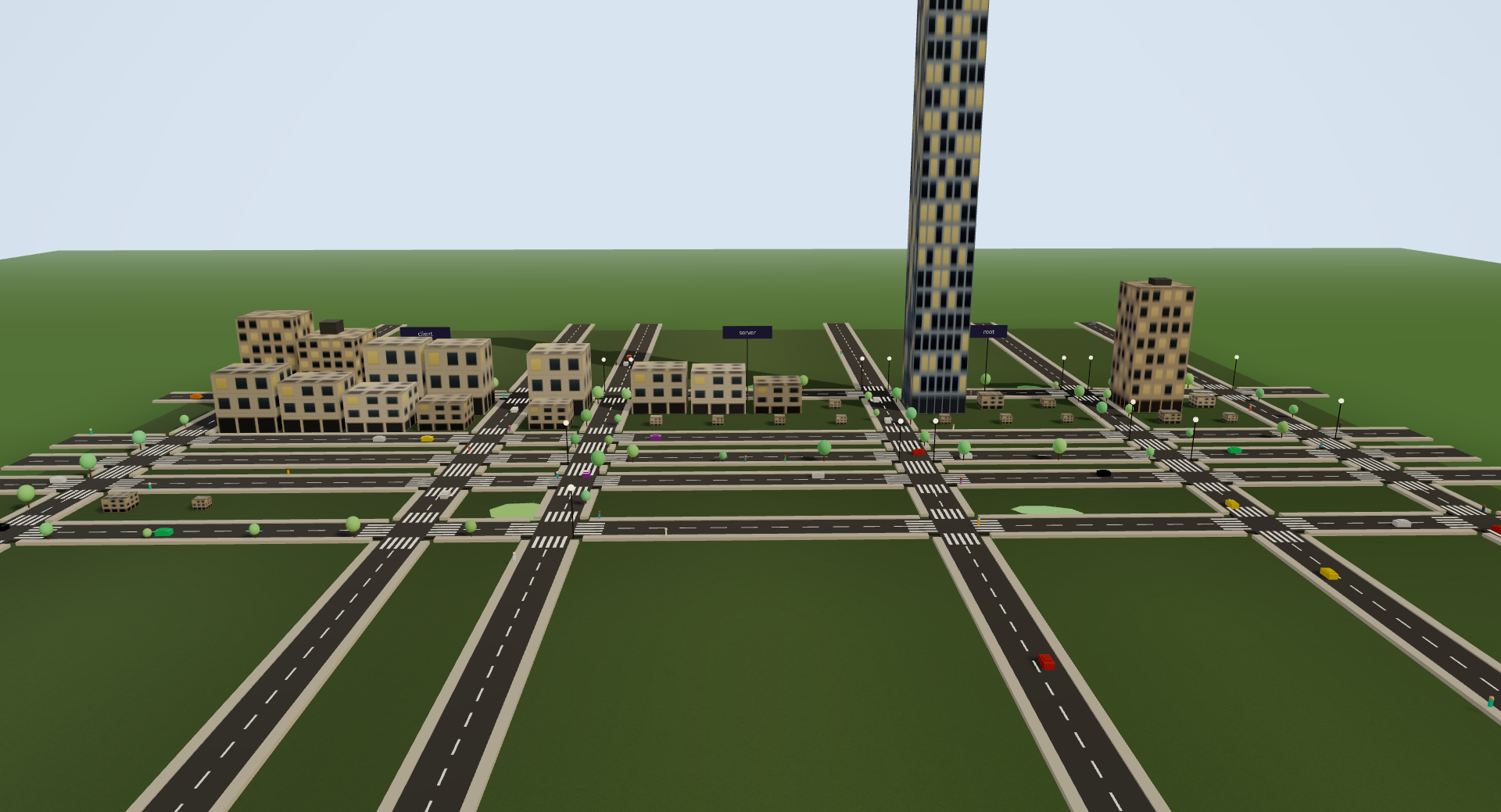

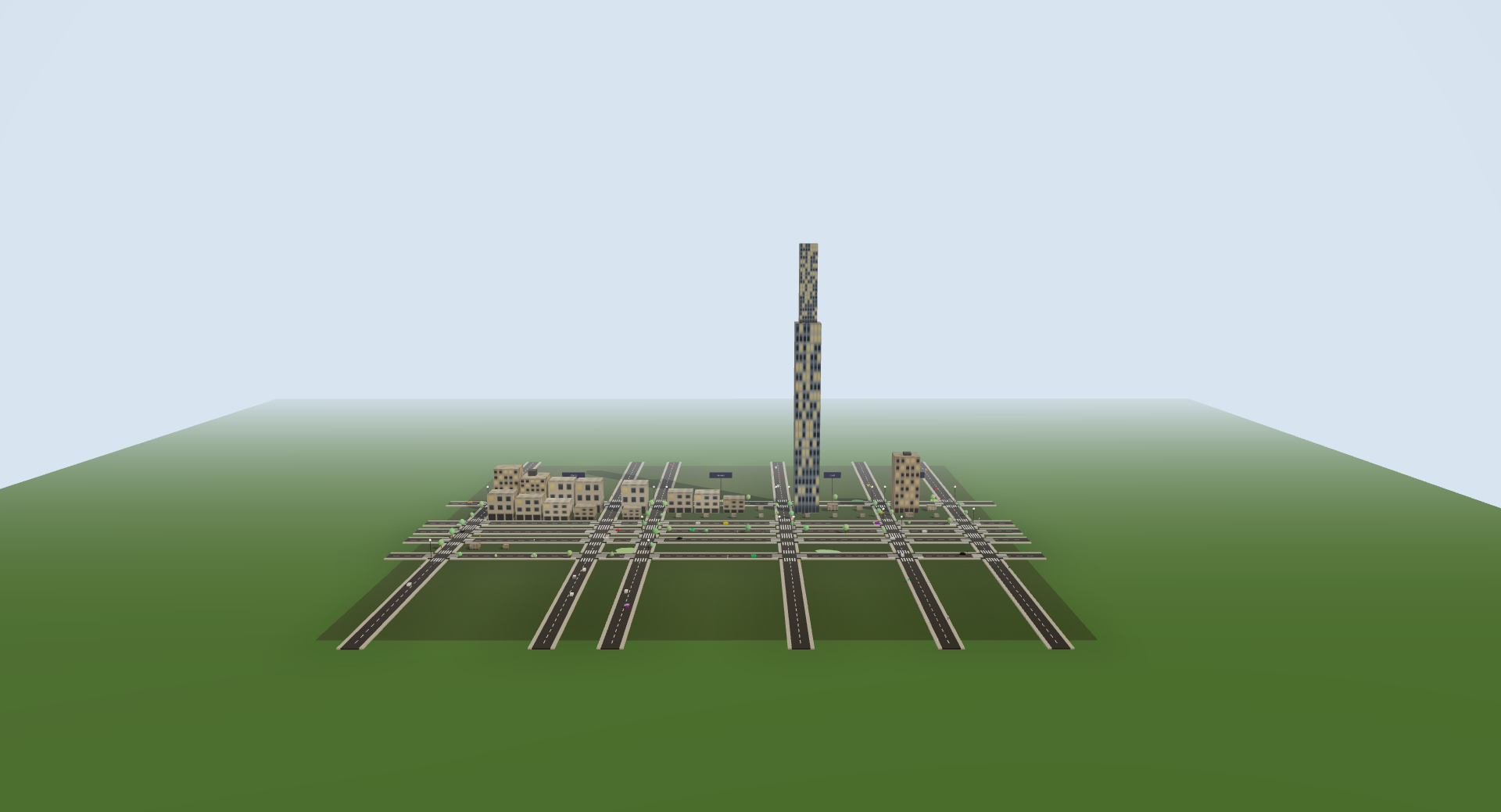

City of Code transforms any public GitHub repository into an interactive 3D city you can explore. Each file becomes a building (taller = more lines of code, wider = larger file size), and folders become districts. You can fly through the city using WASD controls and switch between three visualization modes:

Structure mode — color-coded by building type (skyscraper, tower, office, low-rise, shed) Language mode — buildings colored by programming language (JavaScript = cyan, Python = yellow, etc.) Activity mode — frequently updated files glow hot red, while stale files remain cool blue

You can search for files (matching buildings highlight in cyan), click any building to inspect file details in a sidebar, and the camera automatically pans to your selection.

It's like Google Earth, but for codebases.

How i built it

Frontend: Next.js 16 + React 19 + TypeScript, styled with Tailwind CSS 4.

3D Engine: Three.js via React Three Fiber, with React Three Drei for helpers and post-processing (Bloom + Vignette) to create cinematic visuals.

Animation: React Spring for smooth UI transitions.

State Management: Zustand for a reactive global store with fine-grained selectors.

Backend: Express 5 server with in-memory caching (15-minute TTL) and rate limiting.

Data Source: GitHub REST API — used to fetch repository file trees, commit activity stats, and language breakdowns.

City Generation: A custom algorithm groups files by folder into districts, arranges them on a grid with roads, and classifies buildings by size into architectural types. Buildings include realistic details like setbacks, antennas, and helipads.

Rendering Optimization: Uses instanced meshes, allowing 500+ buildings to render in just ~5 draw calls. Per-frame color updates happen entirely inside the Three.js render loop, avoiding unnecessary React re-renders for better performance.

Challenges i ran into

Performance with hundreds of buildings Rendering 500+ individual Three.js meshes was killing frame rates. I solved this by using InstancedMesh, bucketing buildings by type so each category renders as a single draw call with per-instance transforms and colors.

GitHub API limitations The GitHub API doesn’t allow fetching per-file commit history efficiently without making expensive per-file API calls. To solve this, I built a heuristic: fetch aggregate commit stats and distribute commit counts proportionally by file size, capped at 30% of the total.

City layout that looks realistic Designing a believable urban grid required multiple iterations of the layout algorithm. Buildings needed proper road spacing, district separation, and row wrapping. I also added architectural details like setbacks for tall buildings and varied roof types to make the city feel more alive.

Avoiding React re-renders in 3D Color changes for hover, selection, and visualization modes needed to happen inside useFrame (the Three.js render loop) instead of React state. Otherwise, the entire scene would re-render and cause frame drops.

SSR conflicts with Three.js Three.js relies on window and document, which aren’t available during server-side rendering. I solved this by using Next.js dynamic imports with SSR disabled to lazy-load the 3D canvas.

Accomplishments that i am proud of

Instanced rendering pipeline — Rendered 500+ buildings in ~5 draw calls with real-time color animations and smooth performance, with no frame drops.

The city actually looks like a city — Implemented districts, roads, varied architecture, traffic, trees, and procedural grass with noise, making the environment visually immersive.

Three meaningful visualization modes — Each mode reveals a different perspective of a codebase (structure, programming language, and activity).

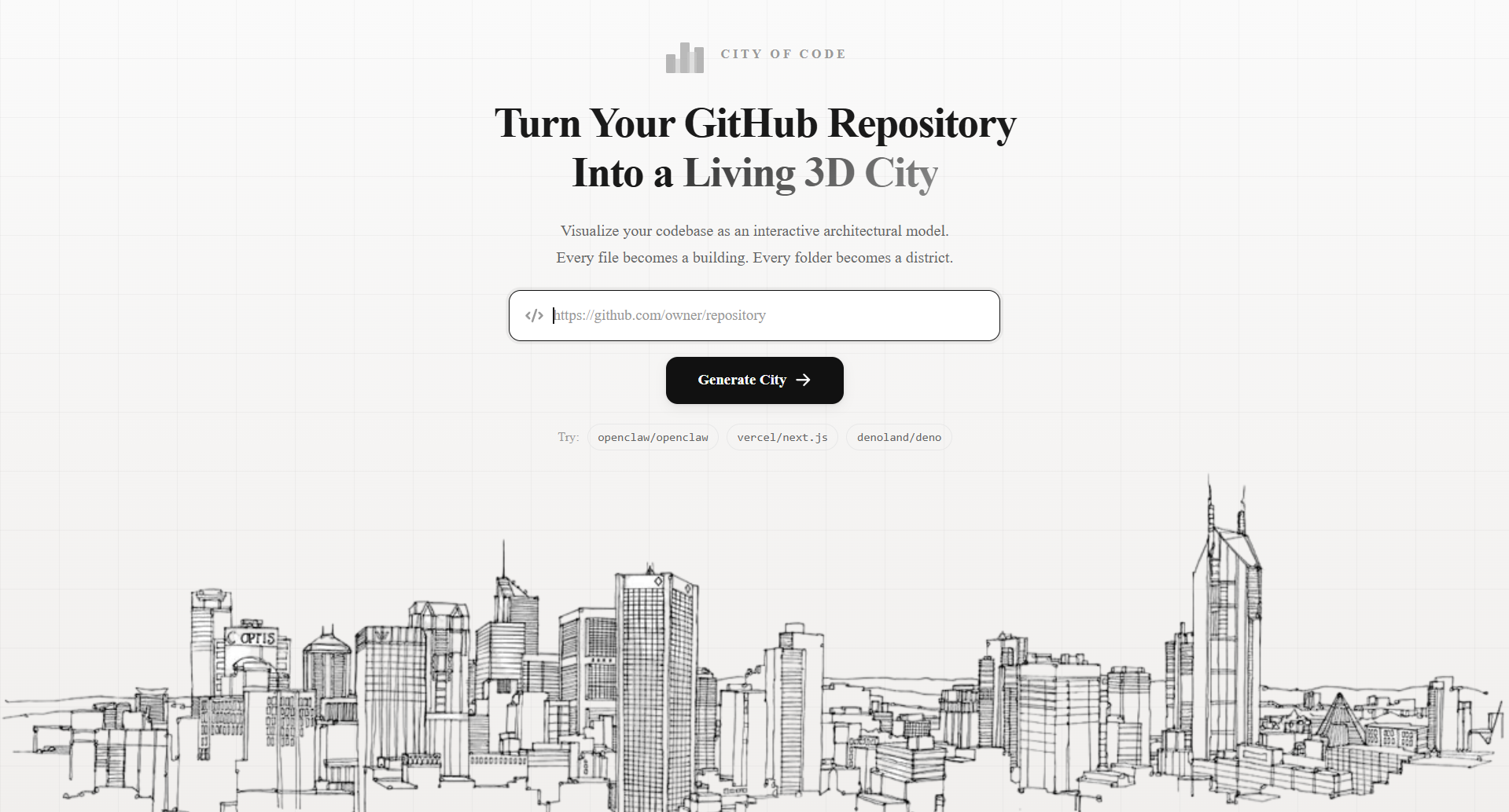

Smooth end-to-end UX — From repository URL input through animated loading stages to full 3D exploration with search, clickable buildings, and camera controls.

Works on any public GitHub repository — Handles repositories of all sizes by intelligently capping analysis at 500 files and filtering out binary assets.

Community validation — The project received 200+ upvotes on Reddit, showing strong interest from the developer community.

What i learned

Instanced rendering is a game-changer Rendering many similar objects in Three.js becomes dramatically more efficient with instancing, reducing draw calls from hundreds to single digits.

React and Three.js need careful boundaries Per-frame logic should run inside useFrame instead of React state. This prevents expensive re-renders and keeps the 3D scene smooth.

What's next for City of Code

Private repository support — OAuth-based GitHub authentication to allow visualization of private repositories.

Real-time collaboration — Multiple users exploring the same code city simultaneously.

Time-lapse mode — Watch the city evolve over time based on commit history, with buildings rising and new districts appearing as the project grows.

Built With

• express.js
• next.js
• three.js
• typescript
