CircuitSafe

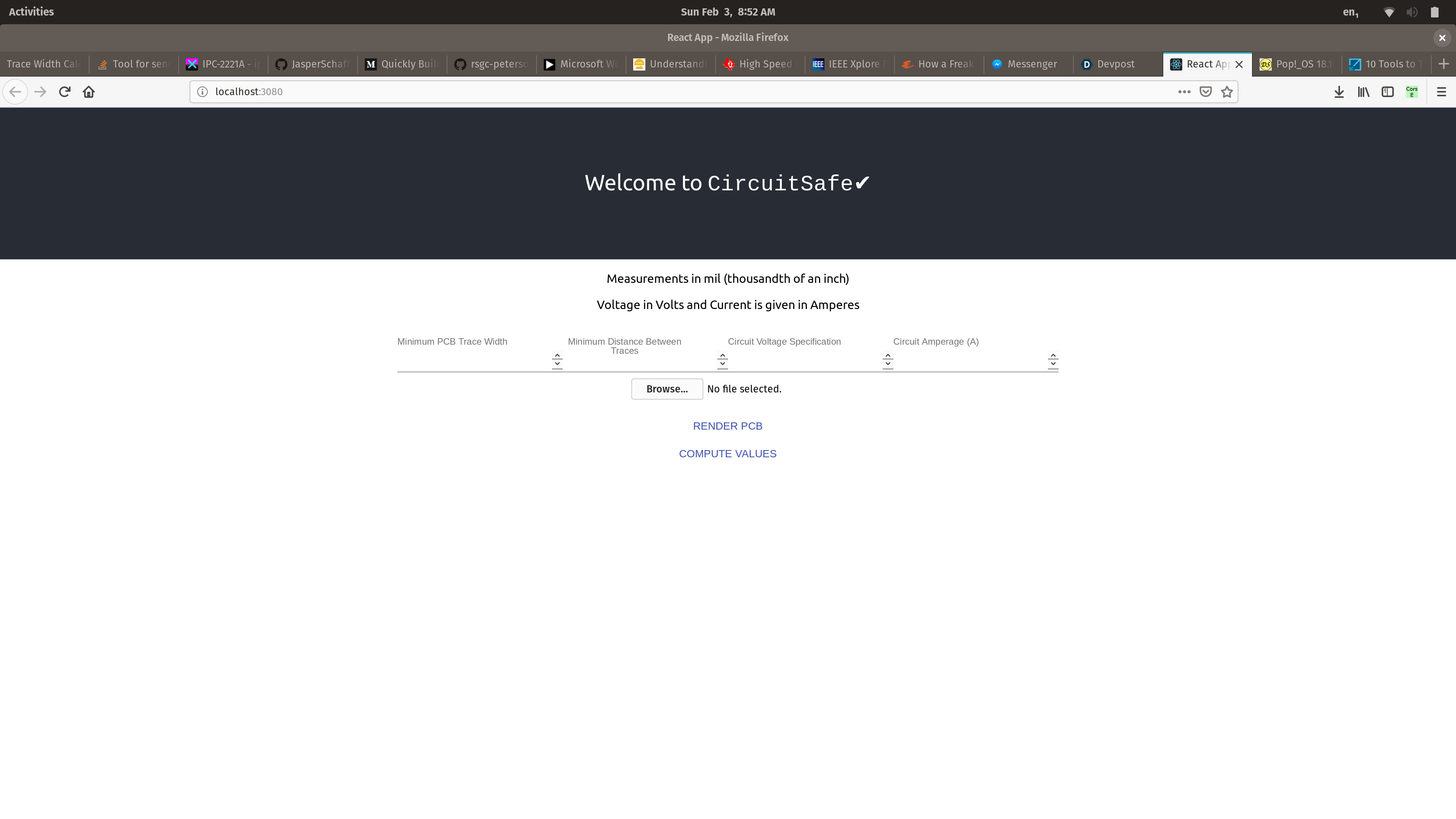

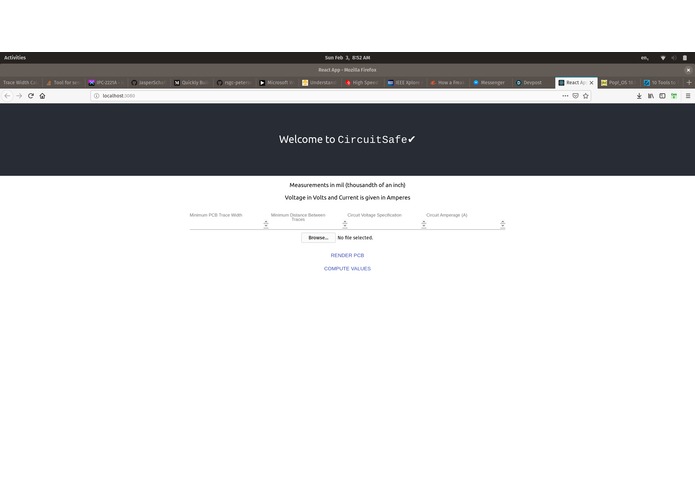

Main Screen

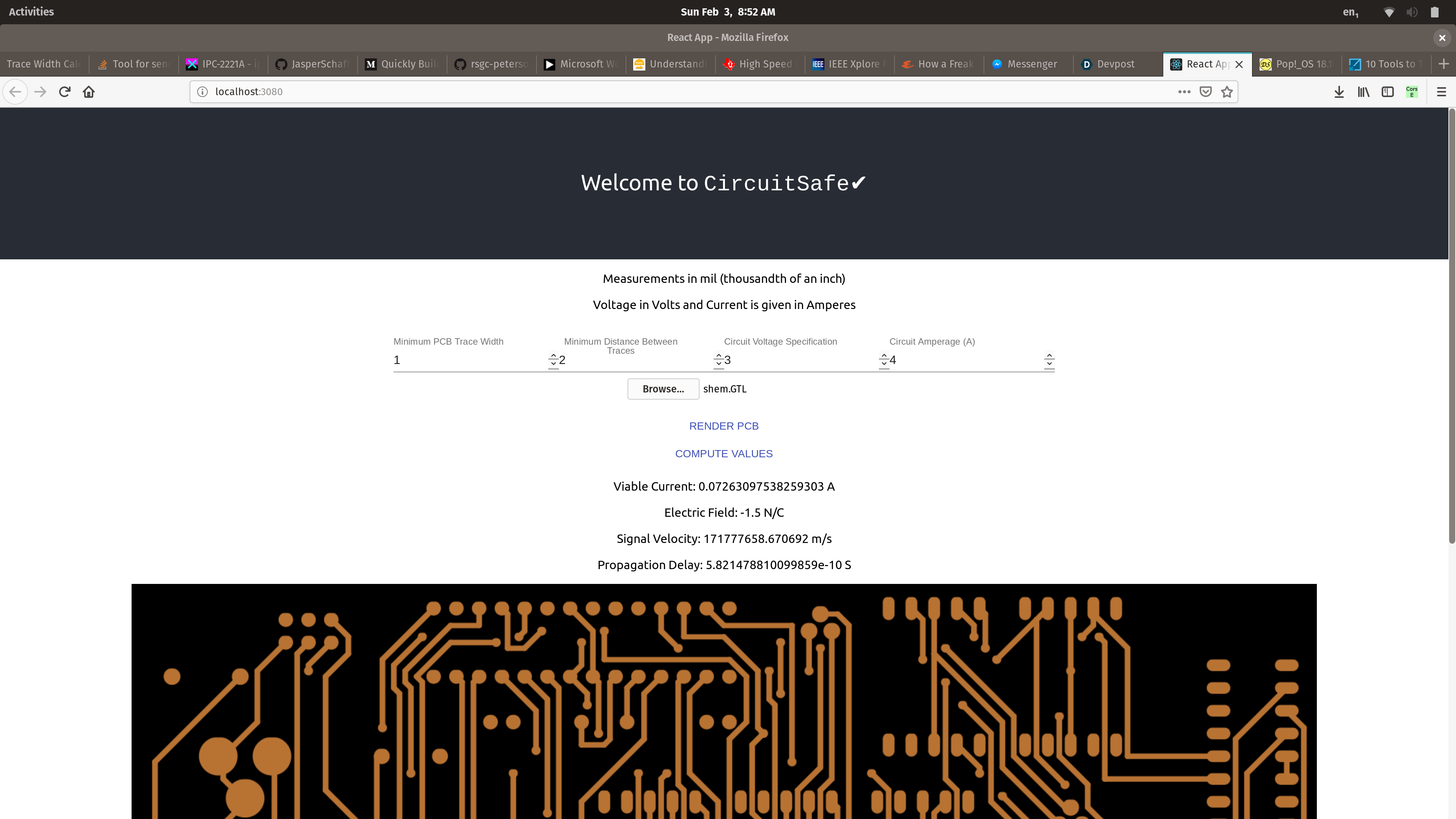

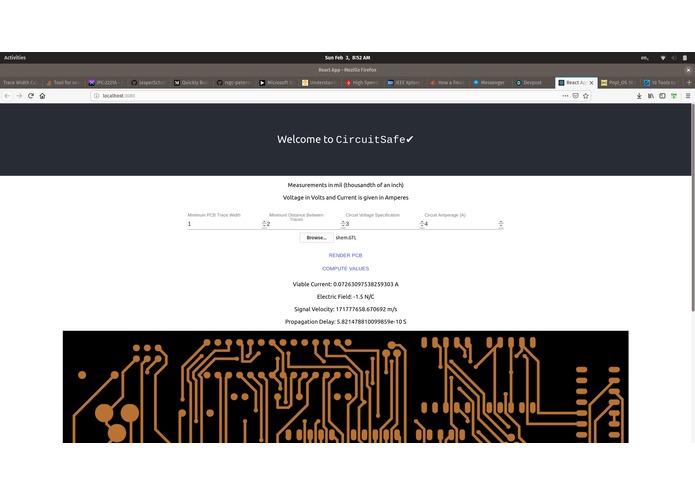

Output after rendering the pcb and doing some math surrounding its viability

Inspiration

After Ordering printed circuit boards I found they did not work sometimes due to EMI and trace width being too small for the current running through the traces.

What it does

Provides PCB rendering and runs a calculation on current, electric field and other useful values.

Built With

Submitted to

QHacks 2019

Created by

I worked on NodeJS backend which provided a REST API to my teammates to render PCB gerber files as images and an endpoint which returns some values regarding that specific circuit. Additionally, I built a ReactJS frontend to consume this API, which is shown in the demo images.

Ethan Peterson
I worked on the front end, I made a macOS desktop utility using Xcode and swift. This was my first time using HTTP requests/REST API and building an app using Xcode. The final product received inputs and a gerber file from the user, sends it to the backend written by Ethan and returns important information about the board as well as a rendered image.

Jasper Schaffer
Built an android app frontend for the project. First time using http requests, which were used to communicate with the backend.

jagprog5
Jaden Edhlund

Updates

Ethan Peterson started this project — Feb 03, 2019 08:56 AM EST
