CineTrace AI

A VFX studio supervisor that kills render-farm waste from live ClickHouse telemetry.

Comment

Inspiration

A VFX render farm is the most expensive machine in a studio and nobody watches it in real time. Everybody watches the schedule instead.

That gap is where the idea came from. Talk to anyone who has run a farm and they do not describe compute waste as a cost problem — they describe the morning a sequence missed dailies because a job had been "running" since Tuesday on eight GPUs and nobody noticed. The money is real, but the thing that gets someone shouted at is the empty slot in the review session.

Most FinOps dashboards would show that job as a line item in a monthly report. We wanted the opposite: a supervisor that notices at 2am, works out why, and says which shots it is about to cost you.

What it does

CineTrace AI watches a render farm's telemetry in ClickHouse and turns wasted compute into a delivery forecast.

The headline is not dollars, it is "7 shots will miss review, 5 are recoverable" — a count that moves with the farm, climbing as a review approaches and resetting when the session rolls. The two numbers rarely match, which is the point: some shots are already too far behind for freed capacity to save.

Both come out of a single SQL projection rather than a rule of thumb. It walks each show's shot queue in review order, accumulating the frames still owed ahead of every shot with a window function, then divides by the slots that show is actually running to get an ETA. The per-frame rate is not a constant — it is the median hours-per-frame for that show and renderer, read from a quantileTDigest baseline over completed jobs, so a slow renderer is not mistaken for a late shot. A shot is at risk when its ETA runs past its review time. It is recoverable when the same arithmetic, re-run with the zombie and idle-queue slots handed back, brings it inside the deadline. That difference is the entire product thesis, expressed as a column.

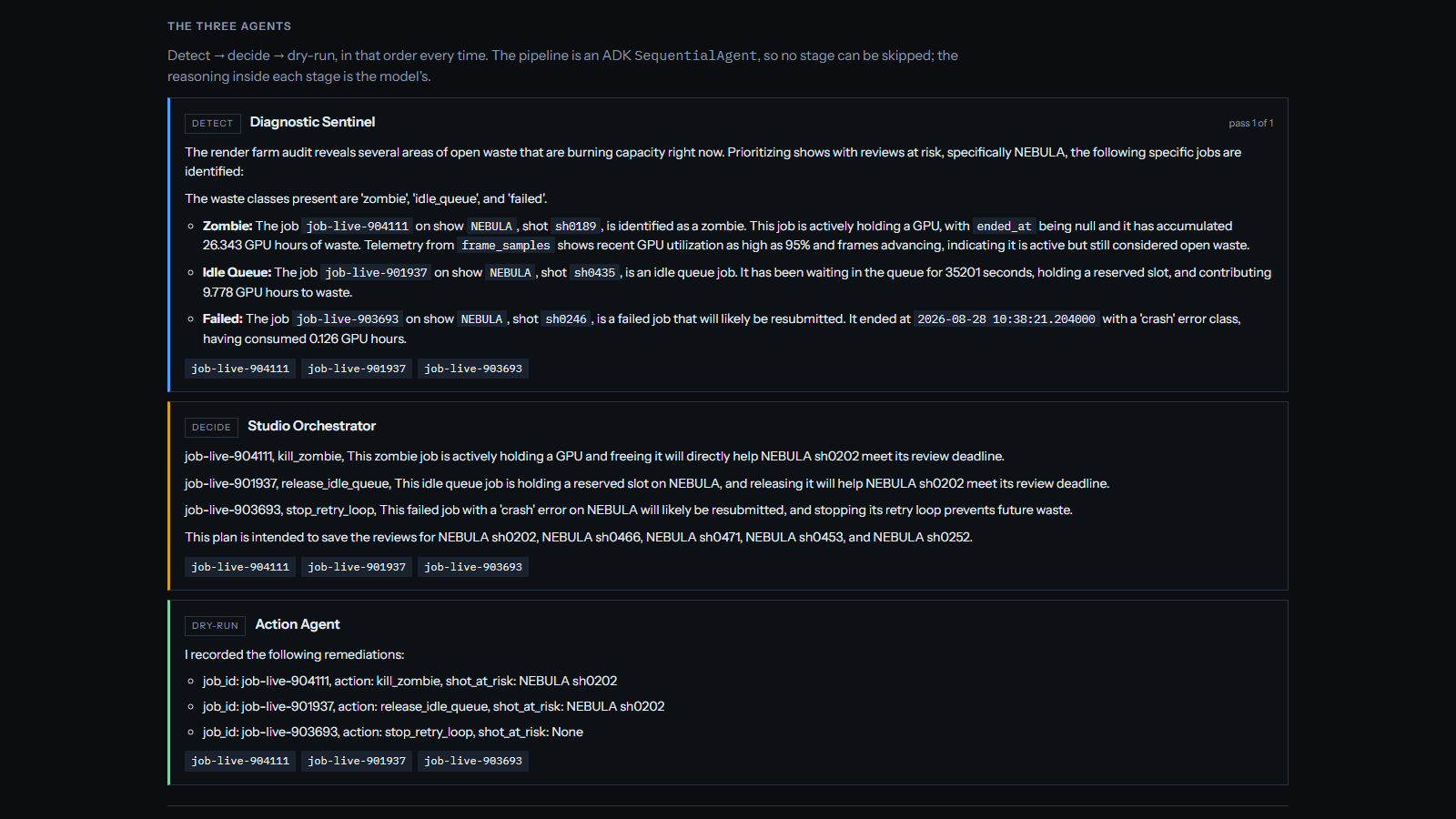

Underneath it, three Gemini agents on Google Cloud ADK run a fixed detect → decide → act pipeline:

  • The Diagnostic Sentinel is given the schema and a goal, not a list of queries. It composes its own SQL through the official mcp-clickhouse server — 5 to 16 run_query calls per run, depending on how many passes it decides to take — starting broad and drilling into whatever looks worst. When it finds an OOM failure it runs an ASOF LEFT JOIN against a quarter-billion telemetry samples to find the last reading before the job died, and reports things like "job-live-900409 died 4 seconds after host rnd-e20 hit 97% VRAM."
  • The Studio Orchestrator weighs those findings against the dailies schedule. Waste that threatens a client review outranks waste that only costs money, so a zombie on a show with a review in five hours beats a bigger overrun on a show with a review tomorrow.
  • The Action Agent records dry-run remediations with the evidence and, when the job is blocking a delivery, the shot it protects. That last claim is the strongest thing the product says, so it is the one claim the model does not get to assert unchecked: the shot is verified against the live delivery board before the row is written, and a shot that is comfortably on track gets the claim dropped rather than recorded.

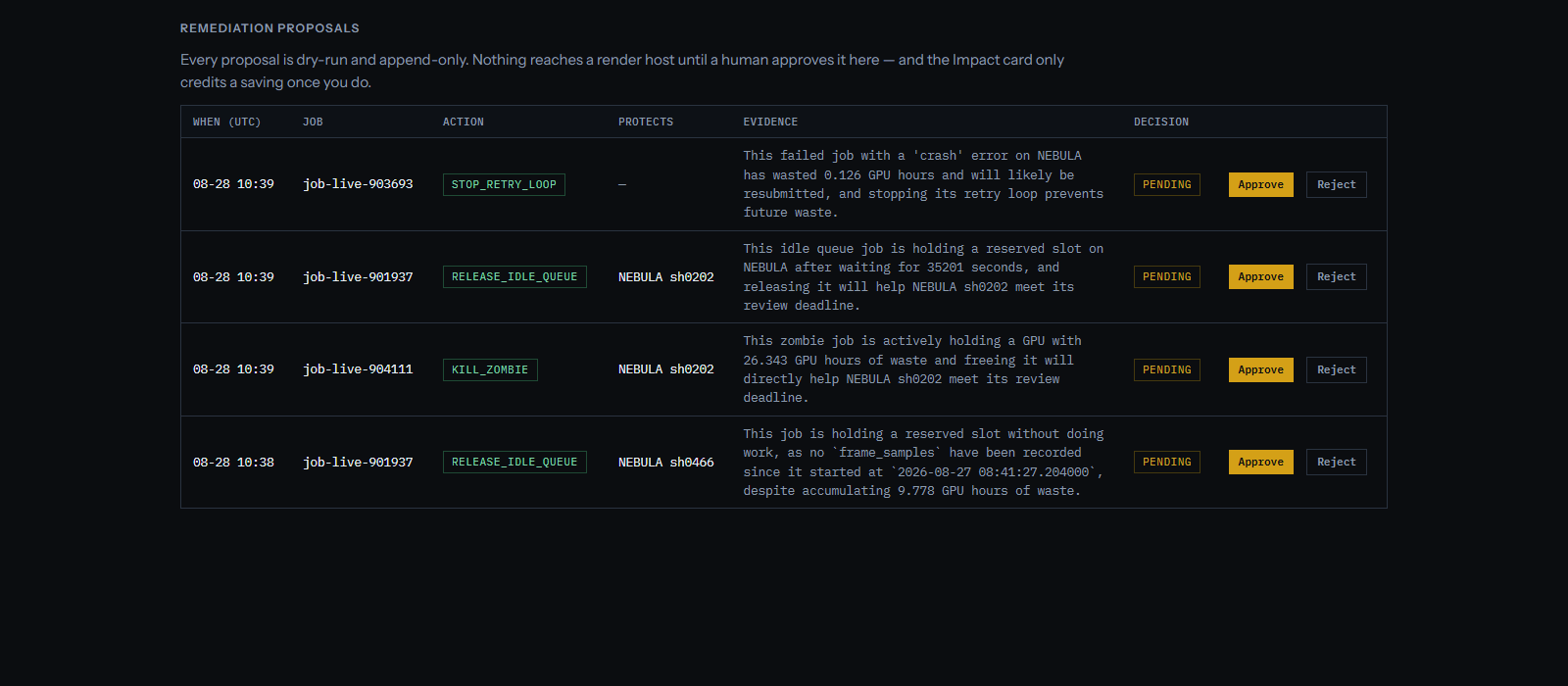

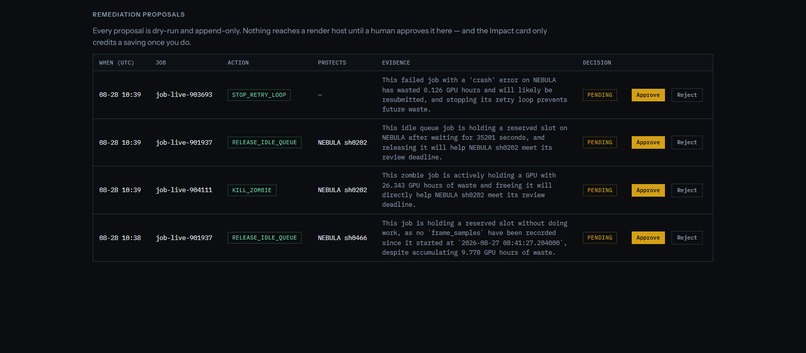

Nothing reaches a render host. Each proposal arrives as a row in the supervisor UI carrying the evidence it was built from — the job, the action, the shot it protects, and the Sentinel's own reasoning — with Approve and Reject sitting beside it. Approving credits that one job's waste to the Impact card and writes an append-only decision record; rejecting is recorded just as permanently and credits nothing. The dollar figure only moves on approval, because an agent finding waste does not reduce your bill and a supervisor approving the fix does.

The farm is live while you watch it: a background ticker writes fresh telemetry every 30 seconds and the page streams updates over SSE.

Scale: 244M frame samples, 198k render jobs, 240 hosts, three months of history, 3.9 GB. The ticker keeps writing, so the live page reads higher every day until the 100-day TTL parks it around a quarter of a billion rows.

How we built it

Google Cloud. Gemini 2.5 Flash through the Agent Development Kit. The pipeline is an ADK SequentialAgent wrapping the three agents, with the Sentinel itself a LoopAgent so it can react to what it found rather than answering in one shot. Stages hand off through session state. The pipeline runs in-process on Cloud Run; the same root_agent can be pointed at Vertex AI Agent Engine by setting AGENT_ENGINE_ID. Error text is embedded with Vertex AI text-embedding-005. The supervisor UI is FastAPI on Cloud Run; secrets are in Secret Manager; deploys run through GitHub Actions with Workload Identity Federation so no GCP credentials exist outside Google.

ClickHouse. ClickHouse Cloud is the telemetry store, reached two ways on purpose: agents get the official mcp-clickhouse stdio server, where run_query is select-only, and the application writes over HTTPS with clickhouse-connect. The read path an agent gets is deliberately narrower than the write path the app holds.

The schema leans on things that are ClickHouse-specific rather than incidental:

  • frame_samples is a MergeTree partitioned by day, ordered by (job_id, ts), with a projection on (host, ts) so the ASOF root-cause join can seek by host, plus set and minmax skip indexes and a 100-day TTL.
  • A materialized view aggregates into an AggregatingMergeTree on insert, so the dashboard reads about 900k pre-computed rows instead of a quarter-billion raw ones.

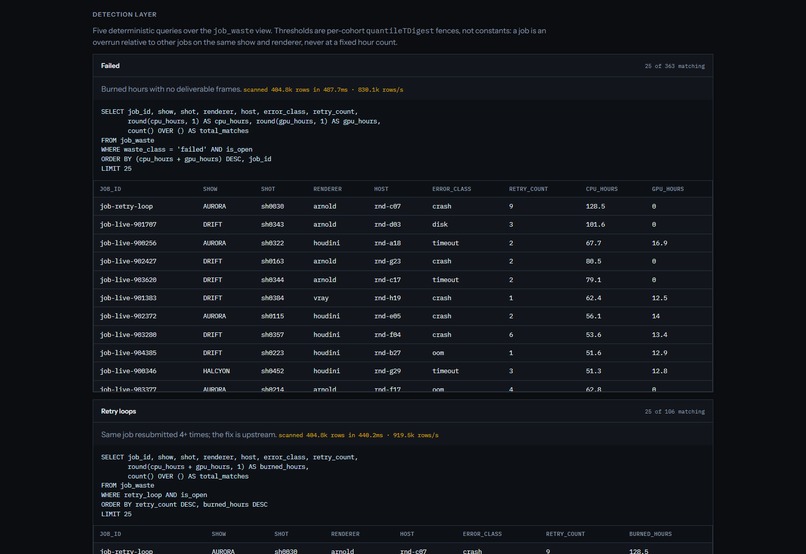

  • quantileTDigest builds per-(show, renderer) baselines. The old rule was cpu_hours >= 100, which is meaningless across renderers whose costs differ by 10x; now a job is an overrun when it crosses a robust upper fence, p50 + 3 × (p95 − p50), for its own cohort.
  • lagInFrame finds hosts failing repeatedly inside 90 minutes.

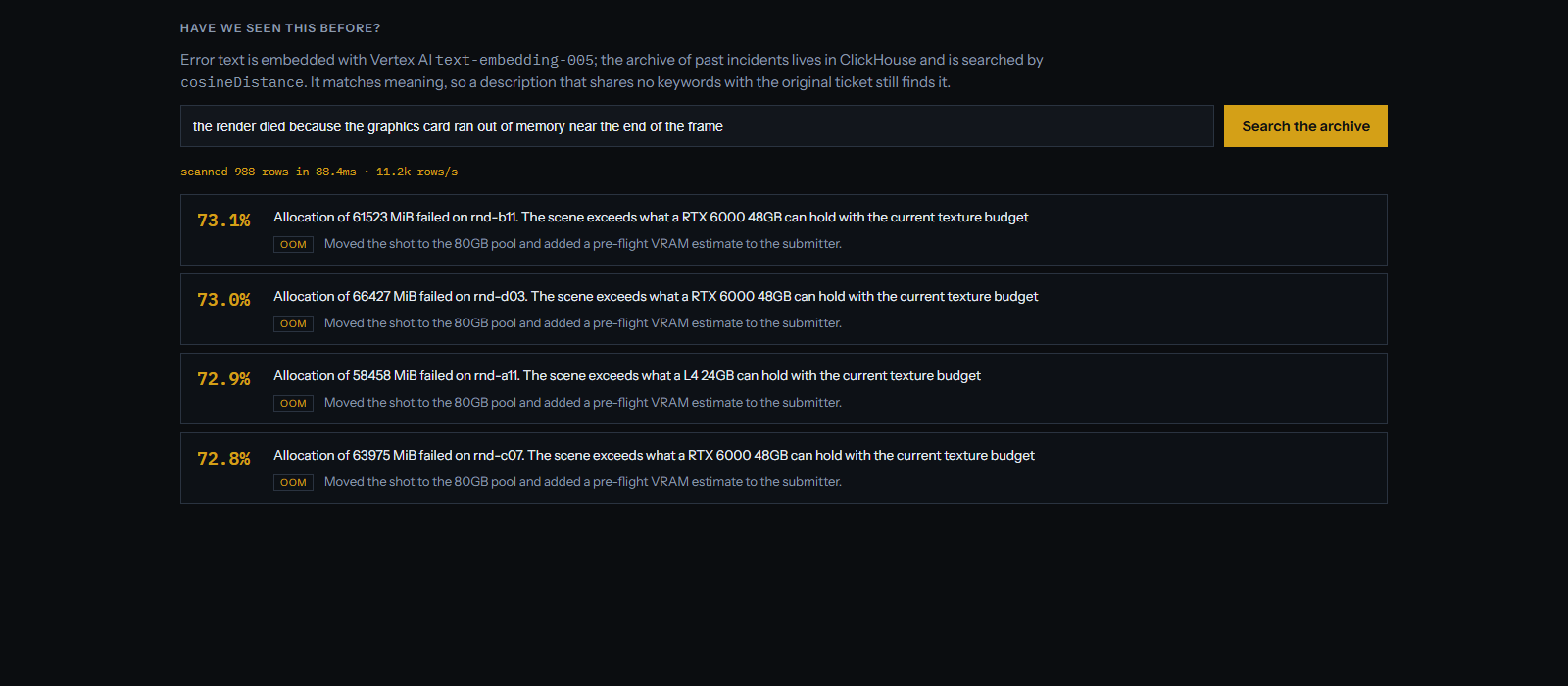

  • cosineDistance over Array(Float32) embeddings does semantic recall across the incident archive.
  • The entire farm is generated inside the database with INSERT ... SELECT ... FROM numbers_mt, so no rows ever cross the wire.

Data sources. All telemetry is synthetic and generated by src/cinetrace/clickhouse/generate.py. No real studio data was used, and none of it is scraped or third-party. Randomness is cityHash64-seeded, so the farm rebuilds identically and the numbers in the video match the numbers in the repo.

Challenges we ran into

The first version did not need ClickHouse. It ran on 62 rows. Every query would have produced identical output on SQLite, which is a strange thing to submit to a ClickHouse track. Fixing that meant rebuilding the data model around a frame-level fact table instead of a job-level one — hundreds of millions of rows instead of 62 — and rewriting the impact calculation, which had been summing in a Python loop over every job. That does not survive 198k rows.

Scale exposes lazy SQL immediately. The first ASOF join had no bound on its right side, so ClickHouse tried to materialise the whole fact table and hit the 7.2 GiB memory ceiling. Bounding both sides — the failure window and the handful of hosts actually involved — takes it to about 2M rows, and the page prints that count on every load so you can check us. Similar story with alias shadowing: sum(waste_cpu_hours) AS waste_cpu_hours is fine alone but makes any other aggregate reading that column fail with "aggregate function inside another aggregate function".

Agents optimise exactly what you measure. Our first working run had the Sentinel confidently reporting three overruns and the Orchestrator concluding "these actions are not intended to save any specific shots". It was right: the biggest dollar figures were overruns. But overruns are completed jobs, so there is nothing to reclaim. The bug was in the waste model, not the prompt — we were marking completed jobs as actionable. Once is_open meant "an action can still change this", the same agents immediately started picking zombies and idle-queue jobs and tying them to specific reviews.

A demo has to survive being left alone. Judging runs two to four weeks after the deadline. Every predicate the Sentinel uses is relative to now(), so a static seed rots: leave it a week and every "running" job drifts past the six-hour zombie threshold, and the farm reads as one enormous outage. The live cohort now rebuilds itself against a fresh now() every 15 minutes.

The ticker was too generous. The first version advanced every shot by up to two frames every 30 seconds, so the delivery board drained and "dailies at risk" was permanently zero within the hour. Matching it to real farm throughput — 224 slots at ~0.46 hours per frame is about four frames per tick across all shows, not two per shot — made it stable.

Accomplishments that we're proud of

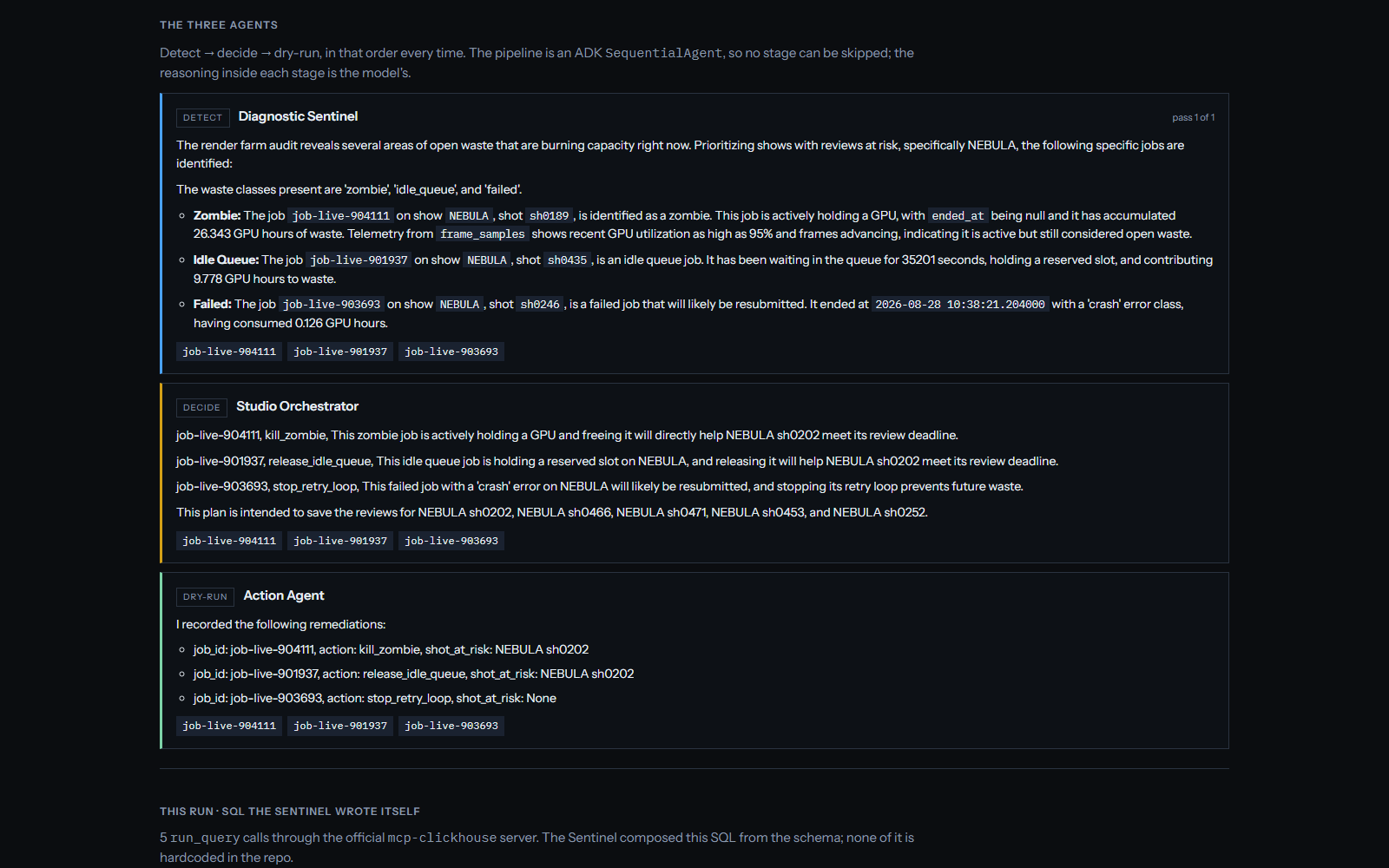

The Sentinel writing its own SQL. There is a panel on the page showing the exact statements the model composed against a schema it was handed, including ASOF joins it chose to use, and none of it is hardcoded in the repo. That is the difference between an agent and a prompt with queries pasted in.

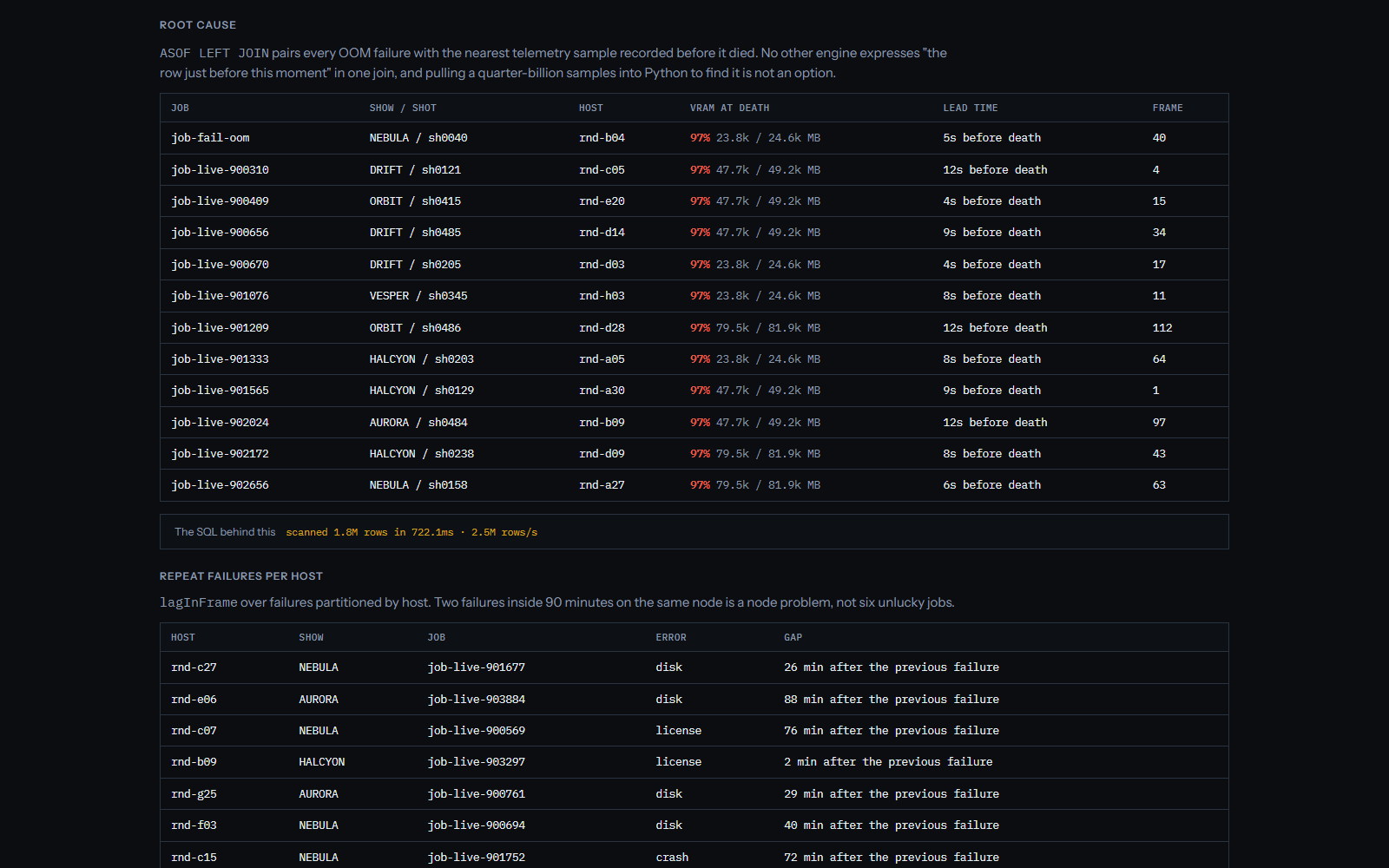

The root-cause line. "This job died 4 seconds after the host hit 97% VRAM" is a sentence a render wrangler would write, produced by a single ASOF join that reads about 2M rows out of a quarter-billion — the bounds and the (host, ts) projection do that work, not a bigger cluster.

The honesty of the numbers. The page distinguishes waste you can still act on from waste that already happened, refuses to credit a saving until a human approves it, and shows the at-risk shots that freeing slots would not rescue. Two guards enforce that in code rather than in prompt wording: a proposal claiming it protects a shot has the claim dropped unless the live delivery board agrees, and a job id that does not resolve to a real job is refused outright. It would have been easy to make every number look recoverable.

And the detector is scored, not admired. Synthetic data usually costs you the ability to tell a finding from a coincidence; here it buys the opposite, because the generator seeds six jobs whose correct classification is known before the farm is written. A test in CI asserts that the job_waste view recovers all six in their own class — including that a completed overrun is real money but stays out of the actionable total, since no action reclaims hours already spent.

And the supervisor reports its own cost. A tool that kills compute waste should be able to say what it spends: two to four cents of Gemini per run.

What we learned

Partner-track projects live or die on whether the partner product is load-bearing. The useful question was not "are we calling ClickHouse?" but "would this still work on Postgres?" Every honest answer of "yes" was a feature we had not really built yet.

Determinism and autonomy are not opposites. Letting the model choose the control flow via sub_agents transfer bought nothing and cost reliability. A SequentialAgent guarantees the three stages while leaving the interesting reasoning — which SQL to write, which job matters — entirely to the model.

Statistical thresholds beat constants, and they are cheap. Replacing cpu_hours >= 100 with a per-cohort tDigest fence took one view, made the detector defensible, and removed an argument we could not win about what the right constant was.

Agent guardrails belong in the data model. We tried to fix the overrun fixation with prompt wording first. It half-worked. Fixing the definition of "actionable" fixed it completely and permanently, for every future prompt.

Watch what the model does with a quarter-billion-row table. The Sentinel bounds its frame_samples queries by job id and time range because the schema brief tells it to, in the same paragraph that tells it how big the table is. Without that, an agent will happily write the query that takes the cluster down.

What's next for CineTrace AI

Closing the loop: real execution against OpenCue or Deadline, gated on the approval record that already exists. The audit trail was built for this.

Real ingestion, replacing the generator with a live feed from farm schedulers, which is mostly a matter of the Kafka table engine and keeping the same schema.

Learning from outcomes: every approved and rejected proposal is a labelled example of whether the supervisor was right. Feeding rejections back would let the Orchestrator's priorities adapt to a studio instead of shipping with ours.

Bidding on the schedule rather than only reporting it — if the farm knows which reviews are at risk, the next step is proposing the reallocation, not just freeing the slot.
