Cilium Zero Trust Policy Visualizer

An eBPF/XDP-powered visualizer that shows, in real time, which network flows your Zero Trust policy would allow or deny.

Comment

Inspiration

Modern Zero Trust sounds great on slides, but it often ends up as static firewall rules or opaque policy engines that engineers can’t easily see or debug. I wanted something closer to what Cilium does in production: use eBPF to get per-flow visibility and policy decisions directly from the kernel, and then surface that in a simple, understandable way.

So the inspiration was:

  • Turn abstract Zero Trust ideas into concrete flow-level signals.
  • Use eBPF/XDP to do this in a high-performance, cloud-native way.
  • Build a demo that’s small enough to run on a laptop/VM, but conceptually similar to how serious systems like Cilium enforce policy.

What it does

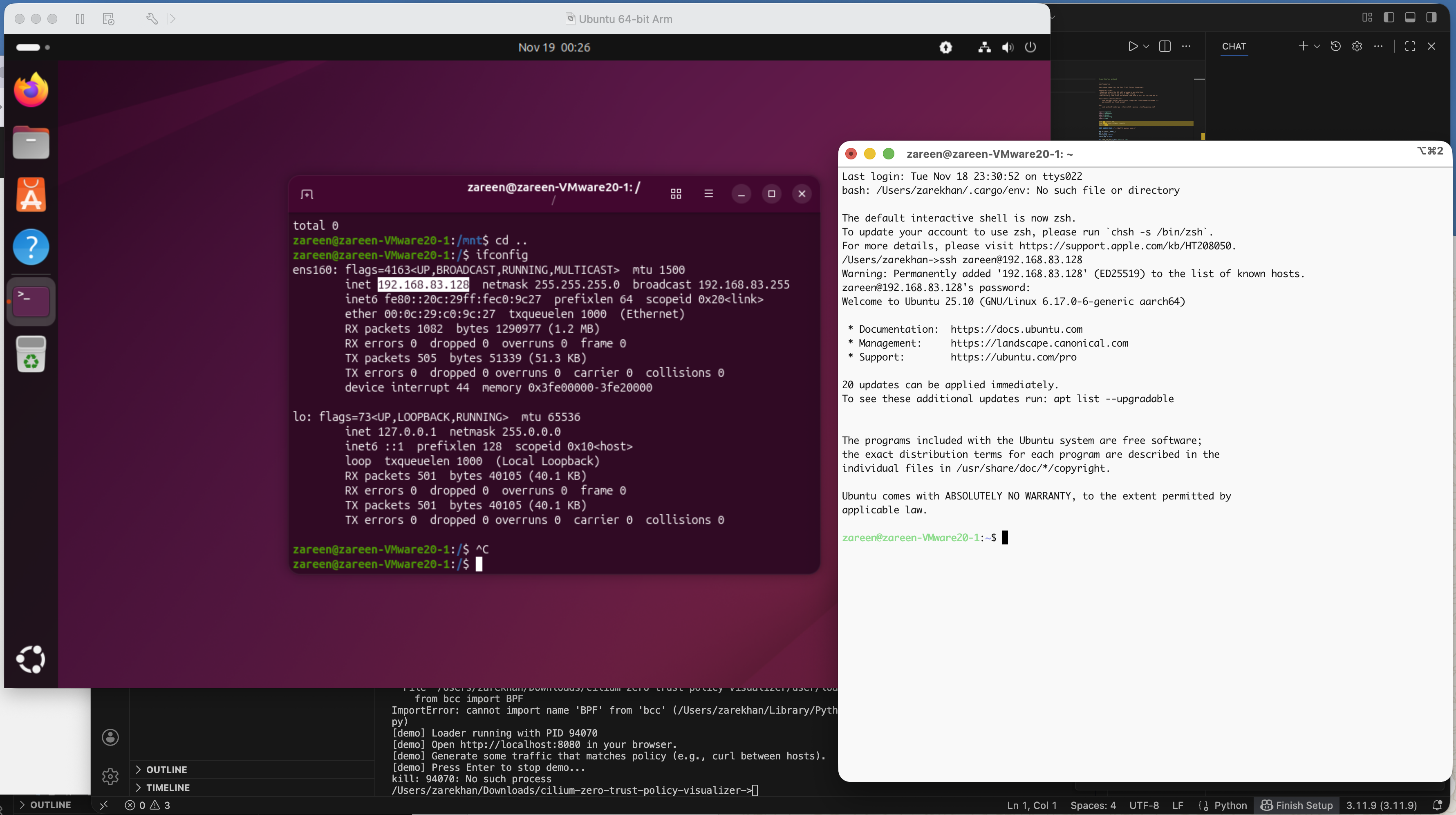

The Cilium Zero Trust Policy Visualizer attaches an eBPF/XDP program to a network interface (e.g., ens160) and:

  • Parses each packet into a 5-tuple flow key:
    src_ip, dst_ip, src_port, dst_port, proto.
  • Looks up the flow in a policy map that says allow or deny.
  • Updates a stats map with per-flow counters: how many packets would be allowed vs denied.
  • Exposes those decisions back to user space so they can be:
    • Printed in the console, or
    • Served via an API and displayed in a UI (e.g., a graph or table).

In the current demo mode it does not drop traffic – it acts as a “Zero Trust lens” over your traffic, showing what would be allowed or denied under your policy.

How I built it

eBPF/XDP program (kernel side)

  • Written in C using BCC-style helpers (BPF_HASH, lookup, update).
  • Parses Ethernet + IPv4 + TCP/UDP headers to construct a flow_key.
  • Uses two BPF maps:
    • policy_map: flow_key -> __u8 (1 = allow, 0 = deny)
    • stats_map: flow_key -> flow_stats { allowed, denied }
  • Classifies each packet and updates the corresponding counters.

Shared header (zt_policy_common.h)

  • Defines struct flow_key and struct flow_stats used on both sides
    (C + Python via BCC types).

Python loader (loader.py)

  • Uses BCC to:
    • Compile the eBPF program from zt_policy_kern.c.
    • Attach it to the chosen interface using XDP.
  • Reads policy.yaml with rules like:
rules:
  - src_ip: 192.168.86.250
    dst_ip: 1.1.1.1
    dst_port: 80
    proto: tcp
    action: allow
  • Converts each rule into a flow_key and writes it into policy_map.

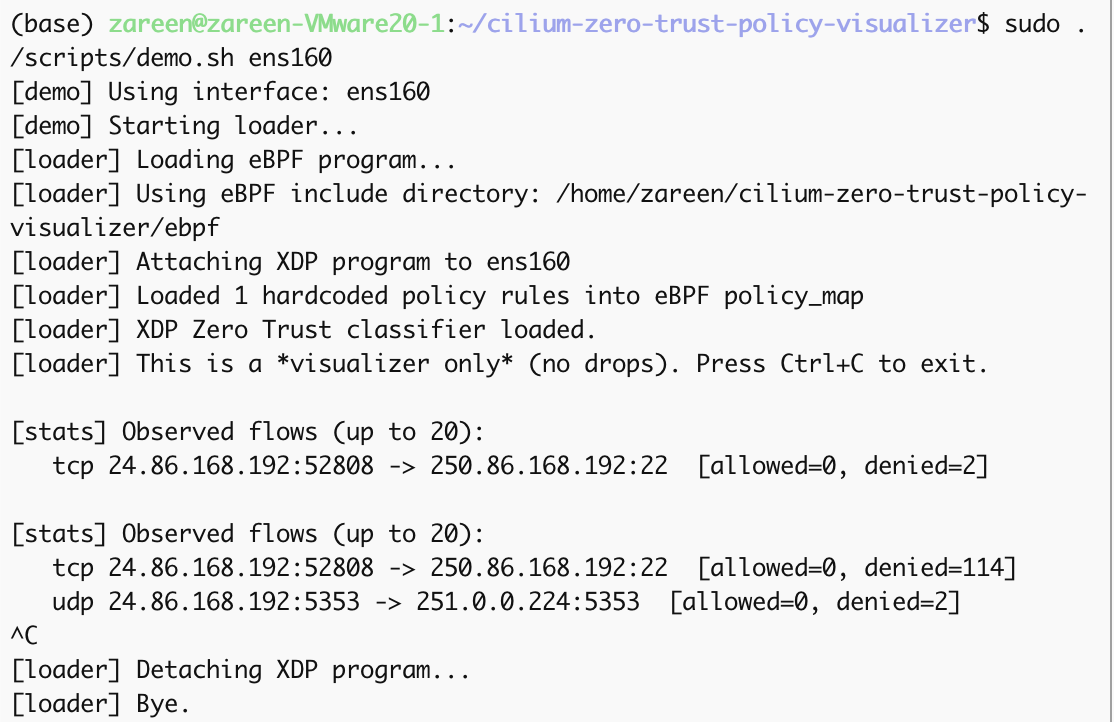

  • Periodically iterates over stats_map and prints flows with: . allowed count . denied count
  • Demo harness (scripts/demo.sh) . Single command: sudo ./scripts/demo.sh ens160 . Starts the loader and guides the user to generate traffic (e.g. curl).

Challenges I ran into

  • BCC vs libbpf confusion
    I initially mixed CO-RE/libbpf style (__uint, __type, SEC(".maps")) with BCC-style macros (BPF_HASH, helpers.h), which caused compilation and loader errors. I fixed this by standardizing on pure BCC-style maps and helpers.

  • Getting BCC and kernel headers right
    I needed the correct kernel headers (linux-headers-$(uname -r)) and BCC packages. Along the way I hit errors like “Failed to compile BPF module”, missing bpf_helpers.h, and map type mismatches.

  • XDP attach and permission issues
    XDP requires root and a compatible interface. I ran into verifier/attach errors like “Permission denied” and R1 type=scalar expected=map_ptr until the maps and function signatures were declared correctly.

  • Map value typing in Python
    BCC maps expect ctypes objects, not raw bytes. I fixed errors like byref() argument must be a ctypes instance by using ct.c_ubyte(allowed) and reading back value.value.

  • Making the demo simple enough
    The hardest non-technical challenge was resisting the urge to overbuild. I refactored down to a minimal UX: one script, one YAML file, clear console output.

Accomplishments that I'm proud of

  • End-to-end eBPF pipeline actually running
    I wired everything together from policy.yaml → Python loader → kernel XDP program → BPF maps → back to user-space stats.

  • Clear Zero Trust semantics
    Everything is deny by default unless there’s an explicit allow rule in policy_map. You can literally see which flows comply with policy and which are “violations”.

  • Safe demo mode
    The program currently does not drop packets, which makes it safe to run on a dev machine or VM without locking yourself out. Changing a single line:

    return is_allowed ? XDP_PASS : XDP_DROP;
## What I learned

Working on this project forced me to go beyond theory and really understand how eBPF/XDP and Zero Trust policies behave in practice.

  • Practical eBPF/XDP programming
    I learned how to write, verify, and debug XDP programs using BCC, and how BPF maps behave when sharing structured keys/values between kernel and user space.

  • Zero Trust in concrete terms
    Zero Trust is no longer just a buzzword for me: it maps nicely to an explicit allow list plus deny-by-default, implemented at the per-flow level.

  • Tooling & ecosystem gotchas
    I experienced the differences between BCC and libbpf styles first-hand and saw how mixing them breaks things. I also saw how critical correct kernel headers, verifier expectations, and small type details are.

  • Designing for demoability
    I learned that a small, focused demo with a clear story often has more impact than a huge, complex system: one command to run, one YAML file to edit, obvious output.

What's next for Cilium Zero Trust Policy Visualizer

There are several directions to take this from a demo into something closer to a production-style Zero Trust tool.

  • Real enforcement mode
    Add a flag to toggle between visualizer mode (XDP_PASS) and enforcement mode (XDP_DROP on denied flows), and show side-by-side views of “what would be blocked” vs “what is actually blocked”.

  • Web UI / dashboard
    Build a small frontend that polls /api/flows and /api/policy, and renders flow graphs, heatmaps (src ↔ dst), and policy hit/miss statistics.

  • More expressive policies
    Extend the policy model to support CIDR prefixes (e.g., 10.0.0.0/24), protocol any, port ranges, and higher-level tags like frontend / database instead of raw IPs.

  • Integration with Cilium concepts
    Map Kubernetes-style identities or labels onto these flows for a more Cilium-like feel, and emit metrics to Prometheus / Grafana to visualize Zero Trust posture over time.

  • CO-RE / libbpf implementation
    Port the BCC-based prototype to a libbpf CO-RE implementation to make it more production-friendly and aligned with how Cilium operates in real clusters.
