CartPilot: AI sales & store associate

Avg ecommerce conversion rates are ~2.5–3% (Shopify). We propose an AI sales & store associate with telemetry that proactively engages shoppers when behavior signals uncertainty or intent.

Comment

"Average ecommerce conversion rates are around 2.5% to 3% according to industry leaders." - Shopify.

CartPilot

CartPilot is an e-commerce AI sales and store associate agent on an online storefront augmented with a telemetry pipeline that proactively engages users when behavioral signals indicate uncertainty or intent.

What’s Built

Storefront (Shopify)

  • Next.js App Router storefront with server-first data fetching via lib/shopify/*.
  • Cart state provided through CartProvider and server actions.

Telemetry

  • Basic telemetry via hooks/use-cart-pulse.ts (UI + cart interactions, mouse velocity, tab switching).
  • Advanced telemetry via hooks/use-advanced-tracking.ts (scroll depth, click positions, page engagement, product view time).
  • Streams telemetry to Kafka (Confluent) for downstream analytics and real-time processing.

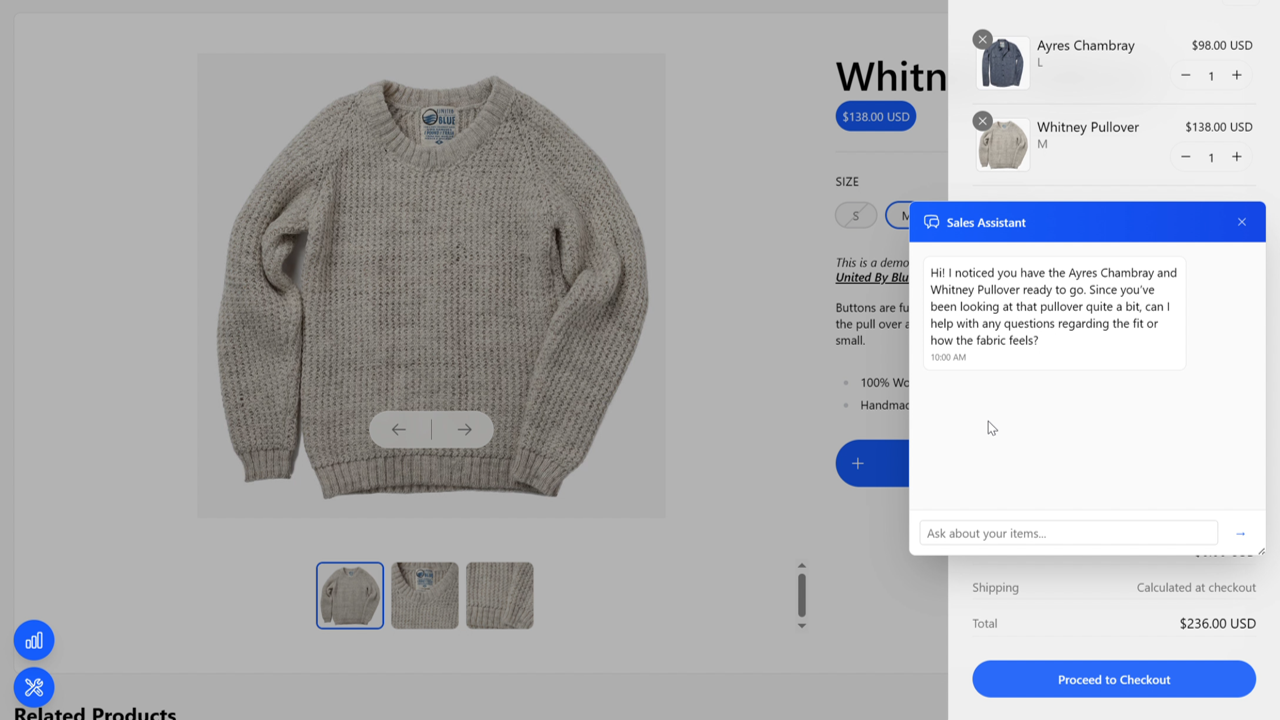

AI Sales Assistant

  • Floating “Sales Chat” widget.
  • Auto-opens based on intent signals.
  • Uses /api/chat and Google Gemini via @google/genai.
  • Uses cart snapshots (when available) + page context + browsing summary.

Architecture Walkthrough

1) Telemetry data flow

Client-side hooks queue events and periodically POST them to API routes.

UI interaction
  -> useCartPulse / useAdvancedTracking
  -> POST /api/telemetry or /api/telemetry/advanced
  -> Kafka topic for streaming

See TELEMETRY.md for the full event catalog and component coverage.

2) AI triggers & context propagation

CartPilot uses browser-side detectors that dispatch custom events. SalesChat listens and auto-opens, then sends a chat init request containing:

  • trigger: why the chat opened
  • pageContext: what page the user is on + intent signals
  • browsingContext: recent products + last search + session start time

Shared types/constants live in lib/types/ai-chat.ts.

Current auto-open triggers:

  • Cart hesitation (cart idle / add-remove indecision)
  • Product dwell (staying on a PDP with engagement)
  • Search hesitation (scrolling / query refinement without clicks)
  • Product comparison (3+ distinct PDP views within a short window)

3) Chat API (/api/chat)

/api/chat:

  • Looks up session context from KV (when configured) or in-memory fallback.
  • Uses a cart snapshot when present to give the model specific product details.
  • Adds page context + browsing summary to the system prompt.
  • Caches replies in KV (when configured) and rate-limits per session.

Local Development

Prereqs

  • Node.js + pnpm

Install + run

pnpm install
pnpm dev

Scripts

  • pnpm dev: local dev server
  • pnpm build: production build
  • pnpm start: run production build
  • pnpm test: runs prettier:check
  • pnpm prettier --write: format the repo

Environment Variables

Required (storefront)

  • SHOPIFY_STORE_DOMAIN
  • SHOPIFY_STOREFRONT_ACCESS_TOKEN

Required (AI)

  • GEMINI_API_KEY

Required (Kafka / Confluent)

Kafka is part of the core pipeline and is required.

  • KAFKA_BROKER
  • KAFKA_USERNAME
  • KAFKA_PASSWORD

Optional (Durable session context + caching)

This project uses Vercel KV when configured.

  • KV_REST_API_URL
  • KV_REST_API_TOKEN

Debugging & Observability

Quick Demo Script (2–3 minutes)

This is a repeatable walkthrough to demonstrate the AI triggers and confirm the end-to-end context wiring.

Setup

  1. Run the app: pnpm dev
  2. Ensure GEMINI_API_KEY is set (otherwise chat replies will fallback).
  3. Optional: open the telemetry dashboard (Ctrl + Shift + T) to watch events live.

Demo 1 — Product dwell (eyeing a product)

  1. Open any product page: /product/[handle]
  2. Engage lightly: click a couple gallery images or change a variant.
  3. Stay on the page ~20 seconds.

Expected:

  • Sales Chat auto-opens.
  • /api/chat receives trigger: "product_dwell" and pageContext.pageType: "product".

Demo 2 — Search hesitation

  1. Go to /search?q=shoes (or use the navbar search).
  2. Scroll through results and/or change sort a couple times.
  3. Avoid clicking into any product.

Expected:

  • Sales Chat auto-opens.
  • /api/chat receives trigger: "search_hesitation" and pageContext.pageType: "search".

Demo 3 — Product comparison behavior

  1. Click into 3 different product pages within ~2 minutes.

Expected:

  • Sales Chat auto-opens.
  • /api/chat receives trigger: "product_comparison" and a comparison pageContext listing recent product handles.

Demo 4 — Cart hesitation

  1. Add an item to cart.
  2. Open cart and idle on it (>10s), or add/remove items several times.

Expected:

  • Cart snapshot is POSTed to /api/telemetry/cart-snapshot.
  • Sales Chat auto-opens after the cart snapshot is processed.
  • /api/chat uses cart snapshot context when available.

Telemetry dashboard

There is an in-app real-time dashboard that visualizes events.

Docs:

  • TELEMETRY_DASHBOARD.md
  • DASHBOARD_GUIDE.md
  • TOAST_NOTIFICATIONS.md

Helpful debug routes

  • /api/debug/* (sessions, telemetry, kafka status)

Repository Map

  • app/ — Next.js routes (storefront + API)
    • app/api/chat/route.ts — Gemini chat endpoint
    • app/api/telemetry/* — telemetry endpoints and cart snapshot ingest
  • components/ — UI components + trackers
    • components/sales-chat.tsx — floating chat widget + auto-open listeners
    • components/cart/cart-hesitation-tracker.tsx — cart intent detection + snapshot send
    • components/product/tracking-wrapper.tsx — PDP dwell/comparison detection
  • hooks/ — telemetry hooks
  • lib/kafka/ — producer/consumer integration
  • lib/shopify/ — Storefront API integration
  • lib/types/ai-chat.ts — shared AI trigger/context types and event names
