CAIRN - Mine Operations Decision Fabric

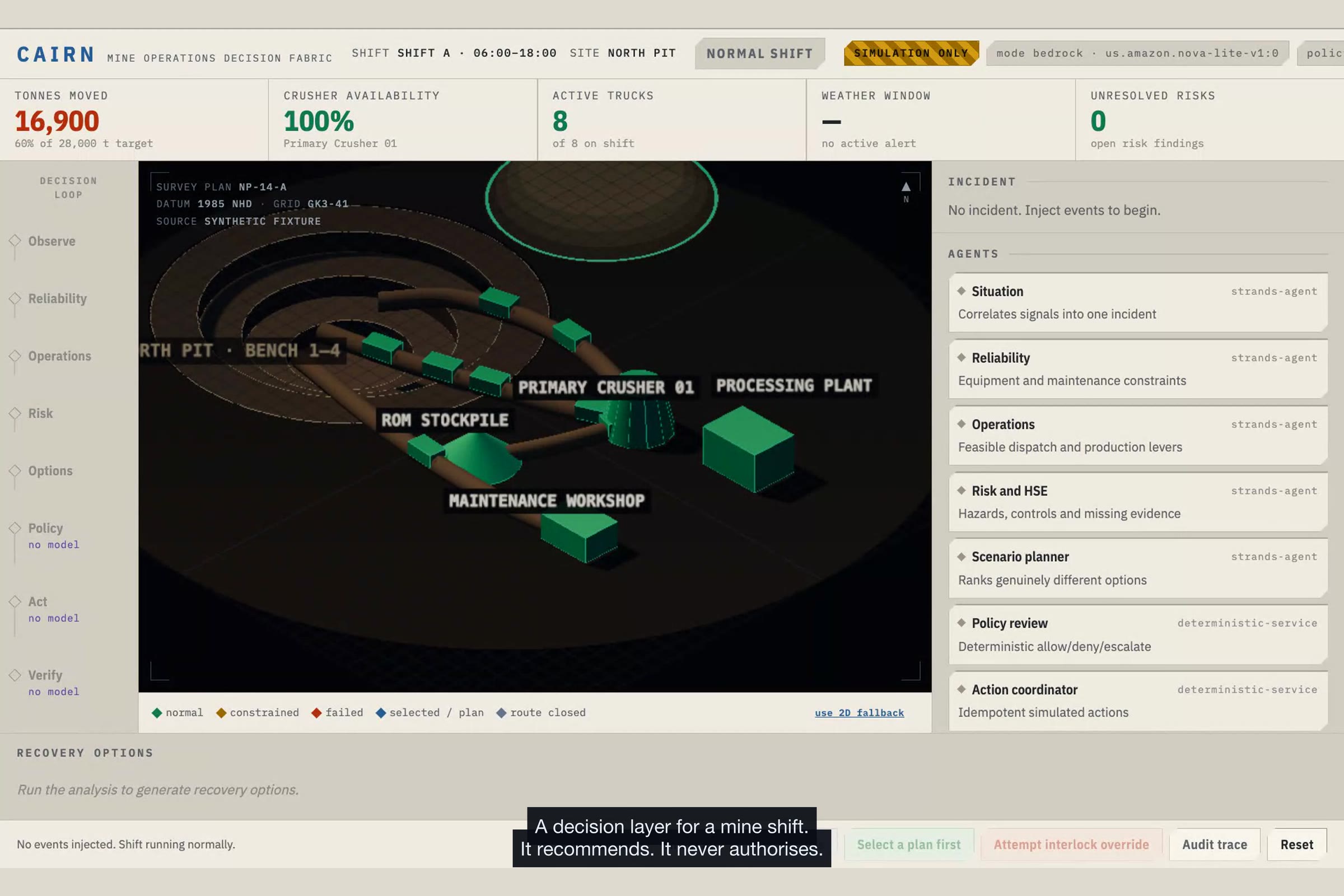

Correlates fragmented mine signals into one incident, argues the trade-offs, and refuses to act until a person signs. It recommends. It never authorises.

Comment

Inspiration

Eight hours into a twelve-hour shift at an open-pit iron ore mine, four systems are each about to be completely right, and useless.

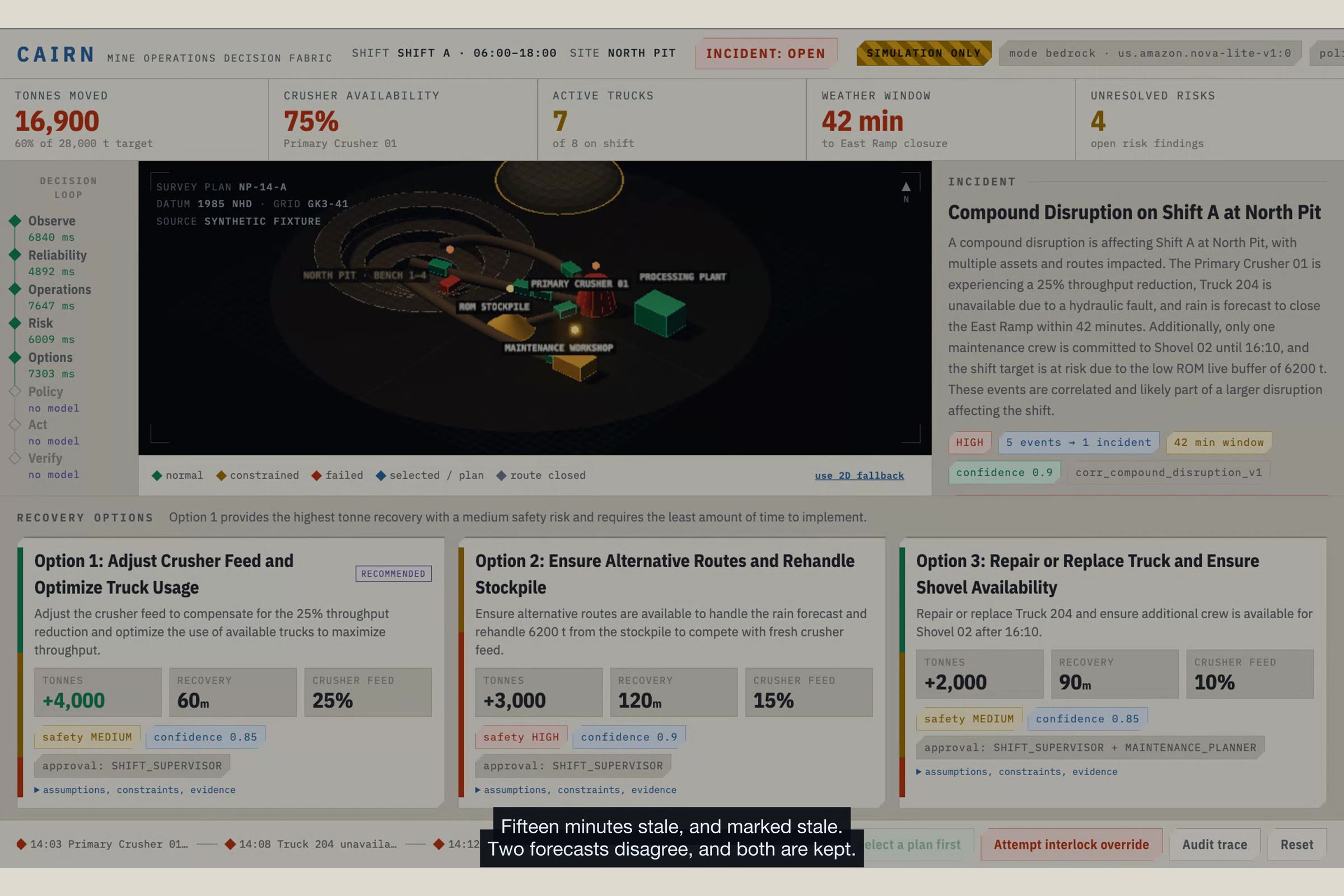

Plant control knows the primary crusher has dropped to 75%. Fleet management knows a haul truck stopped at 14:08. The weather service knows a rain cell closes the main ramp in 42 minutes. The maintenance system knows the only crew is committed elsewhere until 16:10.

Not one of them knows those are the same problem. A supervisor works that out from four screens, under a closing window, and their name goes on the decision.

The obvious move is to put an agent on it. The obvious risk is that mining is a domain where a confidently wrong action can hurt someone, and where a duplicate work order is worse than a slow answer. So the interesting question is not "can an agent reason about this" — it plainly can — but what has to be true before anyone would let it near a shift. CAIRN is an answer to that second question.

What it does

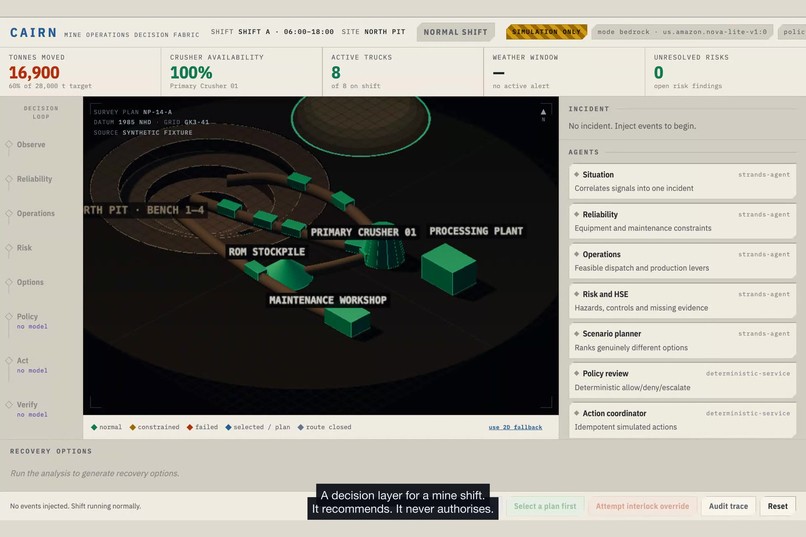

CAIRN correlates fragmented operational signals into one incident, argues the trade-offs, and then refuses to act until an accountable person signs. The differentiator is not the reasoning; it is that the reasoning is structurally incapable of authorising anything.

  1. Correlate. Five signals from four source systems become one compound disruption with a 42-minute decision window — not five alerts.

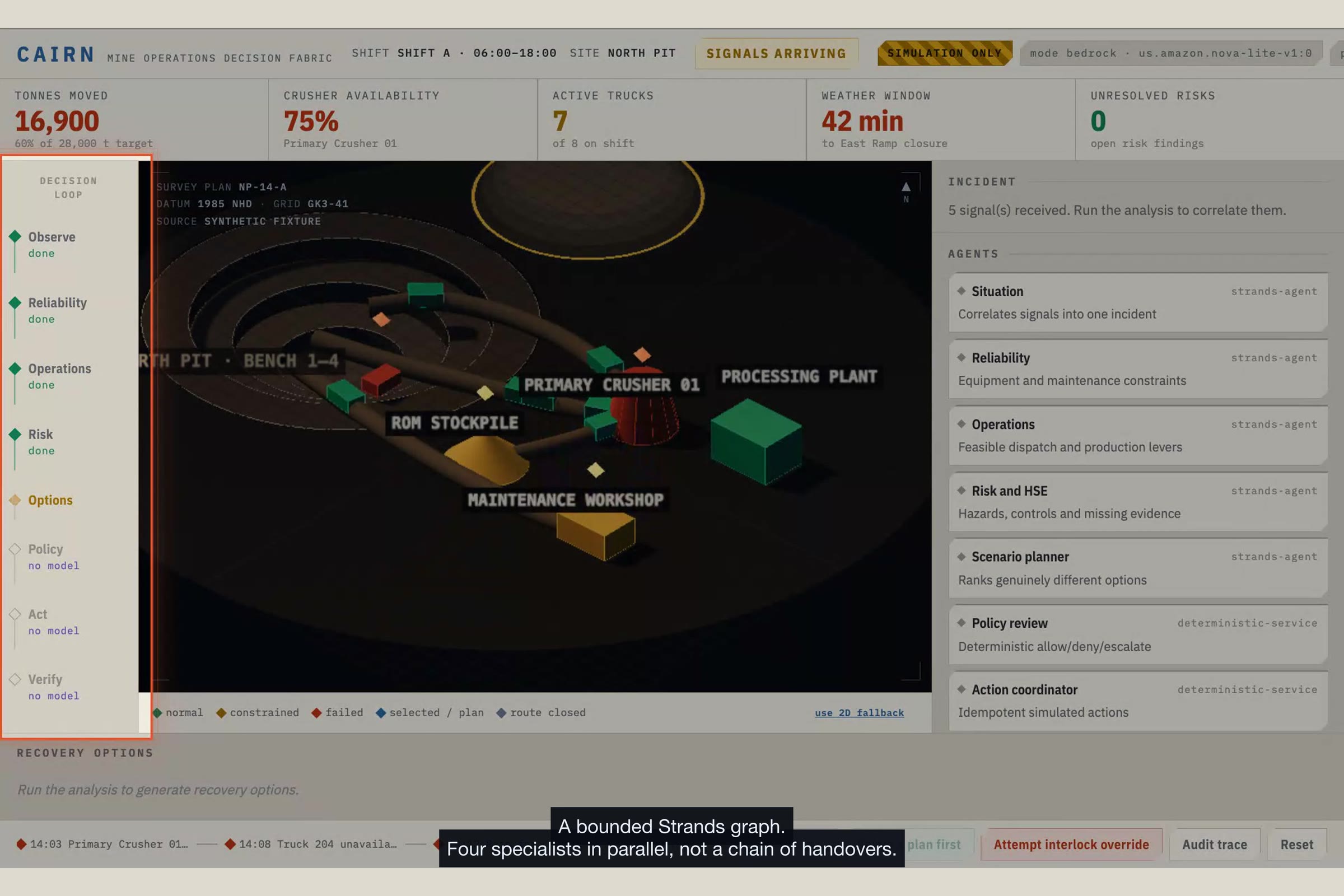

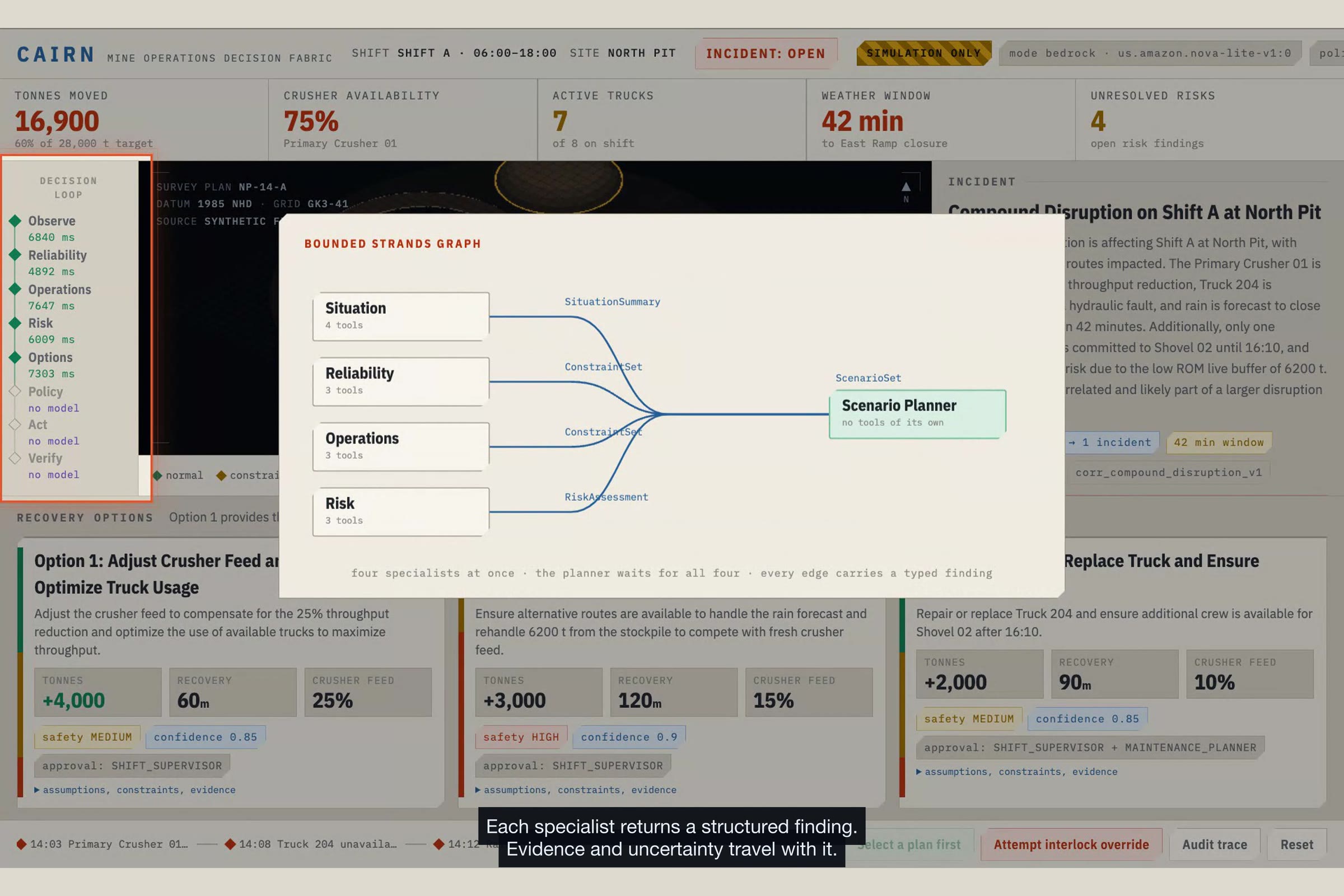

  2. Analyse in parallel. Four specialist agents (situation, reliability, operations, risk and HSE) execute concurrently in a bounded Strands graph. Each returns a typed, evidence-backed finding rather than prose.

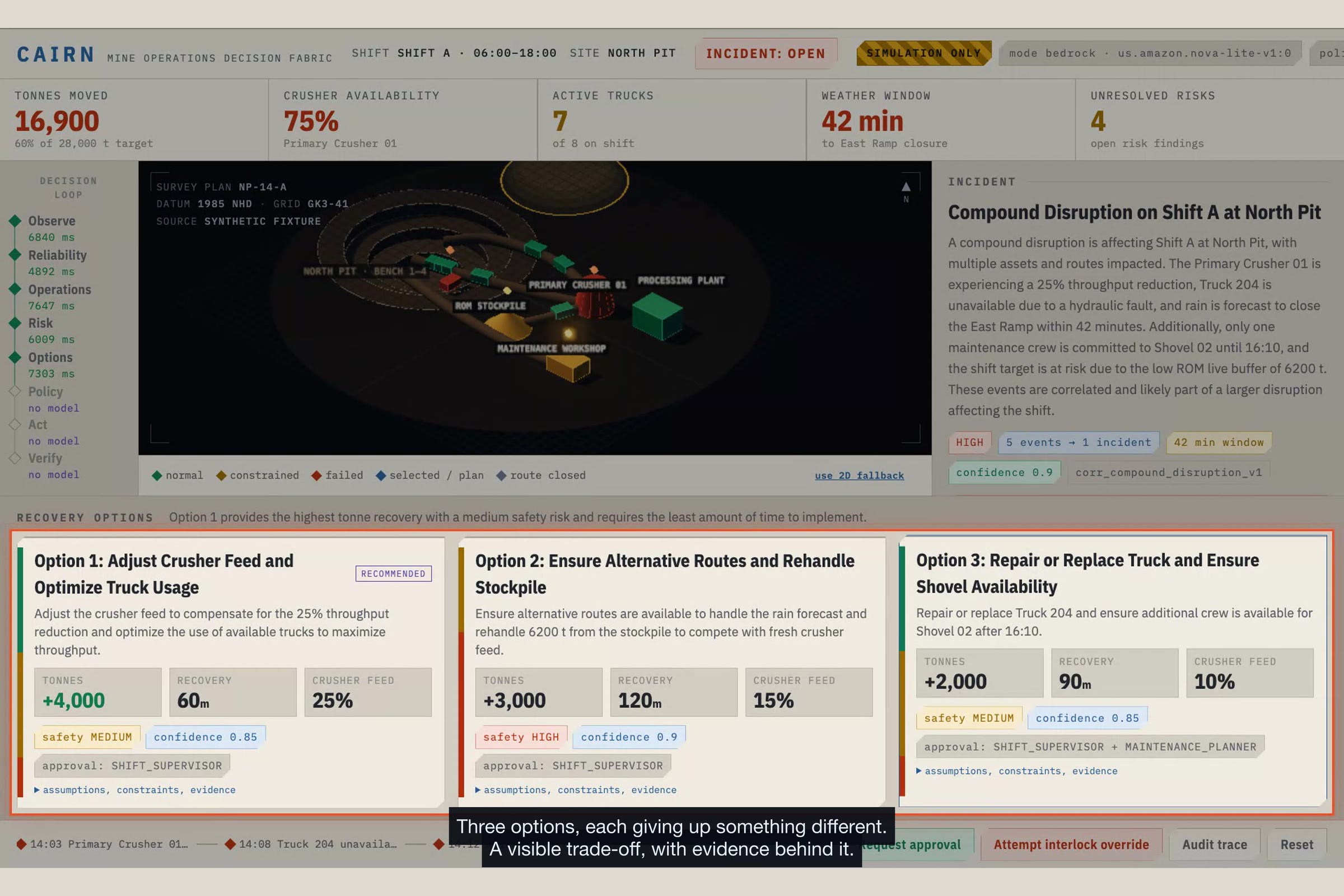

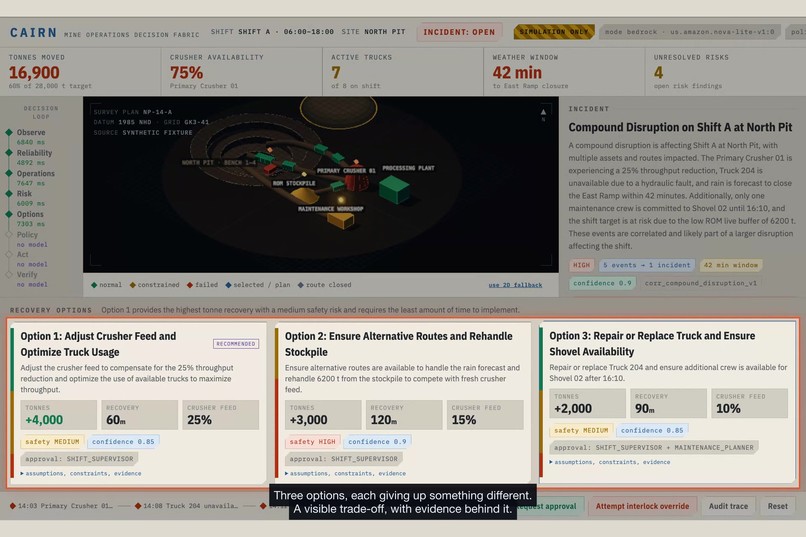

  3. Plan. A scenario planner waits for all four, then produces three recovery options that trade different things away — tonnes, recovery time, equipment protection — each with impacts, assumptions, constraints, evidence ids, confidence and the approval it would require.

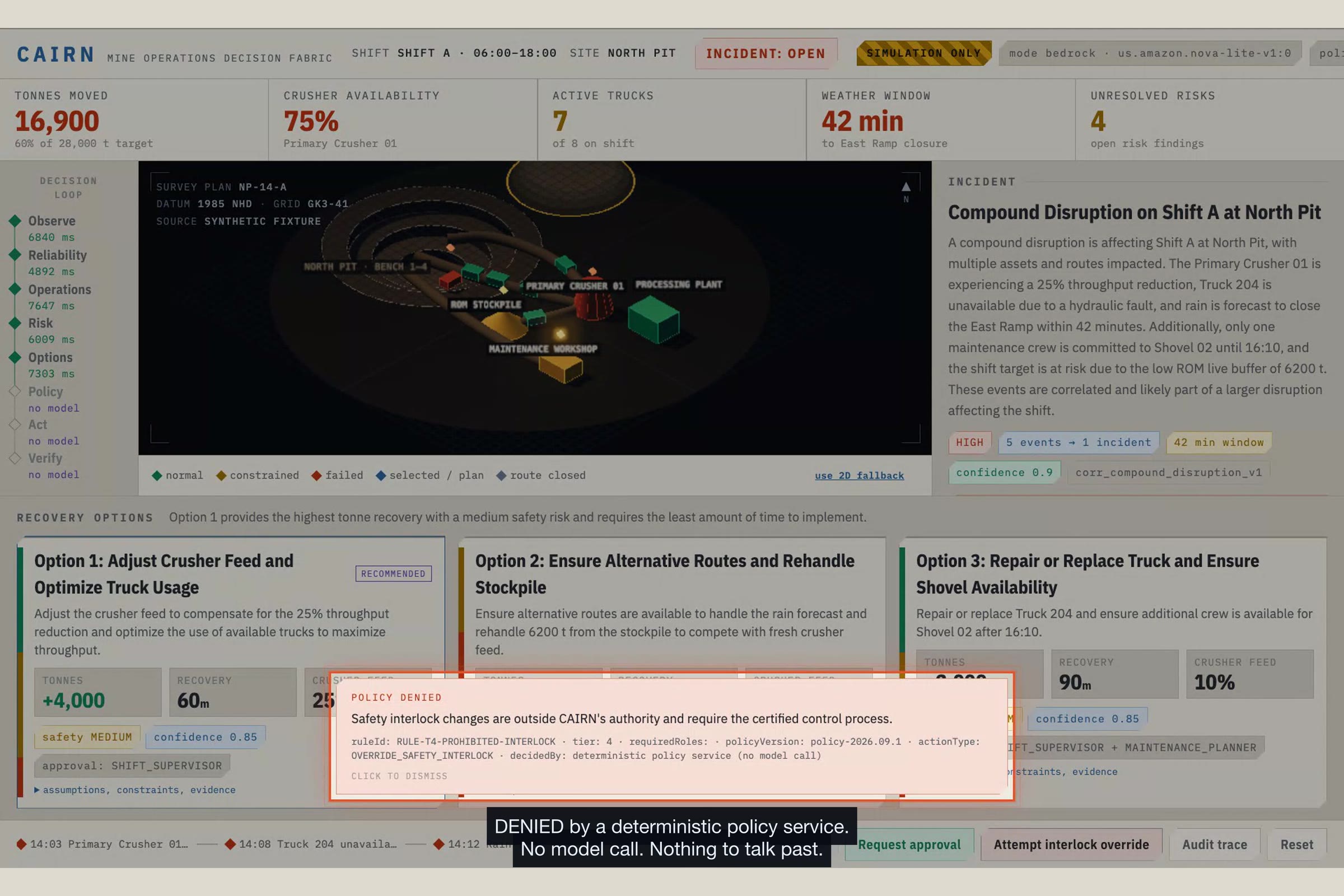

  4. Refuse. Ask it to override a safety interlock and it is denied by a deterministic policy table, with no model call at all. There is no prompt that talks past this, because no model is in the decision path.

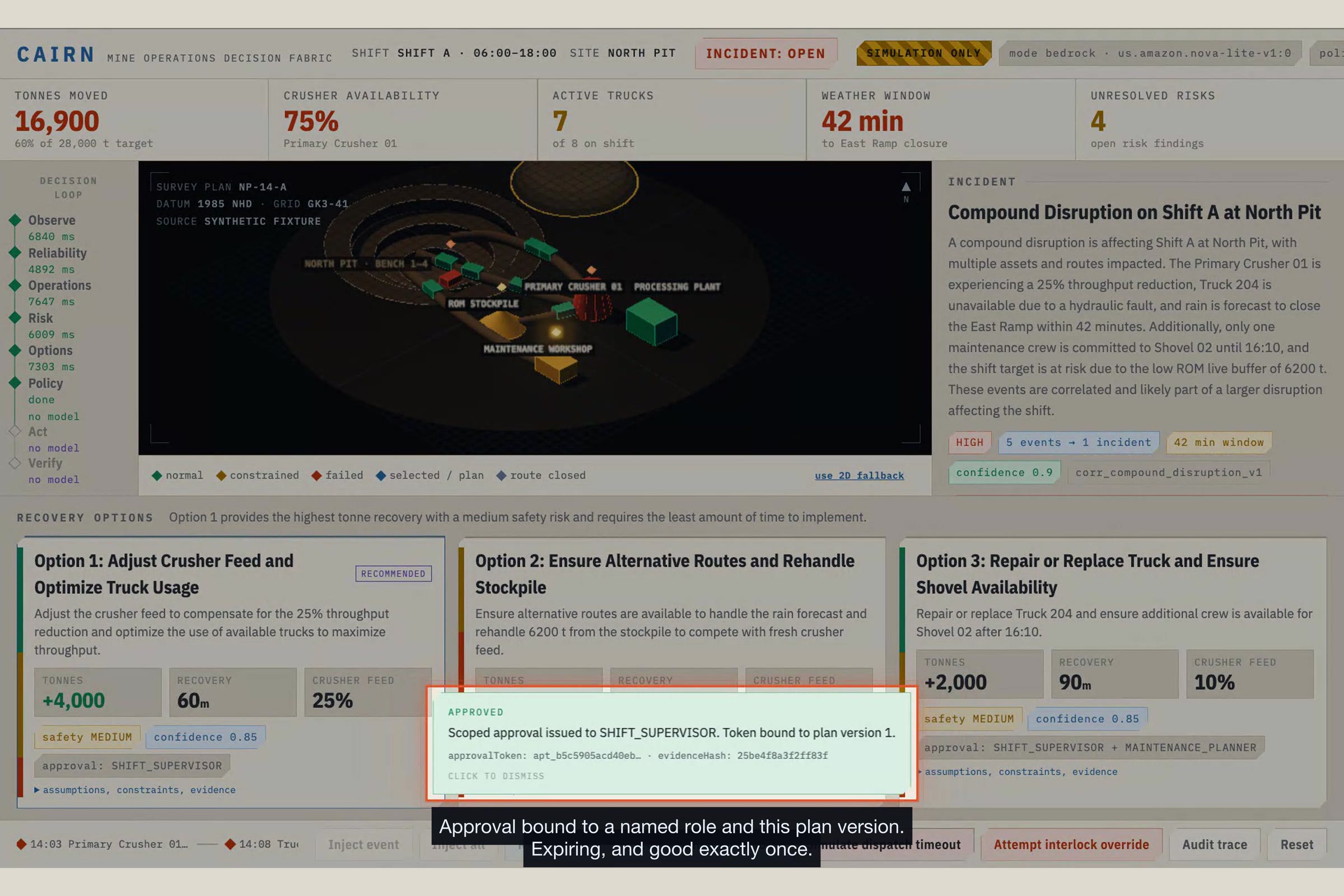

  5. Escalate to a person. A permitted action still needs a named role. The approval token is scoped to those assets, bound to that plan version and evidence set, expiring, and good exactly once. Change the plan and the approval is void.

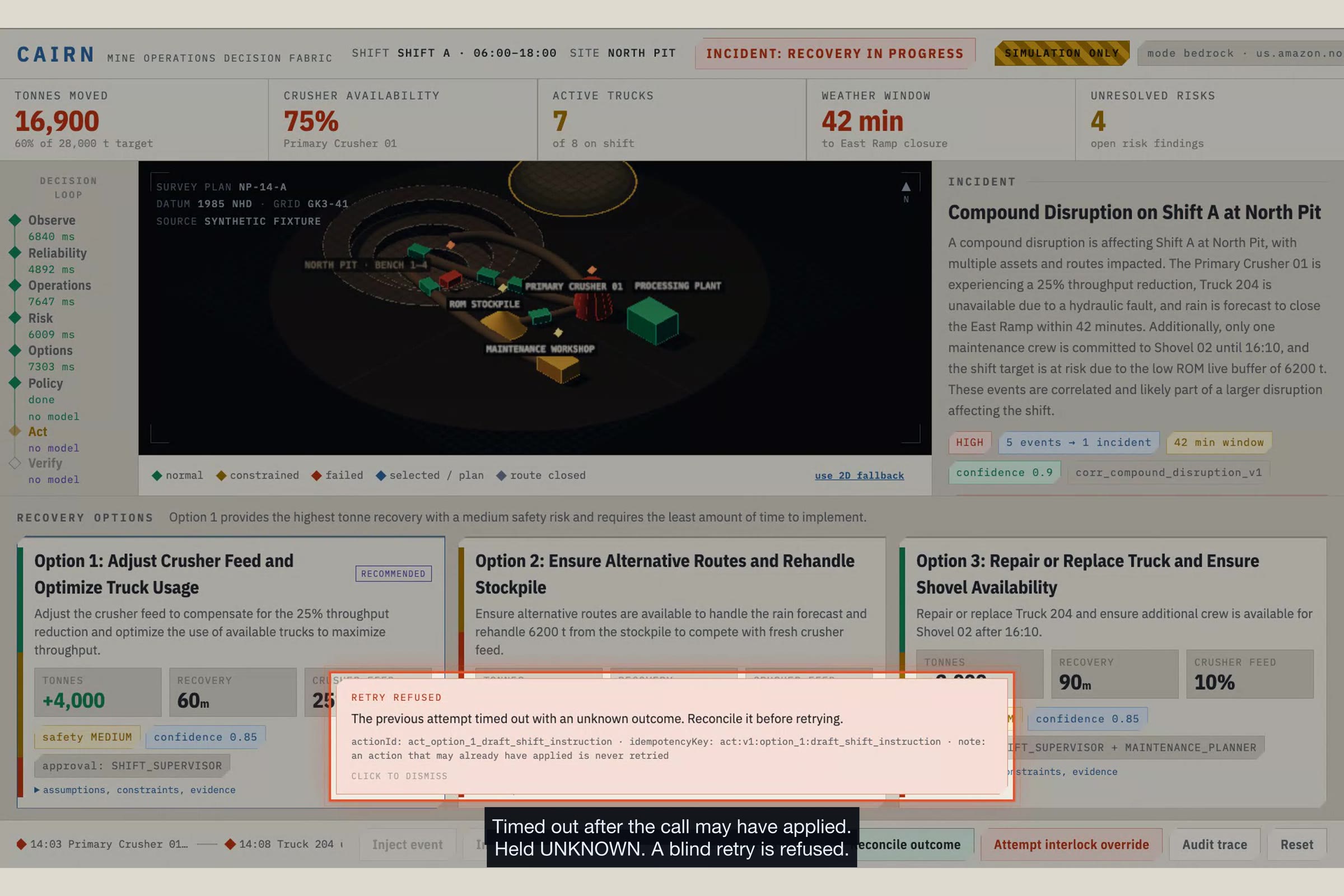

  6. Fail safe when the world is ambiguous. A dispatch timeout after the call may already have applied produces UNKNOWN. A blind retry is refused with RECONCILIATION_REQUIRED. Only authoritative confirmation closes it: UNKNOWN → RECONCILING → SUCCEEDED.

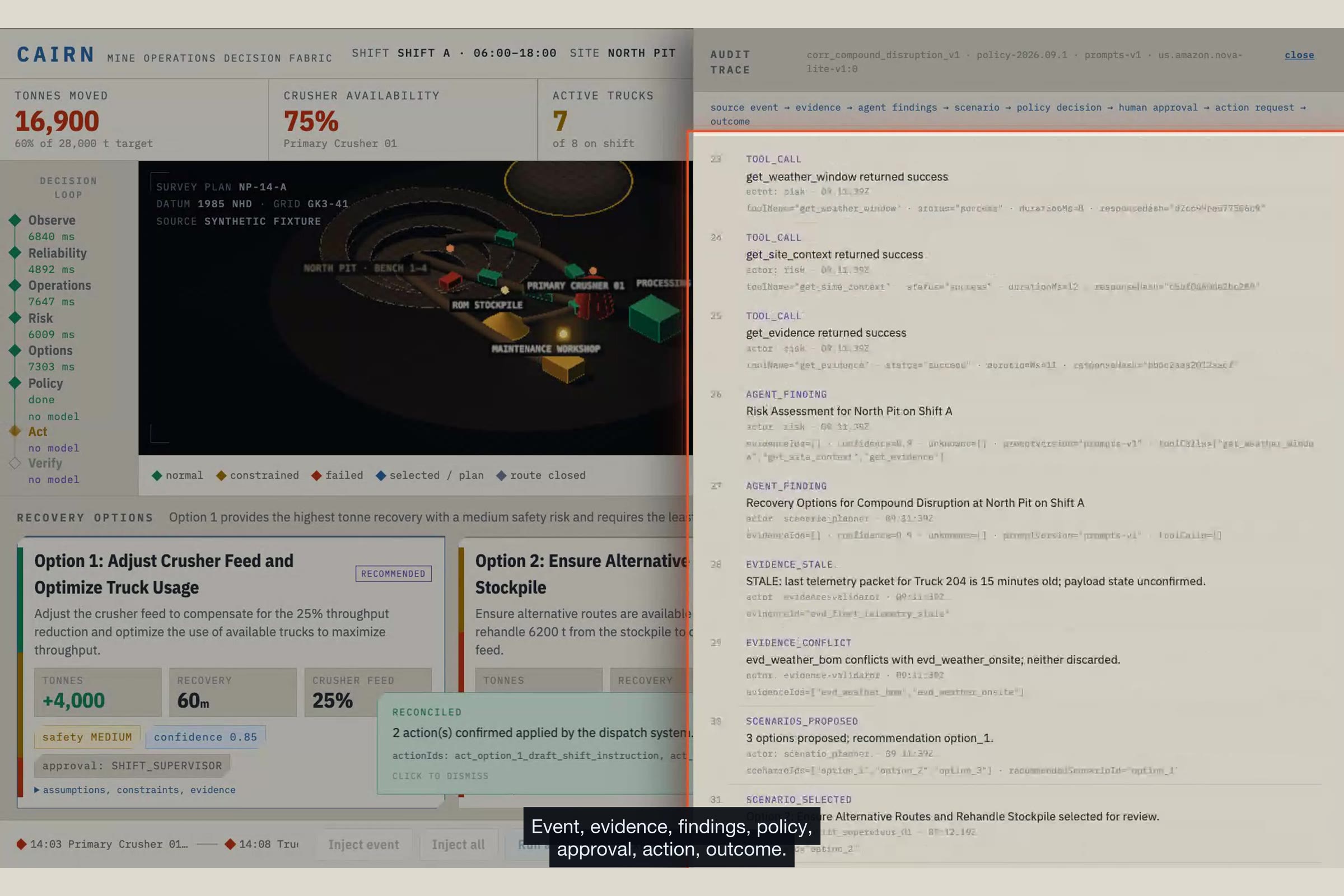

  7. Leave a record. The whole decision reconstructs from an append-only ledger: event, evidence, findings, policy decision, approval, action, outcome.

The interface makes the boundary literal. The decision loop lists eight stages; the last three — Policy, Act, Verify — are labelled no model, because they are deterministic services and a test fails the build if deciding a high-consequence action ever reaches a model.

How we built it

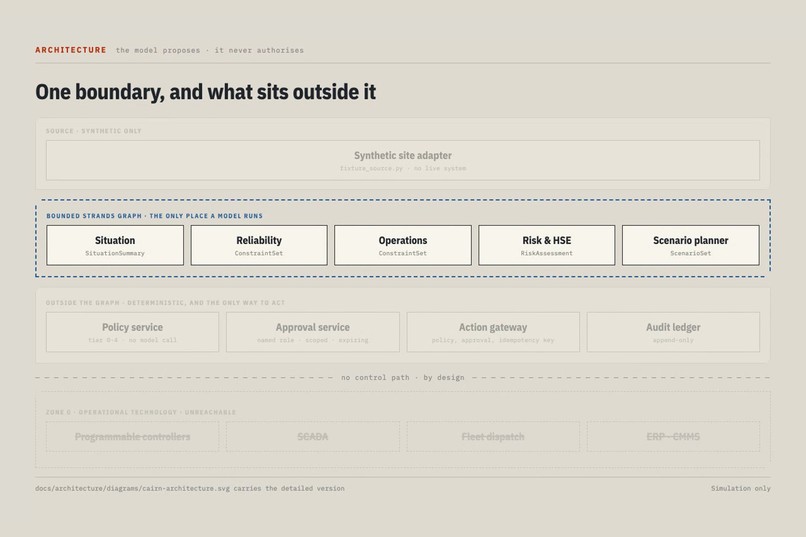

Orchestration. AWS Strands Agents SDK 1.54. A bounded GraphBuilder: four specialist agents are entry points, each edged to a single scenario_planner that waits for all four. max_node_executions=12. Timeouts are mode-aware — 90s execution / 30s per node against the fixture provider, 420s / 150s against Bedrock, because a fixture node answers in milliseconds and a real one takes seconds.

Typed edges, not pasted text. Every node's output is a Pydantic v2 contract with extra="forbid", and Strands enforces it through a forced tool call — client-side tool calling, not Bedrock structured outputs, which the Claude and Nova model cards list as unsupported. The edges carry SituationSummary, ConstraintSet, ConstraintSet, RiskAssessment, and the planner emits ScenarioSet.

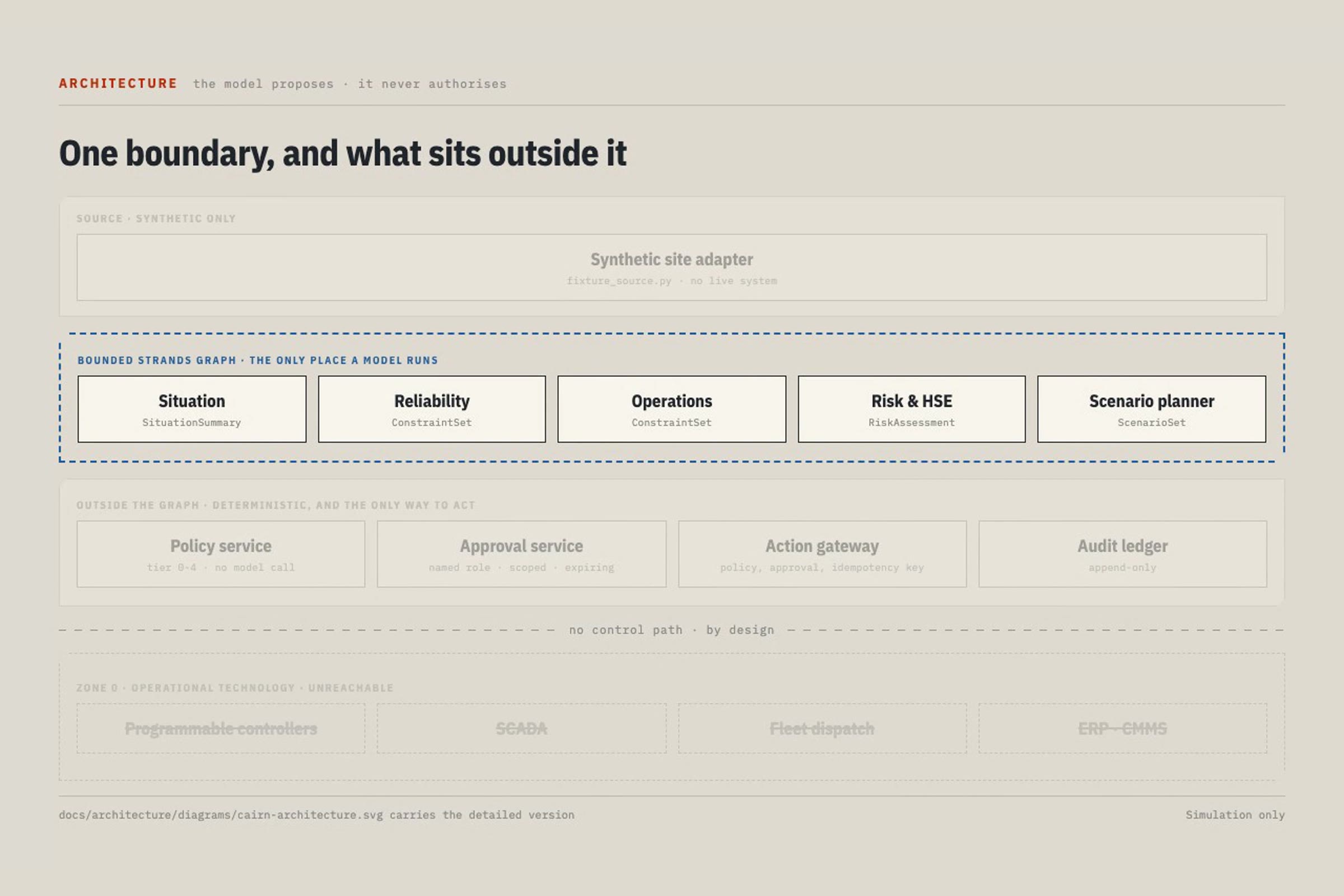

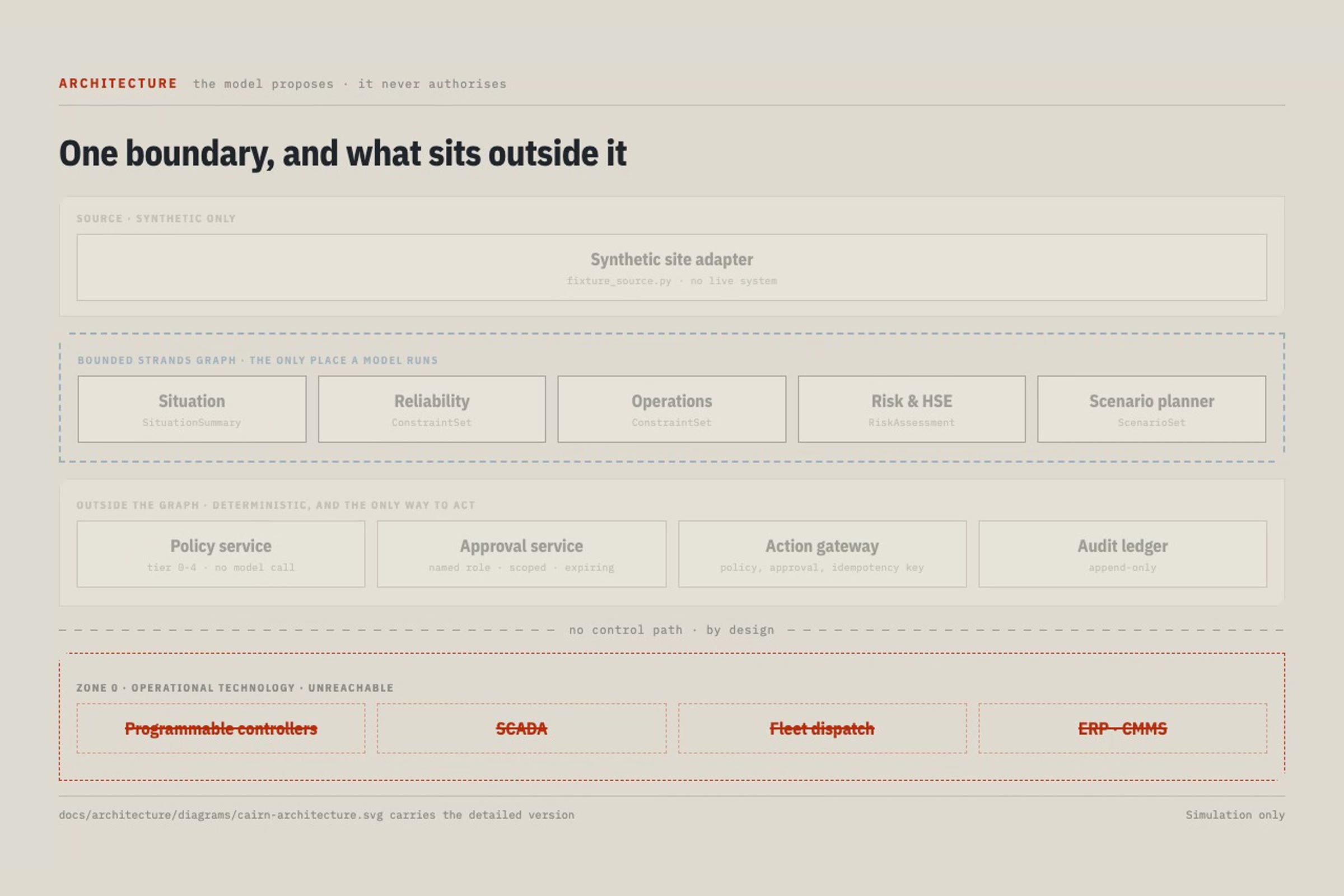

Governance outside the graph. Policy (app/policy/decisions.py), the approval service, the action gateway and the audit ledger all sit outside the Strands graph. Every state change passes through one gateway in one order: unknown-claim check, then policy, then approval, then an idempotent claim, then a simulation-only external call. There is no second path.

Tool discipline. Each node has an allow-list, and a Strands HookProvider cancels any call outside it at call time. Every specialist must gather evidence through a tool before answering.

Two modes, one graph. fixture is a deterministic Strands Model provider: zero credentials, byte-identical replay, and it is what CI and the 13-case evaluation suite run against. bedrock runs a real model. Both execute the same graph and the same governance — swap the brain, the safety envelope does not move.

Live progress. Per-node start and stop events stream over newline-delimited JSON, so the decision loop fills while the graph is running. Against a real model that is fifteen seconds of visible parallel work rather than a motionless page.

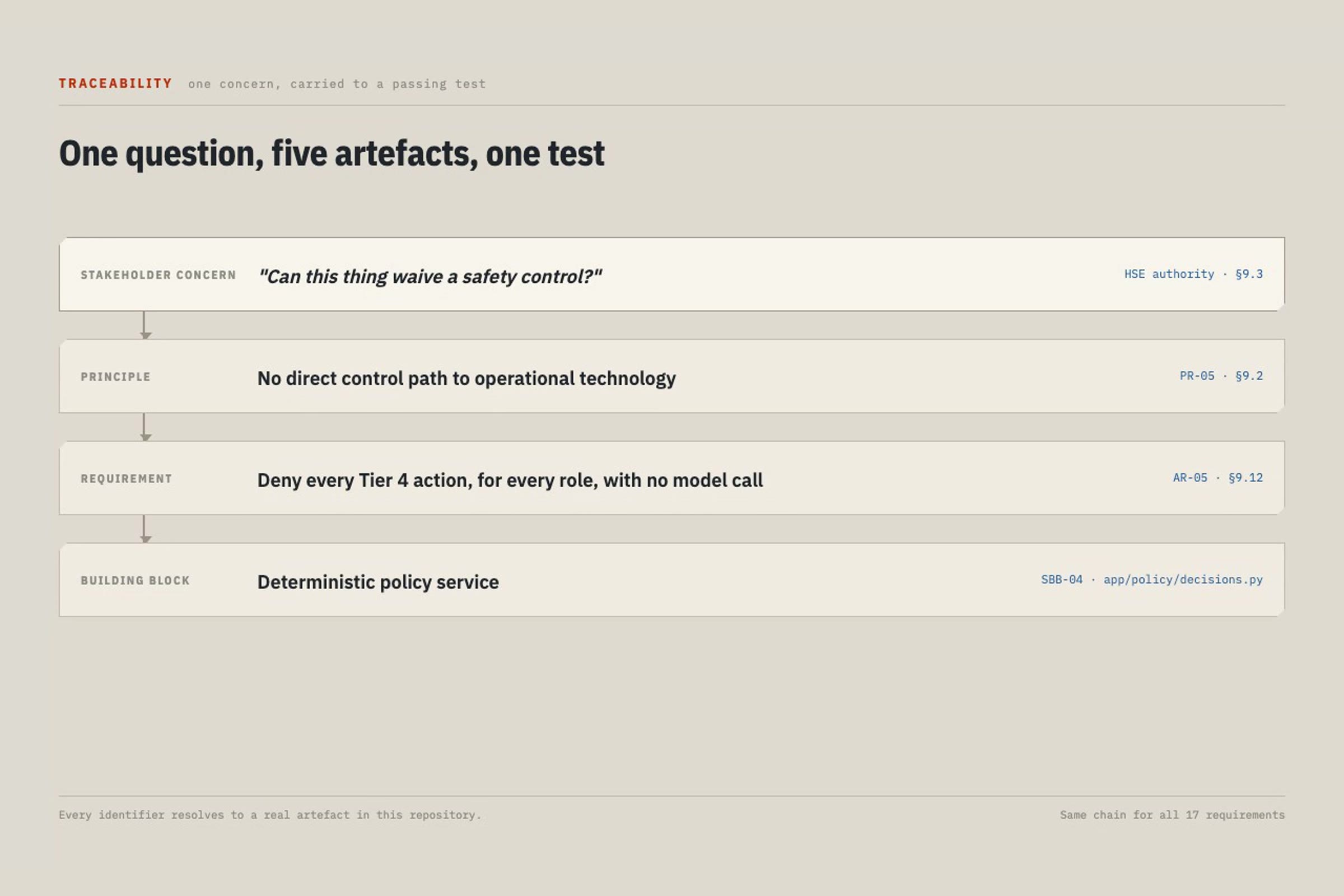

Method. The architecture was developed as a TOGAF ADM cycle used as a lens on one increment: 6 principles, 17 architecture requirements each traced to a verification, 8 solution building blocks. One worked chain, end to end — an HSE authority asks "can this waive a safety control?" → principle PR-05, no direct control path to operational technology → requirement AR-05, deny every Tier 4 action for every role → building block SBB-04, the deterministic policy service → app/policy/decisions.py → a test that fails the build if a model is consulted.

Challenges we ran into

The graph edges were decorative. An early version looked correct and was not: deleting every hazard from the input left the plan unchanged, because the planner was not reading its dependencies' output. An evaluation case caught it. The fixture model provider now parses the upstream transport and raises UpstreamParseError if a declared dependency is missing, so a graph whose edges do nothing cannot pass.

The fixture was hiding a loose contract. Every field a real model got wrong had been correct for months, because the fixture always wrote the right value. key was a str with its three legal values in a code comment, so option_1 validated exactly as well as recover_tonnes. required_approvals was list[str], so a model could name a role the approval service cannot resolve. recommended_scenario_id was a str, so it could point at nothing — and did. The tonnes sign convention was never stated anywhere, so the model read it as a loss and returned negatives for every option. All four are now enum, enum, model-validator and field description, with five provider-invariance tests that fail against the loose version. A constraint the schema does not carry is one the model is never told about.

A guard that guarded one door. The demo asserts on screen that the policy path never invokes a model. The test making that claim patched a single seam, so a direct model construction inside policy would have passed it while the video said otherwise. It now patches three, and was verified by making the policy service construct one: AssertionError: policy must not construct a model.

The reliability semantics were in the wrong order. The unknown-claim check ran after policy and approval, so an expired approval on an in-doubt action returned APPROVAL_EXPIRED instead of RECONCILIATION_REQUIRED — the wrong refusal, and the one that invites a retry.

Documentation that lied to the model. Three prompts advertised tools that do not exist. get_active_permits and simulate_recovery_plan are fictional; the planner was offered two functions that run deterministically after the graph while its allow-list is empty by design. Fixture mode never reads prompts, so only a real model could hit it. Two guards now assert that a prompt's advertised tools equal its node's allow-list.

Accomplishments that we're proud of

  • 126 tests. 13 of 13 evaluation cases. Zero prohibited-action violations, zero approval bypasses. The evaluation cases are deterministic assertions, not LLM-judged scores, because "was the Tier 4 action denied?" has a right answer — and judging it with a model would put a model back into the assurance path.
  • A real model runs the real graph. us.amazon.nova-lite-v1:0 completes all five nodes in 13–17 seconds, every node satisfying its typed contract, every specialist calling tools before answering. Measured: 30,253 input and 2,504 output tokens per run.
  • The safety envelope is provider-independent. The same policy table, approval service and gateway ordering hold in both modes, and the tests that prove it need no credentials.
  • UNKNOWN is a first-class outcome. Most agent demos show the happy path. This one shows the call that may already have applied, the retry that is refused, and the reconciliation that closes it.
  • Every requirement traces to a passing test. Seventeen of them, in a table, with the test id beside each.
  • The method found real defects. A compliance review caught a shift target a quarter of what the declared fleet and crusher could move. Requirements traceability caught invented survey elevations in a system whose whole claim is that it does not invent numbers.

What we learned

The fixture that makes a demo reproducible is also the thing that hides its bugs. Every defect a real model exposed had been latent and green for the entire project. Not because the tests were weak, but because they asserted against a provider that always behaved. The lesson is narrower and more useful than "test more": anything whose correctness depends on a provider must be asserted against the schema, not the provider.

A comment is not a constraint. key: str # protect_safety | recover_tonnes | preserve_equipment reads like a specification and enforces nothing. The model never sees the comment; it sees the JSON schema. If a rule matters, it has to live where the machine looks.

Deterministic beats clever in the assurance path. The most persuasive moment in the demo is a table lookup. There is no prompt engineering to defend, nothing to jailbreak, and the reason it convinces is precisely that no model is involved.

Read the SDK, not its docstring. Graph.stream_async documents its events as multi_agent_node_start. They are actually multiagent_node_start. Parsing the documented shape produced no progress and no error — the graph ran perfectly and reported nothing, which is the worst kind of wrong.

What's next for Cairn

  • Live progress into the audit. Node transitions stream to the browser but are not yet ledger entries; a reconstructable decision should include when each stage started.
  • Real identity. Roles come from configuration. The approval service is shaped for an IdP and does not have one, and "accountable human" means little until it does.
  • Second scenario. Slope instability with a permit conflict, exercising the PERMIT_CONFLICT event type the model layer already understands.
  • Reasoning quality, measured. The evaluation suite proves safety and integrity, and says nothing about whether the incident brief is any good. That is the honest case for an LLM-judged layer — beside the deterministic gate, never inside it.
  • Provider matrix. The provider-invariance claim deserves a second vendor. Anthropic models are pending a use-case form on this account, and GPT-5.6 Luna is not available to it, so the claim is currently demonstrated against one real provider rather than two.

What this is not

Stated plainly, because an enterprise-agent submission that hides its boundaries invites exactly the scepticism it should be dispelling.

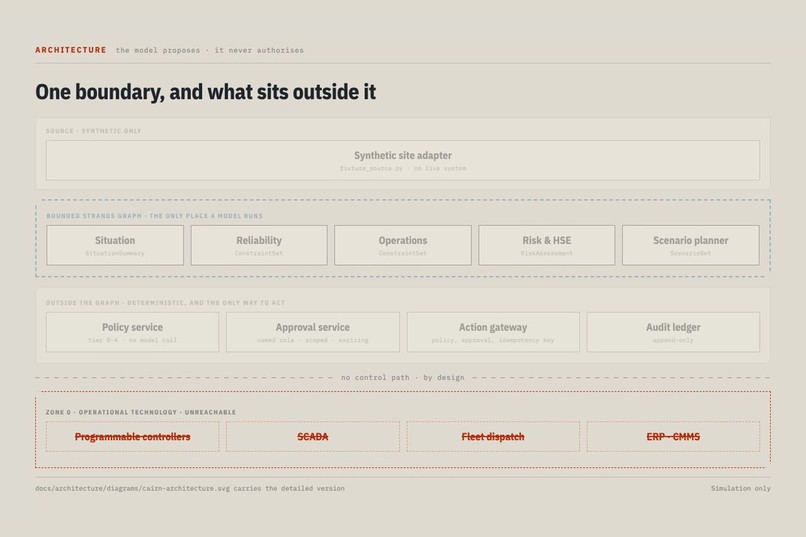

  • Simulation only, with no operational certification. Every event, asset and artefact is synthetic. No mine system, PLC, SCADA, dispatch, ERP or CMMS is connected. There is no control path, by design — the architecture draws Zone 0 as unreachable.
  • The option economics are illustrative fixtures, internally consistent but not a modelled mine plan.
  • Determinism is a fixture-mode property. Evaluation case EV-13 asserts identical replay, and that is true of the fixture provider. A real model varies run to run, and Nova Lite chose differently on consecutive runs.
  • It does not replace fleet management, plant control, ERP, CMMS or a MineRP-class platform. It connects them when a decision crosses their boundaries.
