CADFlow

Hardware-driven AutoCAD 2027 workflow for macOS — tactile Loupedeck control over 60+ CAD operations with zero keyboard.

Comment

Inspiration

As a mechanical engineering student, I spend a lot of time in AutoCAD. The constant back-and-forth between mouse and keyboard for repetitive commands was killing my workflow speed. I wanted to build something that let me keep my hands on the hardware and my eyes on the drawing — so I built CadFlow entirely on my own as a solo project to solve my own problem. There was no existing solution for hardware-driven AutoCAD control on macOS, so I had to figure everything out from scratch.

What it does

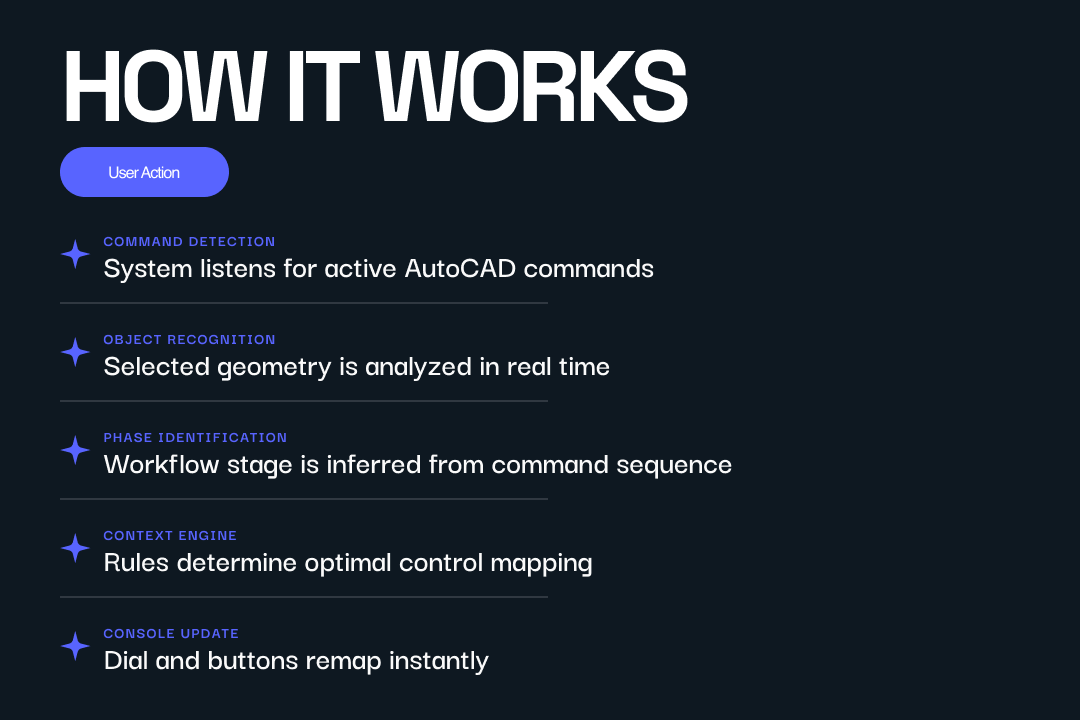

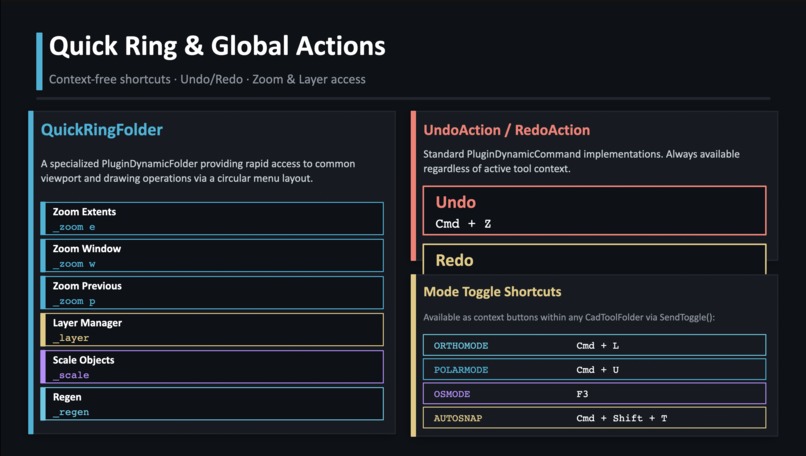

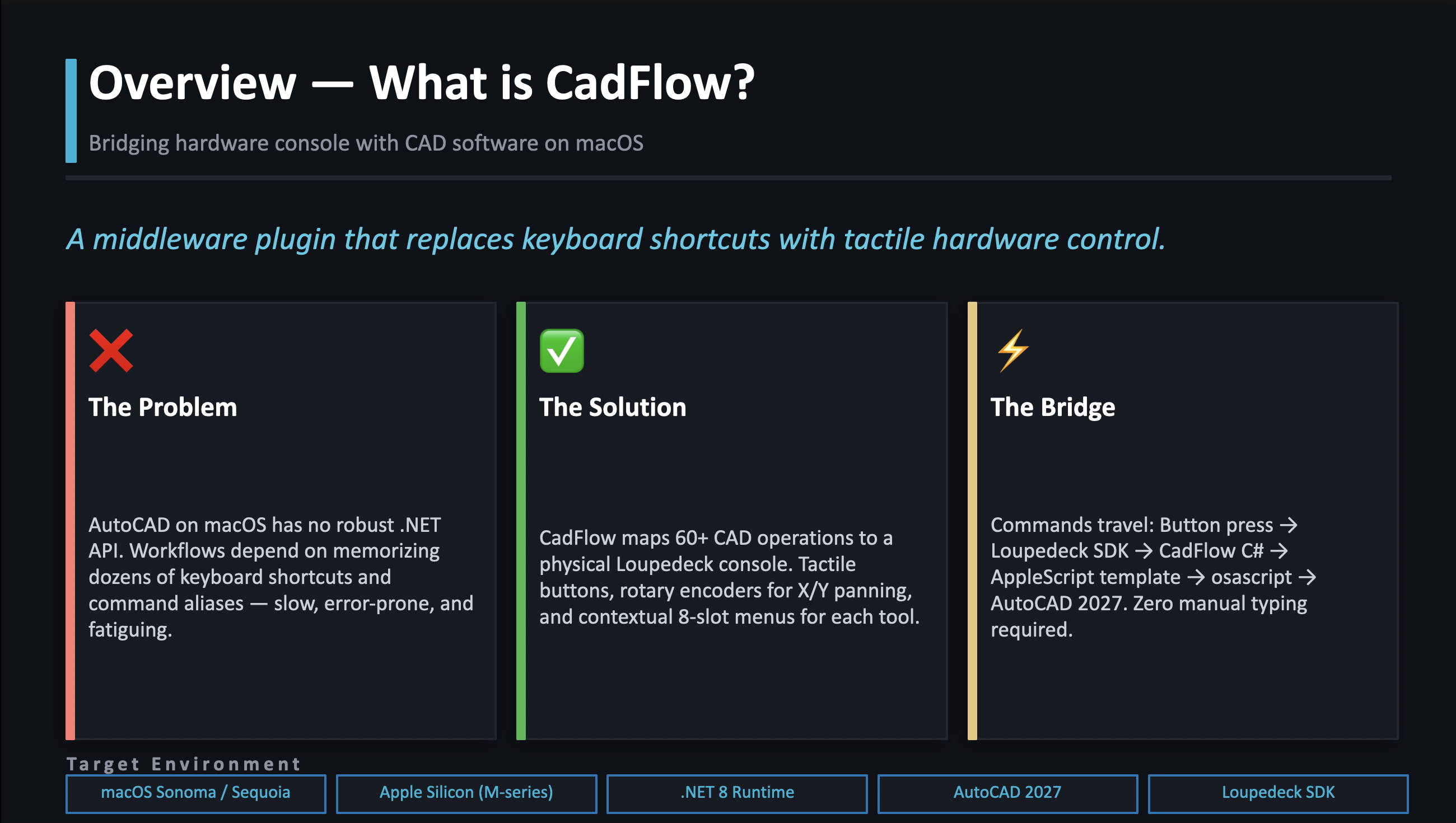

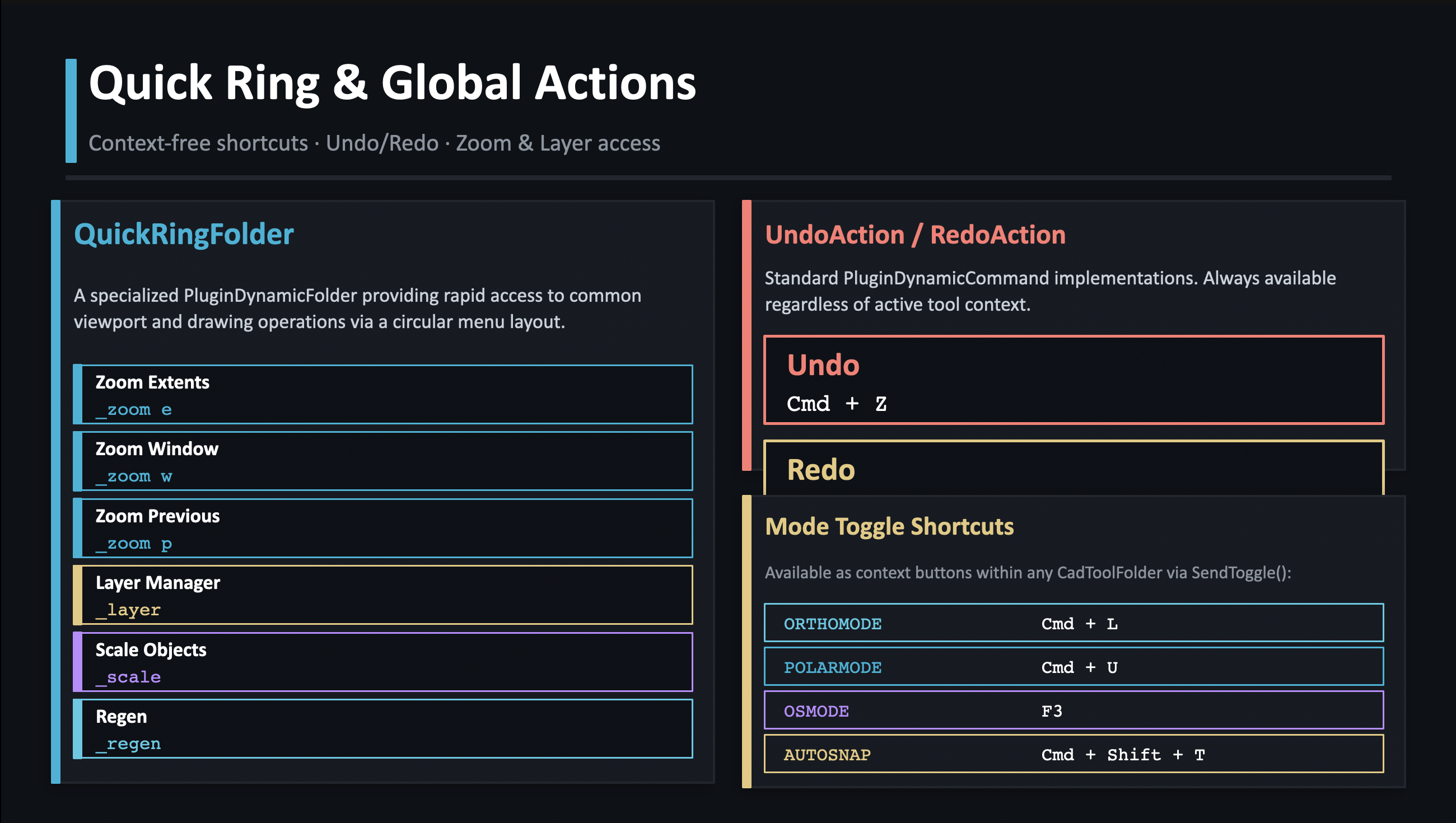

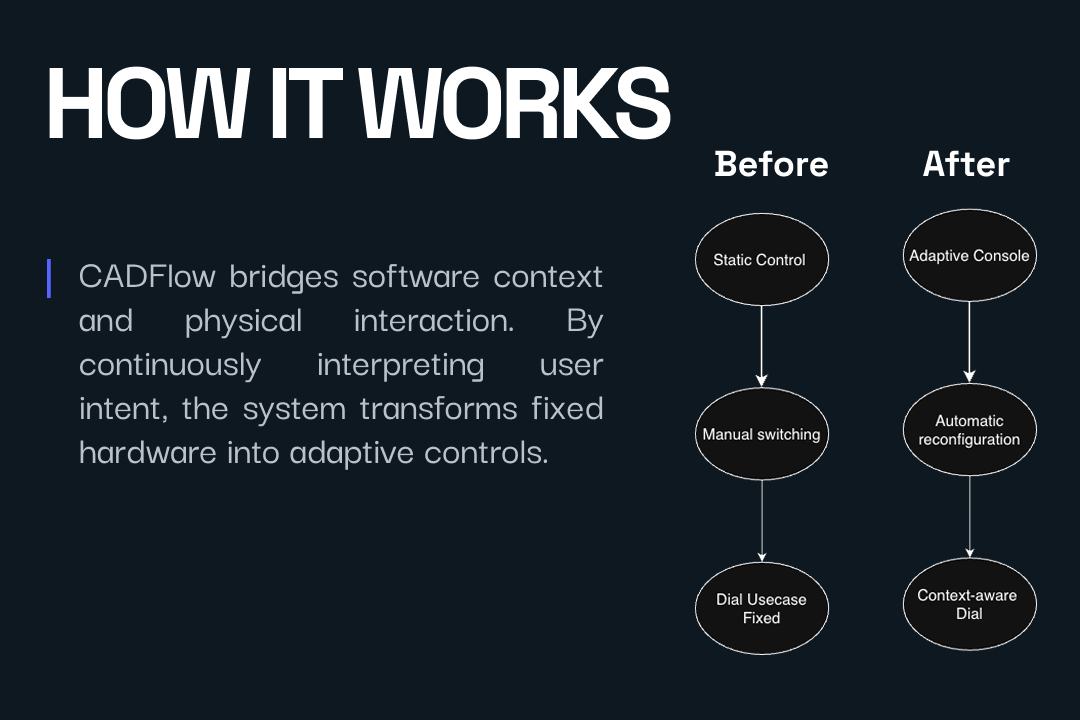

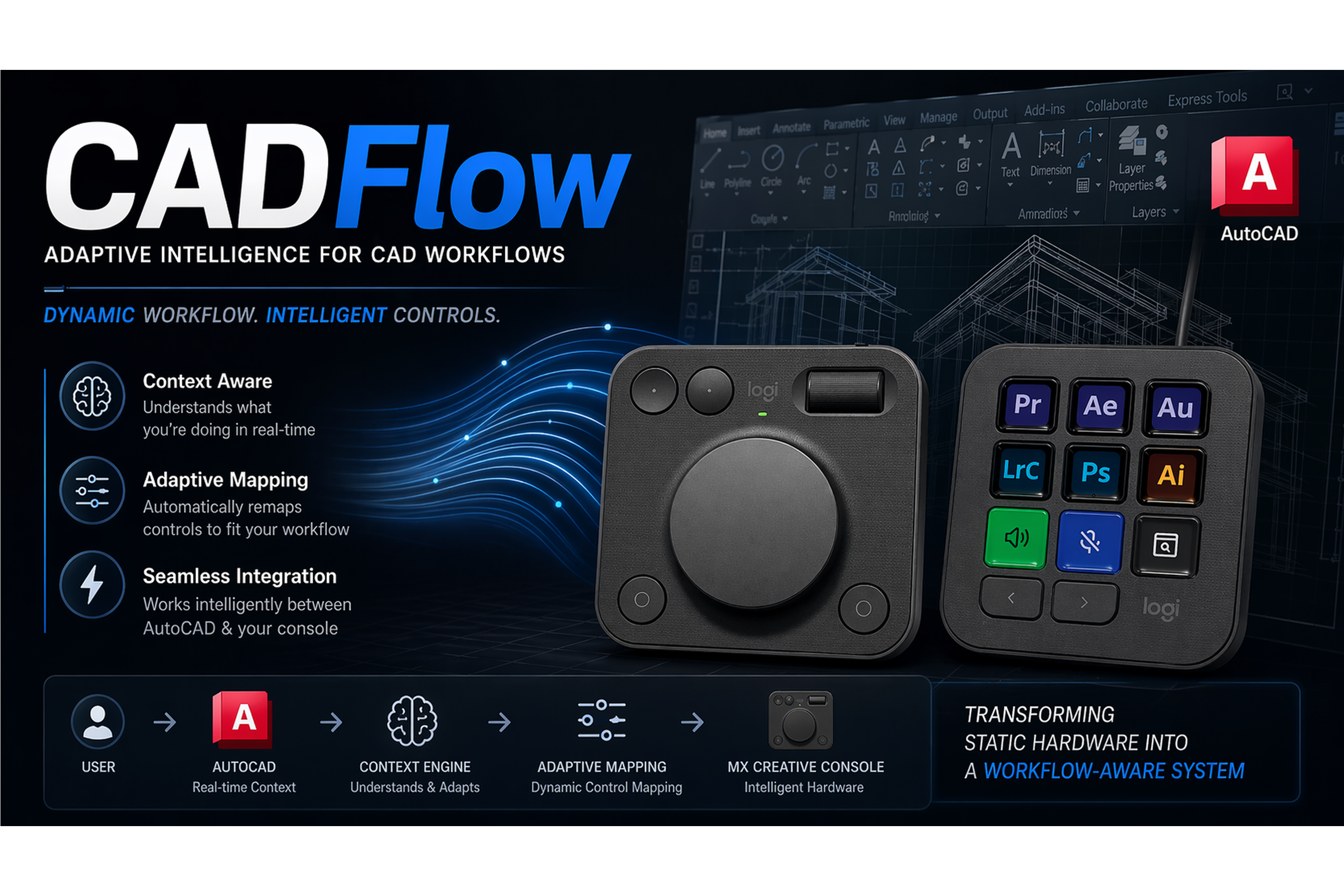

CadFlow bridges a Loupedeck console with AutoCAD 2027 on macOS. Every commonly used CAD operation — Draw, Modify, Precision, and Advanced tools — lives one button-press away on physical hardware. Rotary encoders handle real-time viewport panning with velocity scaling, and mode toggles like Ortho and OSnap work transparently inside active commands. The plugin auto-activates the moment AutoCAD becomes the frontmost window — zero manual switching needed.

How I built it

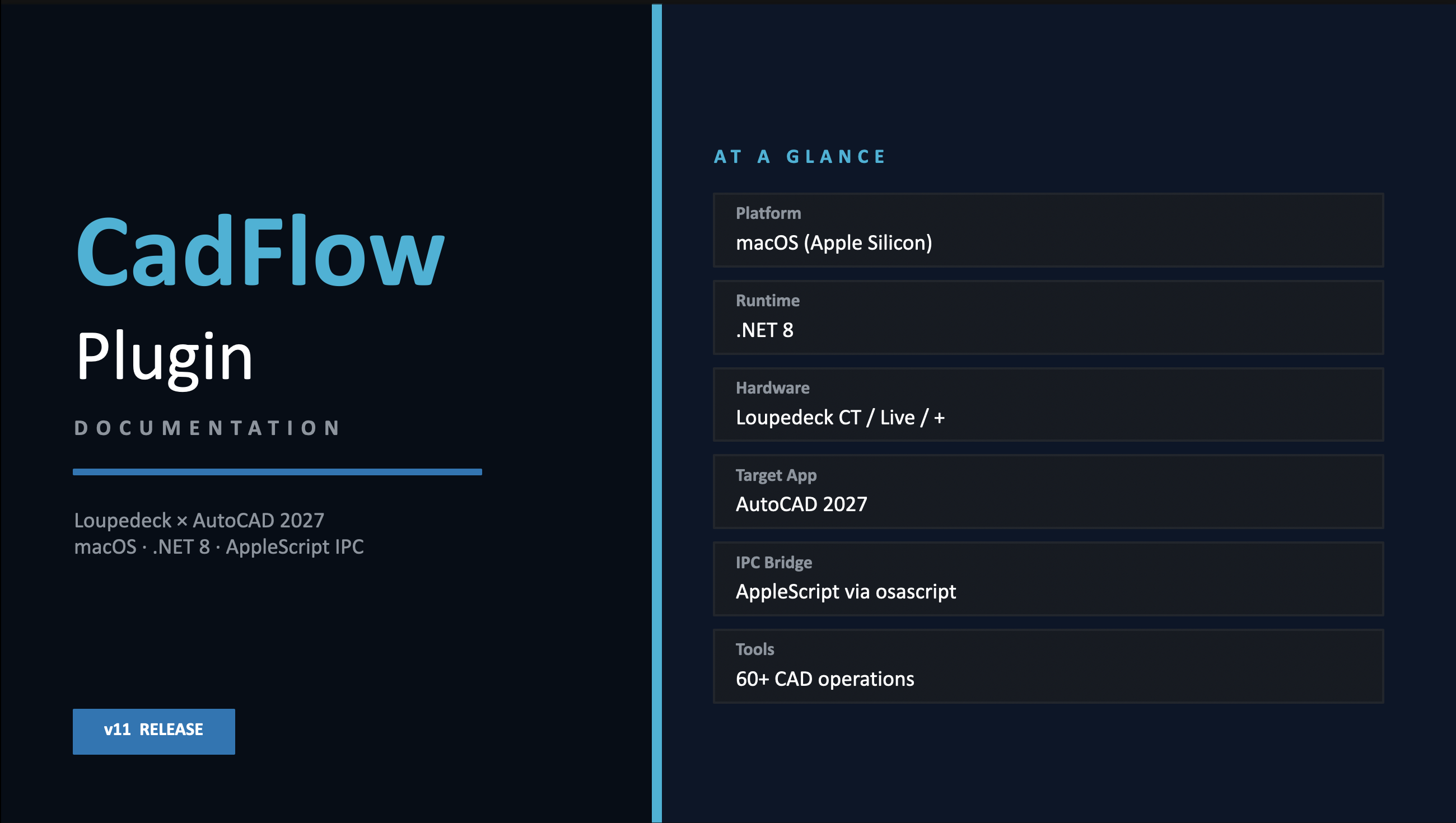

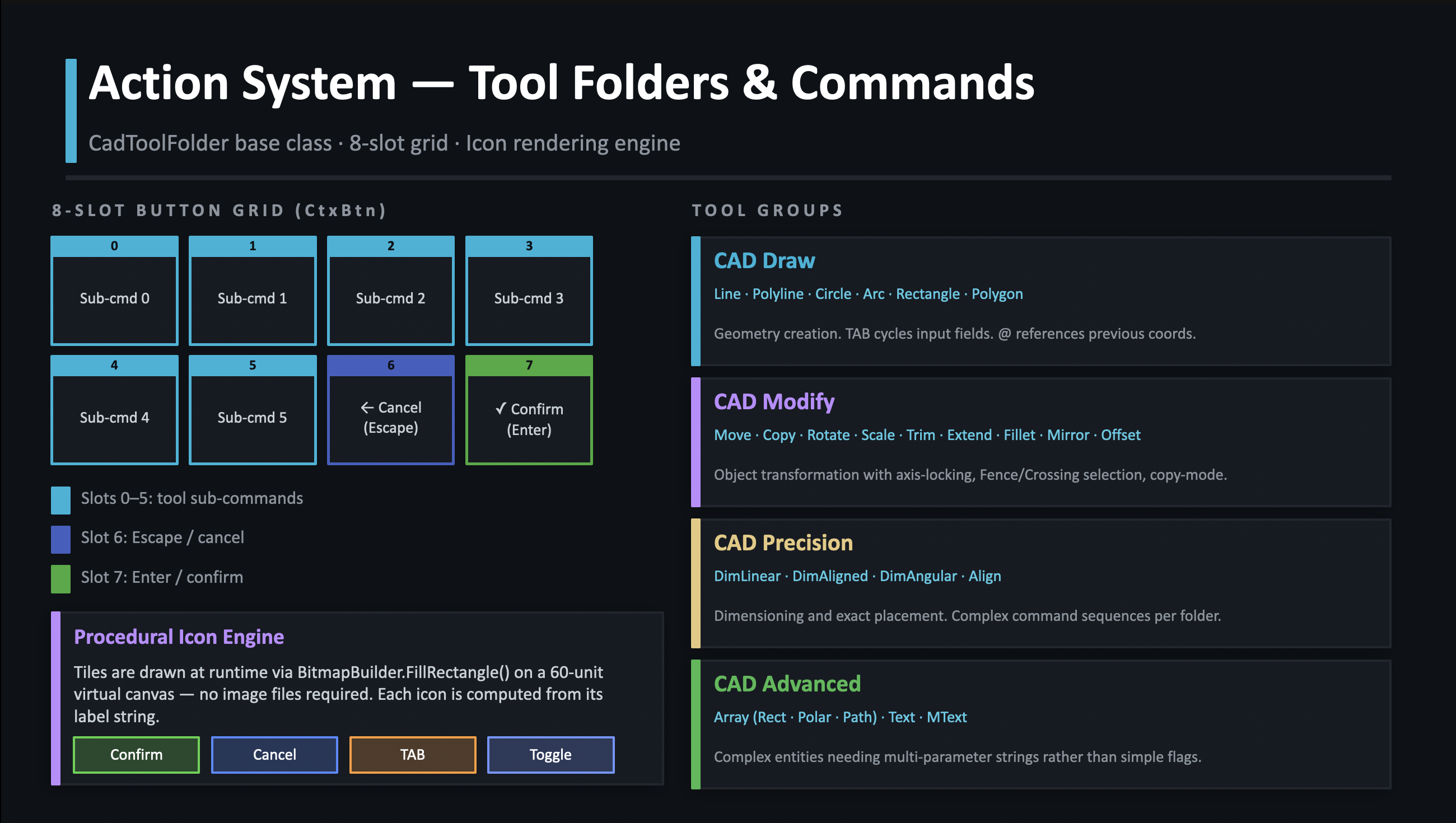

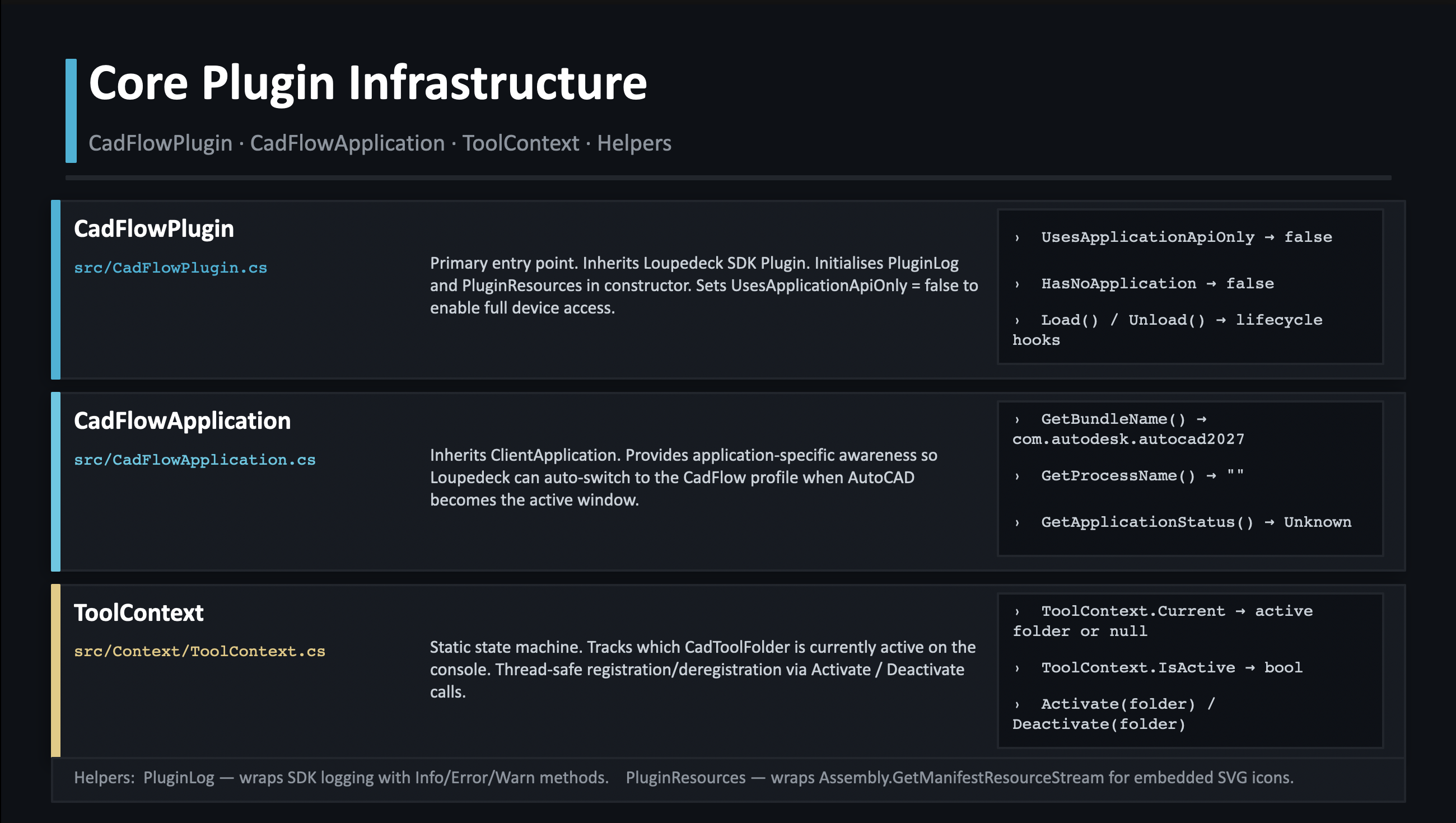

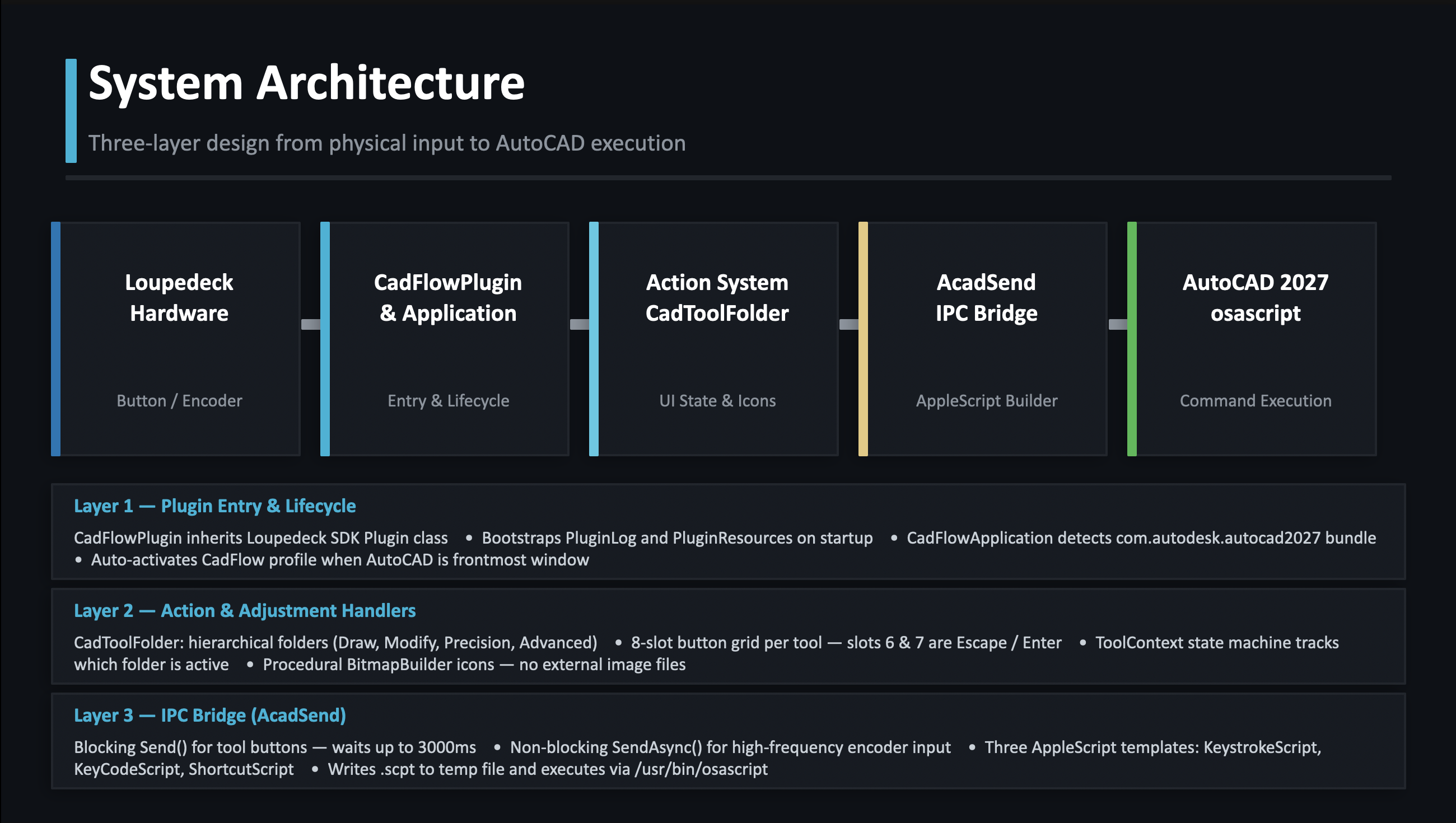

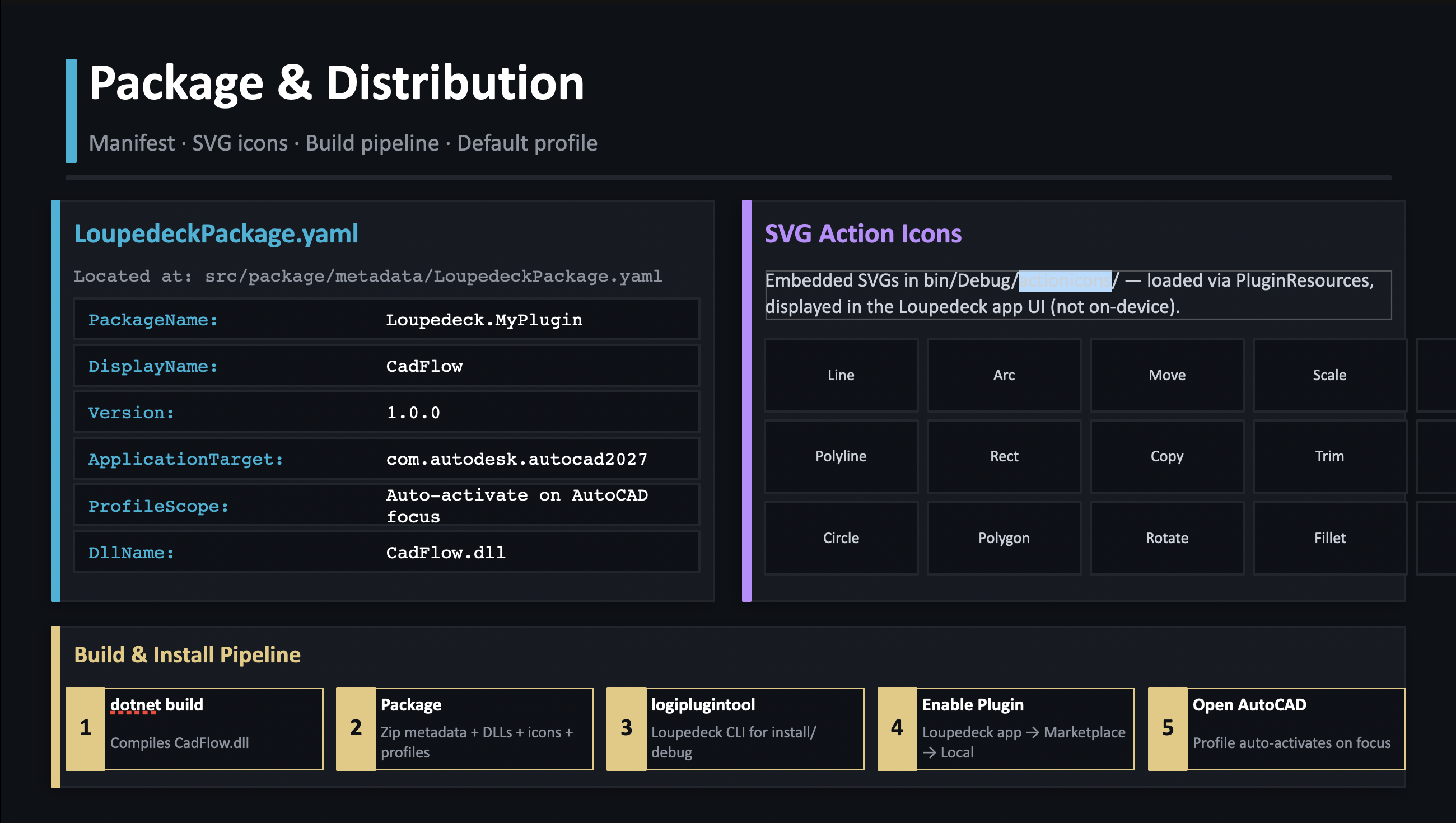

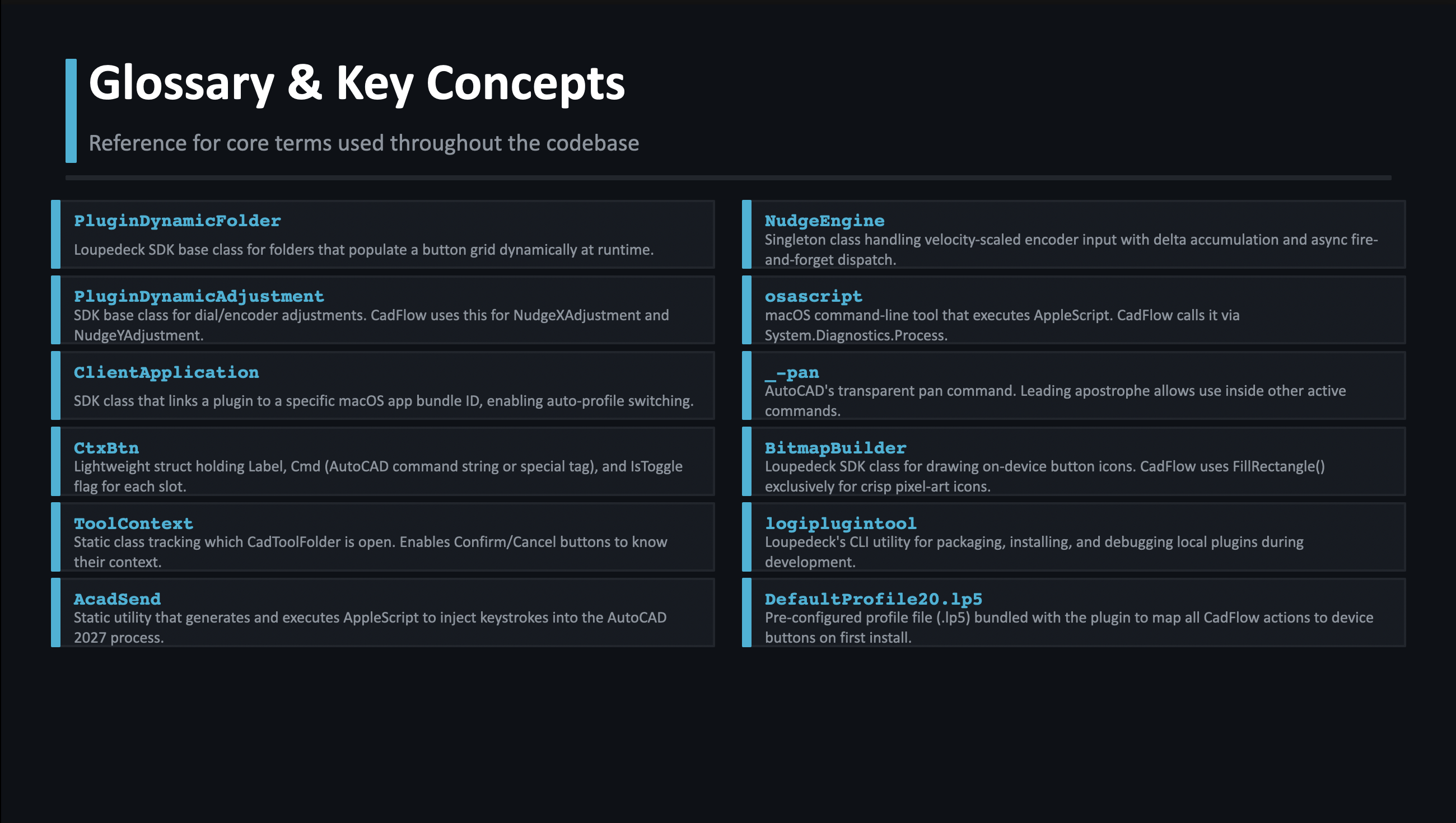

Built in C# on .NET 8 using the Loupedeck Plugin SDK. Communication with AutoCAD happens entirely through AppleScript injected via /usr/bin/osascript — no AutoCAD API required. A custom NudgeEngine handles high-frequency encoder input with delta accumulation so no events are dropped. Every on-device icon is rendered at runtime using the SDK's BitmapBuilder — zero external image assets. The entire plugin architecture is three layers: plugin lifecycle, a contextual action system with 60+ commands organised into tool folders, and a low-level IPC bridge that builds and fires AppleScript dynamically.

Challenges

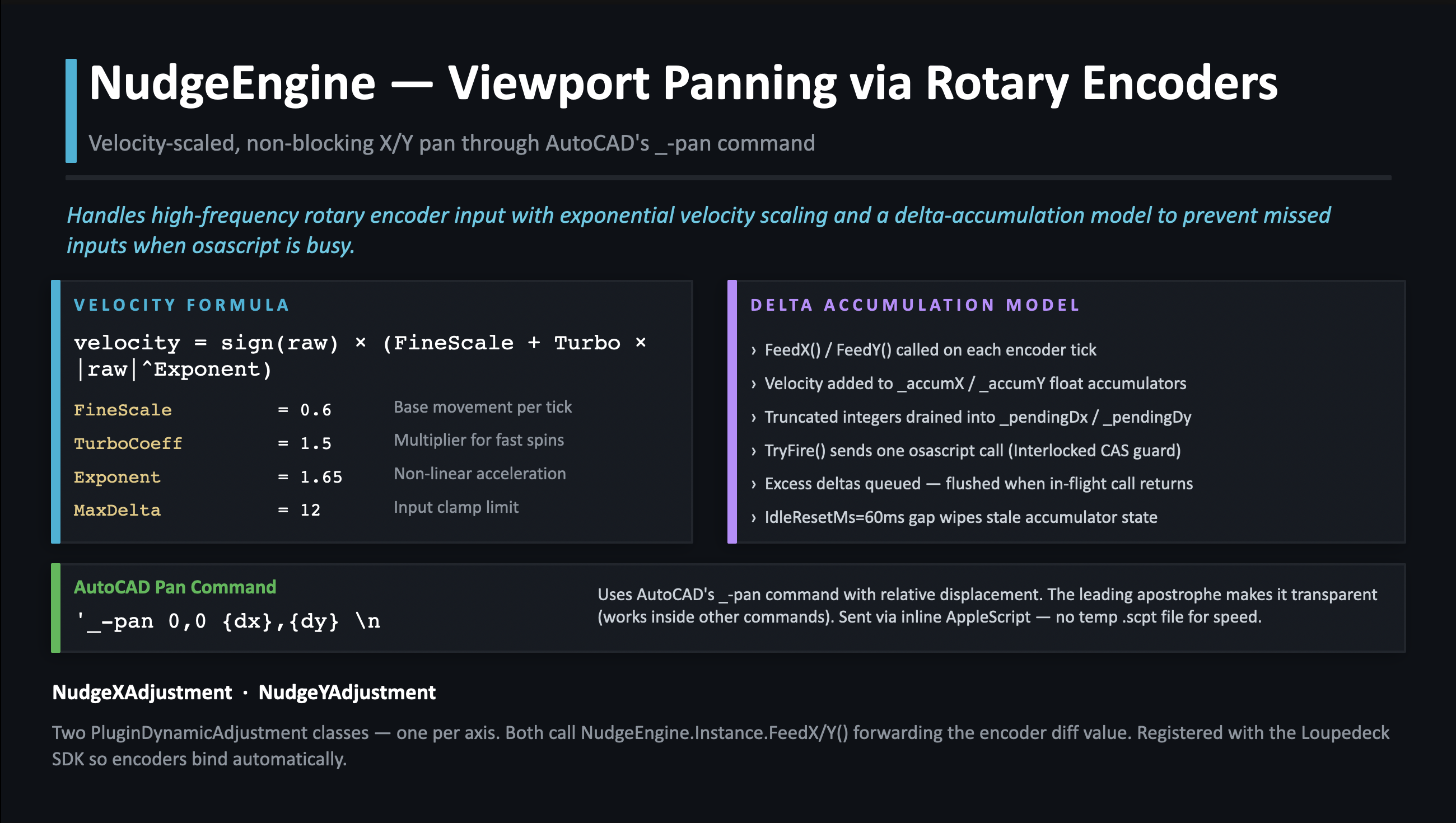

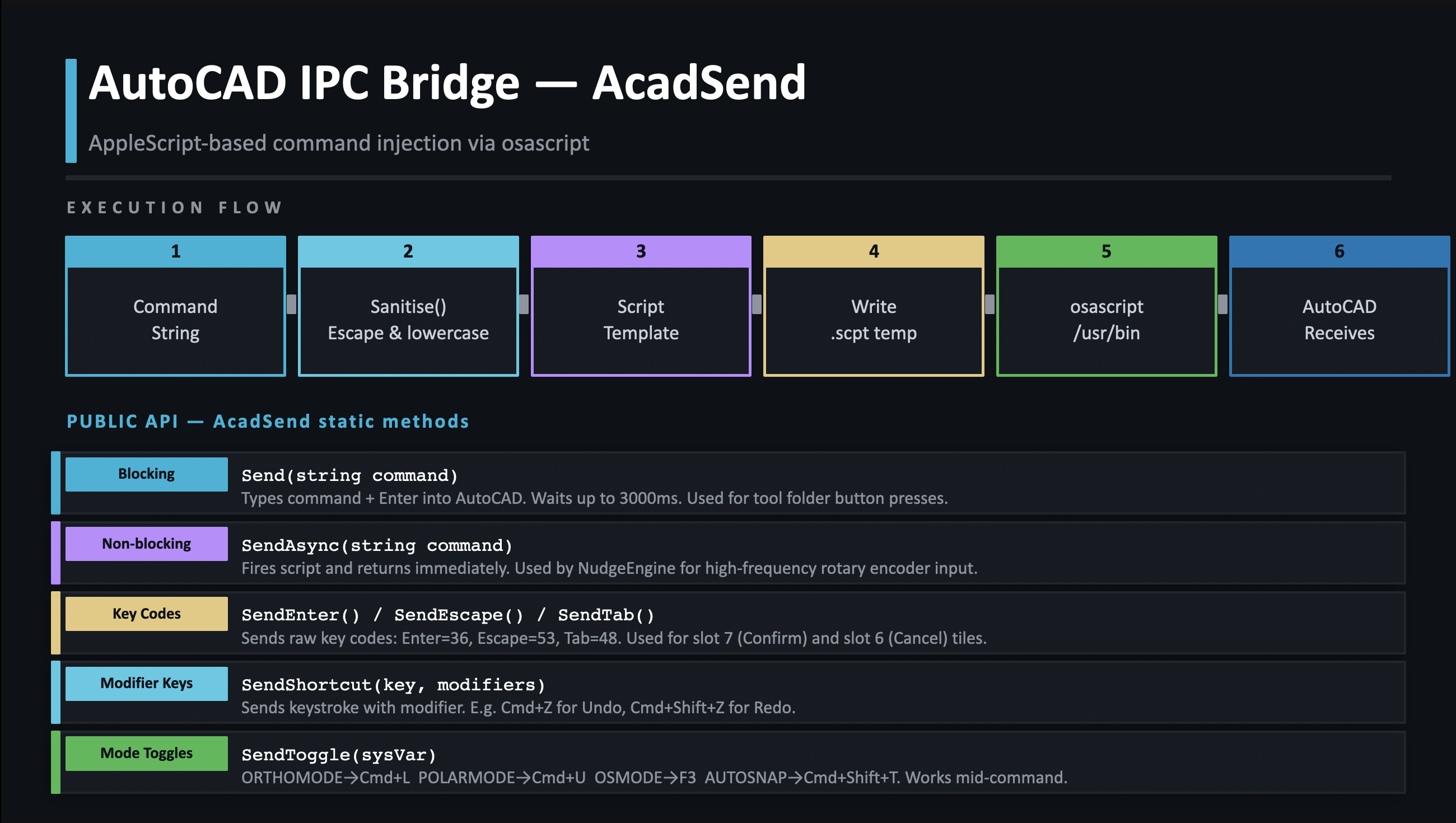

Getting AppleScript to reliably inject keystrokes into AutoCAD mid-command was the hardest part. The transparent '_-pan command and the blocking vs non-blocking execution model for the IPC bridge took significant iteration to get right. Handling high-frequency rotary encoder input without dropping events or lagging the UI required building a delta accumulation model with an interlocked CAS lock from scratch. Doing all of this solo, with no prior Loupedeck SDK experience, meant reading a lot of undocumented behavior the hard way.

What I learned

Deep dive into the Loupedeck SDK, AppleScript IPC on macOS, and building velocity-scaled input systems with async delta accumulation in C#. I also learned how to design a clean plugin architecture that's easy to extend — adding a new CAD tool is now just defining an 8-slot button array. Most importantly, I learned that the best way to build something useful is to build it for yourself first.

Why C# with MacOS

The Loupedeck SDK is .NET-native so C# was the obvious fit. macOS was chosen because it was the harder problem — no AutoCAD API meant building an AppleScript IPC bridge from scratch. Solving the harder case first.

Why Not Windows First?

Windows was always part of the plan. AutoCAD on Windows has COM interop and LISP support making it more straightforward. The entire plugin architecture is reusable — only the IPC bridge needs rebuilding since AutoCAD's interfaces differ per platform. Windows is the next milestone.

2D to 3D Modeling — PTC Creo

The long term goal is expanding CadFlow to PTC Creo for full 3D parametric modeling. Creo is the industry standard in mechanical engineering — rotary encoders mapped to extrusion depth, sketch constraints, and assembly mates would eliminate the biggest friction points in parametric workflows. As an ME student who uses both tools, this is the natural destination for CadFlow.
