Cadence

With Cadence, your hands are the only instrument you need. Wear the glove, move your fingers, and watch music come alive—hardware, computer vision, and LEDs fuse to turn gesture into sound and light.

Comment

Inspiration

https://www.youtube.com/watch?v=ci-yB6EgVW4

What it does

Cadence is a hybrid glove + camera MIDI controller that turns real hand motion into expressive music control.

  • Glove sensors (ESP32 over serial/Bluetooth): reads 4 flex sensors (pointer/middle/ring/pinky), a thumb touch/pressure ADC, hall sensors, and IMU (accel + gyro).
  • Webcam hand tracking (MediaPipe): tracks a single hand and estimates finger bend + hand position.

  • Sensor fusion → performance controls:

    • Uses velocity-based finger bend detection (fast vs slow EMA) to trigger note-on/off naturally (like “pluck” gestures instead of static thresholds).
    • Thumb ADC continuously maps to MIDI CC27 (a smooth, pressure-like knob).
    • Madgwick-filtered IMU pitch maps to MIDI CC28, and also biases octave selection so tilting your wrist shifts the register musically.
    • Hand X/Y position maps to CC25/CC26 for spatial/FX control.
    • Hall sensors can act like a sustain/pedal (CC64) and the IMU axes can drive extra expression (e.g., CC10 pan, CC11 expression).

  • Evolving harmonic bed: runs a Markov / chord-library chord pad on MIDI channel 2, while your finger gestures play melody notes on MIDI channel 1.

Result: you can perform melodies, filter sweeps, modulation, expression, and harmonic movement using one hand—with continuous control and “gesture velocity” feel.

How we built it

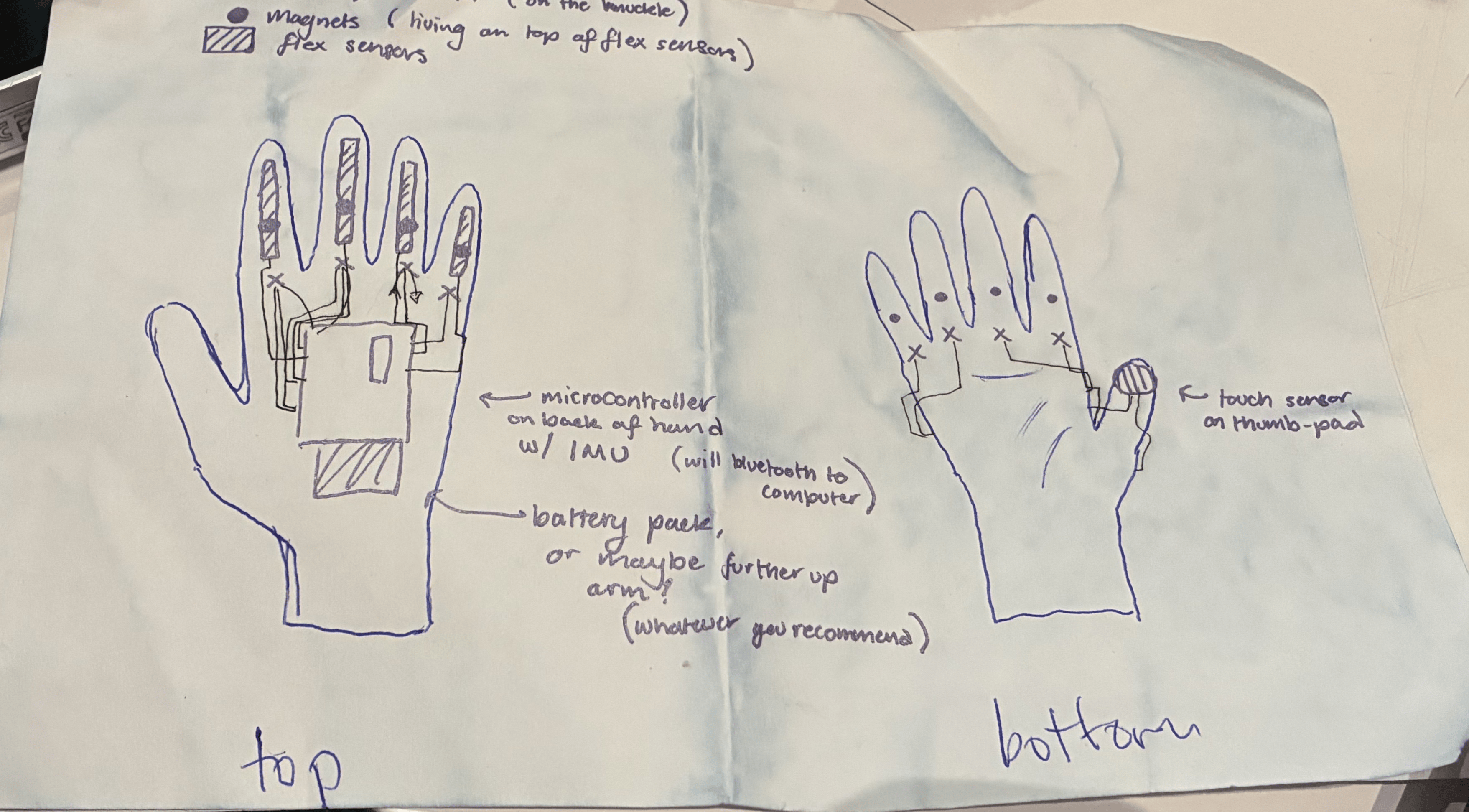

  • Hardware / firmware

    • Built a glove around an ESP32 that streams sensor data as compact CSV lines (supporting legacy and newer formats).
    • Integrated flex sensors, thumb pressure/touch, optional hall sensors, and optional IMU.

  • Python real-time engine

    • A dedicated FlexReader thread reads and parses serial/Bluetooth data robustly (multiple regex formats, reconnection handling).
    • MediaPipe Hand Landmarker runs from the webcam to estimate finger bends and hand position in real-time.
    • A Madgwick AHRS filter fuses accel + gyro to get stable wrist pitch without needing a magnetometer.
    • Sensor fusion logic blends glove and camera signals and uses EMA-based velocity detection to produce musical triggers.

  • MIDI output

    • Uses mido + rtmidi to create a virtual MIDI port (“GestureHand MIDI”), so any DAW/synth can receive notes/CC.
    • Runs a background chord thread that voices chord tones with slight humanized timing/velocity.

Challenges we ran into

  • Noisy, real-world sensor signals: flex sensors drift and jitter, and camera tracking can drop frames or lose the hand.
  • Latency + stability tradeoffs: pushing responsiveness without jitter required careful smoothing (slow EMA) and attack detection (fast EMA).
  • Different “directions” per sensor: some flex sensors increase voltage when bent, others decrease—ring finger needed inversion.
  • IMU alignment + drift: getting a usable pitch signal required calibration, deadbanding gyro noise, and smoothing to avoid twitchy octave jumps.
  • Robust parsing + formats: supporting evolving ESP32 message formats while staying backward compatible.
  • Musical feel: avoiding machine-gun MIDI spam meant deadbands for CC updates, auto note-off aging, and careful thresholds for velocity triggers.

Accomplishments that we're proud of

  • Natural gesture-to-note triggering using bend velocity, not just static thresholds—so it feels more like an instrument.
  • True hybrid tracking: glove sensors keep working when vision fails, and camera data adds nuance when available.
  • Expressive control mapping: thumb pressure (CC27) + wrist pitch (CC28) + hand XY (CC25/26) + sustain (CC64) gives a full performance surface.
  • Built-in harmonic engine: the Markov/chord pad makes performances sound “complete” even as a solo player.
  • Plug-and-play MIDI: virtual port means it works with basically any DAW/synth with zero special integration.

What we learned

  • Filtering matters more than raw sensors: EMAs + deadbands can make cheap sensors feel “premium.”
  • Calibration is UX: adding an interactive OpenCV calibration wizard is the difference between “demo” and “instrument.”
  • Fusion beats perfection: combining two imperfect systems (glove + camera) produces a result more reliable than either alone.
  • Music is about constraints: mapping pitch to probabilistic octave choice creates variation while staying musically coherent.
  • Real-time systems need guardrails: auto-release, reconnection handling, and fallback modes prevent live-performance failure.

What's next for Cadence

  • Better calibration + profiles: save/load per-user sensor calibration and MIDI mapping presets.
  • More gestures: pinch, tap, and pose detection (e.g., “fist = mute,” “pinch = latch chord,” “two-finger point = arpeggiate”).
  • Chord interaction: let gestures influence harmony directly (e.g., thumb pressure selects tension, wrist roll selects inversion).
  • Timing + quantization options: optional beat-sync’d triggering for tighter DAW integration.
  • Wireless polish: smoother Bluetooth pairing + packet timestamping for consistent latency.
  • Packaging: a simple UI for device status, mapping, and synth presets—so anyone can play without editing code.
