BunnyPAPR

Video Overview

exclamation point Watch the 5 minute video for an overview.

Inspiration

In March 2020, a short three months ago, Dr Kuo released his design for the Bunny Science PAPR. It was meant to address the N95 shortage in hospitals, but hospital adoption was slow. We asked: For emergency situations, could a $2000 PAPR system be simplified to 1/10th the cost? The answer is yes, and the $30 bunnyPAPR was born.

What it does

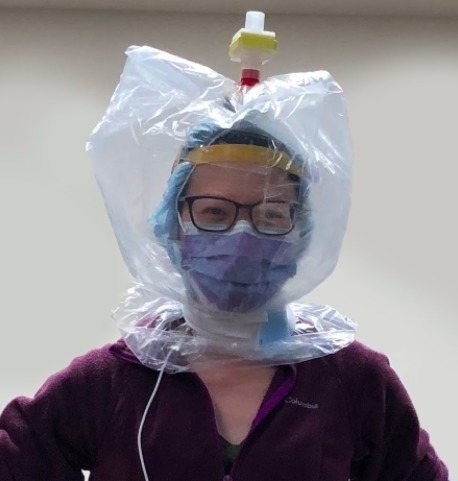

The diagram below shows how it works. And one of the key things is that it can be made for $30 or less.

BunnyPAPR diagram

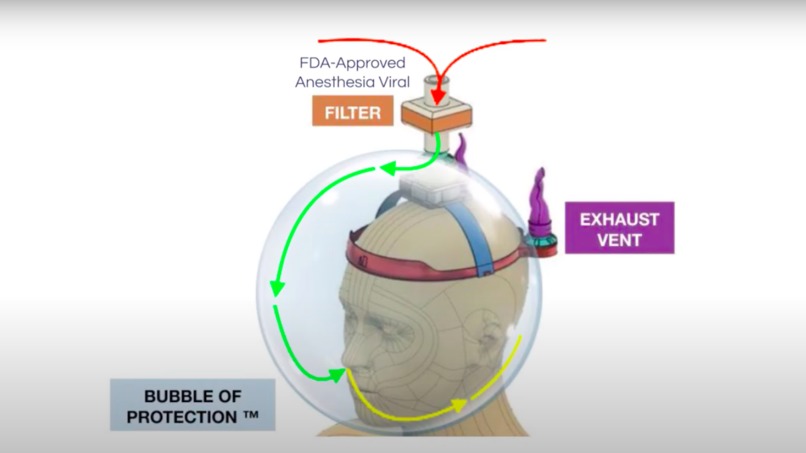

  1. Contaminated air passes through the FDA-approved anesthesiology viral filter with sub-micron level capture.
  2. Fan pulls in outside air. Circulates clean air. Provides positive air pressure.
  3. Person exhales CO2 through a recommended surgical mask. [1]
  4. CO2 is continuously vented out rear flutters valves or additional viral filters.
  5. Fan is powered by USB battery pack in the user's pocket.

Depending on the use case, many of these parts can be decontaminated and re-used. Hence, the one-time cost of $30 is for a reusable system. [2]

Medical Testing

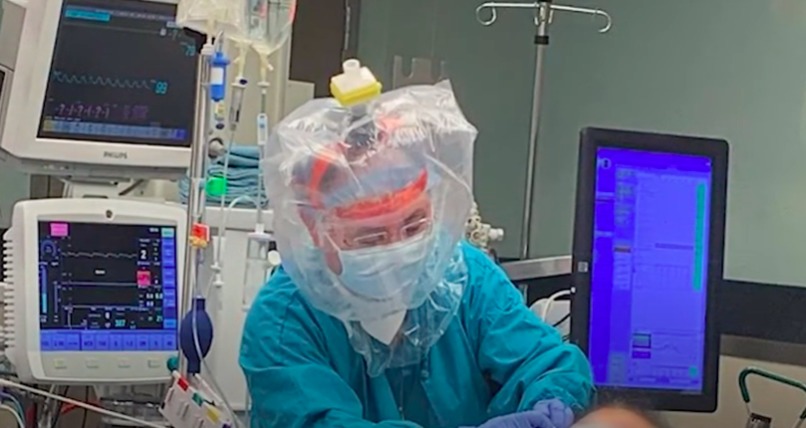

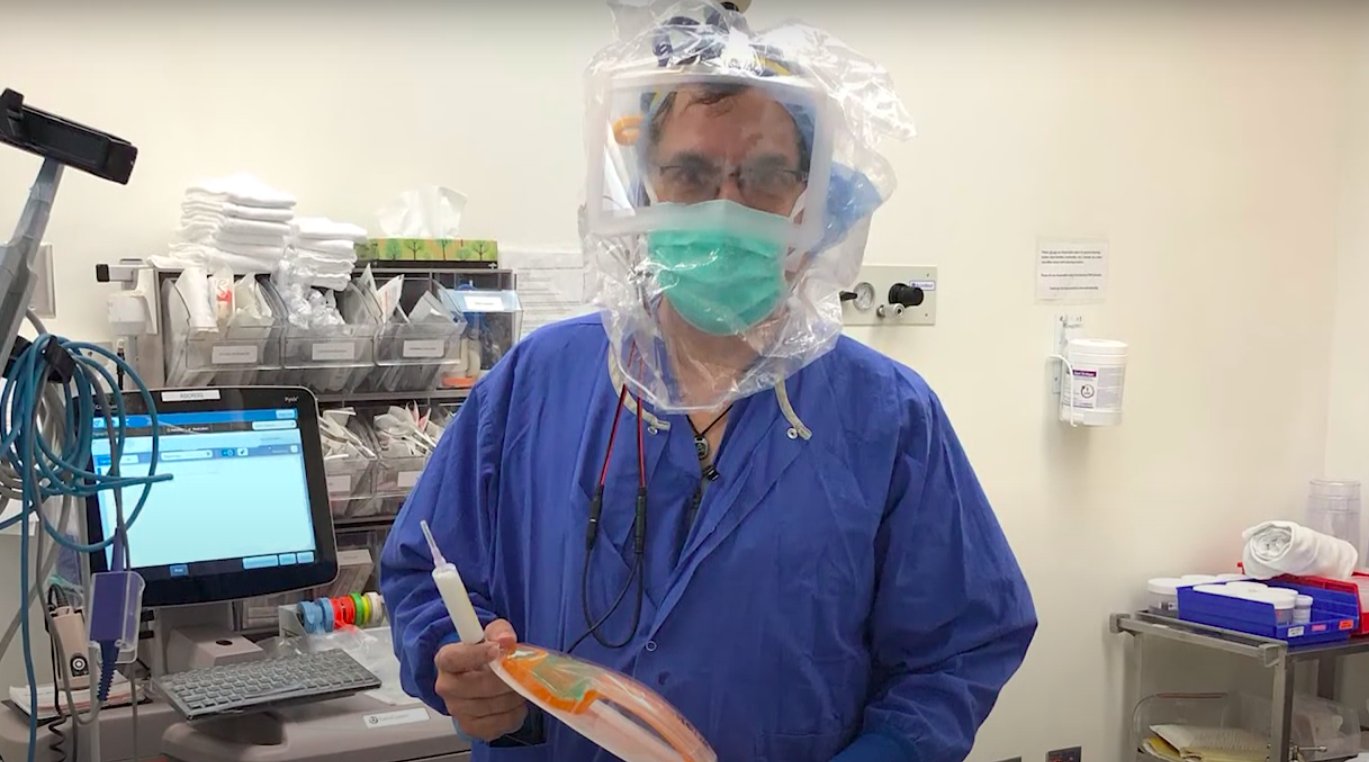

The Bunny Science PAPR has been tested by the inventor, Dr Kuo, an anesthesiologist from Seattle. In particular, it

  • passes the nebulized saccharin test (sometimes referred to as the QLFT for respirators)
  • passes monitoring of O2 and inspired/expired CO2
  • passes "stress tests" of deep and fast inhales and exhales.

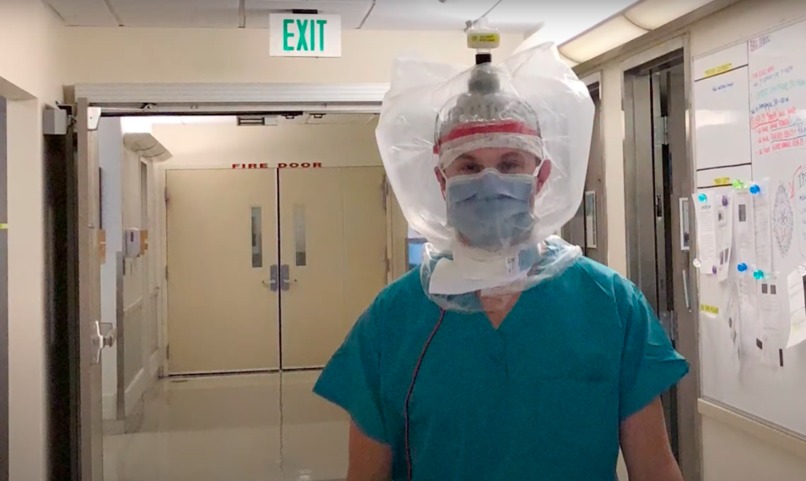

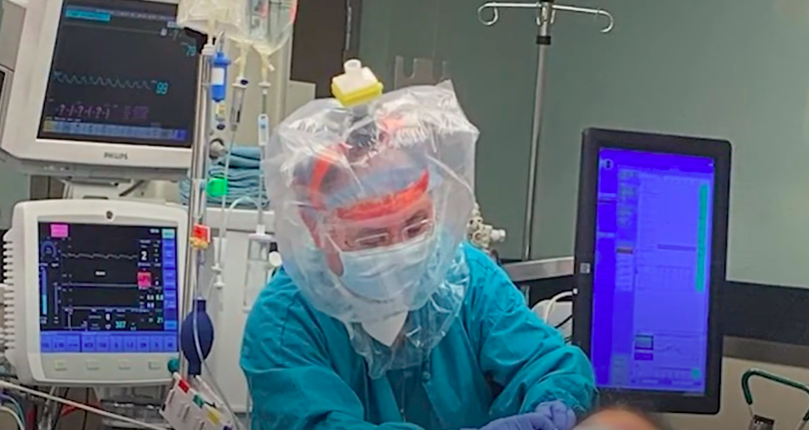

It has been worn for 11hours straight. Dr Kuo has also worn it everyday he is in the hospital for the last 2 months.

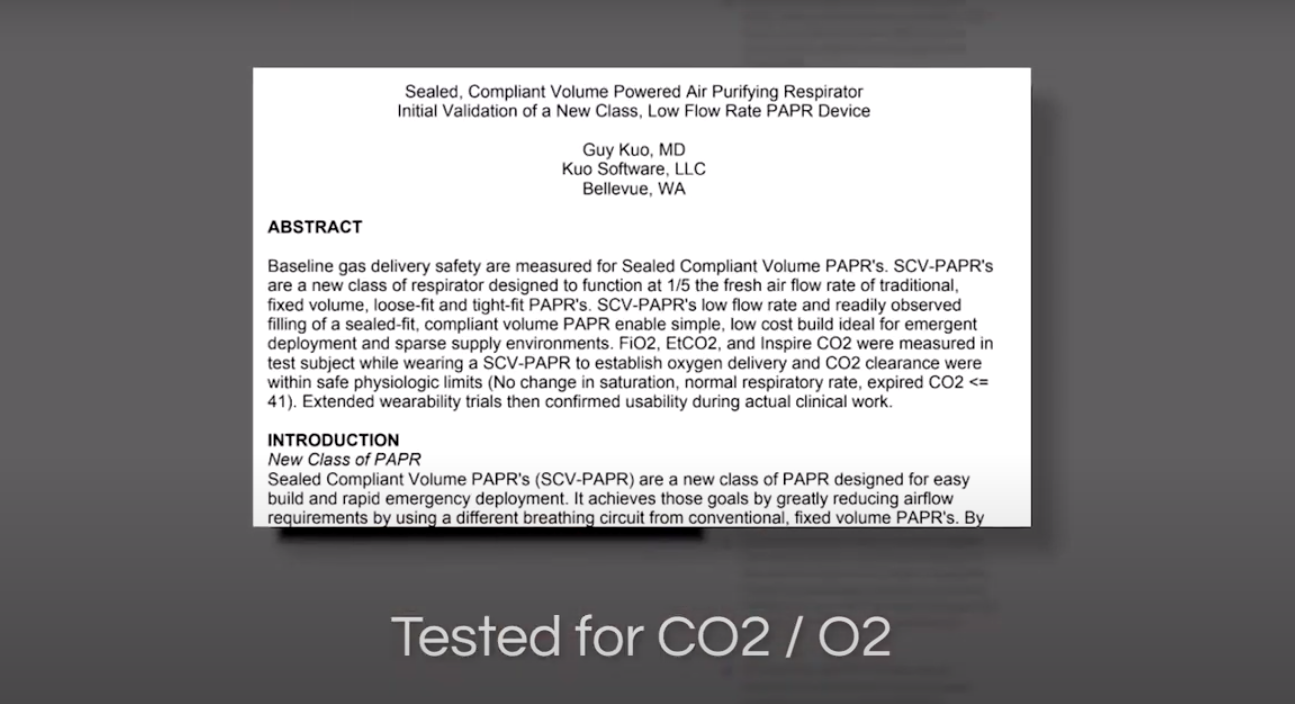

Details of the Bunny Science PAPR are in the 14-page paper titled: Pilot Evaluation of Oxygen and CO2 Safety of BunnyPAPR, A Prototypical Sealed, Compliant Volume Powered Air Purifying Respirator (SCV-PAPR)

How we built it

About 1000 engineering hours are in on the project.

Four out of five parts are commodity parts. We tested several dozen fans, filters, bags, and batteries to find the right balance.

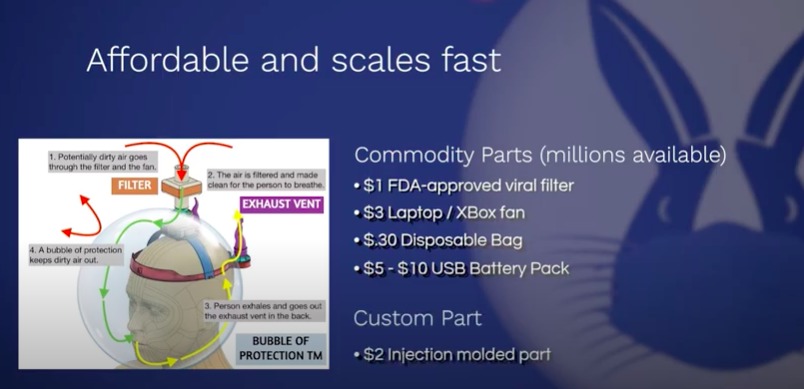

Commodity Parts List (millions available)

  1. Fan ($2 wholesale to $4-5 retail)
  2. FDA-Approved Viral Filters ($1 retail in packs of 100qty)
  3. Bags ($0.30 each, disposable)
  4. USB Battery Pack ($5-$10)

The final parts are a head mounting system and airflow-connectors. These were prototyped using 3D-printing. See https://www.bunnypapr.org/makers/3d-print-files

Challenges we ran into

The primary challenge was figuring out our target market. Initially, the focus was on the medical community and at-risk people. After all, they need protection as good or better than N95. However, given the Covid19 controversies around mask wearing mandates, hospital approvals, and cloth masks, we had to admit our error: Not everyone who medically needs one will get one.

The hackathon overcame this challenge by rethinking the problem. "Who is most motivated (financially, medically, or behaviorally) to want bunnyPAPR?" We refocused on international aid (free distribution) and large industries (premium) where safety is part of the license to operate. Hence, we figured out the need for a "Freemium" business model described in the 5-minute video.

Other challenges included various R&D and scaling/sourcing challenges.

  • FANS We bought over a dozen fans, many did not match the listed specs.
  • BAGS We have spent approximately 125-200 hours on bags. Some bags are strong, but visibility is poor. Other bags have great visibility, but might tear easily.
  • INDIA Our India partner (link has had a hard time sourcing the right bags and fans.)

Overall, we are approaching these issues methodically and finding adequate solutions. Importantly, we've been able to maintain our $30 target.

Accomplishments that we're proud of

  • All volunteer team. We run through a Discord/Slack chat server.
  • Doing all this fast! (2 months, with a flurry in the last 3 weeks).
  • Teamwork.
  • Integrating a diverse group of talented volunteers. From 16yo to 70+. Finding good, helpful people internationally.

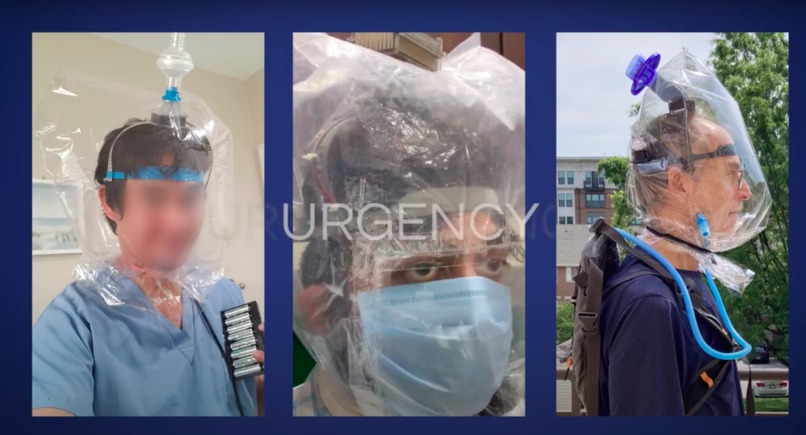

  • Distributing 20+ BunnyPAPR's to people who have wanted to use them.
  • We have a list of over 30 requests that we are in the process of fulfilling.

What's next for BunnyPAPR

  • Finish "500plan" bunnyPAPR inventory. Make and distribute 500 internationally.
  • More user feedback, refine target market.
  • Seek "angel" investors for scaling to 2000-5000 and then 100,000
  • Explore target markets, like
    • NBA and other large markets,
    • direct to consumer, and
    • WHO, and international humanitarian aid (thanks to help of UCSF Hackathon Mentors)
  • Consider US medical markets and FDA Emergency Use Authorization (EUA) approval. Medical regulations are very complex.
  • Provisional patent submission
