BoilerMakeBadge RF Statistics

Modified repo from the BoilerMake team. Badges now have the ability to perform node discovery and report RF statistics.

Available commands:

  help          - displays commands list.

  send [addr] [command] [data] - send packets to other node.
      [addr]    - address of destination node, as a 4 digit hex value
      [command] - command field.
        -p - ping destination node.
        -l - send LED pattern to destination node.
           - [data] - LED pattern. Valid range: 0-4.
        -m - send message to destination node.
           - [data] - message to be sent. Max 26 characters.

  self [command] [data] - simulate receiving a packet of data.
        -l - send LED pattern to yourself.
        -d - send DEMO pattern to yourself.

  scan [command] - search for peers...
        -a - increment from 0x000 to 0xFFF and see who is alive
        -p - ping bombardment!

  channel [val] - change channel of your node.
                - [val] - new channel. Valid range: 0-83. Default: 80.

  radio [on | off] - turn radio on or off



Description from the BM team:

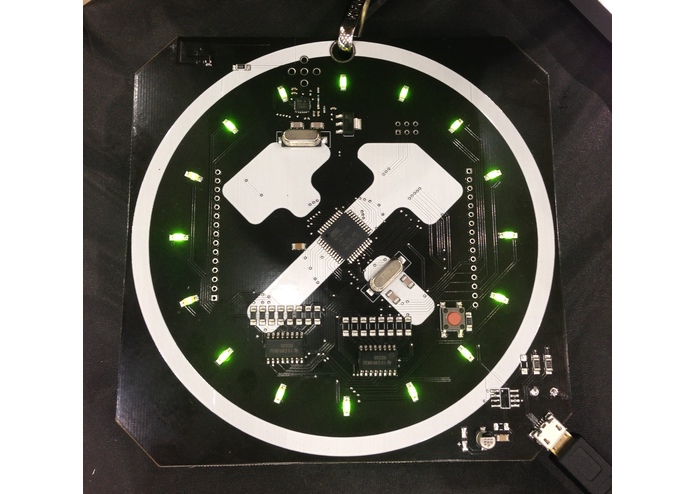

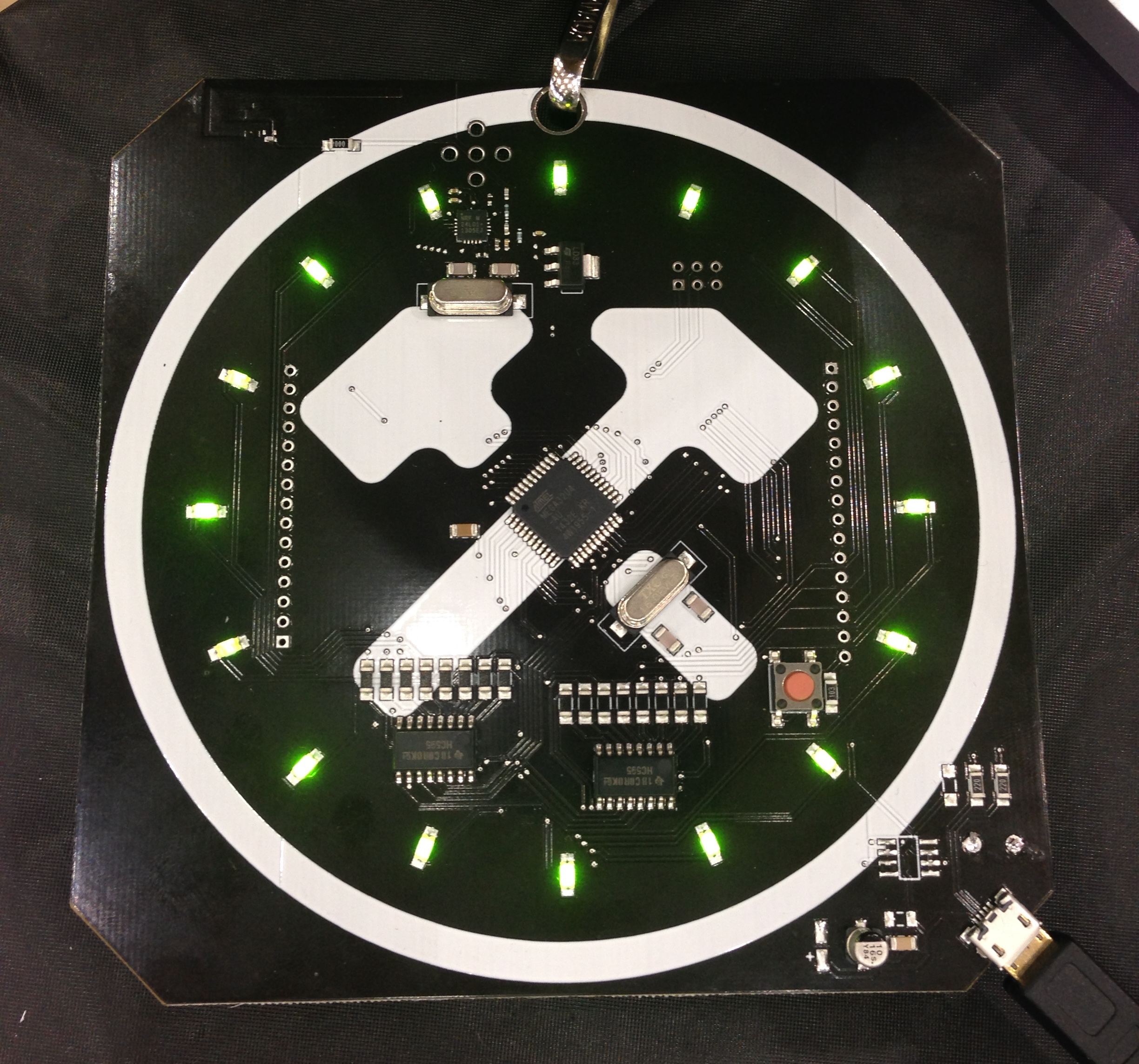

BoilerMake Badge

Ha! You found it! We're stoked for these one of a kind BoilerMake Badges, and can't wait to see what all the hackers here at BoilerMake end up doing with them.

We put a lot of work into these, so we kinda have to brag a little... here's some quick facts you might find interesting.

  • The badge is an Arduino Dev Kit. You can use the super easy to use Arduino software to program them from a PC, Mac, or Linux based machine.
  • These badges were designed entirely by Purdue students Thomas Kilbride and Lior Ben-Yehoshua. Scott Opell and Viraj Sina both contributed significantly to the default code that was running on your badges when you first walked in here.
  • We maxed out the capacity of the world's 3rd largest PCB manufacturer for two days to make these boards. We're talking Foxconn level stuff here, guys. - We've open sourced the firmware source code, so feel free to hack/design/build away to your heart's content.

Ok, now onto business, we've come up with a little documentation and tutorial to get you hacking on our badge as soon as possible!

Things You Need

  1. Windows, Mac, or Linux PC (sorry no Solaris support...)
  2. Micro USB cable
  3. Arduino IDE

Connect to the Board

Each BoilerMake badge is equipped with a small nRF24L01 radio which allows it to send and receive messages from other badges. Here's how to do that:

  1. After installing the Arduino IDE, plug in the board to your computer via micro USB cable.
  2. All lights around the board should light up. If this not's the case, unplug and plug the board back in again.
  3. Download this GitHub repo here as a .zip file.
  4. Open the Arduino IDE and go to sketch -> import library -> add library -> find the rf24-master.zip and select it.
  5. Copy and Paste the code found here into your new Arduino sketch.
  6. Go to Tools -> Board and select Arduino Leonardo.
  7. Hold the button on the badge down
  8. Press the upload button (the arrow) in the Arduino IDE. When the IDE says "Uploading..." release this button.
  9. Press Ctrl + Shift + m to open the Arduino console.
  10. Change "No ending" to "Carriage Return" at the bottom of the console.
  11. Your board's ID will appear at the top, you might want to take note of this as other boards will be able to communicate to you using this ID.
  12. Type "help" for a list of commands.
  13. Type "send -l <1, 2, 3, or 4>" to send a pattern to another board.
  14. Hack!
