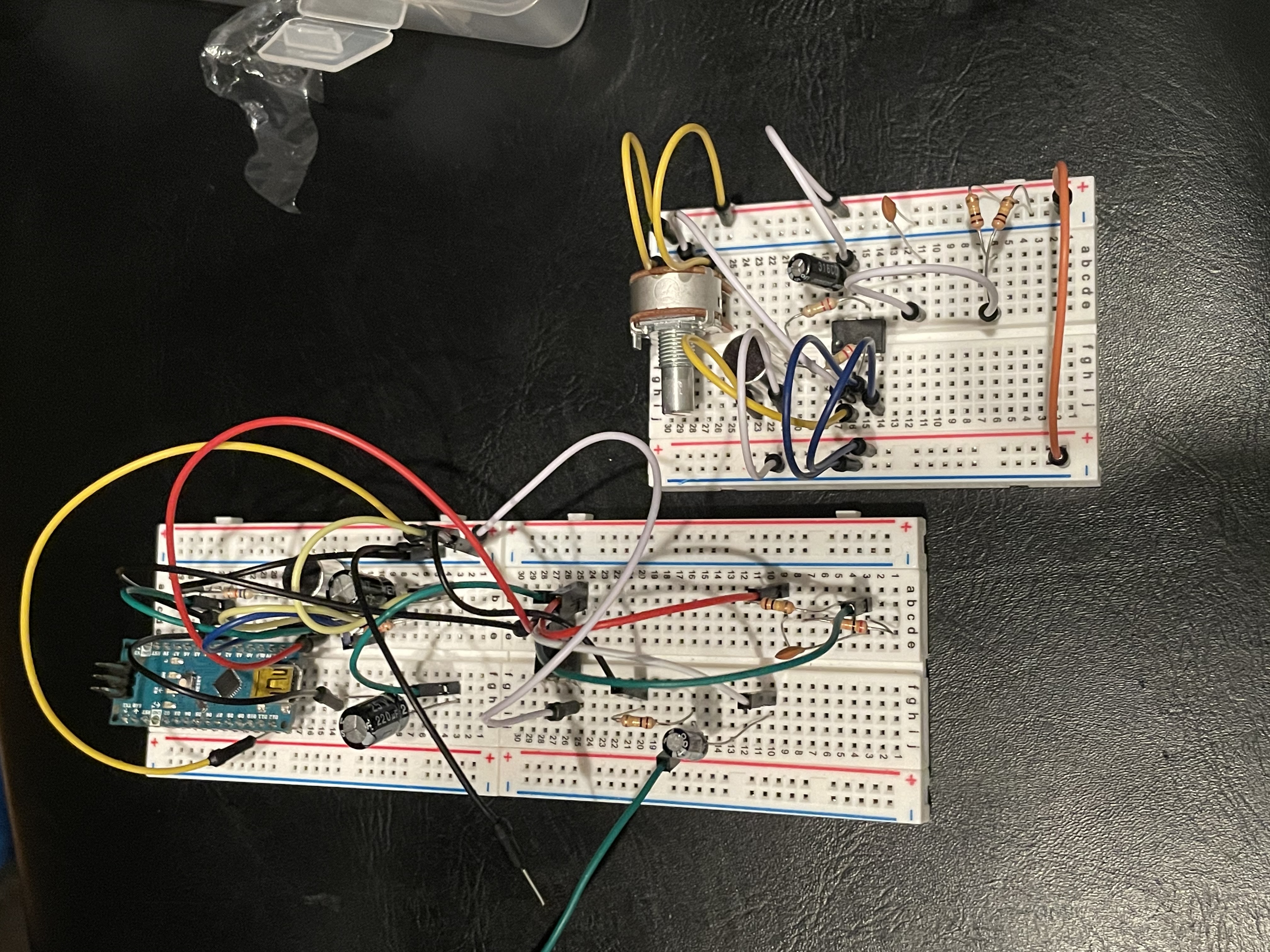

Attempted arduino/raspberry pi setup
-

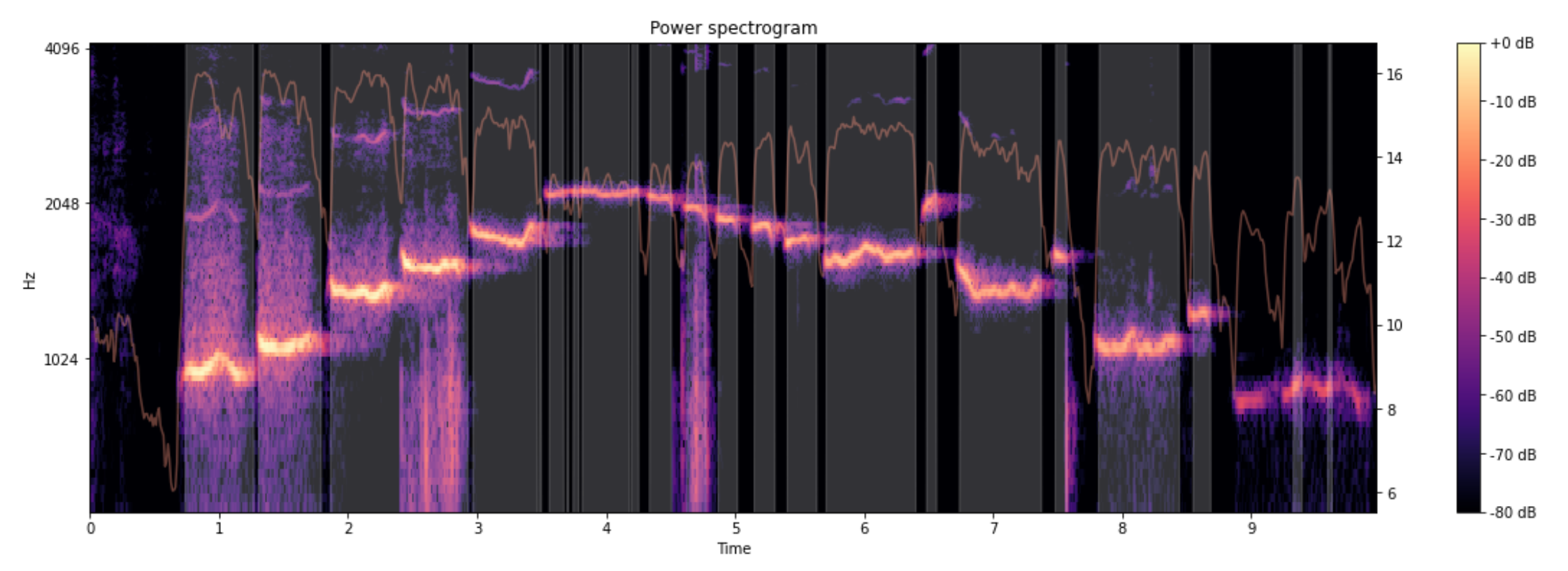

Example spectrograph used during audio analysis
-

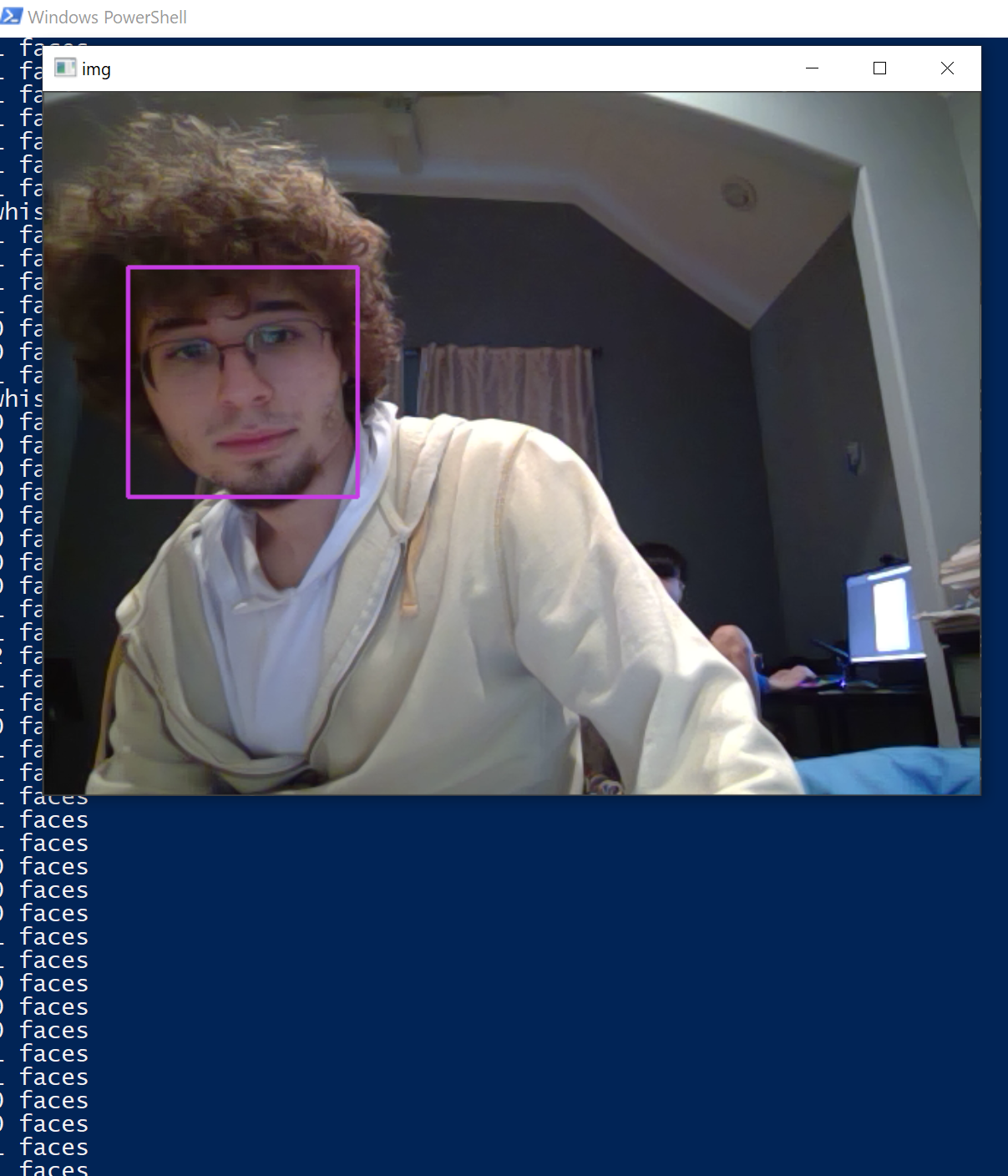

Face detection to start audio polling
Inspiration
Whistling is a fun thing to do, so we decided to make it useful.
What it does
Blowboard is a proof-of-concept of a USB device that allows one to whistle to use their keyboard hands-free. First, it detects a face using the computer's webcam, then starts polling for audio from a microphone. Then, it analyzes the audio, and based on pitch changes emulates keyboard input.
How we built it
Blowboard was primarily built using Python-Librosa, Python-numpy, and Python-pandas. Hardware was made with Arduino, breadboards and an electret microphone.
Dataflow
User stands in front of webcam → Blowboard starts polling for whistles → Blowboard hears a whistle → Blowboard simulates a pre-defined keypress → AutoHotKey runs the macro attached to that key being pressed → Blowboard magic!
Challenges we ran into
- Not understanding Python-Librosa's functions properly
- Figuring out how to set a threshold for whistling after getting all of the data
- Realizing that Raspberry Pi's don't support audio in at all through audio jack
- Getting the microphone to operate properly on a breadboard with an Arduino Nano
- TensorFlow doesn't support the latest version of Python
Accomplishments that we're proud of
- Being able to analyze live audio and separate it into distinct pitch sections
- Simulating keyboard keypresses using arduino
What we learned
- Python-Librosa is very good for analyzing audio from streams and existing files
- Mapping pitch changes to keystrokes is much harder than just mapping frequencies
- Raspberry Pi's don't support audio in at all through audio jack
- Learned about FFT for spectral audio analysis
- Learned OpenCV for face detection
What's next for Blowboard
Implement the arduino/raspberry pi microphone setup to complete the USB device, as currently it only runs on our Windows computers due to being unable to find parts
