BioConnect

•

  Biosensor

•

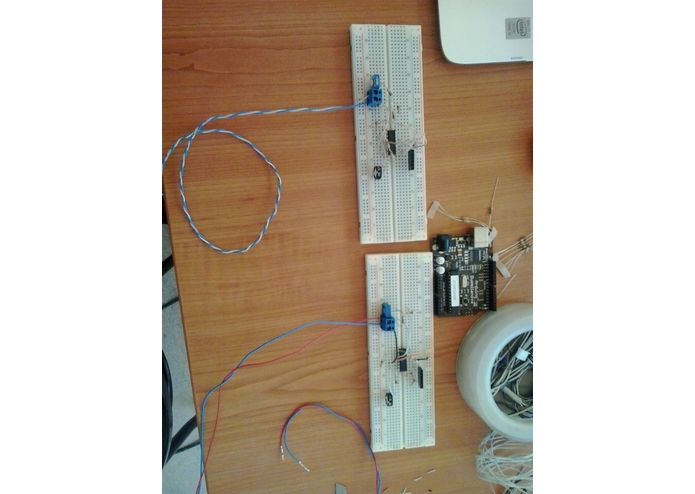

  Biosenzors begin to have shapes

•

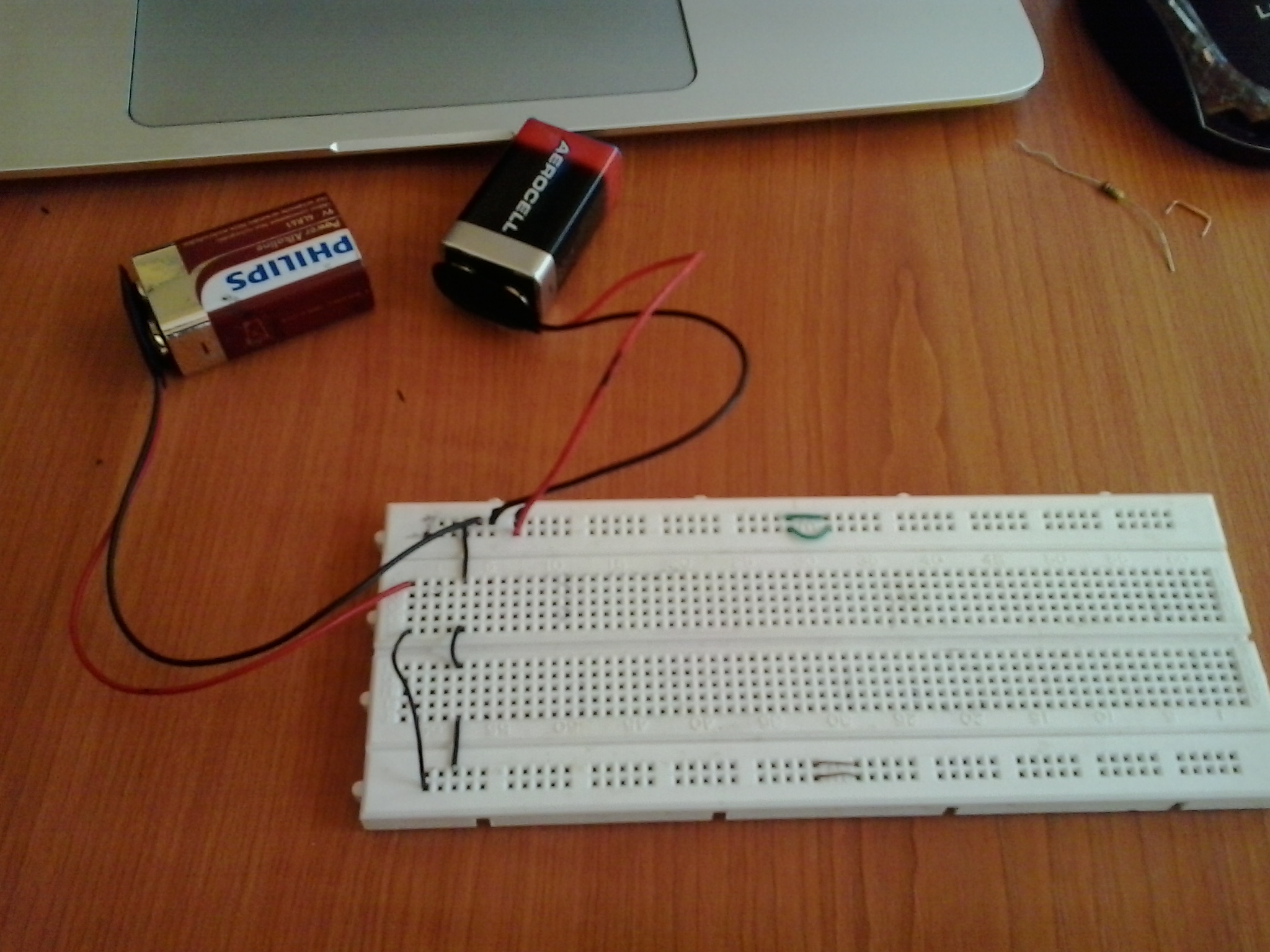

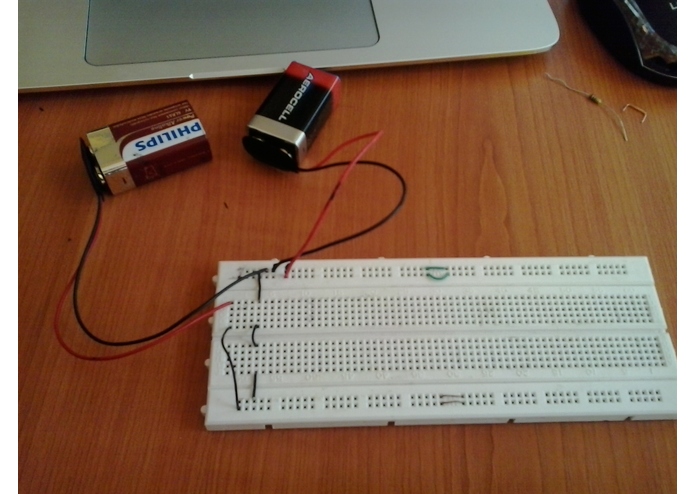

  Starting

•

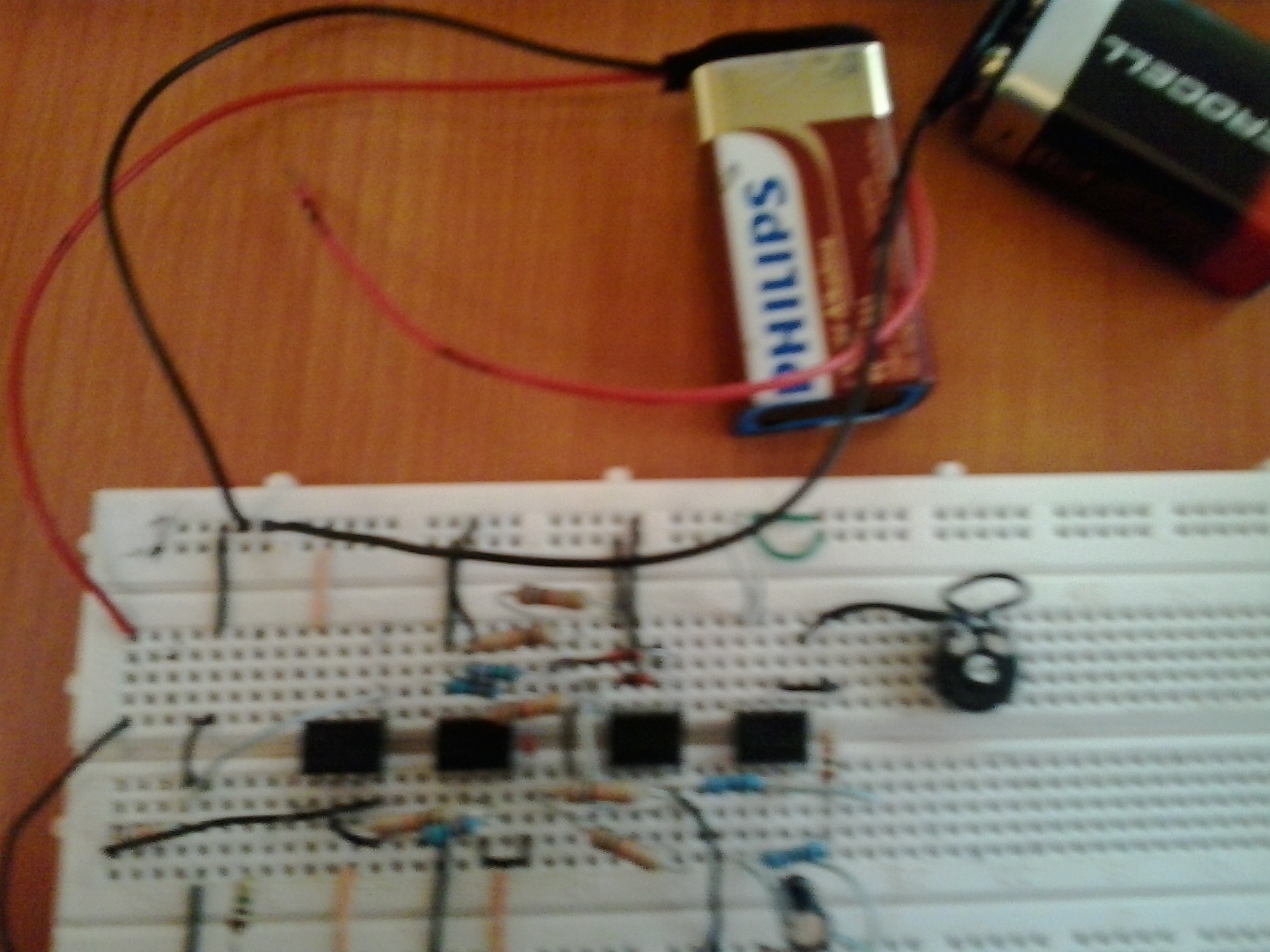

  Biosensor for human muscle reading - first steps

•

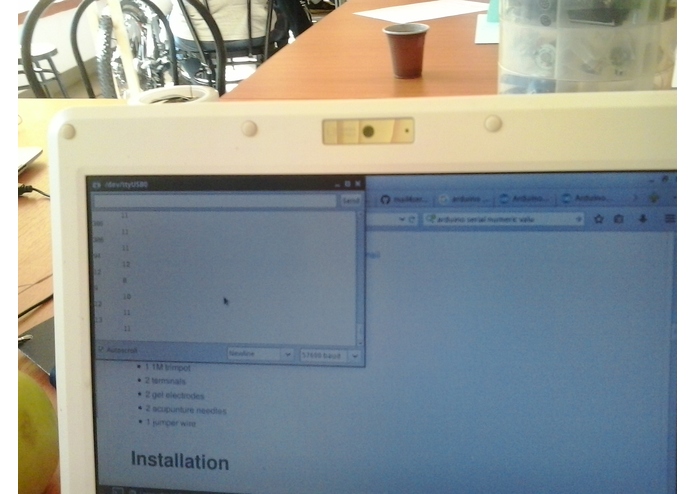

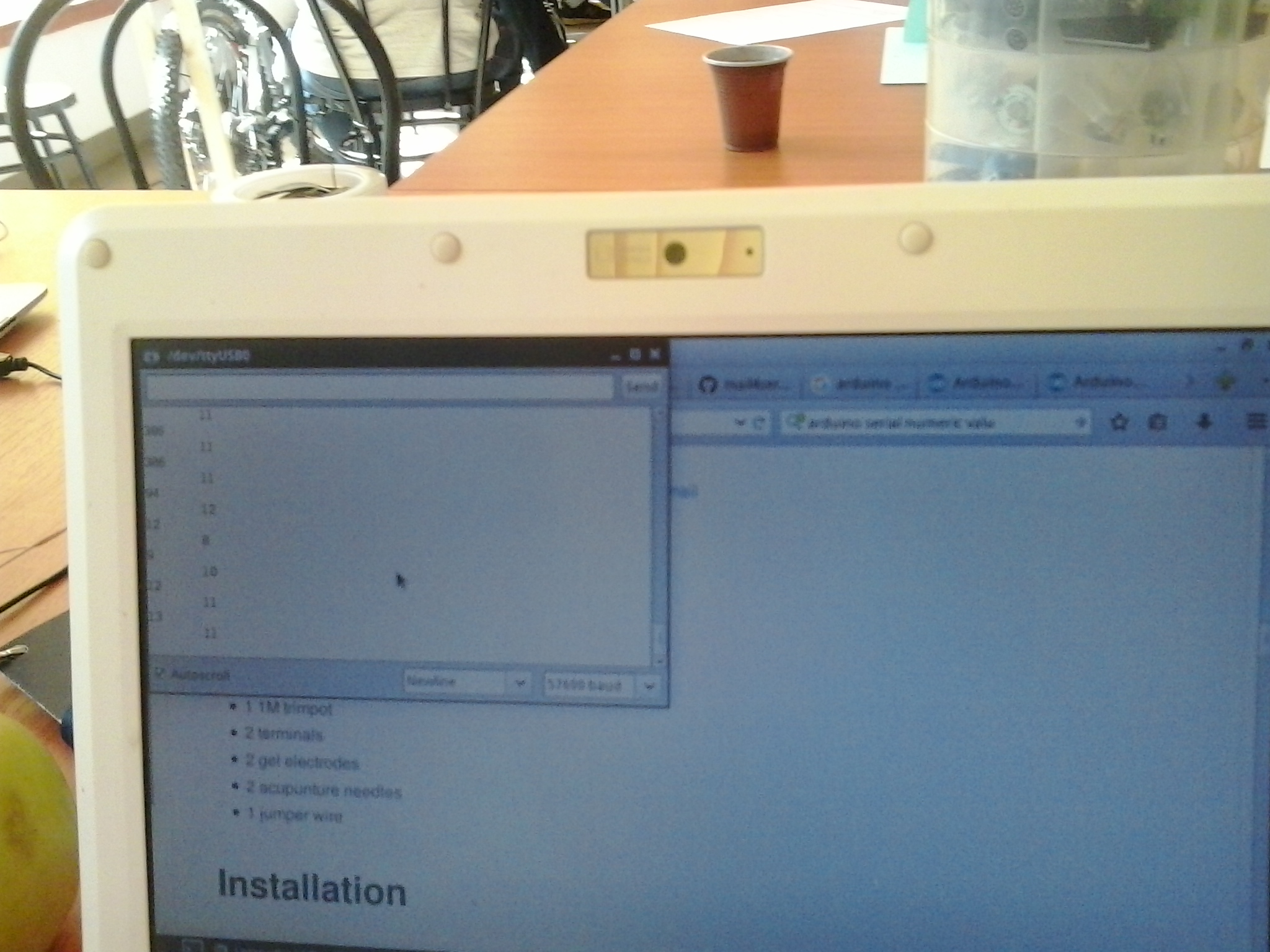

  Electricity output mesurements

•

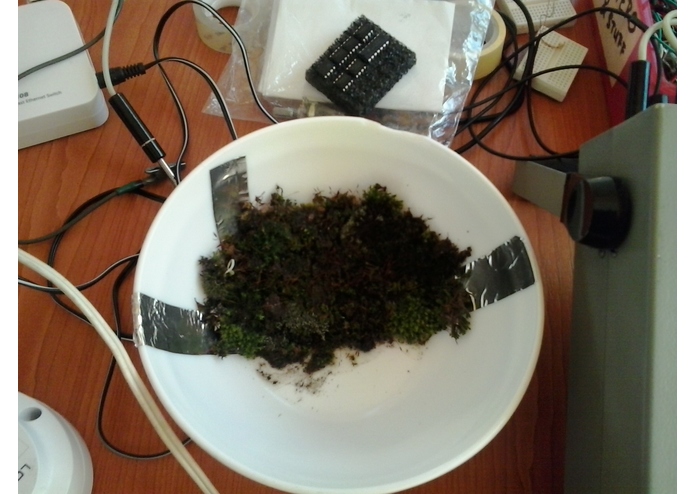

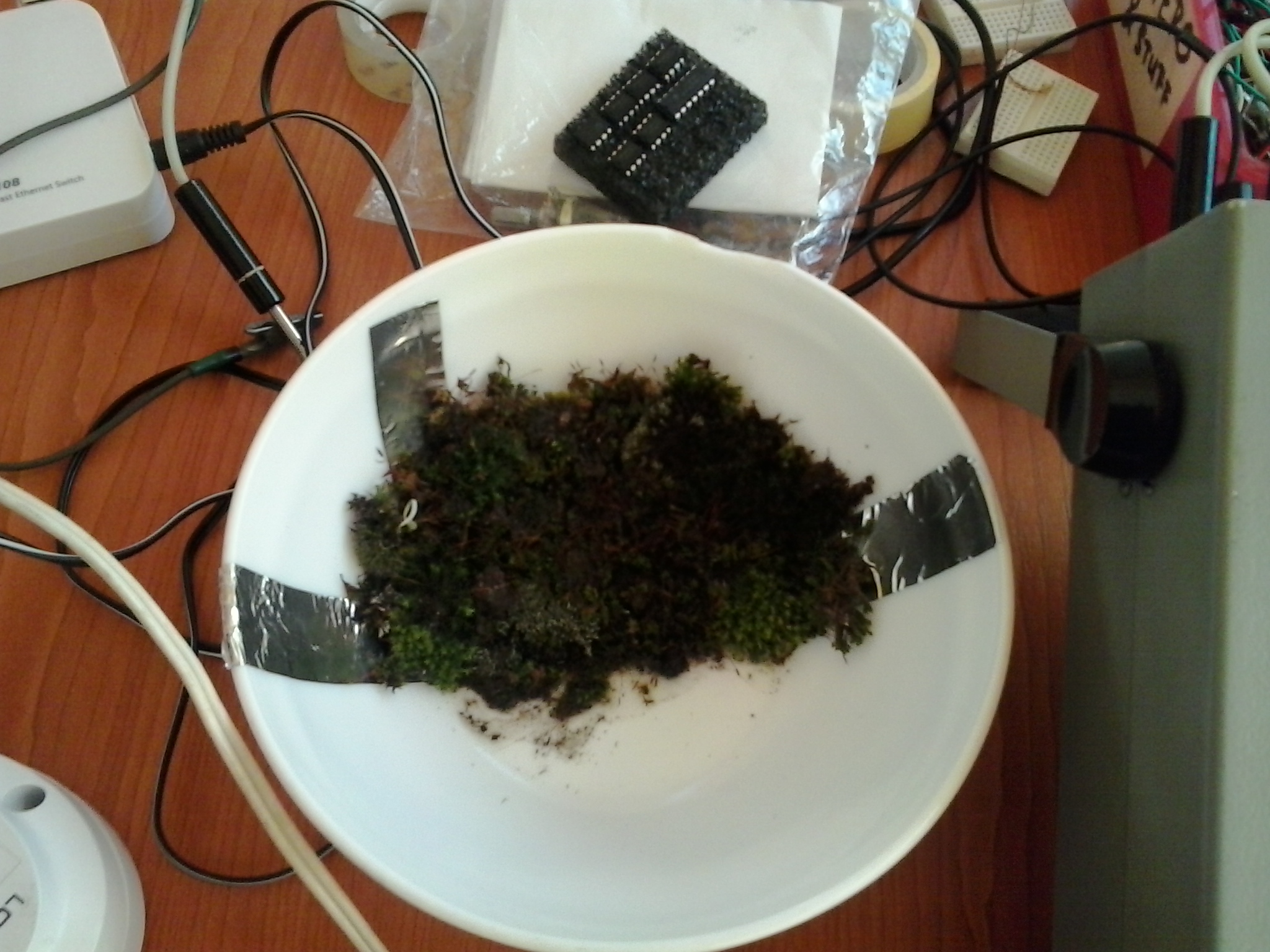

  More study subjects

•

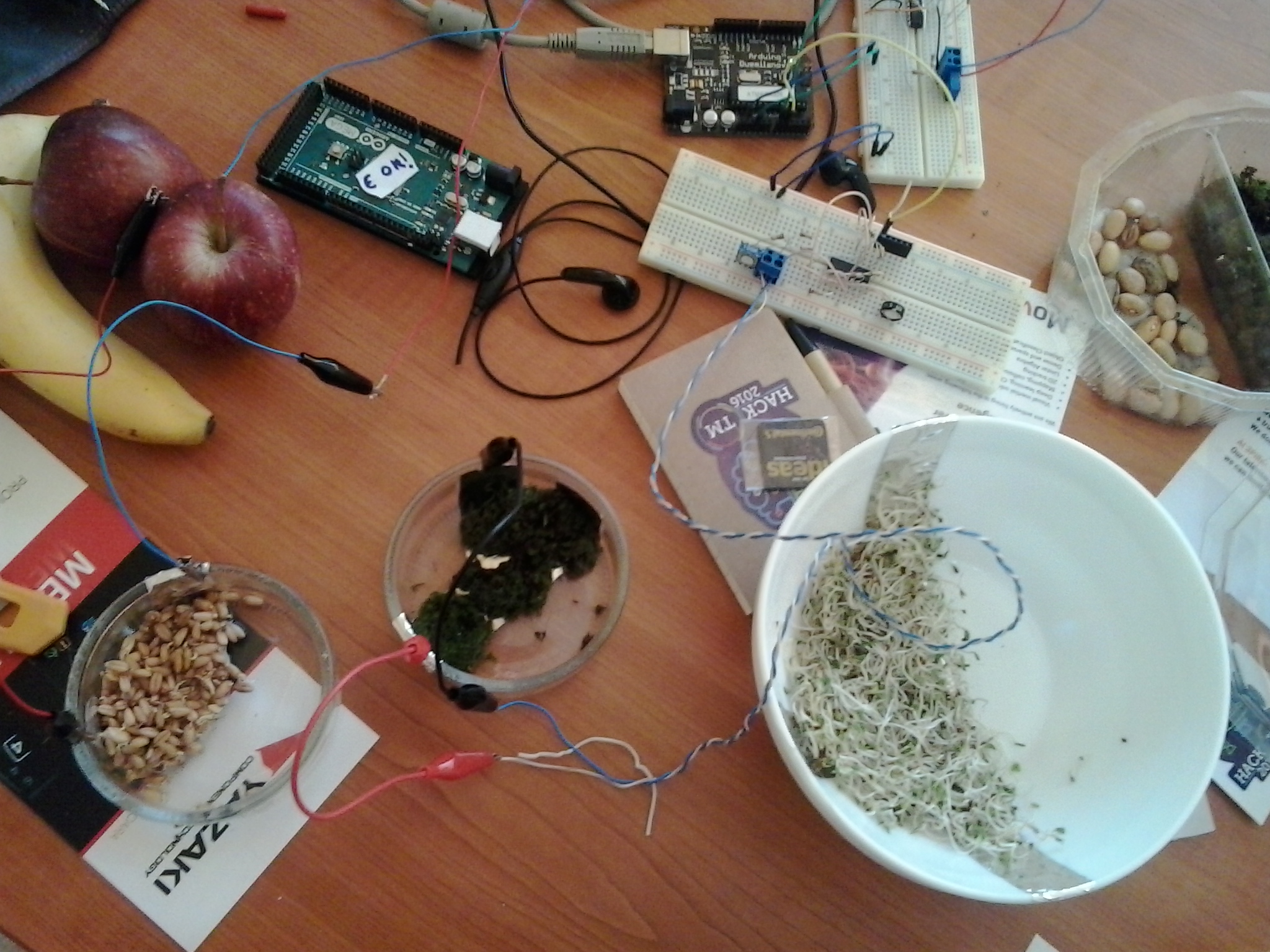

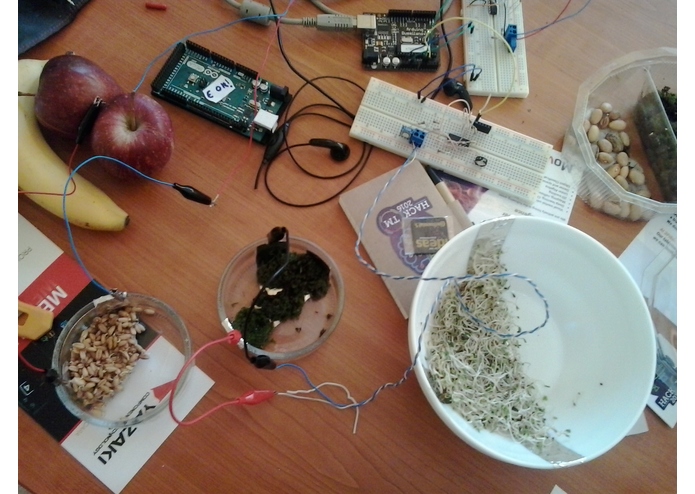

  Biosensors in action

•

  Test subject

•

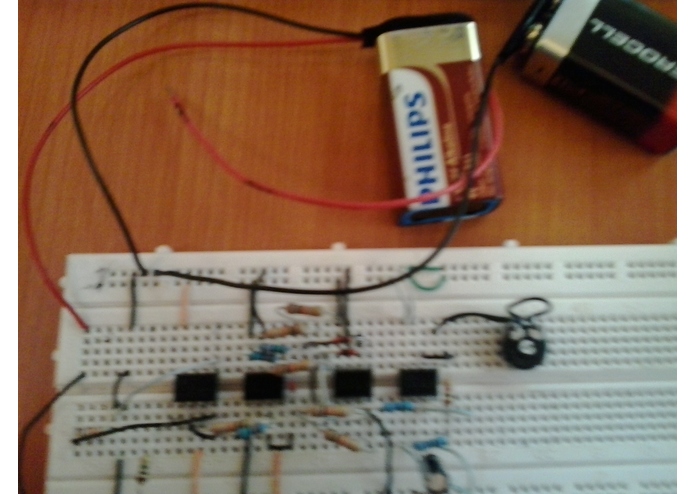

  Biosensor for human muscle reading version ekg - reviewed final version

•

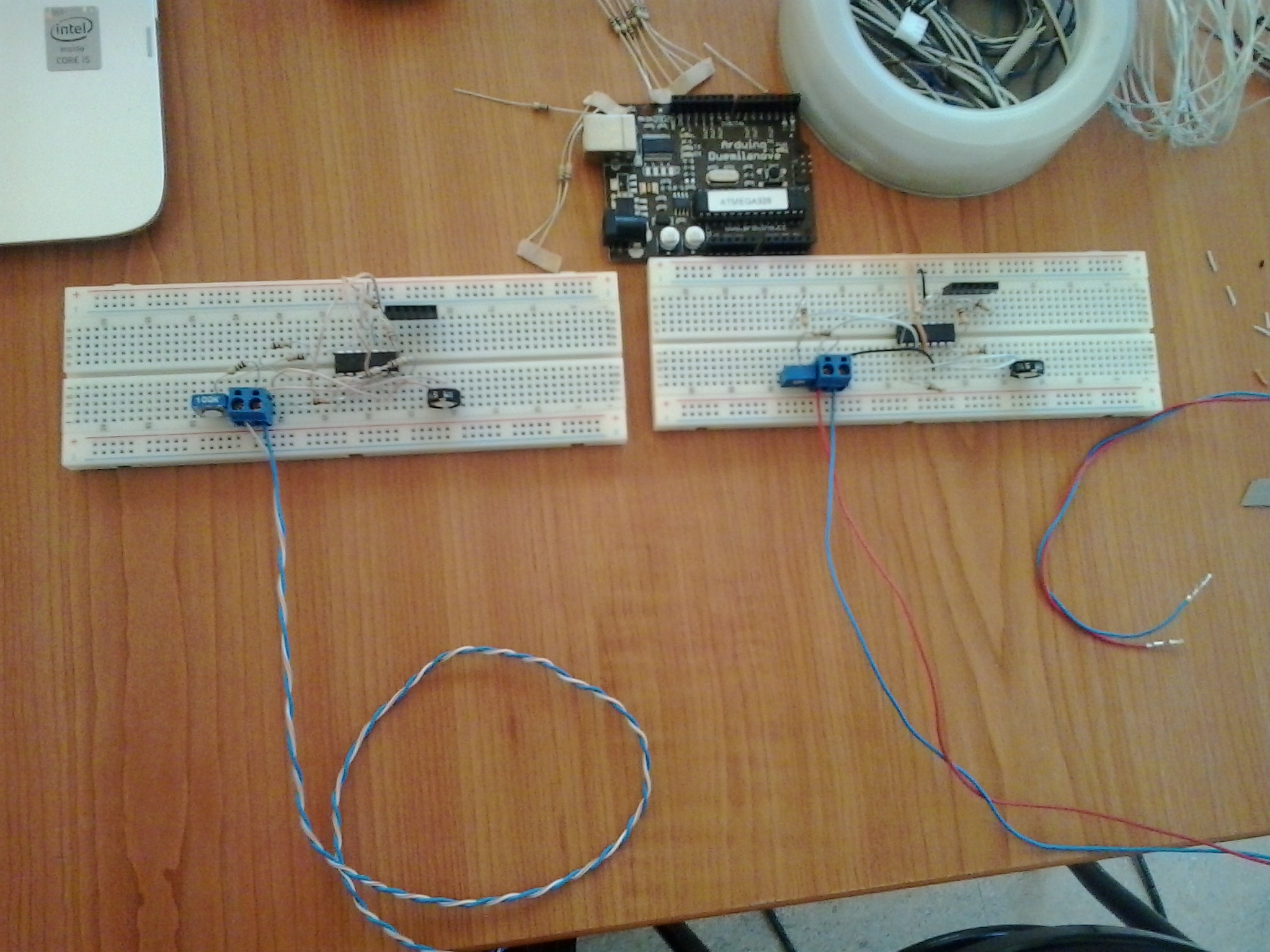

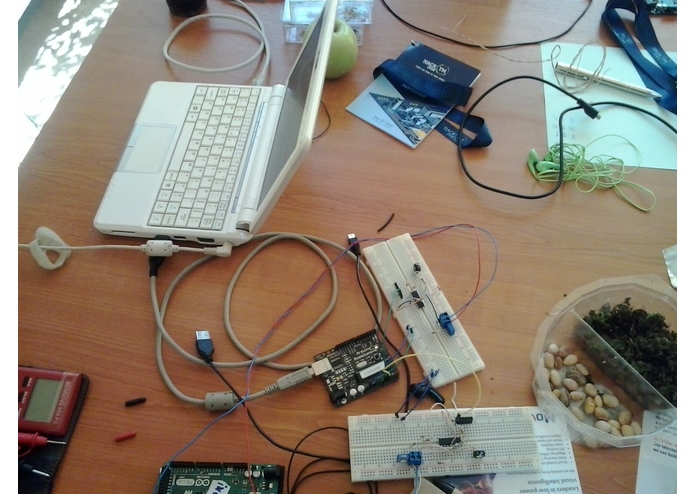

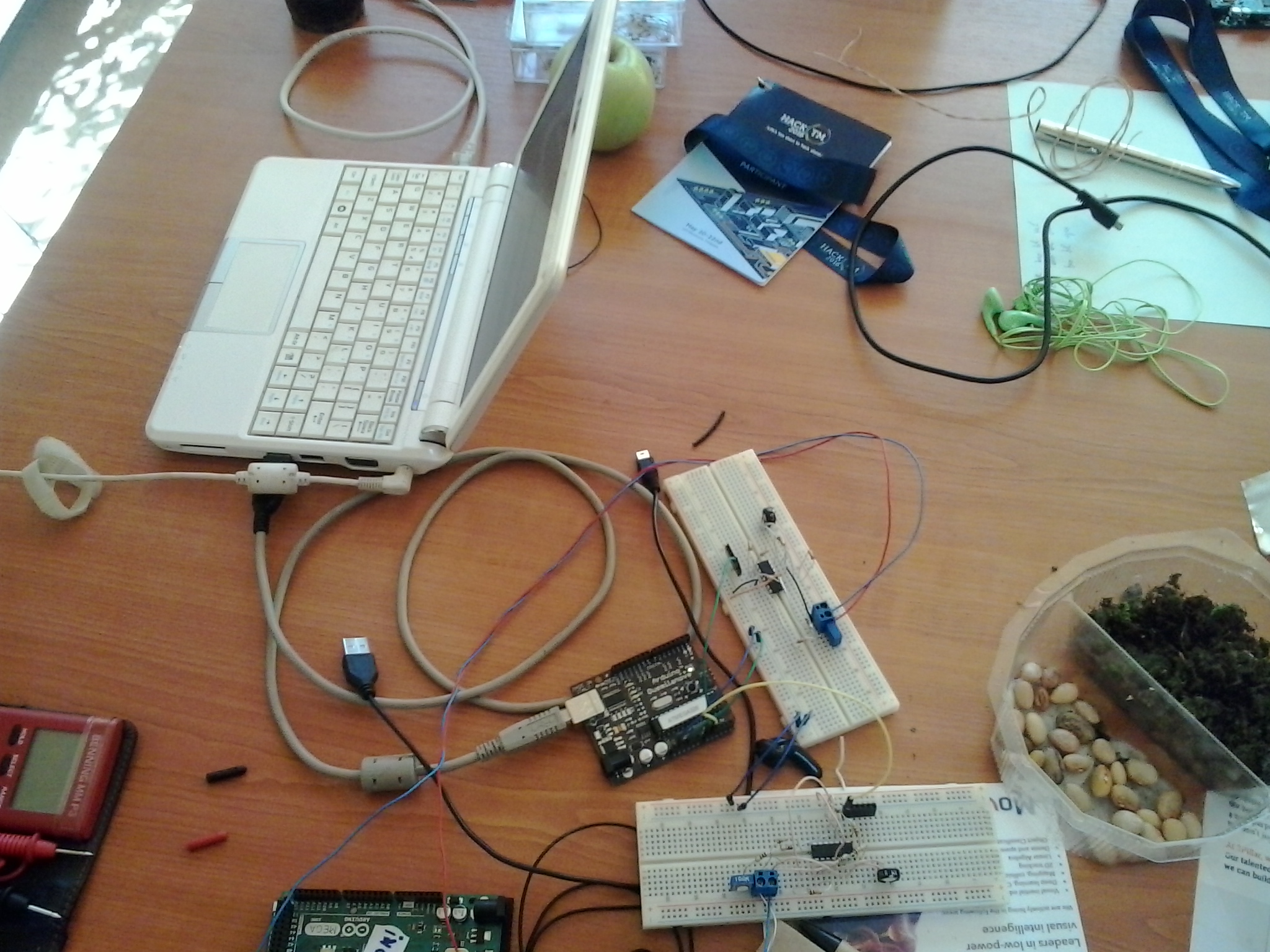

  Wiring all together

•

  And, and ... Sunday looks like a good day for more reviewing

Inspiration

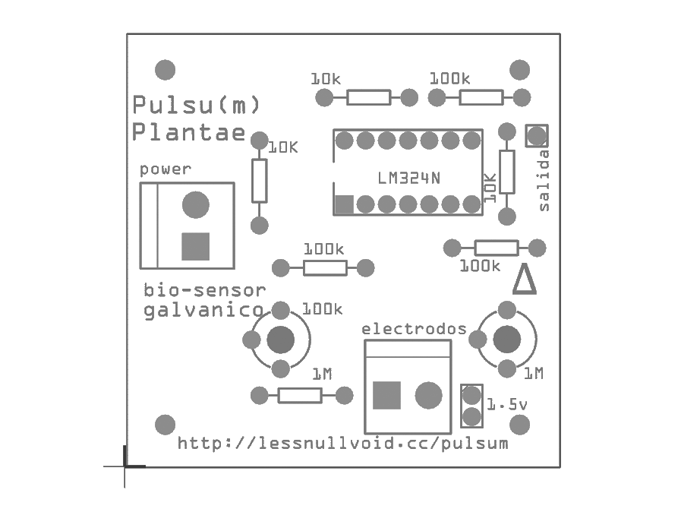

https://www.youtube.com/watch?v=aZaokNmQ4eY https://www.youtube.com/watch?v=5j36nU5Mgto https://github.com/Lessnullvoid/Pulsum-Plantae table no 54

What it does

Will translate in an intelligible way electrical data emitted by plants/?animals/humans Will map the results in frequencies on the perception sensors (visual, auditive, etc) Will improve the actual condition state of the subject studied

How we built it

Build the biosensors which collect data transmitted Interpret and display the data in different ways

Challenges we ran into

Will be a chellange to interpret data, separate the relevant one, etc

Accomplishments that we're proud of

Biosensors Software for reading data Integration of the mechanisms Different test scenarios https://github.com/mail4sergiu/BioConnect

What we learned

We all communicate To make an amplifier, connect it to arduino then to pc and show results Use Dev-C++, Arduino, Processing

What's next for BioConnect

Reading and interpreting imperceptible data from pets (cats for example) Reading and interpreting imperceptible data from humans - babies until they learn to speak Map the results on other sensors(taste, etc); send back feedback in order to improve actual state of subject studied

Built With

• allegro
• amplifiers
• arduino
• c
