🌱 Inspiration

Bicycles and e-bikes are quickly outpacing sales of EV in recent years. However, the infrastructure for bikes is very behind compared to that of motor vehicles. This has lead to a high number of accidents among cyclists, who must often share the road with cars. In fact, over 130,000 cyclists are injured in road accidents every year in the US.

If we want to build better cities, we need to make our infrastructure available for everyone—bikes are a great way to incentivize lawmakers and legislators to pursue densification projects & more economically viable alternatives to typical urban sprawl.

⚒ What it does

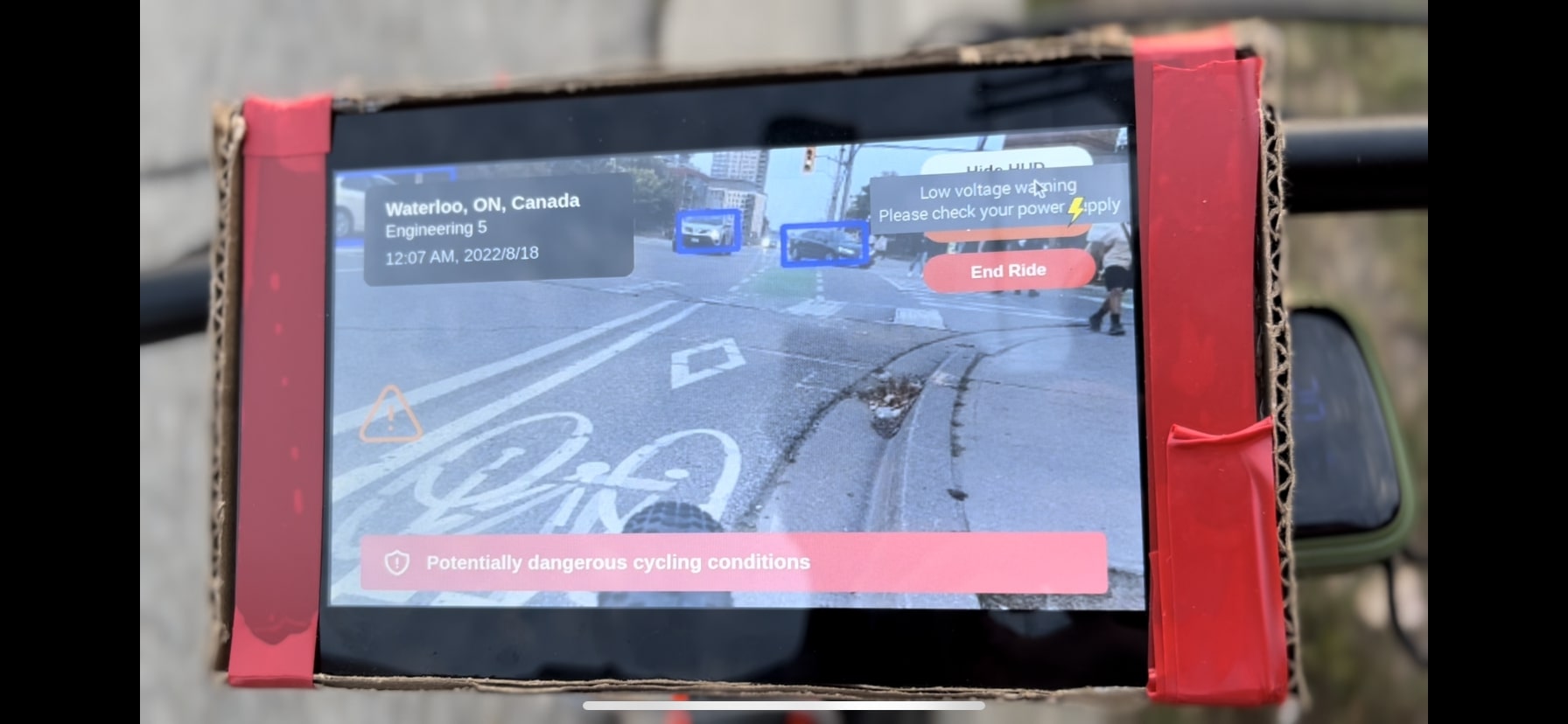

Tandem is a hardware extension for bicycles that aims to improve safety for cyclists in cities. We use a rear-mounted camera to track vehicles and alert riders of potentially unsafe situations via the handlebar-mounted touchscreen display. These include when vehicles are approaching quickly from behind, or if a vehicle is in the cyclist's blind spot.

Further, cyclists are able to report accidents along their route which are then tracked on a publicly-accessible map. This valuable location data can be used by cities to prioritize areas for better cycling and pedestrian infrastructure.

📸 How we built it

The camera is a Luxonis OAK-D with an on-chip computer vision processor and two spatial cameras for depth perception. We used a modified open-source model from OpenVINO to recognize vehicles. The camera and model results are sent to the Raspberry Pi, which uses Flask and on-device machine learning to stream it to our web frontend built in Next.js hosted on Vercel.

We developed weighted algorithms based on the size and locations of the bounding boxes to offer blind spot warnings and score the overall safety of the cyclist's current environment. To communicate these warnings to cyclists, we use Flask to send real-time data over an open WebSocket connection to our dashboard. Finally, the accident location database is stored on CockroachDB and is manipulated by an Express server running on Heroku.

☕️ Challenges we ran into

One of the greatest and most persistent challenges of the build was the slow processing speeds of the Raspberry Pi 3 board. This was exacerbated by our power source, which was a portable power bank that output slightly under 5V power. Unfortunately, because of this, the Pi behaved inconsistently and lagged for long periods of time while booting, loading the camera, and activating the browser (up to 3 minutes).

At one point, we had also strapped a portable speaker on the bike to enable sound cues based on hazards in the cyclist’s environment. However, we found that the speaker would play sounds repeatedly and would become more of a nuisance than a boon to cyclists. We ultimately ended up scrapping it.

The algorithms we used to determine blind spot presence and risk scores based on bounding boxes were also a challenge to fine tune. In the beginning, there would often be many false positives where a blind spot warning was issued but the detected vehicle was still far behind the cyclist. Or, the algorithm would report an unsafe cycling environment while there were very few vehicles on the road. By trial and error, we managed to find threshold values for these algorithms that give reasonably consistent results.

Accomplishments that we're proud of

We are very proud of our efficiency and cohesiveness as a team. Each member was responsible for a unique aspect of the build, ranging from hardware integration to CV processing to geolocation, and executed well. We were able to achieve 90%+ success rates of car detection, and decentralized our location & incident reporting facilities using CockroachDB—and even managed to get a few friends in Toronto to try it out using similar hardware sets!

Although many of the technologies we used were unfamiliar, we still managed to complete the project in under 36 hours; complete with CV, location tracking/services, NLP letter generation, classification, post-incident reporting, and dozens of other features..

We also think the bike looks pretty cool.

What we learned

This was the first hardware hack for every member of our team. From connecting wires without interfering with the bicycle spokes to janky hot glued components, it is a completely different experience from writing software.

We also learned a variety of new Web APIs, including geolocation and WebSockets. Surprisingly, performance was also now much more important, with the limited compute resources of the Pi. Thus, we could not afford to have large bundle sizes or unoptimized code.

What's next for Tandem

The OAK-D camera also provides two cameras for depth perception and spatial analysis, which could be used to give distances to detected vehicles. We would like to incorporate this data into our safety scoring algorithms to improve accuracy.

Moreover, we plan to expand the accident response map to build safer, more sustainable cities.
