Inspiration

BeatSaber, but on your computer. We wanted to create a rhytm-based game you could play on your keyboard, or even with physical push buttons

What it does

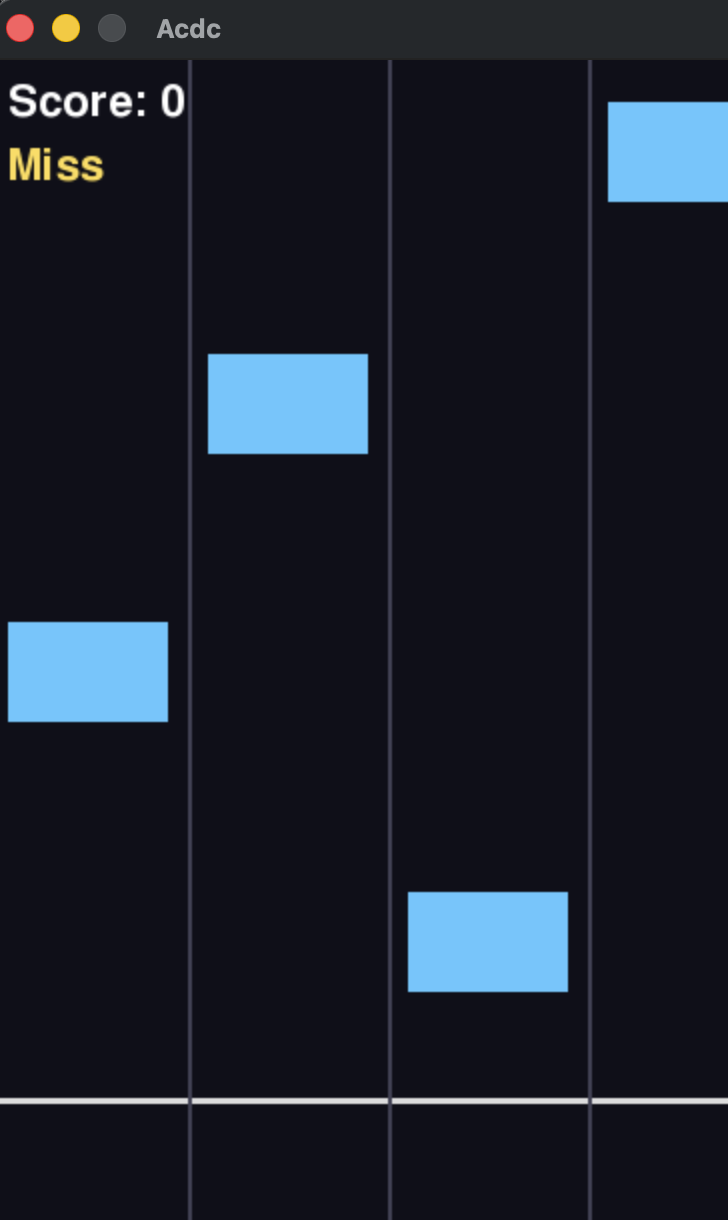

Beat Forge turns any song into a playable rhythm game. Drop in an MP3 and it listens to the drums and builds a four lane chart with keys dropping down. Players can use either their keyboard or the connected physical buttons to hit the notes in each lane. Play along with the song, watch the notes fall and get better with every run!

How we built it

Accepts an audio file, separates vocals and other instruments from the drums. Splits the drums into three ranges, assign each range to a lane and play the song synced to the keys falling down. We used a Raspberry Pi Pico for the hardware input. After flashing the board, we connected it to the game so button presses could trigger notes in the matching lanes.

Challenges we ran into

parsing audio files is complicated, Sounds overlap a lot and decisions about which to keep/remove had to be made. Connecting the game portion to the backend was difficult. We also had trouble connecting the game to the board. After flashing the board, running the game from VS Code kept the serial port busy, so the game couldn’t communicate with the hardware. We had to close VS Code and run the game from Terminal to get the physical buttons working.

Accomplishments that we're proud of

Any mp3 can be made into a playable game got a working demo hardware integration takes it from a keyboard game into one that is 3D and real-life

What we learned

Learned a lot about python, how to use librosa to parse an audio file, how to convert an onsets.json to a chart.json using rules to make the game playable, how to connect hardware to our software game, how to resolve merge conflicts and how to break up a software project into different responsibilities to work in parralel, how to manage a team in a way that people can work on three stages of the project simultaneously.

What's next for BeatForge

better hardware implementation, song database, easy/medium/hard mode, streak counter, UI improvement.
