BaseFlow - AI-Powered Codebase Architect & DevOps

BaseFlow is an advanced, interactive codebase visualization and AI-assisted software architect platform powered by Google Cloud Agent ADK, GitLab Duo MCP and GitHub MCP

Comment

🌟 Inspiration

Every software team has the same problem: new developers take weeks to understand a codebase, and even senior developers struggle to know the full impact of a change before they make it.

We built BaseFlow because we believe AI agents should not just answer questions — they should actively navigate your development environment. When we discovered the GitLab Duo Agent Platform with its MCP server, AI Catalog, Custom Agents, and Custom Flows, we saw an opportunity to build an AI architect that could read your code, talk to your DevOps platform, and close the loop between understanding and action.

The hackathon was the perfect forcing function to take our codebase visualiser and evolve it into a true DevSecOps AI Command Centre.

🚀 What It Does

BaseFlow is a web application with six tightly integrated modules:

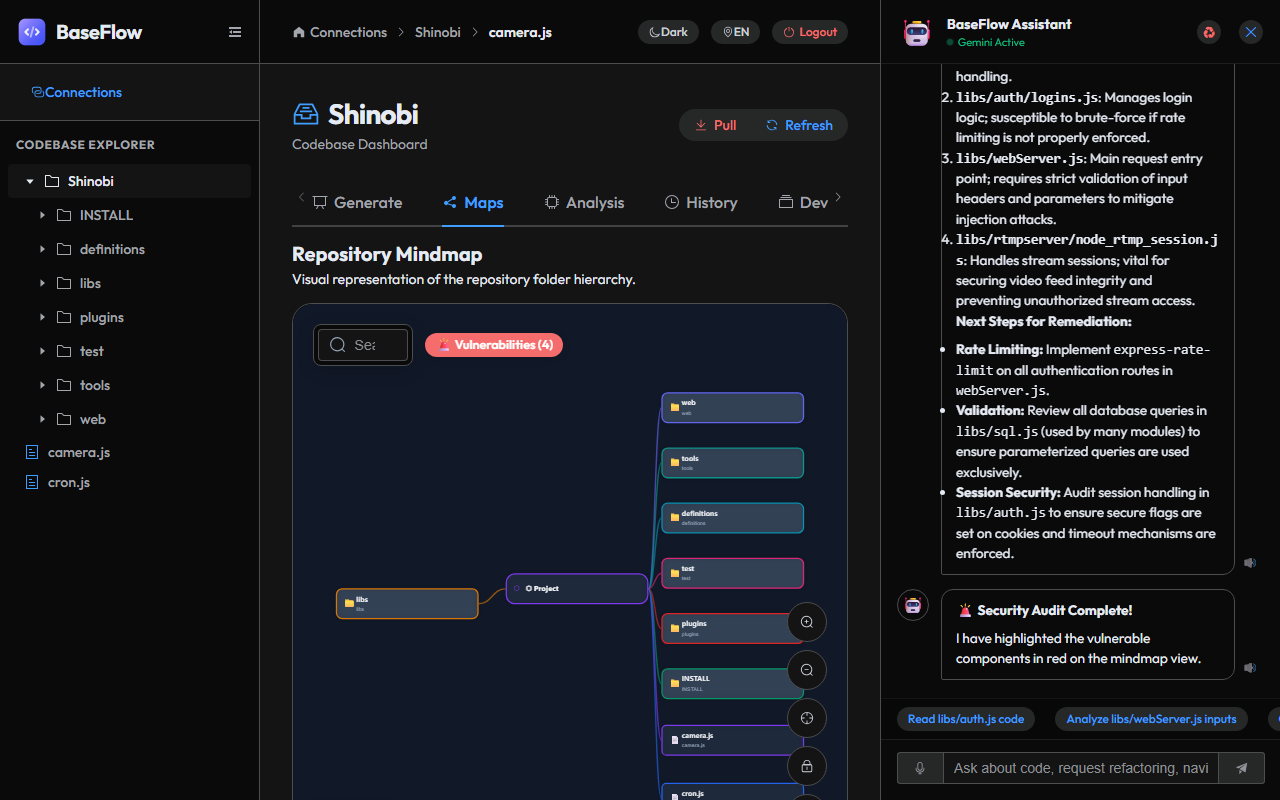

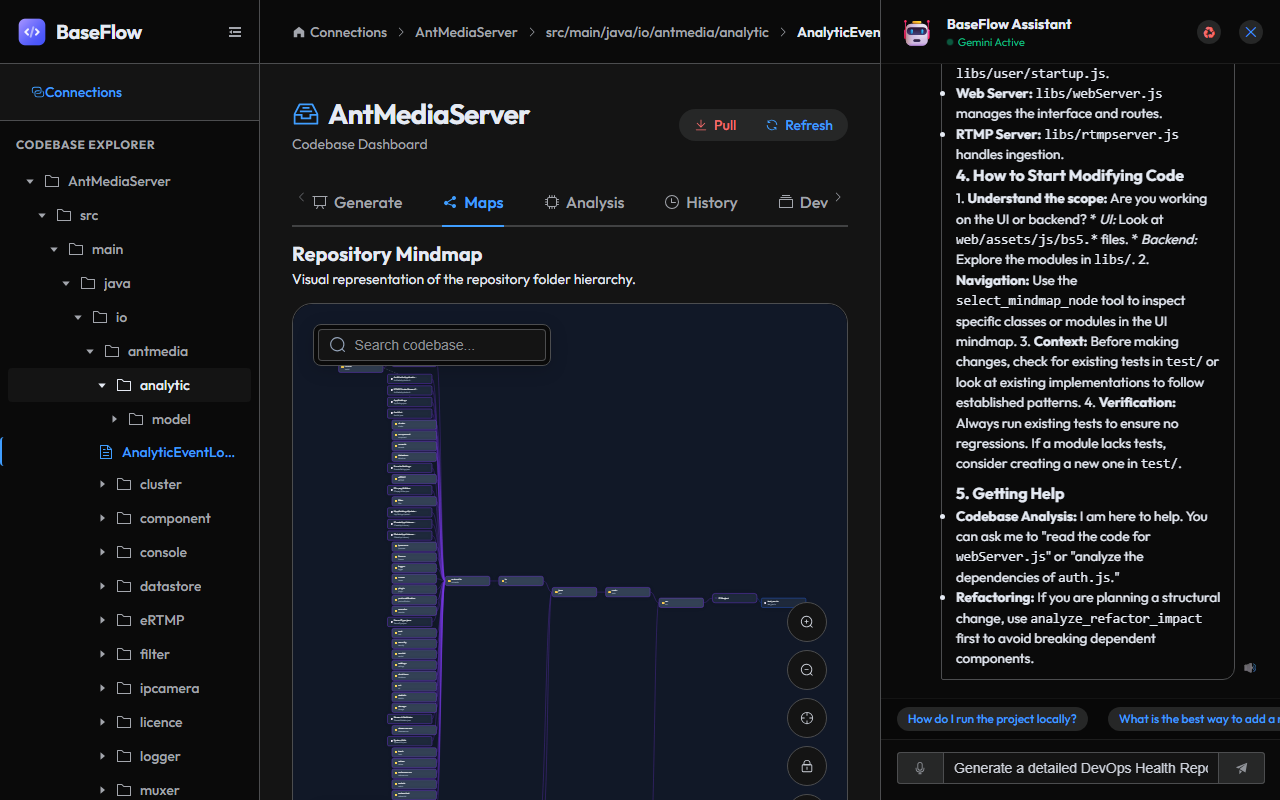

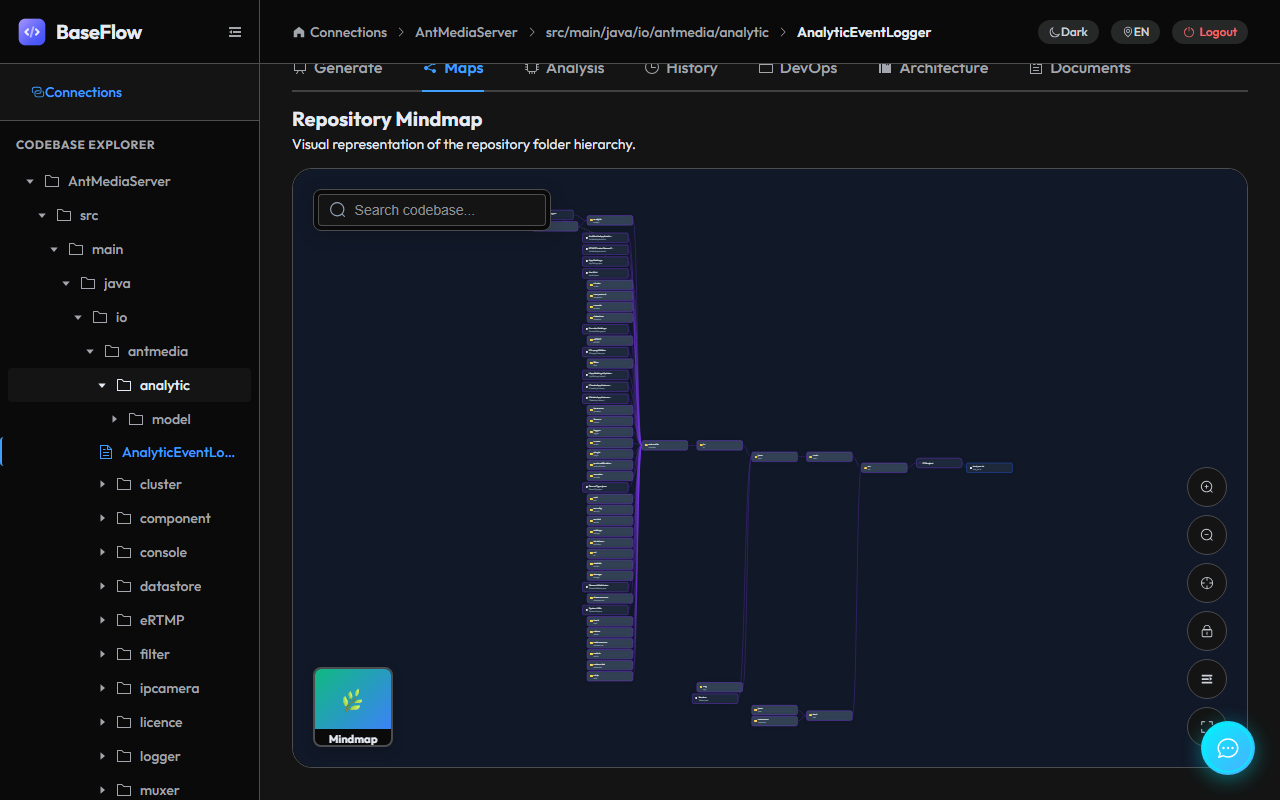

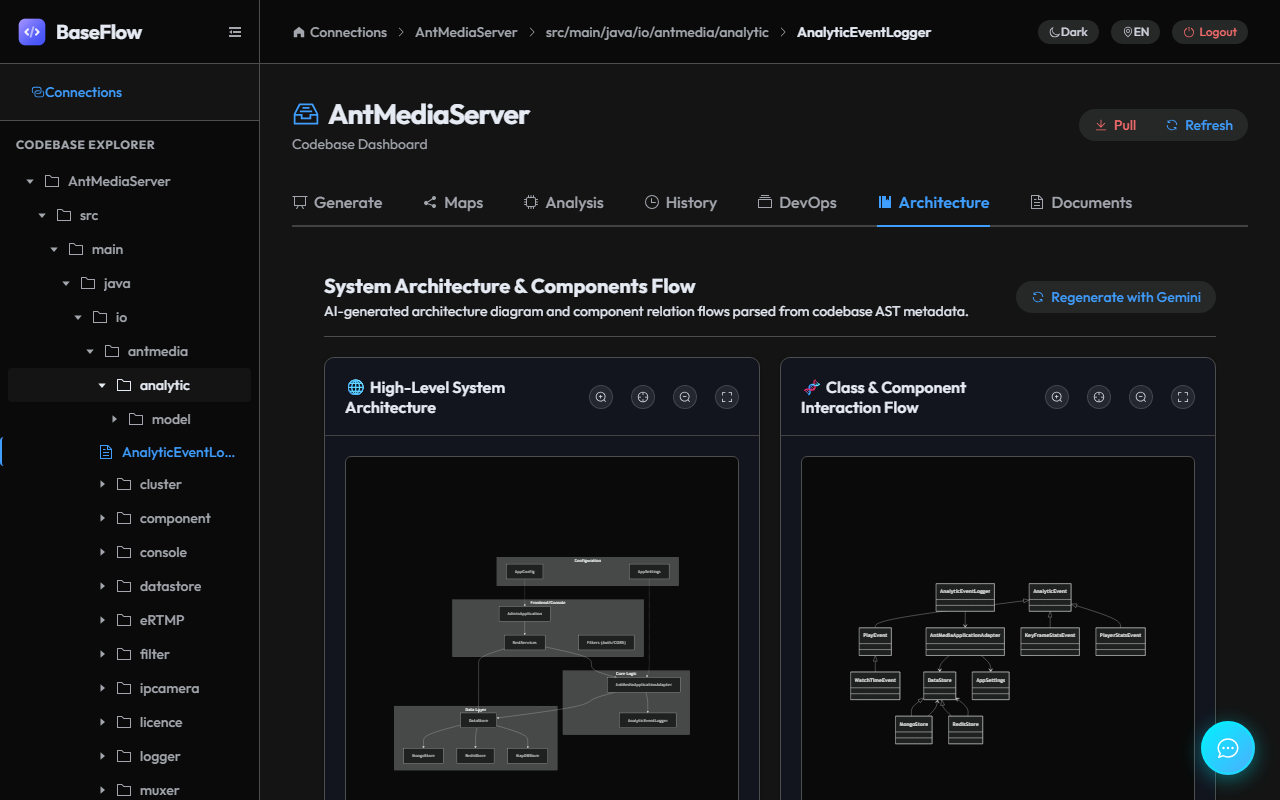

1. 🗺️ Codebase Mindmap

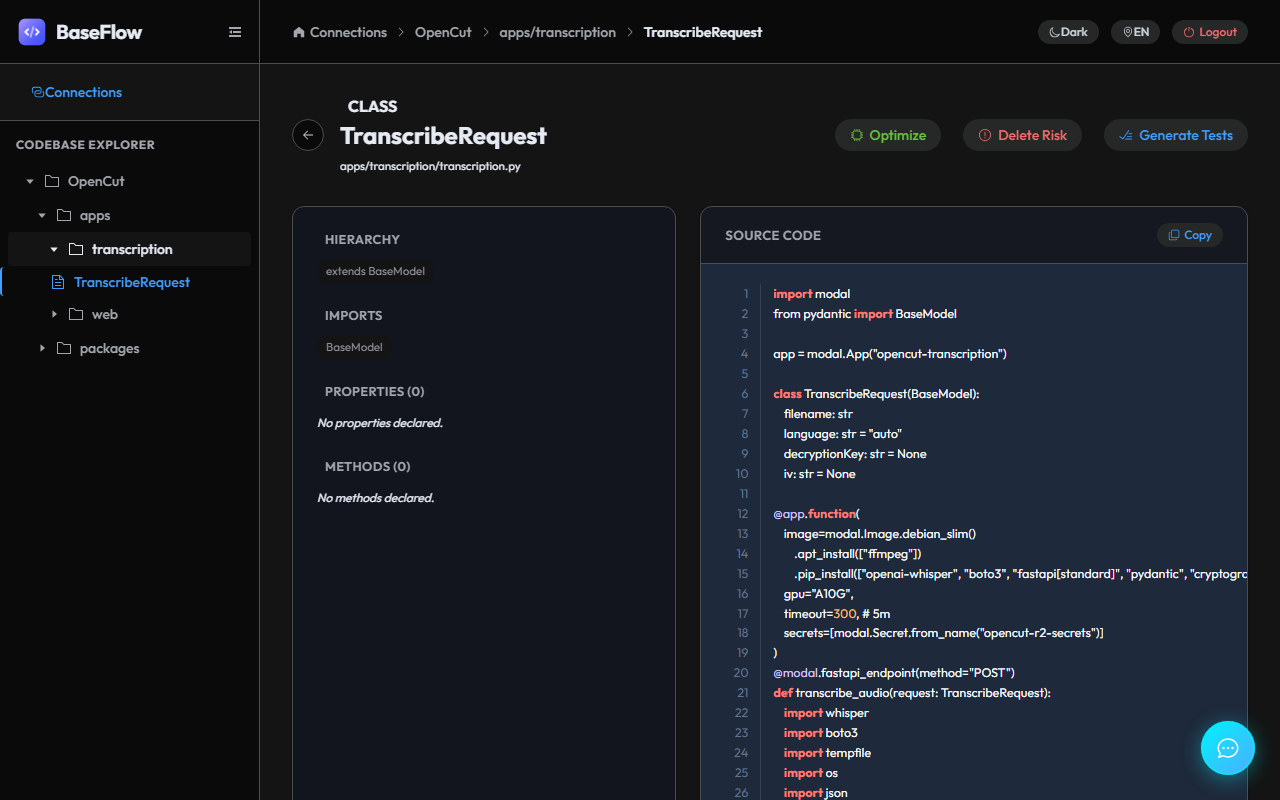

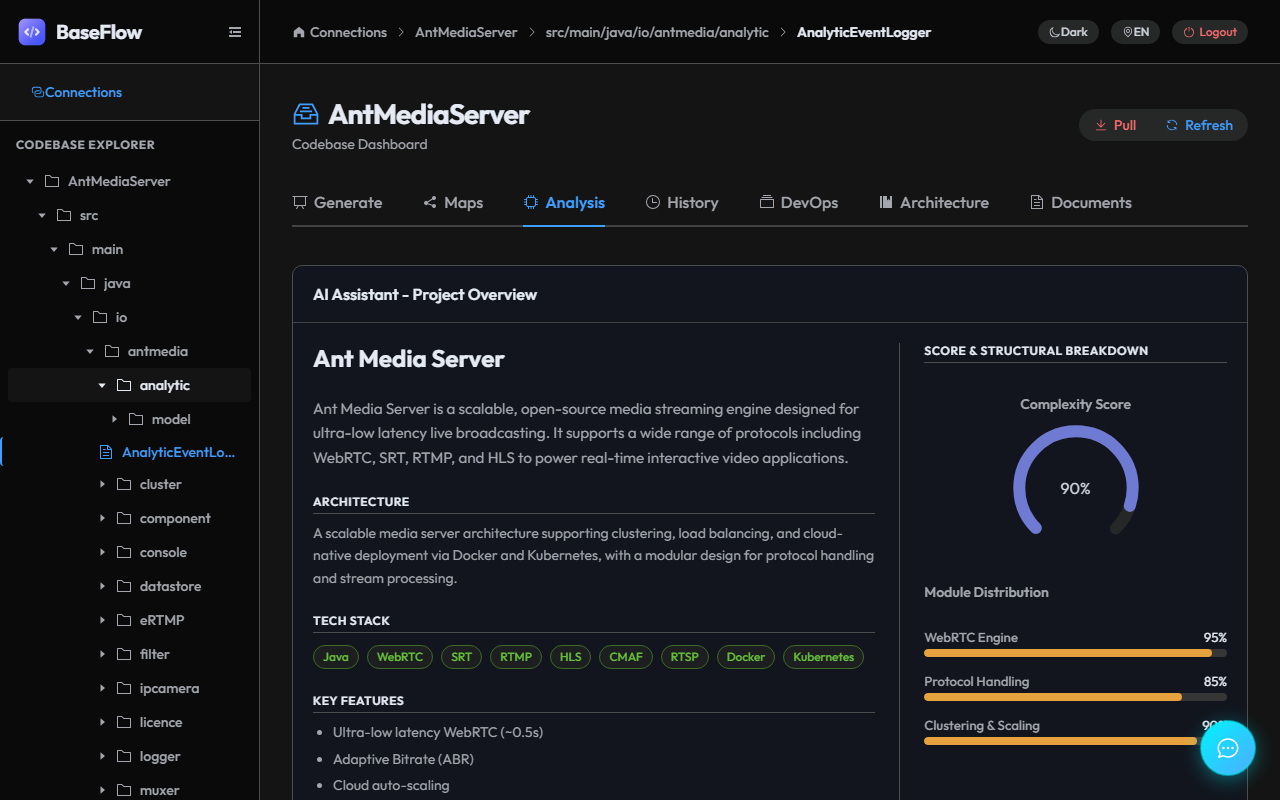

The AI agent parses your repository and renders all classes, files, and dependencies as an interactive force-directed graph. Click any node to see its full code, dependencies, and an AI-generated structural analysis.

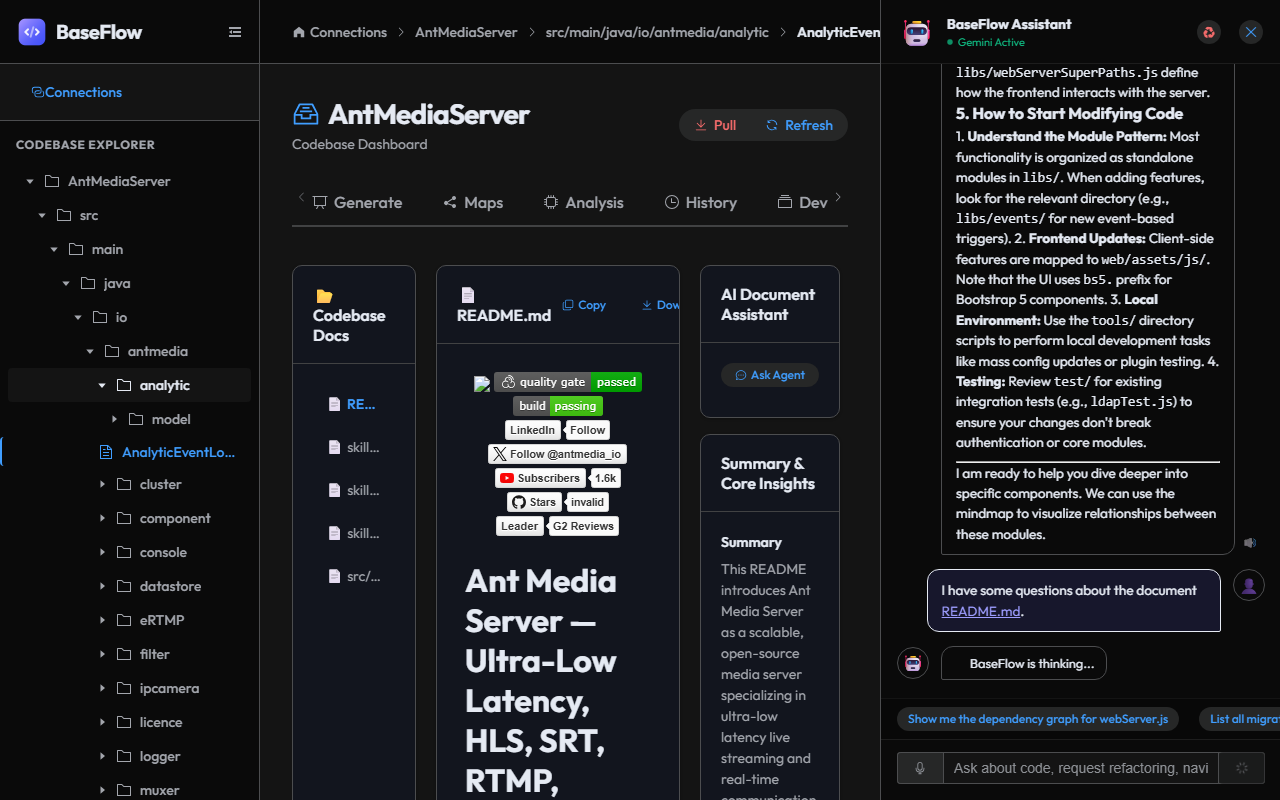

2. 🤖 AI Architect Chat

A persistent AI chat sidebar powered by Google ADK (LlmAgent) with Gemini 3. The agent has access to 11 local tools (project structure reader, class code reader, mindmap highlighter, etc.) and optionally the GitLab Duo MCP and GitHub MCP toolsets.

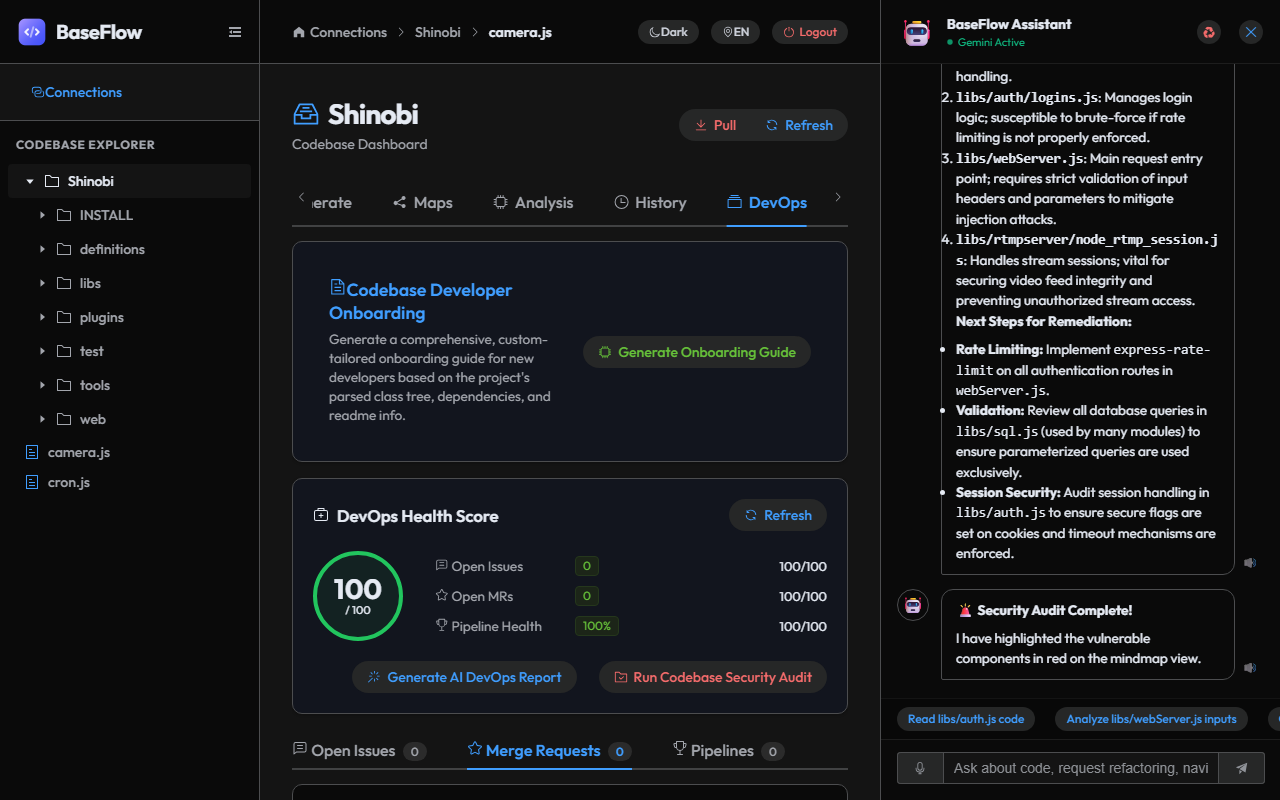

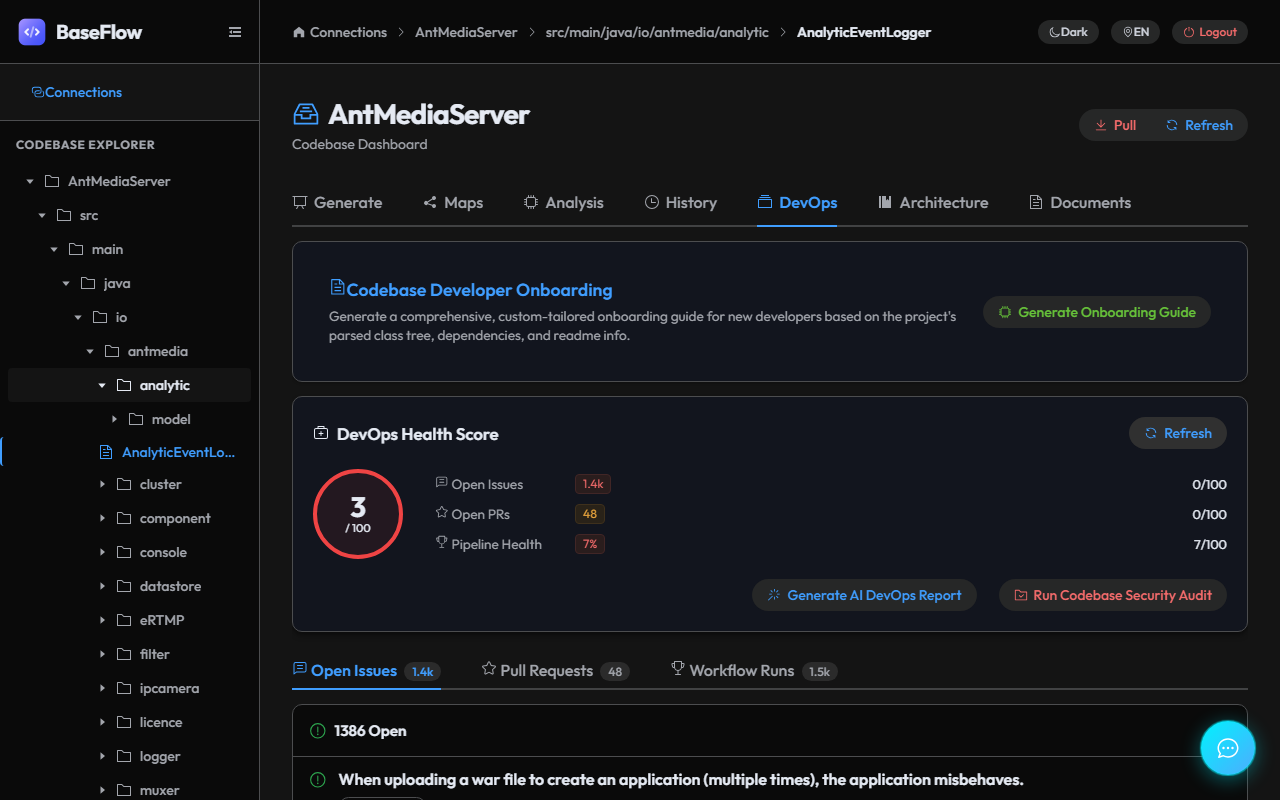

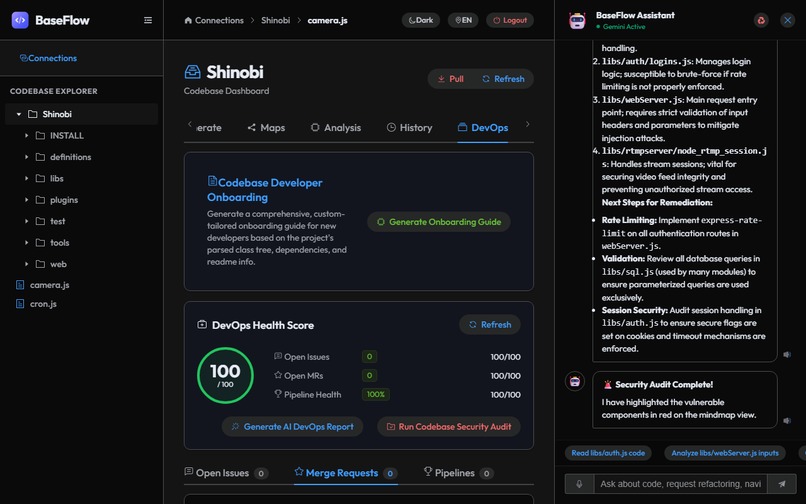

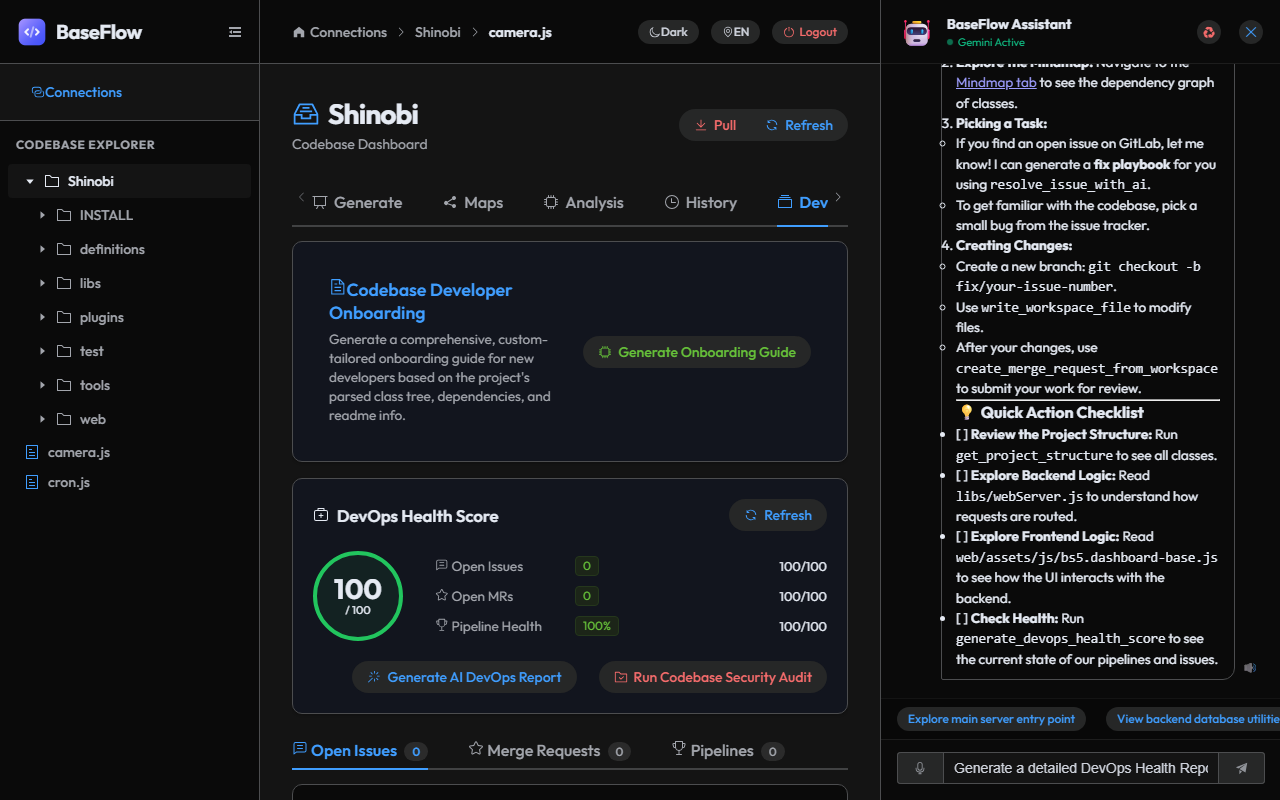

3. 📊 DevOps Health Score

An AI-computed score (0–100) combining open issues, MR/PR count, and CI/CD pipeline success rate. The agent uses the generate_devops_health_score tool to produce a narrative report with a colour-coded breakdown and actionable recommendations.

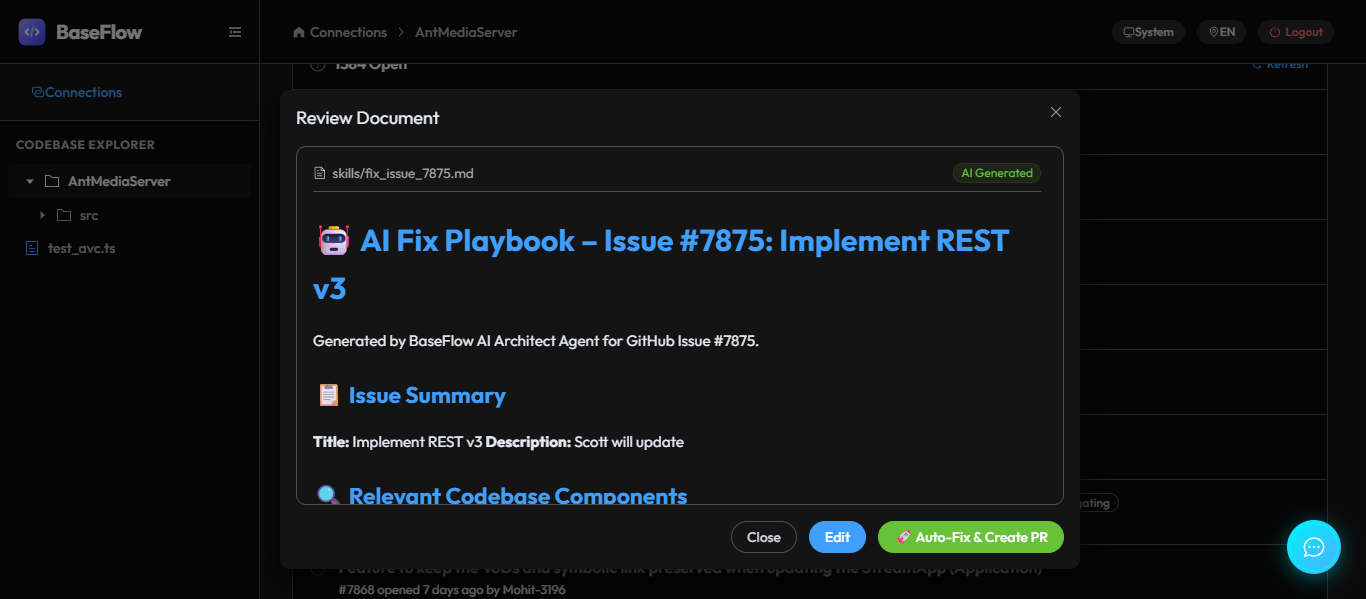

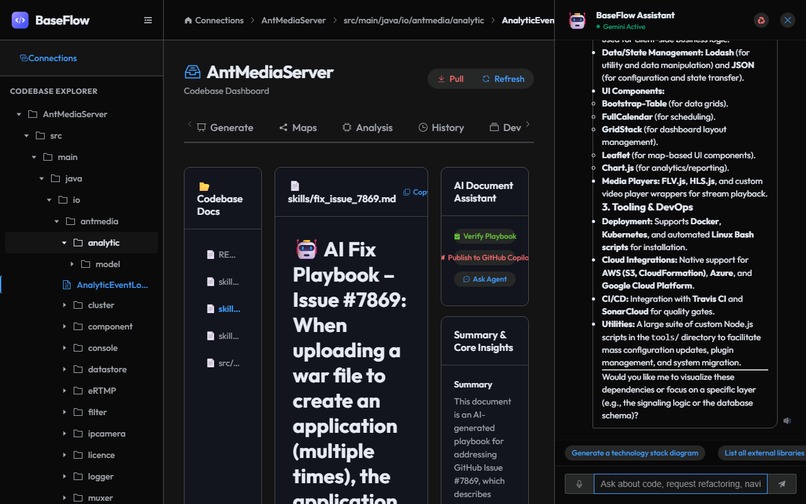

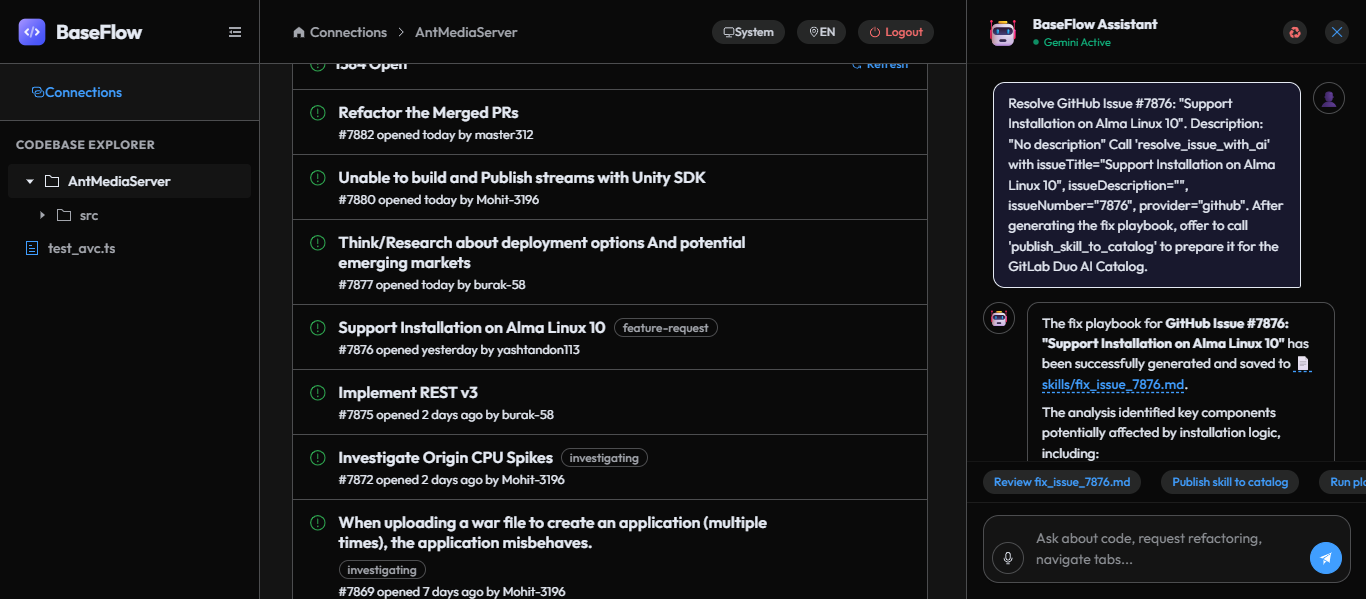

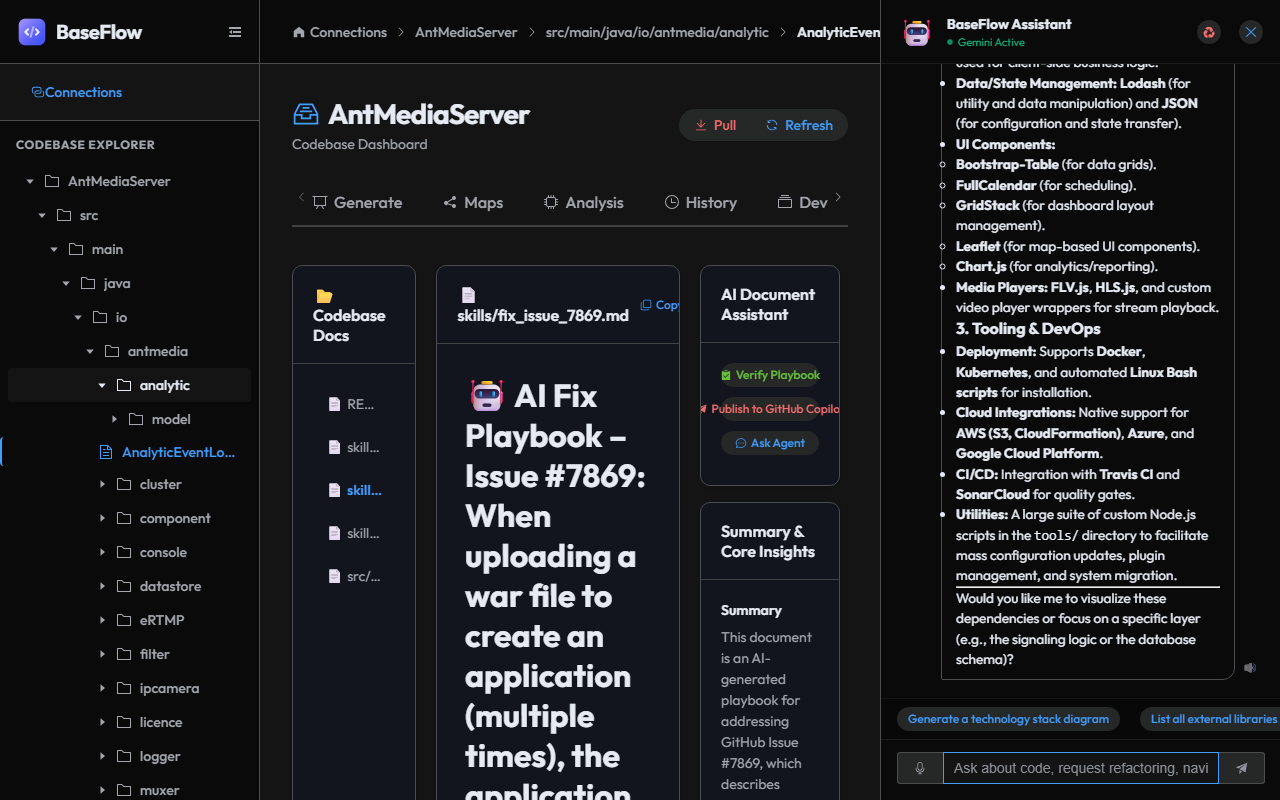

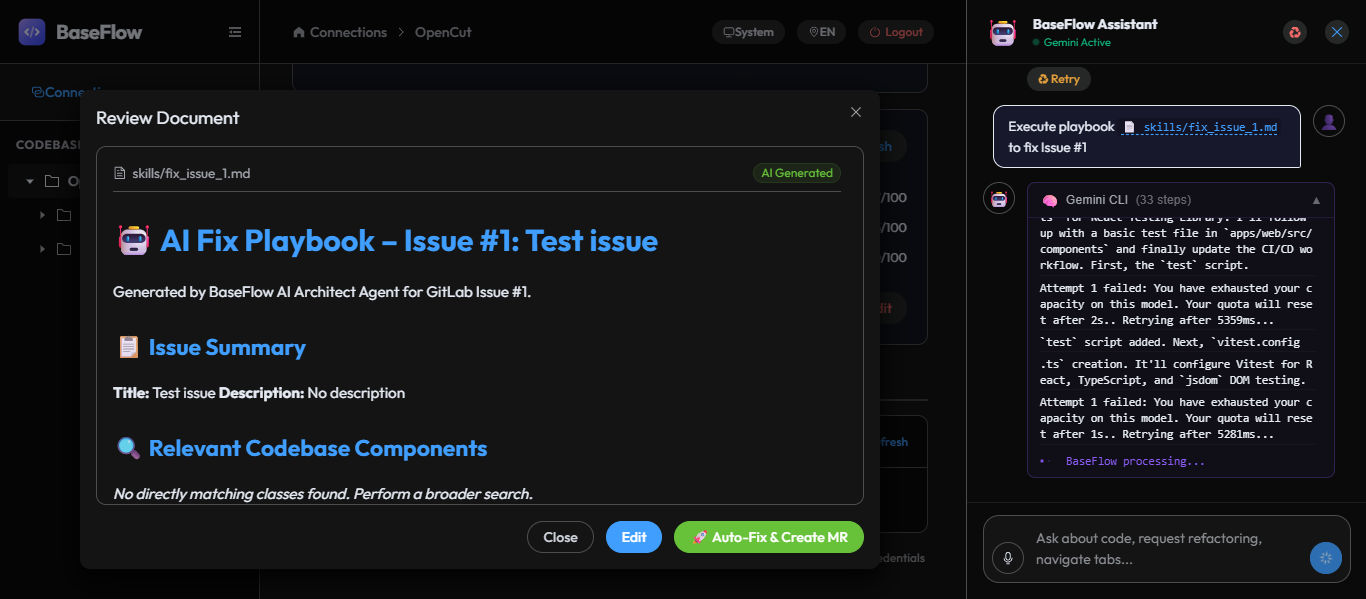

4. 🤖 AI Issue Resolver

Click any GitLab issue or GitHub issue → the AI agent automatically:

  • Reads the issue via GitLab Duo MCP (gitlab_get_issue)
  • Scans the codebase for relevant classes using keyword matching
  • Generates a skills/fix_issue_N.md playbook in the repository
  • Offers to publish the skill as a Custom Agent to the GitLab Duo AI Catalog

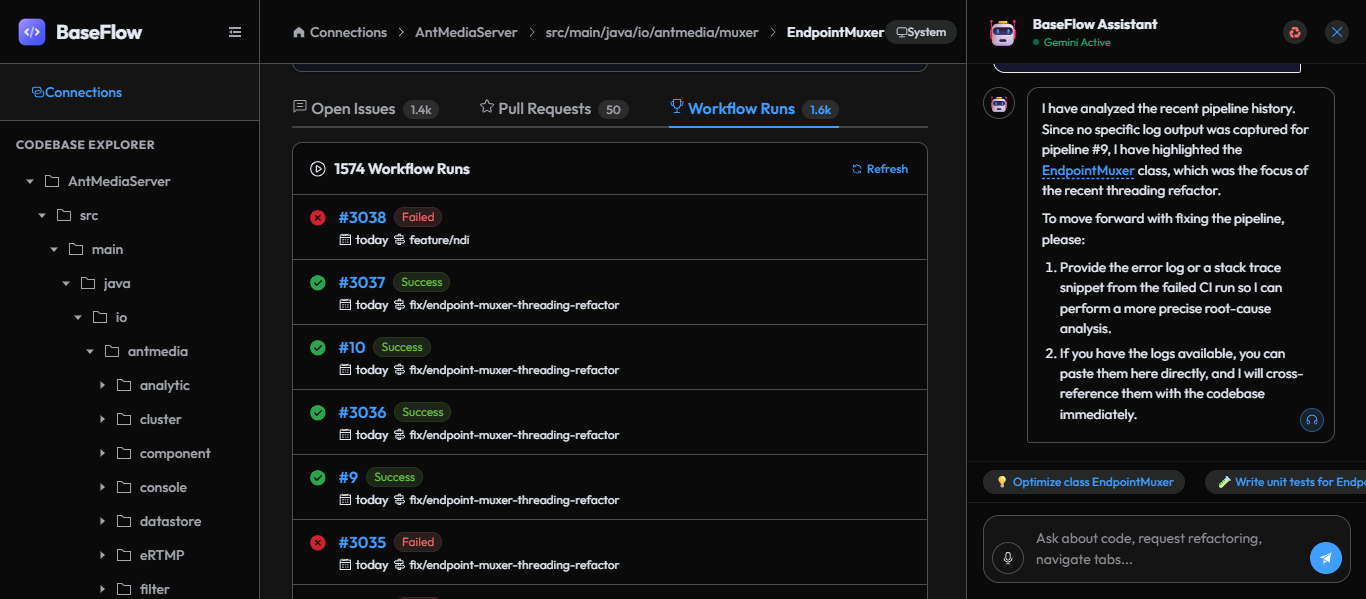

5. 🔍 CI/CD Watchdog

Failed pipeline? Click "Analyze Blocker" → the AI fetches the job log via gitlab_get_job_trace, cross-references the log with your codebase, highlights affected classes on the mindmap, and generates a root-cause analysis with fix steps.

6. 📤 GitLab Duo AI Catalog Publisher

Any generated skill file can be formatted and published as a Custom Agent system prompt to the GitLab Duo AI Catalog. The agent produces a complete configuration ready to paste into GitLab's custom agent settings.

🛠️ How We Built It

Architecture

BaseFlow runs as a unified containerized service hosting both backend API services and frontend assets.

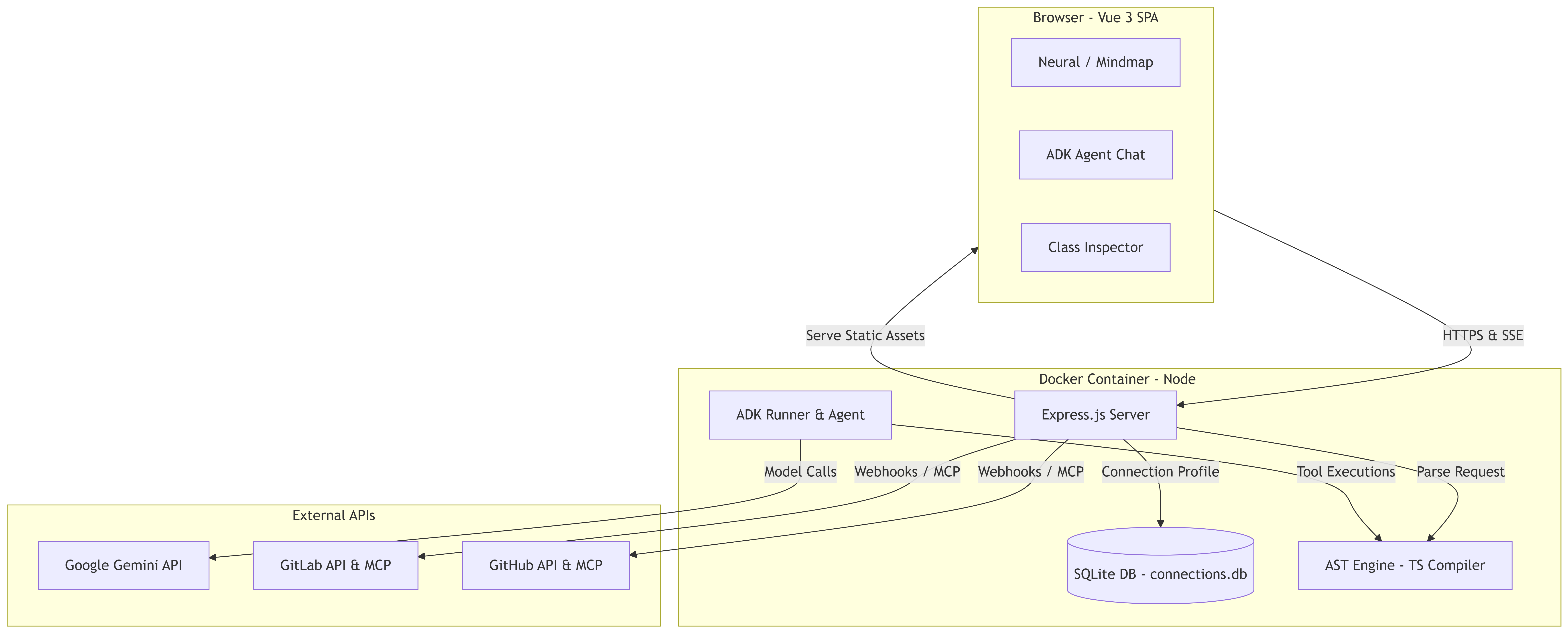

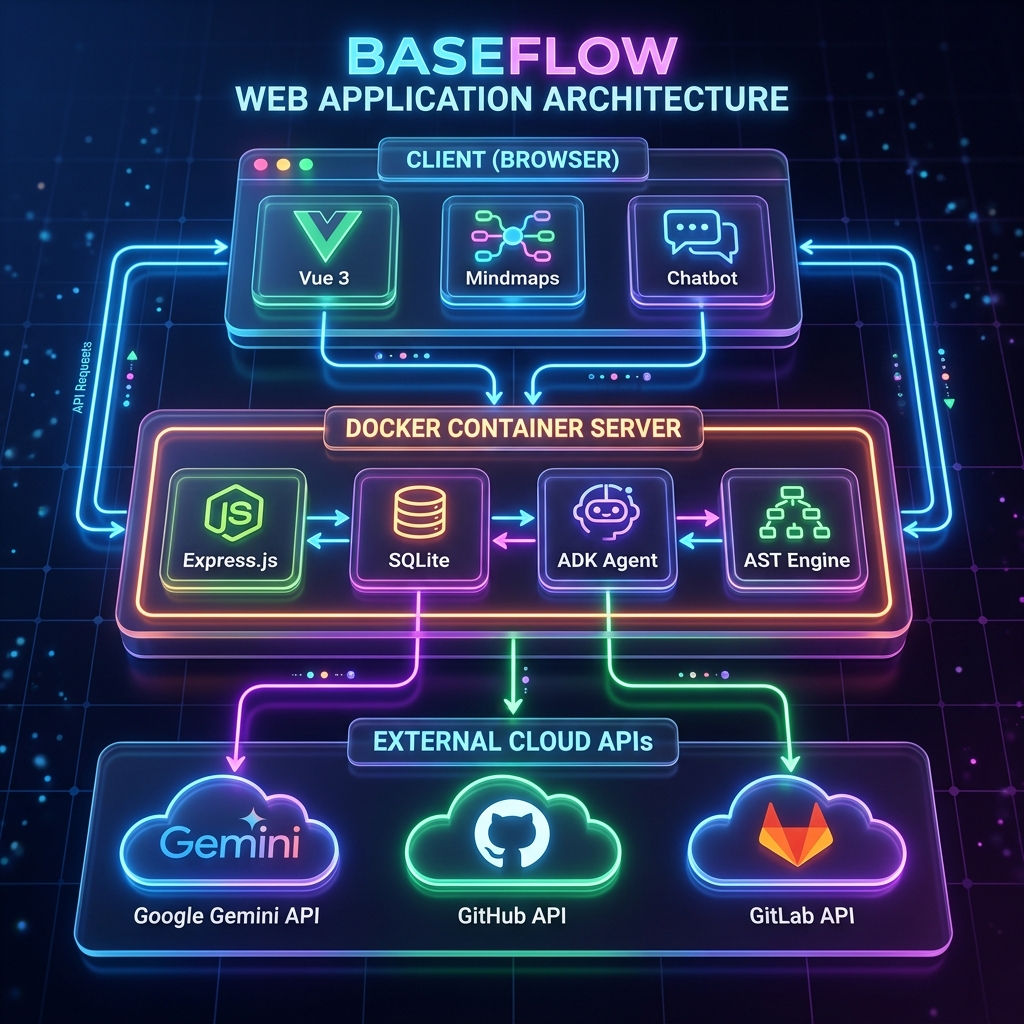

BaseFlow System Architecture

Key Technologies

Layer Technology
AI Framework Google ADK (@google/adk)
LLM Gemini 3.1 Flash (via ADK)
MCP Client mcp-remote (for GitLab Duo MCP HTTP endpoint)
GitLab MCP Official GitLab Duo MCP at https://gitlab.com/api/v4/mcp
GitHub MCP @modelcontextprotocol/server-github
Frontend Vue 3, Element Plus, Vite, G6 Graph
Backend Node.js, Express, TypeScript
Code Parsing Custom AST parser for TypeScript, Python, Java, C#, Vue
Visualisation VueFlow (force-directed graphs), Mermaid.js
Storage SQLite (via better-sqlite3)

GitLab Integration Details

BaseFlow connects to GitLab using the official Duo MCP endpoint:

npx mcp-remote https://gitlab.com/api/v4/mcp \
  --header "PRIVATE-TOKEN: <glpat-...>"

This gives the AI agent access to 15+ GitLab MCP tools including:

  • gitlab_list_issues, gitlab_get_issue — Issue reading
  • gitlab_create_note — Posting AI-generated comments
  • gitlab_list_merge_requests — MR review
  • gitlab_get_job_trace — CI/CD job log access (unique to GitLab MCP)
  • gitlab_list_project_files, gitlab_get_file_contents — Code reading

The Skill Publisher integrates with the GitLab Duo AI Catalog by formatting agent system prompts compatible with GitLab's Custom Agents feature.

GitHub Integration Details

For GitHub repositories, BaseFlow uses @modelcontextprotocol/server-github via stdio transport, providing tools prefixed github_ for issues, PRs, and workflow run logs.

🏗️ Challenges We Faced

  1. GitLab Duo MCP Auth: The official endpoint requires PRIVATE-TOKEN header, not environment variables. Getting mcp-remote to forward this header correctly (and documenting the Default Duo Namespace prerequisite) took significant debugging.

  2. Streaming Tool Chains: Coordinating multi-step agentic actions (read issue → scan codebase → write file → offer catalog publishing) through Google ADK's LlmAgent while keeping the frontend chat UX smooth required careful design of the pending actions queue.

  3. Cross-Platform Repository Parsing: Supporting TypeScript, Python, Java, C#, and Vue files in one unified AST parser without depending on language-specific toolchains was complex — especially handling edge cases in class inheritance detection.

  4. Real-Time Mindmap Highlighting: Connecting backend tool actions (from the AI agent) to frontend mindmap node highlighting in real-time without WebSocket overhead required a polling-based pending actions mechanism.

🏅 Accomplishments We're Proud Of

  • True end-to-end agentic action: From reading a GitLab issue to writing a fix playbook and publishing to the AI Catalog — zero manual steps.
  • First-class GitLab Duo MCP support: Correctly using the official endpoint with PRIVATE-TOKEN auth, not a workaround.
  • Dual platform coverage: Both GitLab Duo MCP and GitHub MCP work side-by-side in the same agent session.
  • CI/CD Watchdog with log analysis: Uniquely uses gitlab_get_job_trace to provide job-log-aware root cause analysis.
  • Beautiful, production-ready UI: Dark mode, glassmorphism, animated mindmap, responsive design.

📚 What We Learned

  • The GitLab Duo Agent Platform (Custom Agents, AI Catalog, MCP Server) is a powerful but nuanced ecosystem — the Default Duo Namespace setting is a prerequisite that isn't prominently documented.
  • mcp-remote is a powerful bridge for HTTP-based MCP servers, but requires explicit --header flags rather than environment variables.
  • Google ADK's FunctionTool pattern enables tight integration between AI reasoning and local application state.

🔮 What's Next

  1. GitLab Custom Flows: Implement multi-step automated workflows using the GitLab Duo Flows beta (e.g. "auto-fix and commit" flow triggered by an issue label).

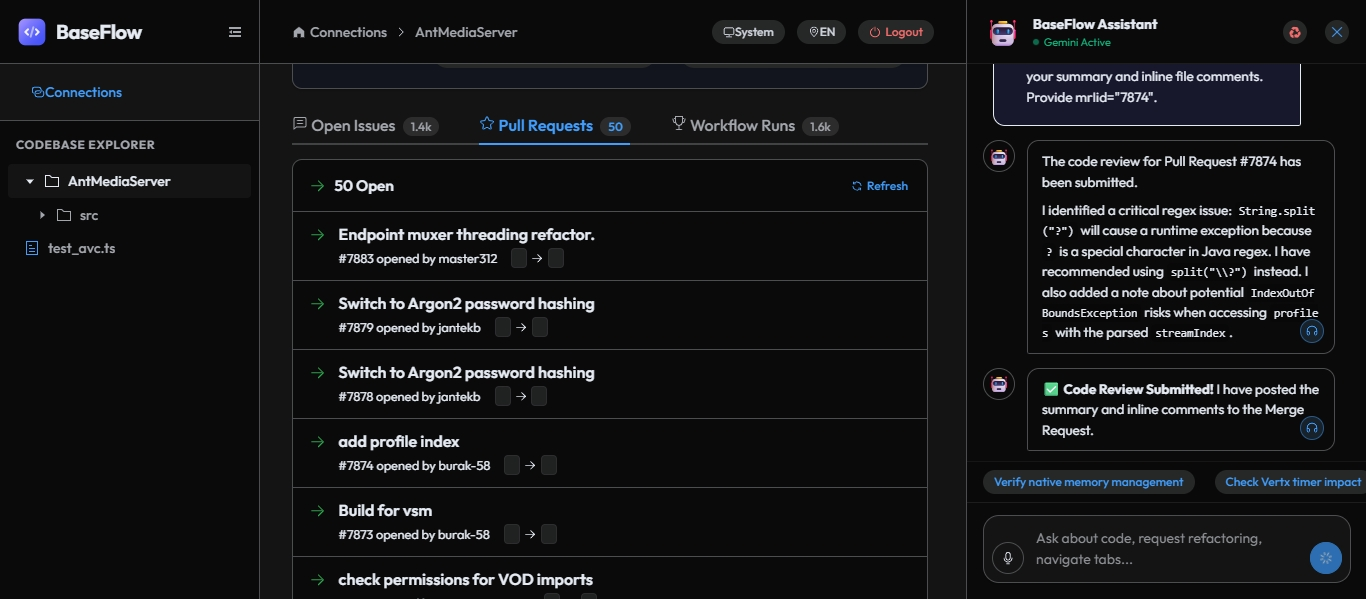

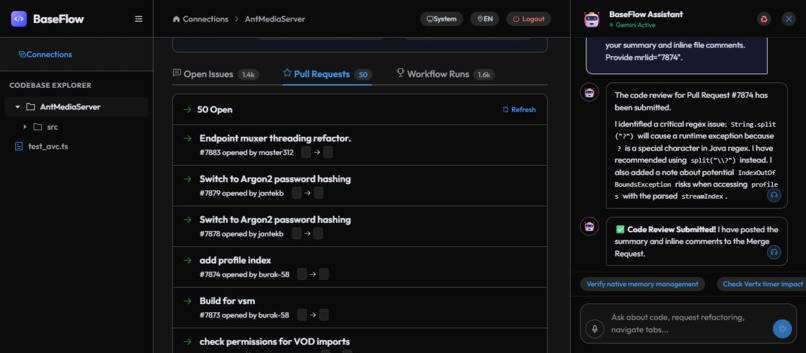

  2. AI-Powered Code Review Comments: Post structured AI review comments directly on MR diffs via gitlab_create_note.
  3. Security Scanning Integration: Cross-reference SAST/DAST results from GitLab Security Dashboard with the codebase mindmap.
  4. GitHub Copilot Extensions API: Extend BaseFlow as a GitHub Copilot Extension for VS Code integration.
  5. Collaborative Agents: Multiple BaseFlow instances sharing skill files via a shared GitLab AI Catalog namespace.

🏗️ Try It Out

  1. Clone the repository: git clone https://github.com/agrhub/baseflow
  2. Follow the GitLab Duo Integration Guide
  3. Run: npm run dev in both backend/ and frontend/
  4. Open http://localhost:5173

Prerequisites

  • Node.js 18+
  • A GitLab.com account with a Duo Trial (free, 30 days, no credit card)
  • A GitLab Personal Access Token with api scope
