ArchLens

What if a whiteboard system design could instantly become an interactive architecture diagram?

ArchLens bridges physical brainstorming and modern system design workflows using AI — converting whiteboard architecture diagrams into interactive, editable system designs.

React Native FastAPI MongoDB Gemini AI OpenCV

Inspiration

Preparing for technical interviews exposed us to a recurring challenge: system design questions are almost always done on a whiteboard. After finishing the discussion, those diagrams often disappear — erased, forgotten, or difficult to convert into structured digital designs.

We noticed the same problem in our Computer Science courses, especially Software Engineering classes, where we frequently created UML diagrams and system designs on whiteboards and then manually recreated them digitally for homework submissions.

That question became ArchLens.

What It Does

Users can:

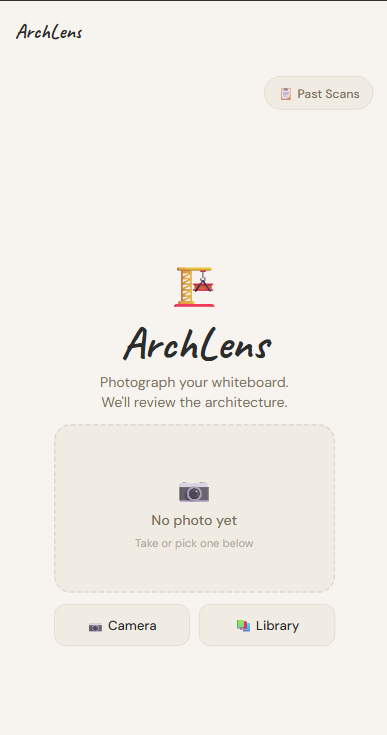

  • Upload an image of a whiteboard system design
  • Automatically detect components and relationships

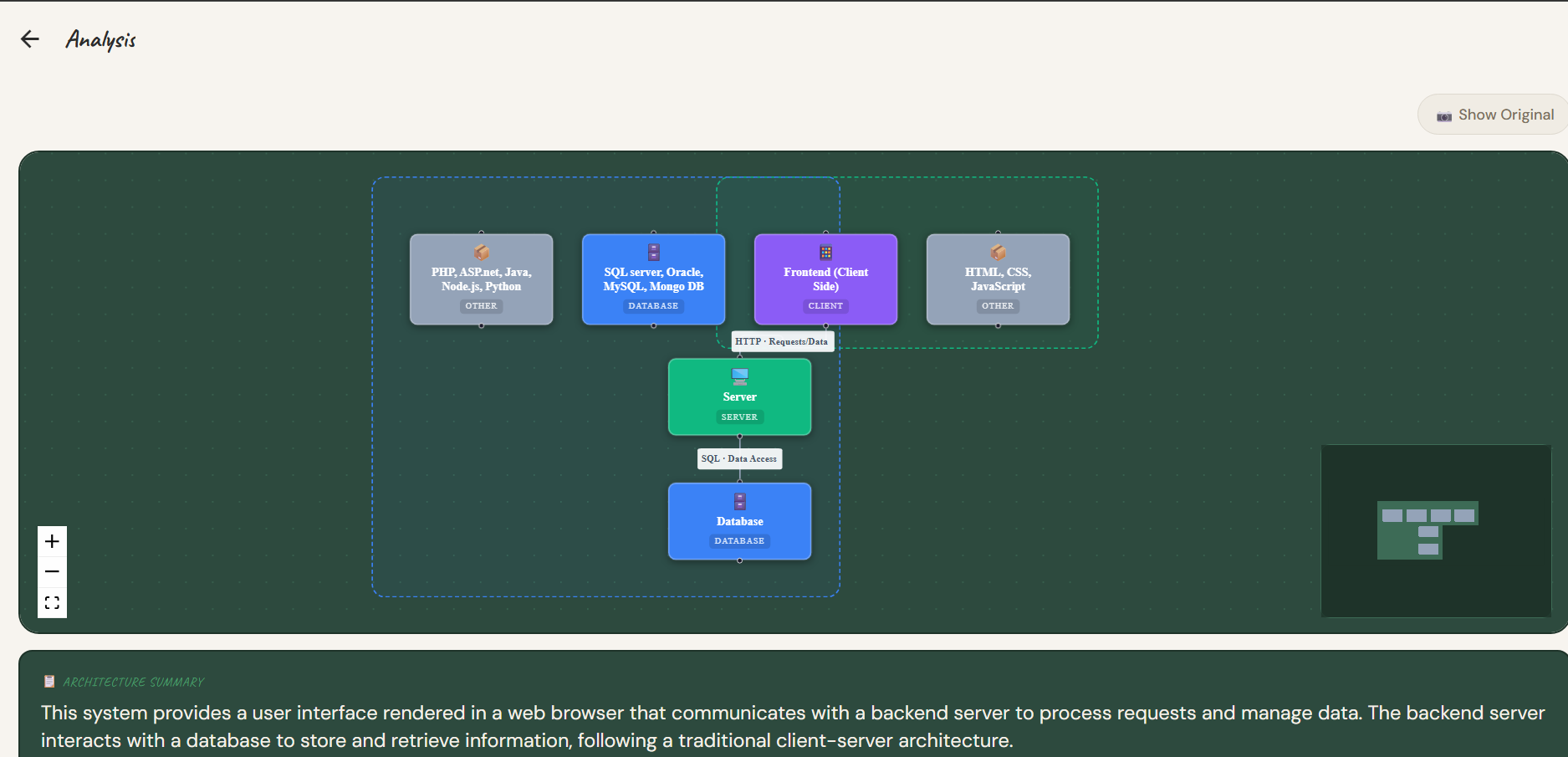

  • Convert the diagram into an interactive architecture graph
  • View nodes, connections, and annotations visually

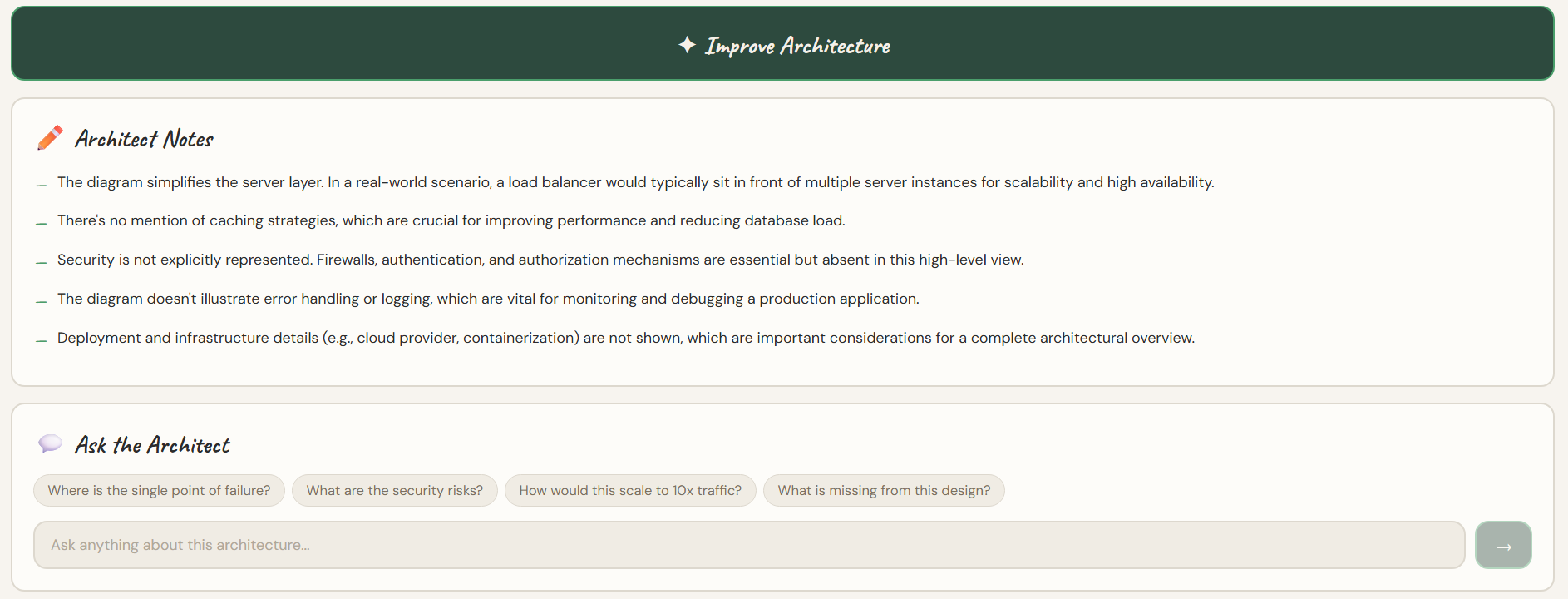

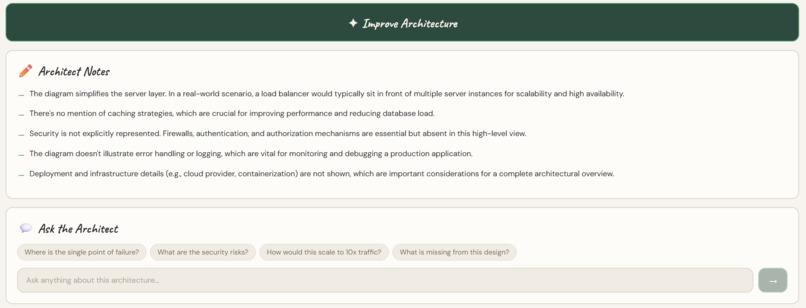

  • Generate AI-powered architecture improvements
  • Save and revisit previous designs through history tracking

The goal is simple: capture ideas instantly and turn them into professional system architecture.

How We Built It

Tech Stack

Layer Technology
Frontend React Native (Expo) + React Flow
Backend FastAPI
Database MongoDB Atlas
AI Google Gemini models
Image Processing OpenCV
Cloud Cloudinary
Dev Tools VS Code + GitHub

Key Libraries & Tools

  • Pydantic, Beanie, Motor — MongoDB modeling
  • Thunder Client — Backend API testing without needing the frontend
  • secrets.token_urlsafe — Secure shareable design links

Team Workflow

Our team of four used an Agile-style workflow:

  • Each developer worked on their own Git branch
  • Features were merged through Pull Requests
  • Continuous integration happened through frequent merges into main

Responsibilities split across the team:

Area Focus
Architecture & Repo Planning and coordination
AI & History AI improvement features and history tracking
Backend MongoDB modeling and database integration
Frontend UI/UX and interactive node visualization

Challenges

AI Integration

Gemini SDK compatibility caused runtime errors and failed executions. We had to pivot approaches multiple times before achieving stable model integration.

API Cost Optimization

We attempted to minimize AI API costs by optimizing requests, but several strategies failed before landing on a workable solution.

Computer Vision

OpenCV processing and attempts at CNN validation introduced unexpected complexity.

Team Infrastructure

No authentication or rate limiting was implemented due to time constraints. Coordinating four developers simultaneously required learning proper Git workflows quickly.

Frontend

Implementing movable, animated note popups for nodes required significant UI debugging. Ensuring smooth interaction across devices was harder than expected.

Accomplishments

  • Clean, modern, color-coded interactive UI
  • Successfully converting whiteboard diagrams into structured architecture graphs
  • Smooth node animations powered by React Flow
  • AI-generated architecture improvement suggestions
  • Fully functioning MongoDB Atlas integration
  • Persistent history tracking of system designs
  • Strong team collaboration and coordinated Git workflow

Most importantly — we turned a hackathon idea into a working end-to-end AI product.

What We Learned

Team

  • How to truly collaborate under time pressure
  • Agile-style development in a fast-paced environment
  • Better Git workflows, pull request practices, and merge coordination
  • The importance of presentation and storytelling in hackathons

Technical

  • Full-stack development (first exposure for some teammates)
  • FastAPI, MongoDB, React Expo, and modern backend architecture
  • Python tools: Pydantic, Motor, and Beanie
  • API testing with Thunder Client
  • Debugging large systems collaboratively
  • Cloud asset management with Cloudinary
  • Secure link generation with secrets.token_urlsafe

For many of us, this was our first hackathon, our first large team project, and our first experience building a production-style AI system together.

What's Next

Feature Description
🤝 Real-time collaboration Multiple users editing architectures together
📱 Mobile support Improved responsiveness across devices
⚡ Auth & rate limiting Proper authentication and API protection
🕘 Version history Revert to previous designs after AI improvements
🔄 Editable shared projects Move beyond view-only shared links
💡 Smarter AI feedback Better architecture validation and suggestions

Our vision is for ArchLens to become a true system design workspace — where ideas move seamlessly from whiteboard brainstorming to collaborative engineering.
