ArchitectWizard — Project Story

Inspiration

Federal regulators (FERC) issued Order No. 1920 in 2024 because utilities plan construction in isolation, causing duplicated work and delays. The Sperry Tech GridLock Challenge asks for a tool that compares at least two utilities' future plans and flags overlaps — timeline and geographic — so they can share crews, equipment, and right-of-way.

We saw the same problem in Florida: county-level construction plans (road, bridge, substation) overlap near borders, but no live coordination layer exists. We built a wizard-guided platform that turns spoken or typed project plans into structured data, checks them against real upcoming Florida work, and recommends the nearest free window.

What it does

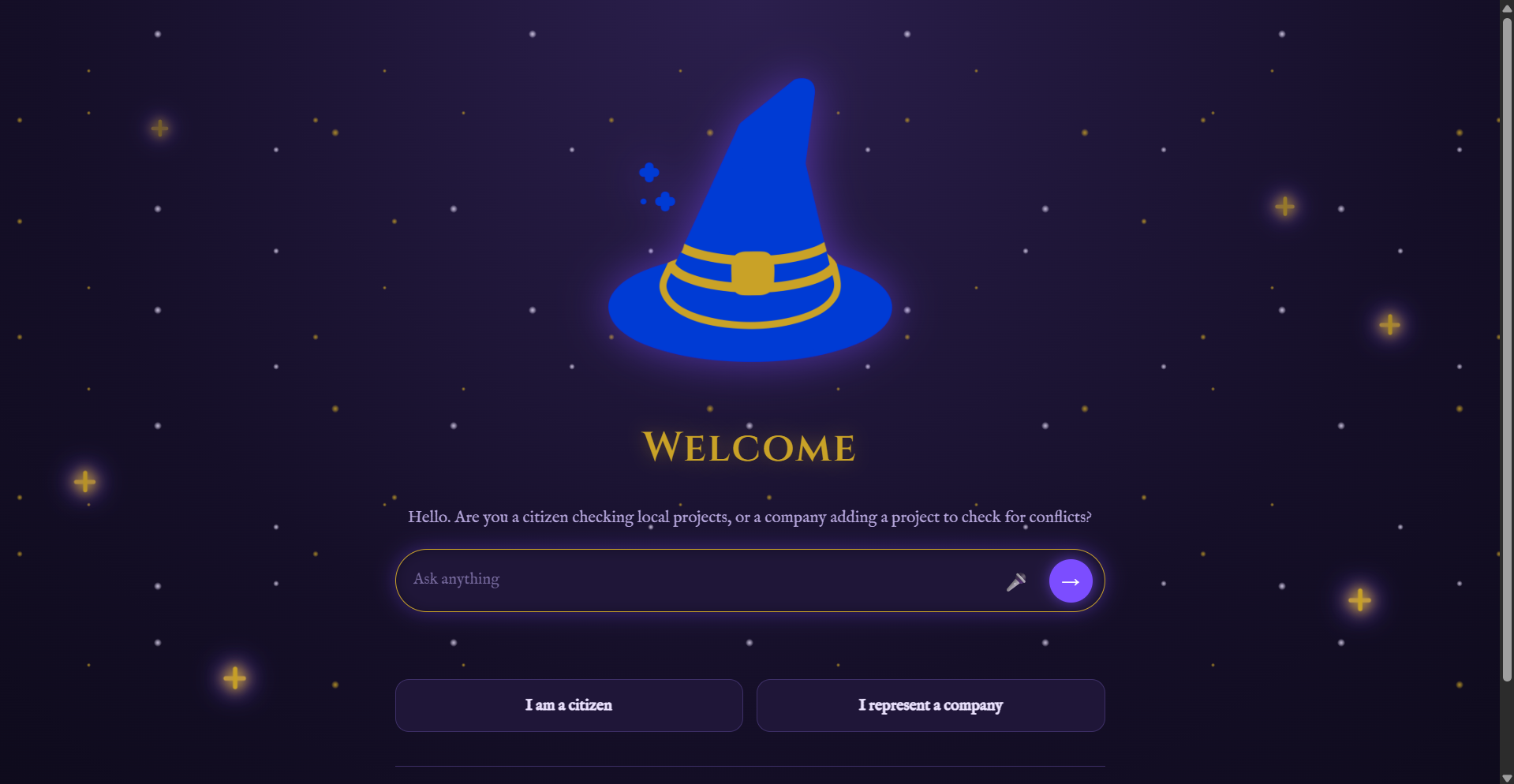

Wizard + Voice: An interactive wizard (wizard-voice.js) speaks in a consistent British male voice (pitch=0.72, rate=0.78) across index.html, onboarding.html, intake.html, map.html, and conflict_check.html. Users click a microphone, speak a project (county, dates, company), and ElevenLabs STT fills the form.

Conflict Detection: After intake, POST /api/projects/conflicts (direct backend) checks temporal overlap in MongoDB Atlas (hackathon.projects). If overlaps exist, conflict_check.html displays conflicts, nearest-window remediation, and wizard speech. The map (map.html) refreshes automatically via BroadcastChannel('sperry-refresh') when a save occurs.

Real Data: We seeded 136 real-style Florida construction entries (FDOT bridge/road/substation projects, max 2 per county) with future dates (2026–2027) so conflict detection is meaningful.

Live Domain: Deployed to Render; GoDaddy domain shadow-wizard-architect-gang.us verified (A record 216.24.57.1, CNAME www → architectwizard.onrender.com).

How we built it

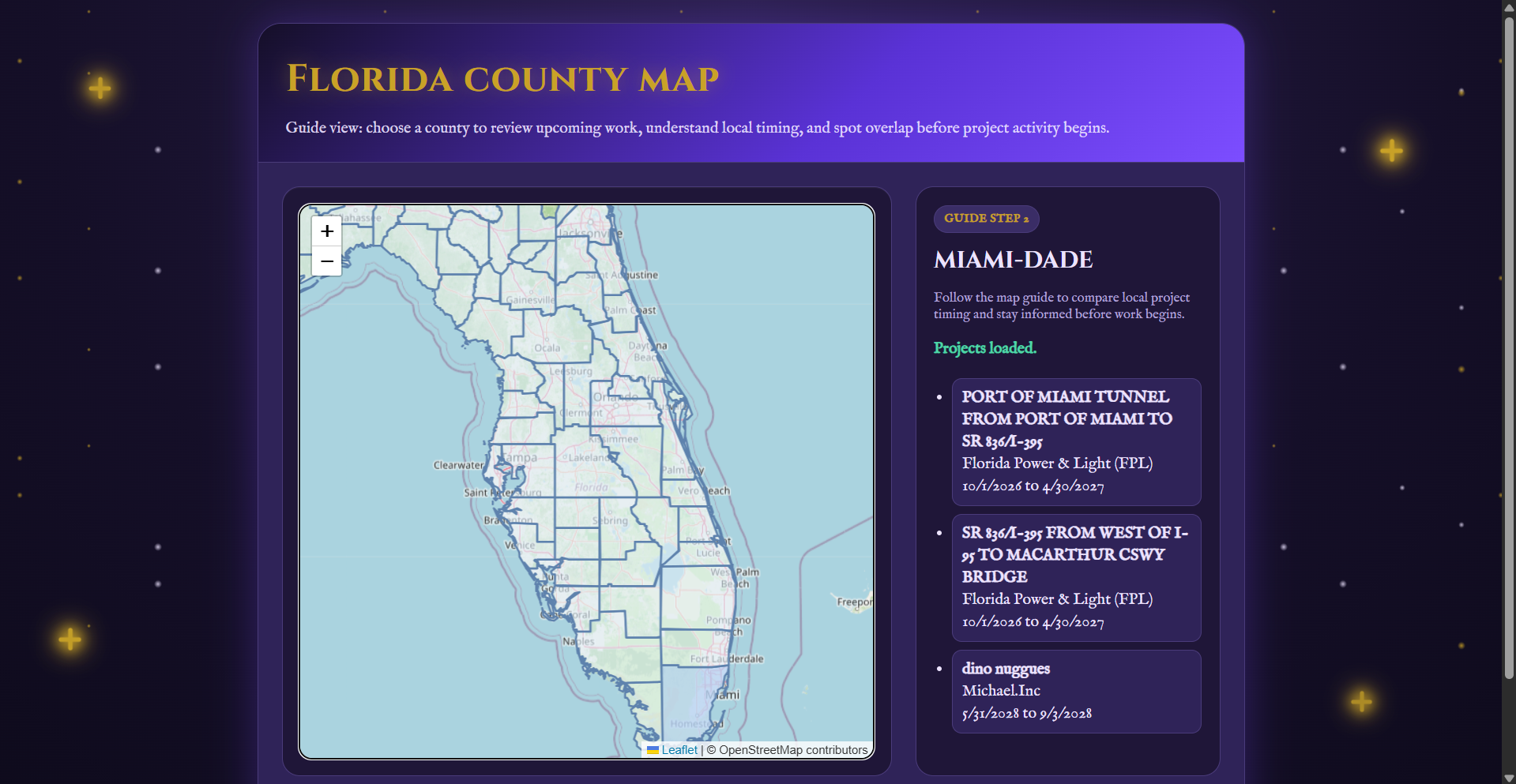

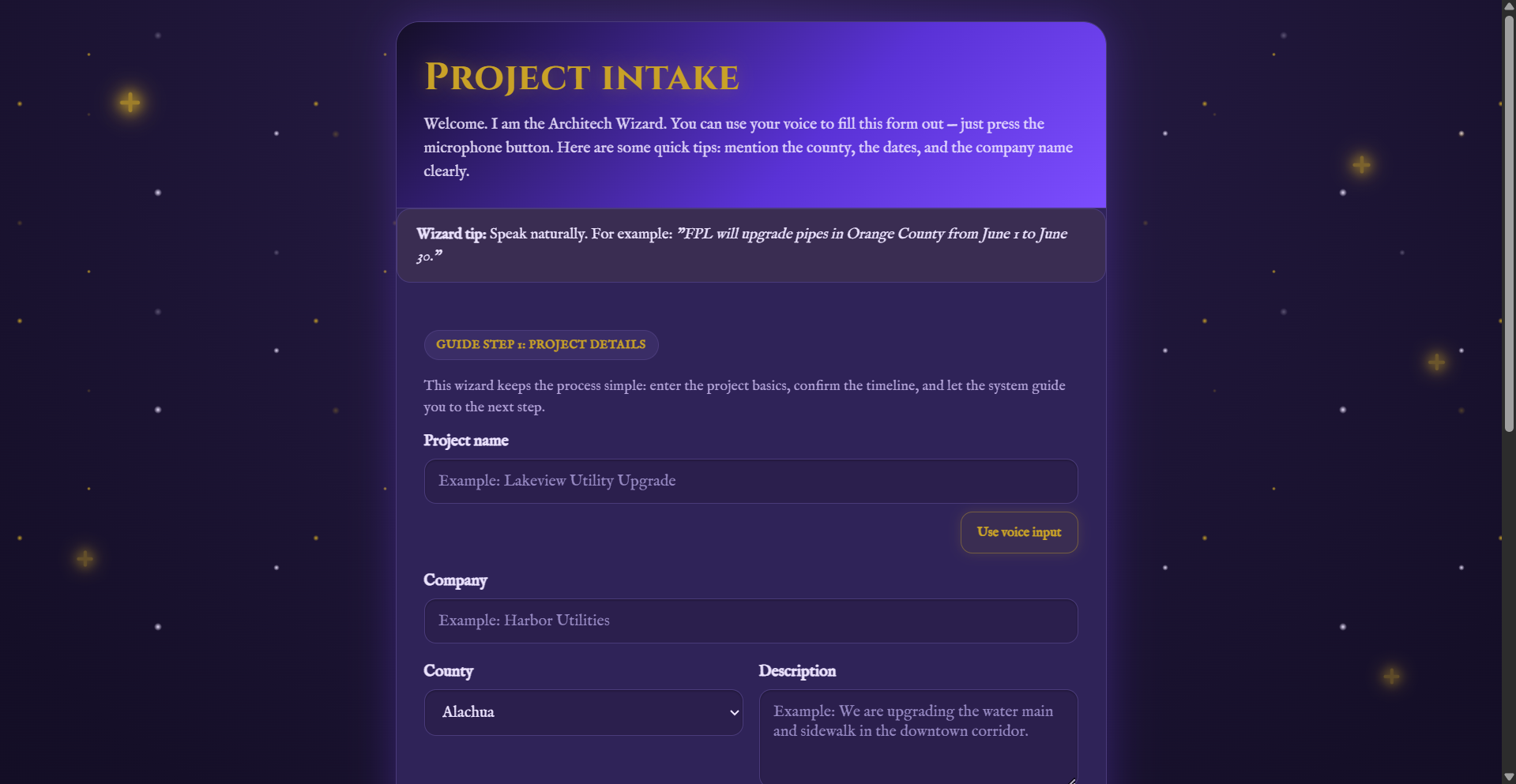

Frontend: Vanilla HTML/JS (frontend/public/). wizard-voice.js controls SpeechSynthesis settings and wizard utterances. intake.html has county dropdown (all Florida counties, Dade mapped to Miami-Dade), toUTCISO() date conversion, localStorage draft save, sessionStorage conflict load, and BroadcastChannel refresh. map.js renders Leaflet markers by county with fetchCountyProjects().

Backend: express server (backend/server.js). MongoClient connects to Atlas. Compound index {county: 1, startTime: 1, endTime: 1} supports fast overlap queries. POST /api/projects validates title/county/dates, applies past-date guard (startTime < today rejected), and inserts. GET /api/projects/county/:county filters by endTime >= now so finished work is hidden.

AI / NLP: backend/ai.js initializes Vertex AI (gemini-3.8-flash, vertexai: true). extractProjectFields() parses text/audio into structured fields. /api/ai/check-conflicts runs extraction + overlap + nearestWindow computation.

Voice Template: wizard-voice.js prefers British male voices (Daniel, Thomas, Arthur) with pitch: 0.72, rate: 0.78.

Deployment: package.json with npm run deploy; .env holds MONGO_URI, ELEVENLABS_API_KEY, GEMINI_API_KEY, GOOGLE_APPLICATION_CREDENTIALS, PRODUCTION_URL. Render auto-deploys main; build uses npm install, start uses node backend/server.js.

Challenges we ran into

Gemini 429 / free tier rate limit: Free Gemini tier returned 429 under load. We migrated backend/ai.js to Vertex AI (vertexai: true) and switched the intake flow from /api/ai/check-conflicts to direct POST /api/projects + GET /api/projects/conflicts to reduce AI calls.
Timezone date shifts: User dates were shifting by local timezone when converted to MongoDB. Added toUTCISO() in intake and fmtUTC() in display so startTime and endTime stay consistent across pages.
Root CNAME error: GoDaddy DNS rejected CNAME on root domain (shadow-wizard-architect-gang.us). Used Render's provided A record (216.24.57.1) for @ and kept CNAME for www.
Past projects showing up: Before a filter, finished projects appeared on the map and blocked new conflicts incorrectly. Added endTime: { $gte: now } to county endpoint and relied on overlap logic (with future-start guard) for conflicts.
Conflict page refresh empty: sessionStorage.removeItem('conflictCheck') on page load erased results on refresh. Removed immediate deletion; intake.html clears it via pageshow when returning.
Real data missing: Original projects.json only covered Miami-Dade and Orange. Built seed_real.py to cap at 2 real-style FDOT entries per Florida county (136 total), then inserted via node MongoDB script.

Accomplishments that we're proud of

Live domain with full GoDaddy DNS verification.
Consistent wizard voice across all 5 pages using shared wizard-voice.js.
Real-time map refresh via BroadcastChannel — no reload needed.
136 real Florida projects in MongoDB with future dates, enabling meaningful overlap detection.
All Florida counties available in dropdown, with Dade normalized.
Past-date guard + UTC date handling eliminates timezone bugs and invalid past bookings.

What's next for ArchitectWizard

Modal flow: Replace separate conflict_check.html page with an overlay modal inside intake.html for smoother flow.
Stronger sanitization: Strict county regex, XSS sanitization, rate limits on endpoints.
Full Vertex migration: Fully remove Gemini dependency if rate limits persist at scale.
Real-time polling: Optional setInterval or Server-Sent Events for users who keep the map tab open without other tabs.
Cross-utility comparison: Extend conflict logic to compare two explicit utility sources (e.g., DESC vs. Georgia Power analog) rather than single-county aggregation.
