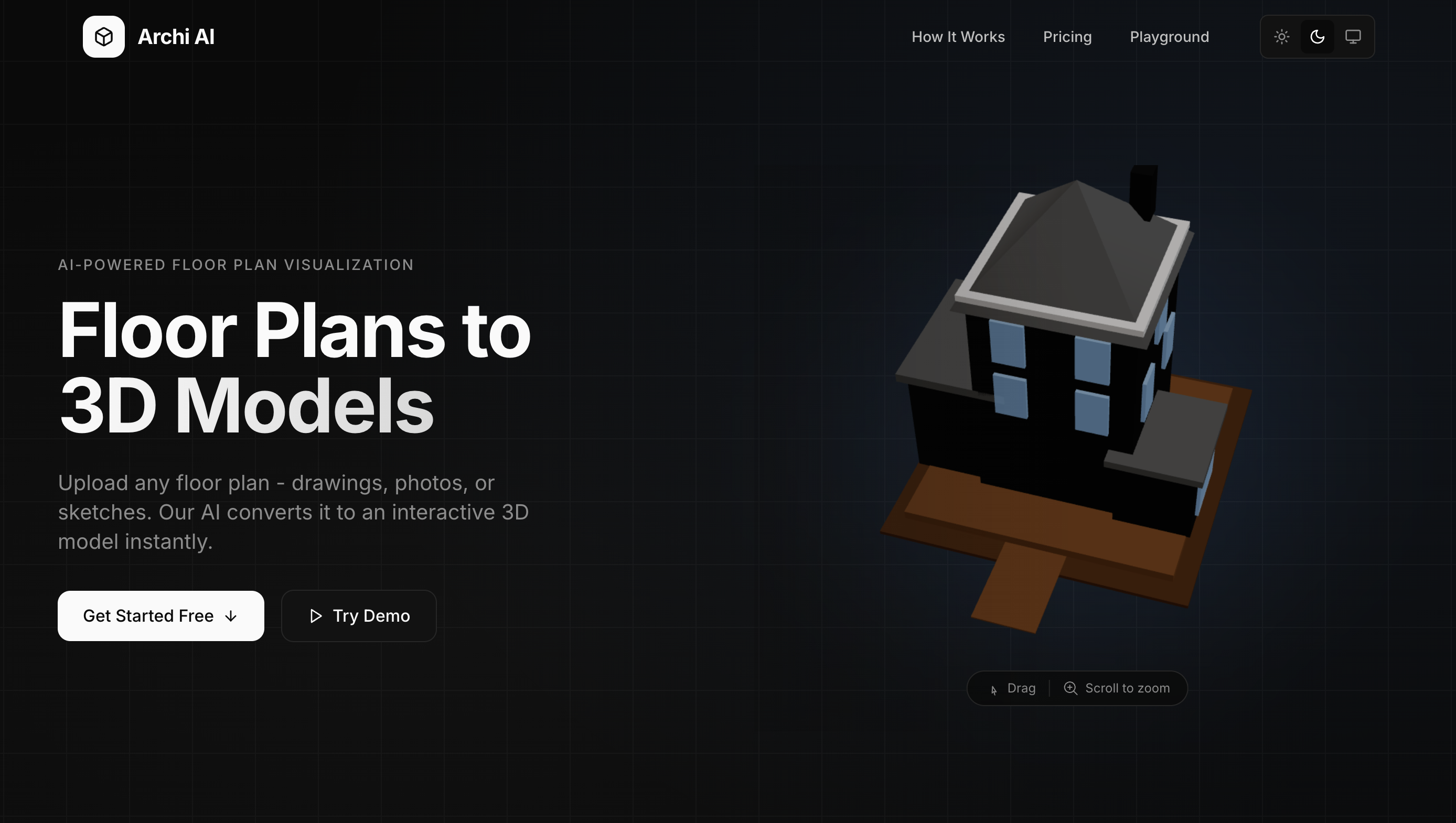

Archi AI

Transform any floor plan (from professional blueprints to napkin sketches) into an interactive 3D model you can explore and modify using natural language.

Inspiration

Architecture has a communication problem. Homeowners struggle to visualize renovations from flat 2D drawings. Architects spend hours explaining spatial concepts that clients can't quite picture. Contractors misinterpret plans, leading to costly mistakes. We know this firsthand, before I had the opportunity to get into software design and engineering, my background was in Building Technology where I learned important principles from architectural design to building codes and laws.

During my Master's thesis at Liverpool John Moores University, I built an AR application using Google's ARCore module to visualize architectural plans. While the technology worked, the barrier to entry was too high, users needed precise CAD files and technical knowledge to get started.

When we saw Gemini 3's multimodal capabilities, we realized the missing piece was intelligence. What if AI could understand any floor plan, even a rough sketch on a napkin? What if we could simply tell your floor plan what to change? That's the moment Archi AI was born: the idea that architecture should be as simple as drawing, speaking, and exploring.

The vision is democratization. A first-time homebuyer should be able to sketch their dream layout on paper, photograph it, and walk through it in 3D within seconds. An interior designer should be able to say "make the kitchen open concept" and watch walls disappear. Architecture should be accessible to everyone, not just those who can read blueprints.

What It Does

Archi AI is a web application that converts 2D architectural floor plans into interactive 3D models using Google Gemini 3, then lets users modify them through natural conversation.

Core Workflow

Upload Any Floor Plan

Professional CAD drawings
Phone photos of blueprints
Hand-drawn sketches on paper
Even napkin doodles

AI-Powered Parsing

Gemini Vision analyzes the image
Automatically identifies rooms, walls, doors, and windows
Extracts dimensions (estimated if not labeled)
Outputs structured data for 3D rendering

Interactive 3D Exploration

Orbit around your floor plan in full 3D
Click rooms to see dimensions and square footage
Toggle room labels and measurement overlays
Smooth, responsive controls optimized for both desktop and mobile

Natural Language Modifications

Voice or text commands to modify the layout
"Make the master bedroom 20% bigger"
"Add a window on the north wall of the kitchen"
"Remove the wall between the kitchen and dining room"
"Show me this in a modern minimalist style"
Changes render in real-time as you speak

AI Design Analysis

Accessibility audit (ADA compliance checks)
Building code validation (egress windows, doorway widths)
Natural light assessment
Traffic flow analysis
Actionable recommendations with specific measurements

Key Differentiators

Zero friction input: No CAD software required, a phone photo works
Conversational interface: Modify spaces by describing what you want
Instant feedback: See changes happen in real-time 3D
Professional insights: Get architect-level analysis without hiring one

How We Built It

Architecture Overview

┌─────────────────────────────────────────────────────────────────┐
│                       USER INTERFACE                            │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐  ┌────────────────┐   │
│  │  Upload  │  │ 3D View  │  │ Analysis │  │ Chat (Voice)   │   │
│  │  (D&D)   │  │ (R3F)    │  │ Panel    │  │ Web Speech API │   │
│  └────┬─────┘  └────┬─────┘  └────┬─────┘  └───────┬────────┘   │
└───────┼─────────────┼─────────────┼────────────────┼────────────┘
        │             │             │                │
        ▼             │             ▼                ▼
┌───────────────────────────────────────────────────────────────────┐
│                    GEMINI 3 FLASH API                             │
│                                                                   │
│  ┌─────────────────┐  ┌─────────────────┐  ┌──────────────────┐   │
│  │     VISION      │  │ FUNCTION CALLING│  │    JSON MODE     │   │
│  │                 │  │                 │  │                  │   │
│  │ • Image→JSON    │  │ • resize_room   │  │ • Analysis       │   │
│  │ • Room detect   │  │ • add_opening   │  │ • Code checks    │   │
│  │ • Wall extract  │  │ • remove_wall   │  │ • IRC/ADA refs   │   │
│  │ • Opening ID    │  │ • rename_room   │  │                  │   │
│  └─────────────────┘  │ • change_style  │  └──────────────────┘   │
│                       │ • calc_area     │                         │
│                       └─────────────────┘                         │
└───────────────────────────────────────────────────────────────────┘
        │                        │                    │
        ▼                        ▼                    ▼
┌───────────────────────────────────────────────────────────────────┐
│                      ZUSTAND STORE                                │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐  ┌──────────────────┐   │
│  │FloorPlan │  │  View    │  │ Analysis │  │  Chat History    │   │
│  │  State   │  │  State   │  │ Results  │  │  (Multi-turn)    │   │
│  └──────────┘  └──────────┘  └──────────┘  └──────────────────┘   │
└───────────────────────────────────────────────────────────────────┘
        │
        ▼
┌───────────────────────────────────────────────────────────────────┐
│                 REACT THREE FIBER 3D ENGINE                       │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐  ┌──────────────────┐   │
│  │  Room3D  │  │  Wall3D  │  │Opening3D │  │ Floor/Ceiling    │   │
│  │ (floors) │  │ (struct) │  │(door/win)│  │   Components     │   │
│  └──────────┘  └──────────┘  └──────────┘  └──────────────────┘   │
└───────────────────────────────────────────────────────────────────┘
        │
        ▼
┌───────────────────────────────────────────────────────────────────┐
│               REALISTIC VISUALIZATION (Optional)                  │
│  ┌─────────────────────────────────────────────────────────────┐  │
│  │  fal.ai (Nano Banana Pro) / Vertex AI Imagen                │  │
│  │  • Photorealistic exterior renders                          │  │
│  │  • Configurable: roof, materials, lighting, environment     │  │
│  └─────────────────────────────────────────────────────────────┘  │
└───────────────────────────────────────────────────────────────────┘

Gemini 3 Integration Deep Dive

1. Vision API for Plan Parsing

We crafted a detailed prompt that instructs Gemini to analyze floor plan images like an expert architect. The model identifies:

Room boundaries and types (bedroom, kitchen, bathroom, etc.)
Wall positions with interior/exterior classification
Door and window locations
Dimensional estimates based on standard room sizes

The output is structured JSON that feeds directly into our 3D rendering pipeline.

2. Function Calling for Modifications

We defined six core functions that Gemini can invoke:

resize_room - Change room dimensions by percentage or absolute values
add_opening - Insert doors, windows, or archways
remove_wall - Create open concept layouts
change_room_style - Apply visual presets
rename_room - Update room labels
calculate_area - Compute square footage

When users speak naturally ("make the living room bigger"), Gemini interprets intent and calls the appropriate function with correct parameters.

3. Long Context for Analysis We serialize the entire floor plan, all rooms, walls, openings, and dimensions into Gemini's context window. The model then reasons about:

ADA accessibility requirements
Building code compliance
Spatial relationships and traffic flow
Design optimization opportunities

3D Rendering Pipeline

Coordinate Normalization: All floor plan data uses a 0-100 normalized grid
Geometry Generation: Rooms become floor polygons, walls become extruded shapes with openings cut out
Material System: Room types map to colors; style presets modify textures
Interaction Layer: Raycasting for room selection, orbit controls for navigation
Real-time Updates: Zustand state changes trigger immediate re-renders

Challenges We Ran Into

1. Parsing Inconsistent Floor Plans

The hardest technical challenge was handling the infinite variety of floor plan inputs. Professional CAD drawings have clean lines and labels. Phone photos have shadows, angles, and glare. Hand sketches have wobbly lines and ambiguous symbols.

Solution: We invested heavily in prompt engineering. Our parsing prompt includes specific instructions for handling missing labels (estimate from standard room sizes), interpreting common symbols, and maintaining confidence scores. We also built fallback logic, if Gemini returns low confidence, we surface this to users and suggest uploading a clearer image.

2. Coordinate System Alignment

Converting 2D parsed data into correct 3D positions was surprisingly tricky. Floor plans have no inherent scale, and Gemini's coordinate extraction isn't pixel-perfect.

Solution: We normalized everything to a 0-100 abstract grid, then scaled at render time. This decoupled parsing from rendering and made the system more robust to varying input sizes.

3. Natural Language Ambiguity

Users say things like "make it bigger" without specifying which room or how much. They might say "the bedroom" when there are three bedrooms.

Solution: We gave Gemini full floor plan context in every chat request, including room names and types. We also instructed the model to ask clarifying questions when requests are ambiguous ("Which bedroom would you like to resize the master bedroom or bedroom 2?").

4. Real-time 3D Performance

Complex floor plans with many rooms and walls can strain browser rendering, especially on mobile devices.

Solution: We implemented level-of-detail optimizations, limited polygon counts per wall, and used Three.js's instancing where possible. We also added <Suspense> boundaries to prevent the entire UI from blocking during 3D scene updates.

5. Voice Recognition Reliability

The Web Speech API is inconsistent across browsers and struggles with architectural terminology.

Solution: We display interim transcripts so users see what's being recognized, and we made the text input equally prominent so voice isn't the only option. We also kept commands simple and conversational rather than requiring specific keywords.

Accomplishments That We Are Proud Of

The "Napkin to 3D" Moment

The first time we photographed a hand-drawn sketch and watched it transform into a walkable 3D model, we knew we had something special. This single interaction demonstrates the full power of Gemini's multimodal capabilities in a way that's immediately understandable to anyone.

Voice Commands That Actually Work

Natural language interfaces often feel gimmicky. Ours doesn't. When you say "add a window to the kitchen" and watch a window appear on the wall in real-time, it feels like magic. The function calling architecture makes this possible. Gemini handles the language understanding while our deterministic code handles the execution.

Professional-Grade Analysis

The AI analysis feature surfaces insights that would typically require hiring an architect or building inspector:

"Your hallway is 28 inches wide, below the 32-inch ADA minimum for wheelchair access"
"The second bedroom lacks an egress window as required by building code"
"Consider opening the wall between kitchen and dining to improve traffic flow"

These aren't generic tips, they're specific to the uploaded floor plan with actual measurements.

Accessibility from Day One

We built Archi AI to be accessible to everyone. You don't need CAD software, architectural training, or expensive tools. A smartphone camera and your voice are enough. This aligns with our core belief that spatial design should be democratized.

Clean, Maintainable Codebase

Despite the complexity (3D rendering, AI integration, voice input, real-time state), the codebase is well-organized with clear separation of concerns. Types are comprehensive, components are focused, and the Zustand store provides a single source of truth.

What We Learned

Gemini 3's Multimodal Power is Real

Before this project, multimodal AI felt like a demo feature. Building Archi AI proved it's production-ready. Gemini's ability to understand visual layouts, reason about spatial relationships, and respond to natural language, all-in-one model is genuinely transformative.

Function Calling Changes Everything

The function calling API is underrated. It bridges the gap between fuzzy natural language and precise programmatic actions. Instead of parsing text outputs, we receive structured function calls that map directly to application logic. This pattern will define the next generation of AI-powered applications.

Prompt Engineering is Software Engineering

The parsing prompt went through 20+ iterations. Small wording changes produced dramatically different outputs. We learned to treat prompts like code, version controlled, tested against edge cases, and continuously refined. The "temperature" parameter alone required careful tuning (low for parsing, moderate for chat).

3D on the Web Has Matured

React Three Fiber makes 3D feel like writing React components. The abstractions are intuitive, performance is solid, and the ecosystem (Drei helpers, postprocessing, etc.) covers most common needs. We're bullish on 3D web experiences becoming mainstream.

Users Think in Natural Language

We initially designed complex UI controls for modifications-sliders, input fields, dropdown menus. Usability testing revealed users preferred just describing what they wanted. This reinforced our commitment to the conversational interface as the primary interaction model.

What's Next For Archi AI

Short-term Roadmap

AR Mode Leverage WebXR to let users place their floor plan in physical space. Walk through your future home renovation while standing in your current living room.

Furniture Placement Add the ability to furnish rooms with AI-suggested furniture layouts. "Furnish this living room for a family of four" would place appropriately sized sofas, tables, and storage.

Export Capabilities Generate professional outputs: PDF floor plans with dimensions, 3D model files (glTF/OBJ) for use in other software, and shareable links for collaboration.

Multi-floor Support Extend the parsing and rendering to handle multi-story buildings with staircases and vertical circulation.

Long-term Vision

Real Estate Integration Partner with real estate platforms to let home buyers visualize properties before visiting. Upload a listing's floor plan and explore it in 3D.

Contractor Collaboration Enable contractors to annotate and comment on floor plans, creating a shared workspace between homeowners and builders.

Permit Assistance Expand the analysis engine to generate documentation for building permits, automatically checking local code requirements.

Generative Design Move beyond modification to creation. Describe your requirements ("I need a 3-bedroom house with an open kitchen and home office") and let Gemini generate floor plans from scratch.
