Algo Vision

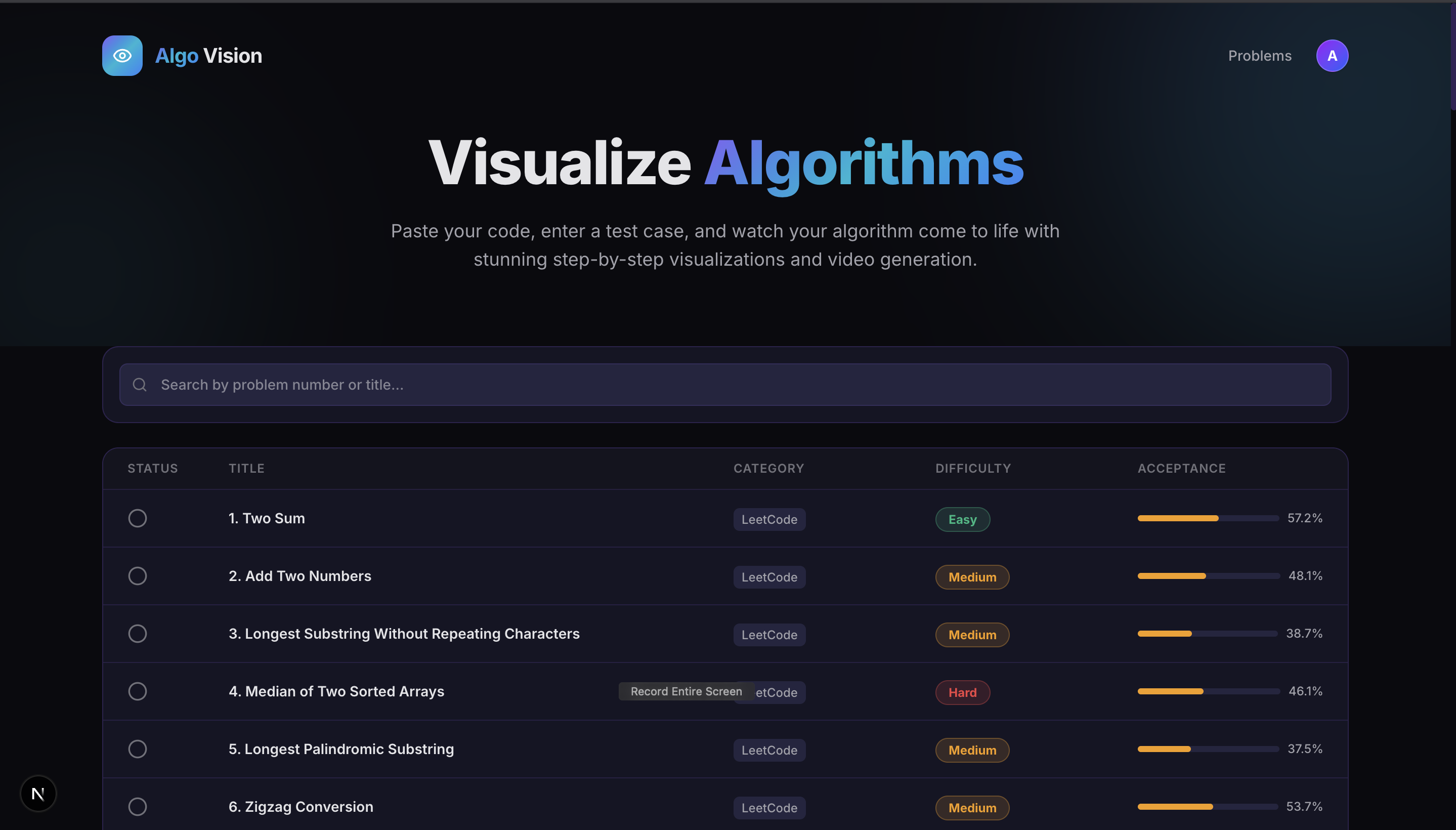

Landing Page After Google Signup Select The Problem

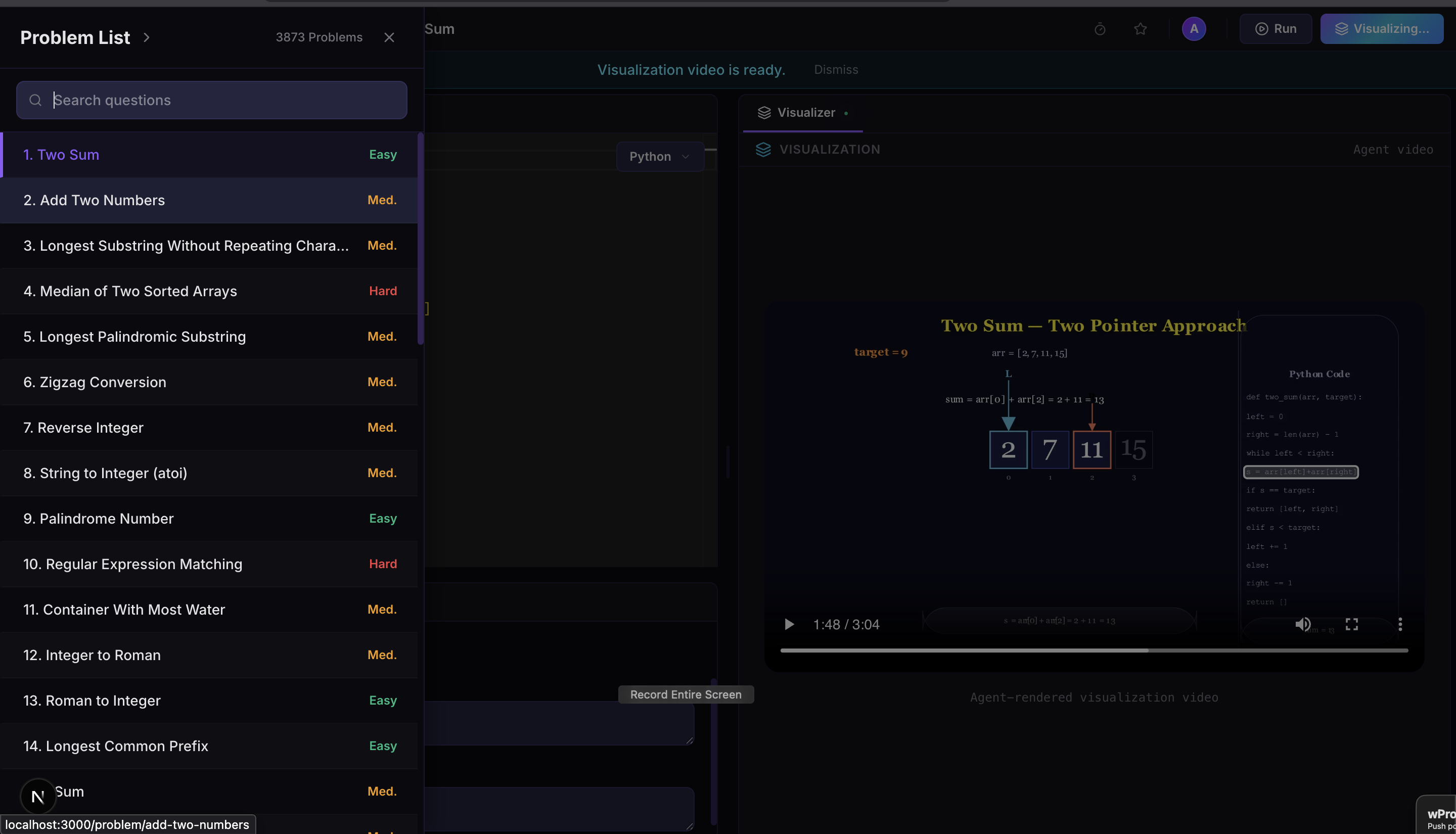

Each and Every Question Available Which is Present in LeetCode

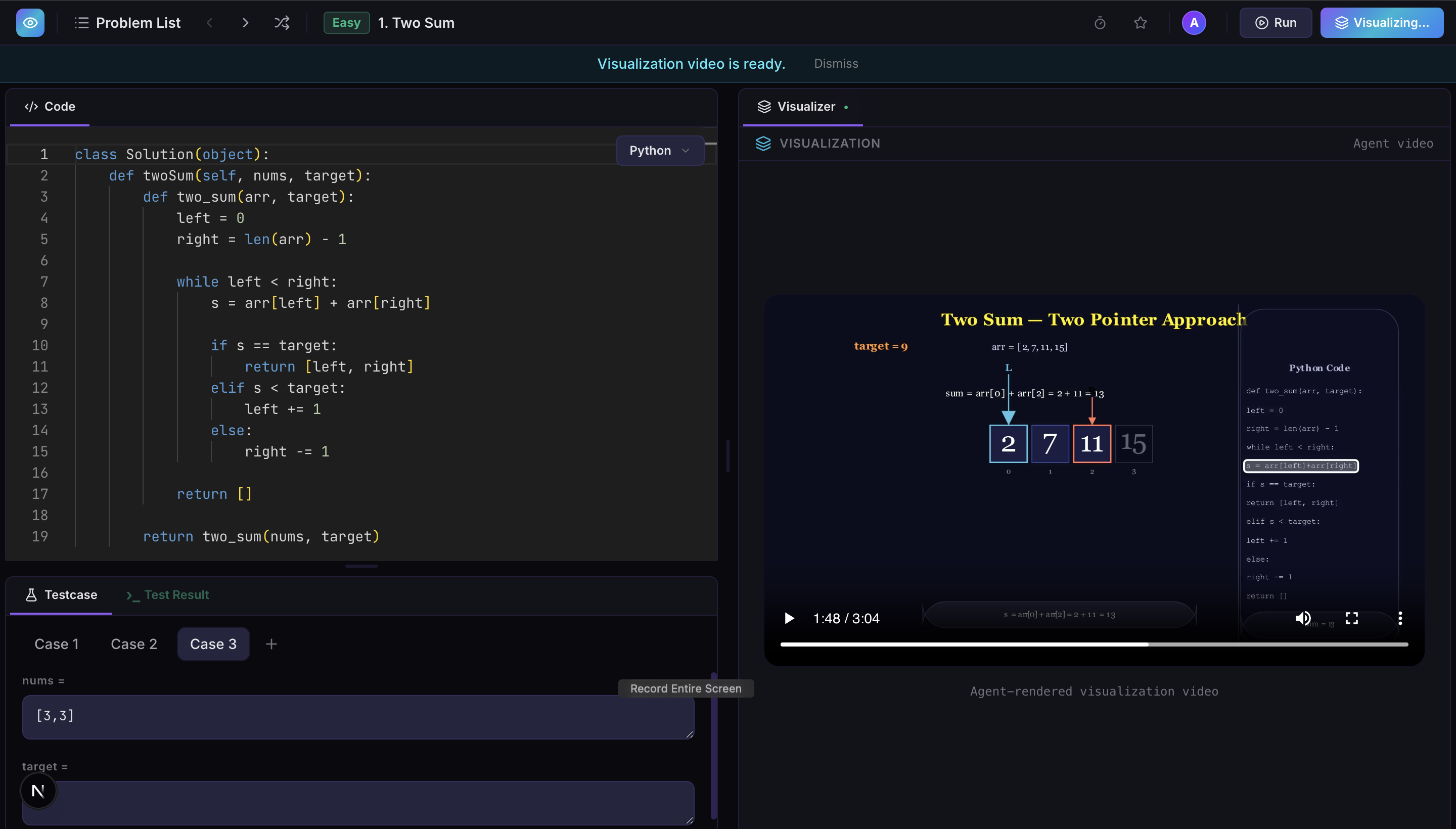

A personalized video visualization is generated that performs a full dry run of the algorithm for the provided test cases.

Inspiration

Algorithms are fundamental to computer science, yet many learners struggle to understand how they actually execute. Platforms like LeetCode provide excellent problems, but most explanations rely on static code and textual walkthroughs.

The biggest challenge for beginners is visualizing how data structures evolve step-by-step during execution, especially for complex algorithms like Dynamic Programming or graph problems.

This inspired us to build Algo Vision, an AI-powered platform that converts algorithmic code into dynamic visual explanations.

To power reasoning and explanations, Algo Vision leverages Google’s Gemini model via the Google GenAI SDK, enabling the system to understand code, generate structured reasoning, and guide users through algorithm execution.

What it does

Algo Vision transforms algorithm problems into interactive visual learning experiences.

Key features include:

Gemini-powered reasoning to analyze algorithm logic
Step-by-step visualization of algorithm execution
Dynamic visualization of arrays, stacks, trees, graphs, and DP tables
A Live AI Tutor powered by Gemini that explains algorithm behavior
Animated visual explanations generated from real code execution
Interactive exploration of algorithm states

For example, consider a classic Dynamic Programming recurrence:

Inline math:

$F(n) = F(n-1) + F(n-2)$

Display math:

$$ DP[i] = DP[i-1] + DP[i-2] $$

Instead of manually tracing recursive calls, Algo Vision visually shows how the DP table evolves step-by-step, helping learners understand overlapping subproblems and optimal substructure.

Gemini analyzes the code and generates explanations describing how each state is computed.

How we built it

Algo Vision uses a modern AI-powered full-stack architecture deployed on Google Cloud.

Frontend

Next.js
TypeScript
Interactive UI for visualization playback

Backend

Python FastAPI
Code execution tracing
Visualization state generation

AI System

Gemini models via Google GenAI SDK
Agent orchestration using Agent Development Kit (ADK)
Multi-agent reasoning pipeline for code analysis
Retrieval pipelines for algorithm documentation and context

Visualization Engine

Manim for algorithm animation generation
FFmpeg for rendering animation videos

Google Cloud Infrastructure

Vertex AI for Gemini model inference
Cloud Run for scalable backend deployment
Cloud Storage for storing generated visualization videos

When a user submits code, Gemini analyzes the algorithm, extracts logical steps, and generates structured execution traces that are later converted into animations.

Many algorithms visualized in Algo Vision follow computational models such as:

$$ DP[i] = \max(DP[i-1], DP[i-2] + value_i) $$

which appears in optimization problems like House Robber.

Challenges we ran into

Building Algo Vision involved several technical challenges:

Extracting deterministic execution traces from arbitrary user code
Designing a flexible system capable of visualizing multiple data structures
Ensuring explanations generated by Gemini accurately match program execution
Optimizing rendering performance for algorithm animations
Managing distributed workloads for animation generation

Accomplishments that we're proud of

Built a complete AI-powered algorithm visualization platform
Successfully integrated Gemini with agent-based orchestration
Generated animated explanations directly from user code
Created a Live AI Tutor capable of explaining algorithm behavior
Deployed the system on Google Cloud infrastructure

What we learned

During development we learned:

How Gemini models can assist algorithm education
Techniques for converting execution traces into visual representations
How agent-based systems improve reasoning workflows
Challenges involved in building multimodal AI systems combining code, text, and visualization

For example, dynamic programming problems often involve computing optimal states:

$$ DP[i][j] = \max(DP[i-1][j],\; DP[i-1][j-w_i] + v_i) $$

Visualizing these transitions makes it easier to understand how optimal solutions are built.
