Airlock

What it does

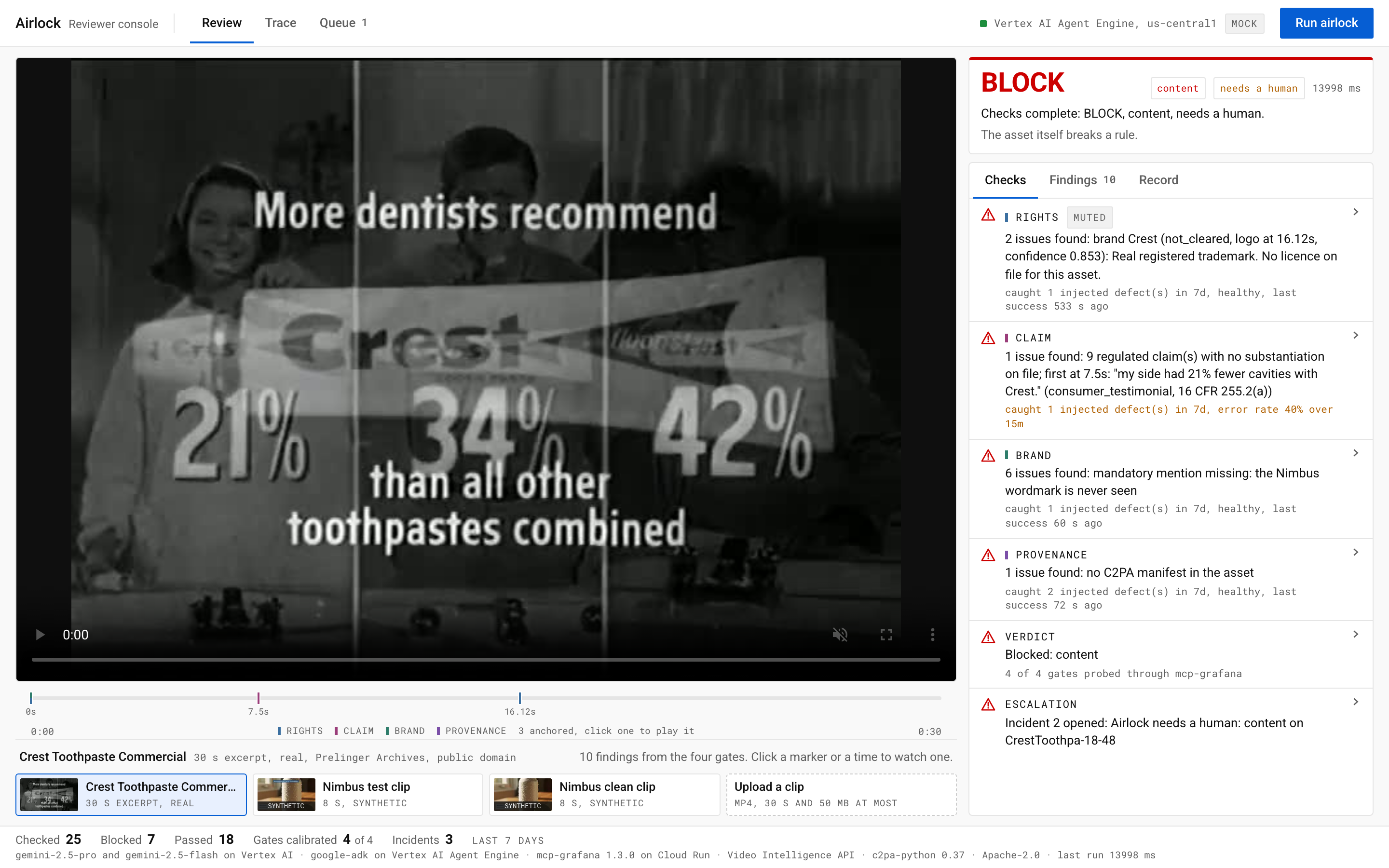

Airlock decides whether a generated media asset can ship, on proof. Four gates read the asset, each against a named source of truth: rights (the Video Intelligence API against a rights registry), claim (every spoken or on-screen claim extracted with timestamps, mapped to 16 CFR Part 255 and two real ASA rulings), brand (the asset against a brand charter) and provenance (the C2PA manifest verified cryptographically against a trust list). Then a verdict agent asks Grafana, through MCP, five questions about each gate before it is allowed to rule: whether Loki holds this run's event of the gate, then four PromQL questions (error ratio over 15 minutes and the runs behind it, seconds since the gate last succeeded, injected defects caught over 7 days, and whether the last calibration run caught its defect). A gate whose run Grafana did not see forces a BLOCK "control unavailable"; a gate that never caught a real defect is advisory and cannot contribute to a PASS. The verdict is written back to the Grafana dashboard as an annotation; then an investigator agent (gemini-2.5-flash, the same Grafana MCP tools) reads this run's Loki lines, the previous runs and the alert rules and names the root cause with the timestamp it rests on, and when only a human can lift the BLOCK, an incident is opened in Grafana IRM (or the open one for the same asset joined, as a drill on the free stack) carrying that note, which the reviewer closes from the console. A check takes one to four minutes, almost all of it the Video Intelligence operation: measured on the hosted console, the 8 s clean clip took 38 s (docs/RUNS.md, the cold judge pass of 2026-09-02, annotation 52) and 243 s (the console v3.1 verification the same night, annotation 55), and 189 s from Agent Engine while another check ran (audit item 4, annotation 50); the 30 s Crest excerpt took 72 s (first console verification, 2026-08-29) and 78 s (cold judge, annotation 51) on the console and 119 s from Agent Engine with three Video Intelligence jobs overlapping (verification A). Every check reports what it cost at list price (tokens, video minutes, dollars), pushed to Grafana beside the verdict. The control also proves itself twice a day: a scheduled job re-runs every injected defect and one clean clip, and a gate whose defect slipped through loses its right to PASS until it catches again.

How I built it

All decision logic is plain, unit-tested Python (179 tests, none of them calls a model): the four gate decisions, the two verdict rules, the escalation rule. Google ADK is the runtime envelope: a SequentialAgent whose first step is a ParallelAgent of the four gates (each a BaseAgent around a plain function, run in a thread so they really overlap), then a verdict BaseAgent, then the one LlmAgent of the pipeline, the investigator (gemini-2.5-flash with the mcp-grafana toolset, six tool calls at most, a fallback note on any failure, the verdict never depends on it), then an escalation BaseAgent, deployed on Vertex AI Agent Engine. The models label, the rules decide: gemini-2.5-pro extracts every claim with its timestamps, quote and kind under a JSON schema (flash mis-scales video timestamps, measured), gemini-2.5-flash reads the asset against the charter under a schema (wordmark seen, dominant colours, tone words); the claim and brand decisions are plain functions over those labels, so a wrong label is a wrong decision, which is what the calibration ledger exists to catch. The Video Intelligence API finds logos, faces, text and explicit content; the c2pa-python library verifies manifests. Grafana is reached through the open-source mcp-grafana server deployed on Cloud Run in streamable HTTP mode behind its own bearer, from ADK's McpToolset with a header provider; the gates push their counters through Grafana Cloud's Influx line-protocol endpoint and their events through Loki. A calibration ledger (python -m airlock.calibrate) runs one real injected defect per gate through the real gate and pushes the catch or the miss, which is what gives a gate the right to block. The reviewer console is a Next.js app on Cloud Run that streams the Agent Engine run as server-sent events. The four gates are also published as MCP tools (airlock-mcp, FastMCP on Cloud Run behind a bearer) so another agent can call a gate on a GCS asset and read the rules the verdict applies.

Challenges

The instrument that runs green while measuring nothing was the whole point, and it bit the build twice on the first day: a gate that failed on GCS-only assets recorded a calibration miss (kept in the ledger as a miss), and a race in the Gemini client construction made a gate error under parallel load, which the verdict then reported as "control unavailable, error rate 20 percent over 15 minutes" on a run where every gate had just passed. The hosted Grafana MCP endpoint is browser OAuth, so the open-source server runs on Cloud Run. Grafana Incident on a fresh free stack refuses API calls until the app is opened once, so the escalation carries a fallback annotation. The Video Intelligence API takes 30 s alone and 108 s when three jobs overlap, which is why the gates run in parallel and the real demo asset is a 30 s excerpt. And a self-issued C2PA signer validates as "untrusted" until it is on the reader's trust list, which is the correct behaviour and became the trust list feature. And the Grafana Cloud free stack pauses after idle days and answers 503 while it wakes: the scheduled proof failed on its first attempt twice for that reason (Cloud Run job executions airlock-daily-proof-877cd at 2026-09-04 12:05 UTC and airlock-daily-proof-kwqbk at 2026-09-05 00:04 UTC, list_datasources answered status 503) and passed on the job's retry, so a Cloud Scheduler job now GETs the console health route every 30 minutes to keep the stack awake (infra/gcp/keepalive.sh).

Accomplishments

An evaluation on 16 assets (10 more real Prelinger commercials and 6 synthetic clips), reproducible from the repository (scripts/fetch_assets.sh cuts the excerpts from archive.org and checks their hashes) and scored per gate and per rule against a hand-labelled manifest: by status, 100 percent precision and recall on every gate (rights 10 of 10 on n=16, claim 3 of 3 on n=5, brand 2 of 2 on n=6, provenance 14 of 14 on n=16); per rule, every expected rule fired except the unknown-brand rule on one spot where Video Intelligence found no logo (9 of 10), and one forbidden rule fired (explicit content on a 1963 family party, 0 of 1); the brand on screen was named on 4 of 10 real spots. A median of 0.52 USD per 30 s spot at list price (n=16), 41.1 s median for the rights gate and 2 ms for provenance (eval/EVAL.md, run of 2026-09-05, the misses in its "Surprises" section). And annotations and incidents on the Grafana stack from the first day, each one a verdict a judge can read back: the real 1960s commercial blocked on four gates, the run with the rights telemetry dark for 16 minutes blocked as "control unavailable" although every gate had passed, the run after a calibration miss blocked as "uncalibrated control", and the first PASS only once all four gates were healthy and calibrated on a clean signed asset.

Built With

• agent-engine
• c2pa
• cloud-run
• fastmcp
• gemini
• google-adk
• grafana-cloud
• loki
• mcp
• mcp-grafana
• next.js
• python
• secret-manager
• typescript
• veo
• vertex-ai
• video-intelligence
