AI Software Architecture Reviewer

AI Software Architecture Reviewer – AI-powered analysis of software architecture documents with insights on security, scalability, performance, and maintainability.

Comment

Inspiration

Software architecture reviews are usually performed manually by experienced architects and developers. This process is time-consuming, subjective, and difficult to scale across large projects. We wanted to build an AI-powered system that could automatically analyze architecture documents, identify architectural patterns, evaluate quality attributes, and provide actionable recommendations. Our goal was to make architecture reviews faster, more consistent, and accessible to every development team.

What it does

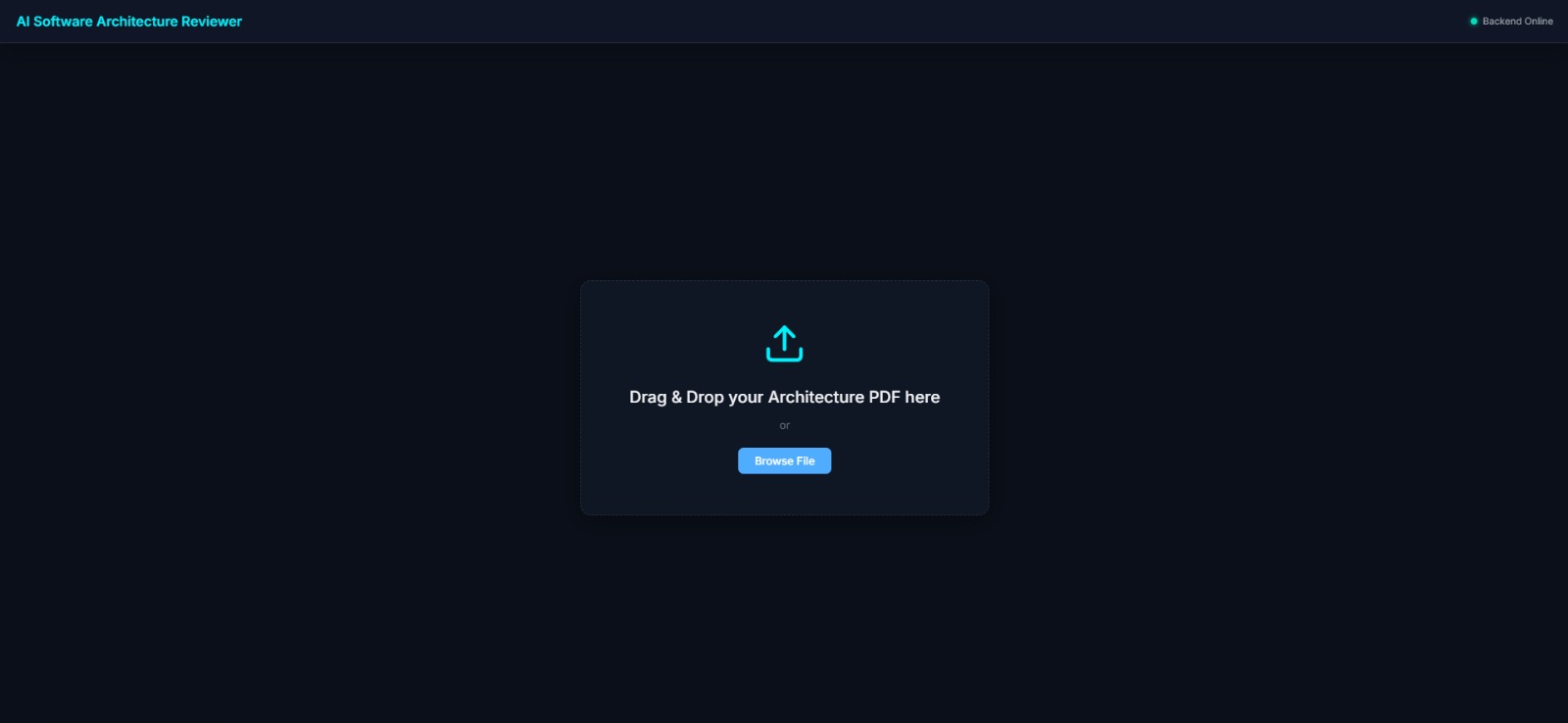

AI Software Architecture Reviewer allows users to upload software architecture documents in PDF format and receive an automated AI-driven analysis.

The platform:

  • Extracts and processes architecture documents
  • Identifies architecture patterns such as Layered, Monolithic, and Microservices
  • Evaluates Security, Scalability, Performance, Maintainability, and Availability
  • Generates architecture scores and recommendations
  • Uses semantic search to understand document context

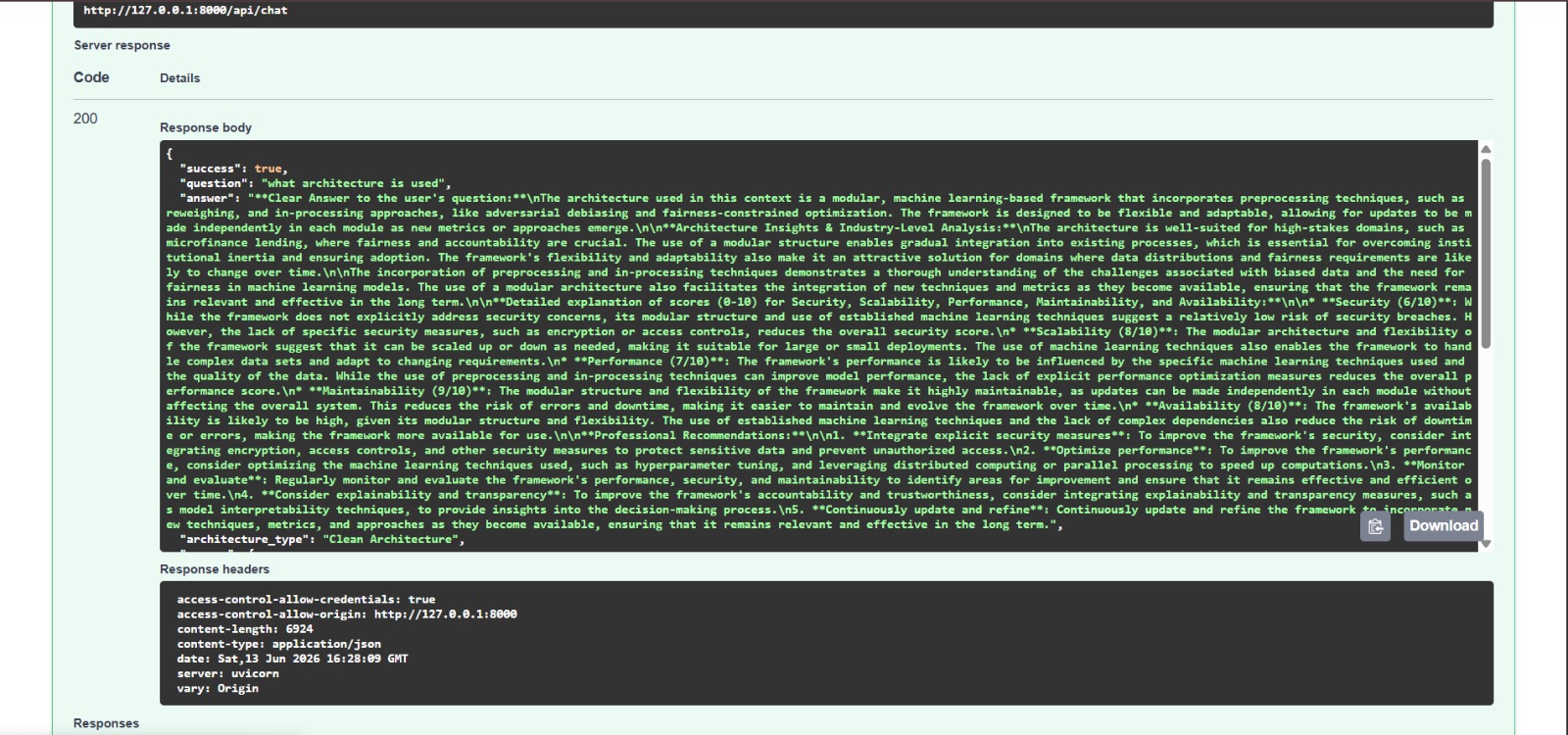

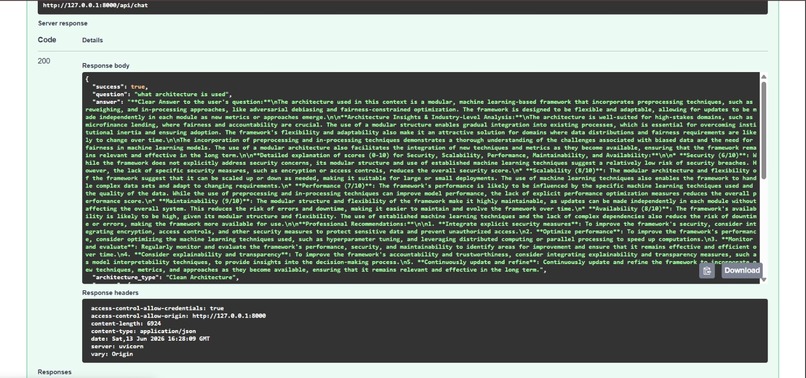

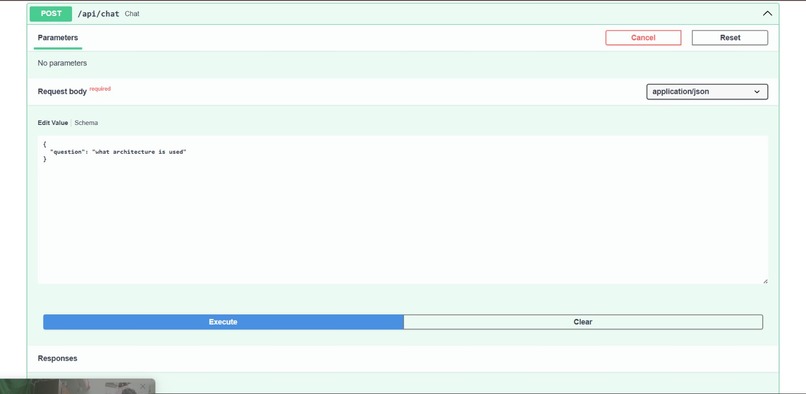

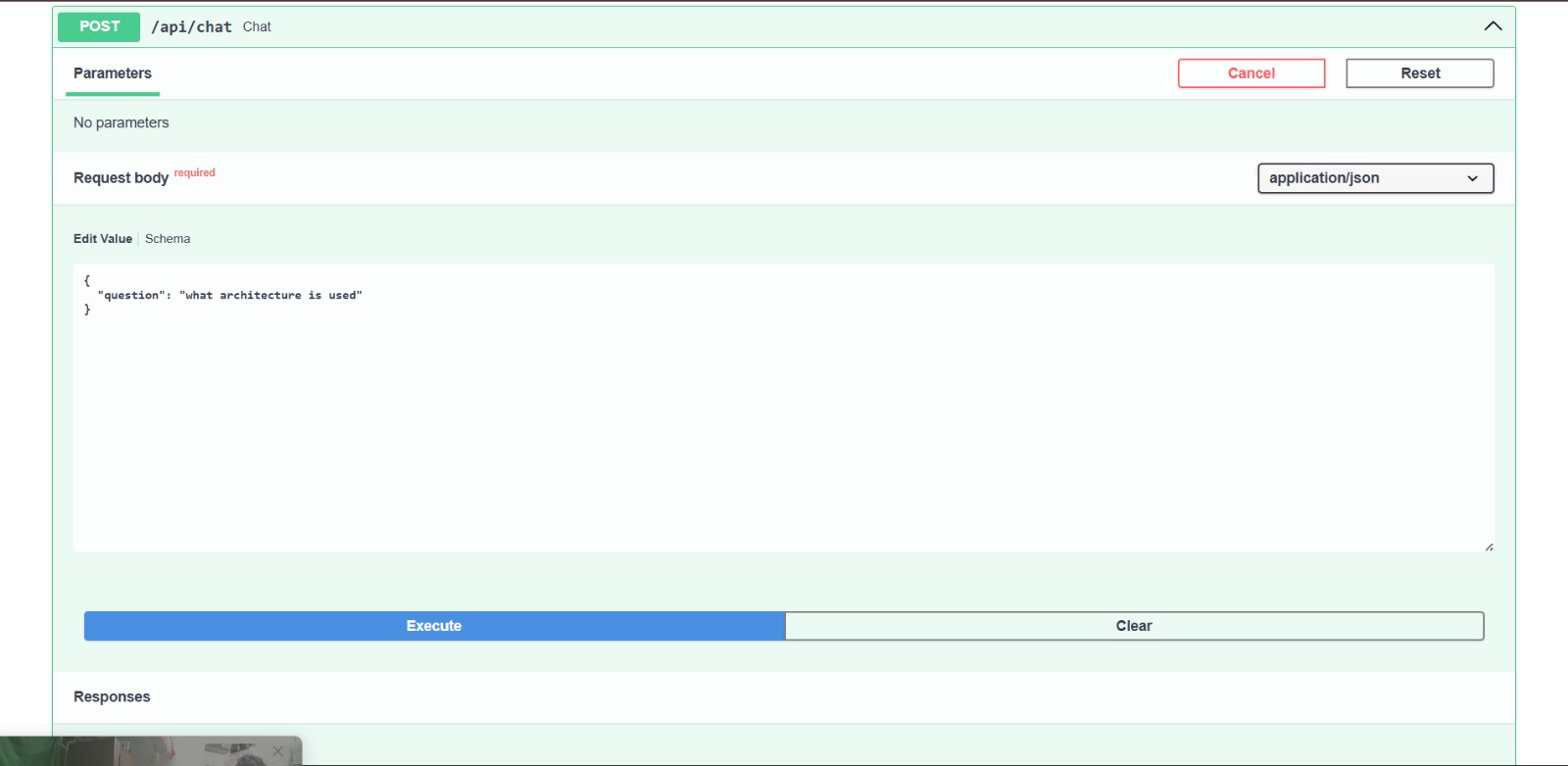

  • Provides an AI-powered chat interface for architecture-related questions
  • Generates downloadable PDF reports containing analysis results

How we built it

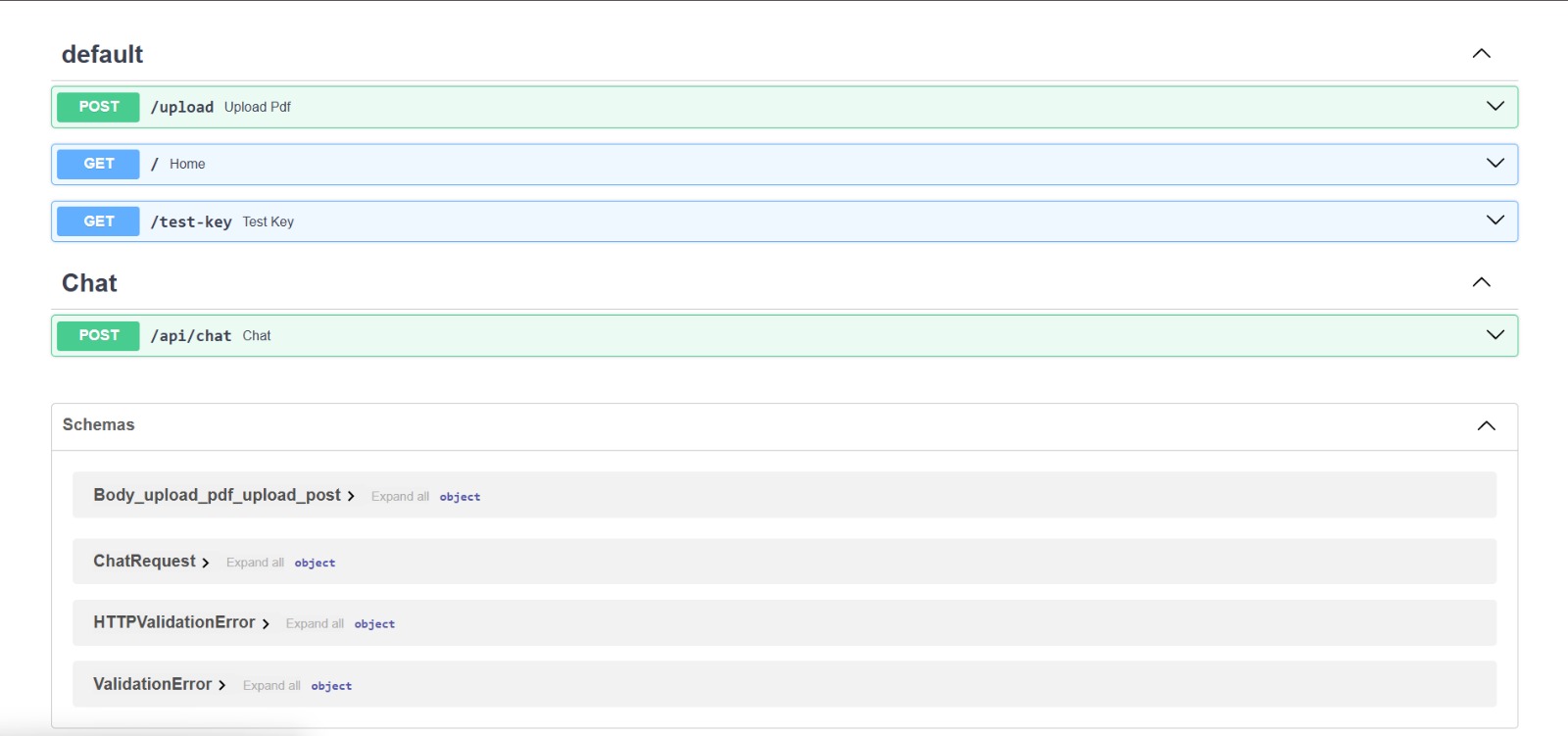

We built the backend using FastAPI and Python.

The AI pipeline follows:

PDF Upload → Text Extraction → Chunking → Embeddings → ChromaDB → Retriever → RAG Pipeline → LLM Analysis

For document understanding, we used:

  • PyMuPDF for PDF parsing
  • Sentence Transformers for embeddings
  • ChromaDB as the vector database
  • LangChain for orchestration
  • OpenAI/Groq APIs for LLM inference

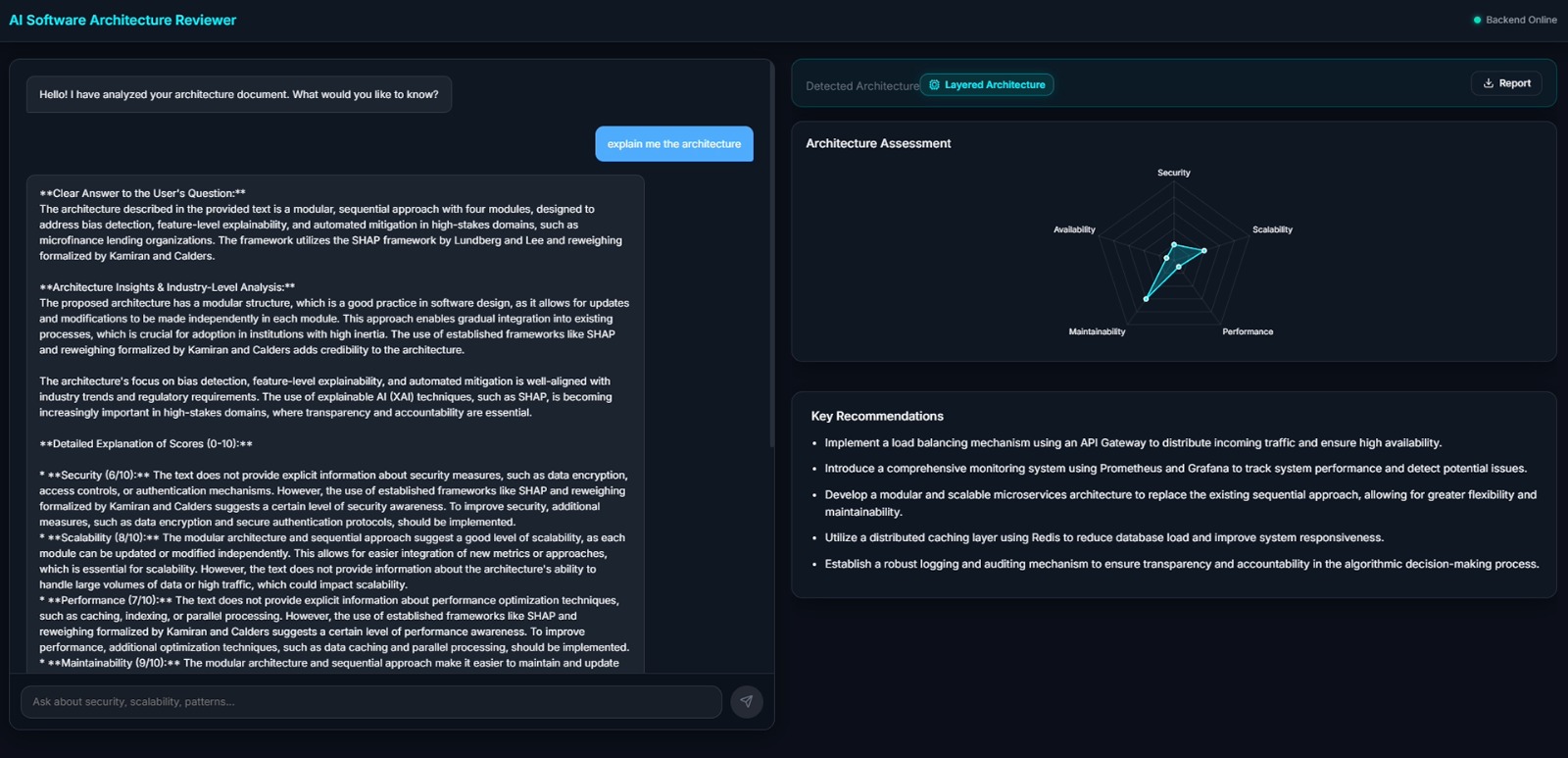

The frontend was built using React, Vite, HTML, CSS, and JavaScript. We created an interactive dashboard that allows users to upload documents, visualize architecture scores, interact with AI chat, and download reports.

Challenges we ran into

One of the biggest challenges was designing a reliable RAG pipeline that could understand software architecture documents and retrieve relevant context accurately. We also faced challenges in architecture classification, generating meaningful scoring metrics, handling large PDF documents, and integrating AI-generated recommendations into a user-friendly interface.

Frontend-backend integration and managing vector search workflows were also important technical challenges throughout development.

Accomplishments that we're proud of

  • Successfully built an end-to-end AI architecture review platform
  • Implemented a complete RAG pipeline using embeddings and vector search
  • Automated architecture quality assessment
  • Generated actionable architecture recommendations
  • Built an interactive AI chat experience for architecture discussions
  • Created downloadable PDF reports
  • Integrated modern AI technologies such as LangChain, ChromaDB, and Large Language Models

What we learned

Through this project, we gained hands-on experience with:

  • Retrieval-Augmented Generation (RAG)
  • Vector Databases and Semantic Search
  • Embedding Models
  • FastAPI Backend Development
  • React Frontend Development
  • LangChain Workflows
  • Software Architecture Evaluation
  • AI-Powered Recommendation Systems
  • End-to-End Full Stack AI Application Development

What's next for AI Software Architecture Reviewer

Future improvements include:

  • Architecture diagram analysis using Computer Vision
  • Multi-document architecture comparison
  • Cloud deployment and team collaboration features
  • Advanced architecture benchmarking
  • CI/CD integration for continuous architecture reviews
  • Support for UML diagrams and design documents
  • Real-time architecture monitoring and insights

Our vision is to evolve the platform into a complete AI-powered architecture governance solution that helps organizations design, review, and improve software systems at scale.
