AI-Powered Infrastructure Inspection System

AI-powered vision and language system that detects infrastructure damage from images and generates professional inspection reports in seconds.

Comment 2

Inspiration

Infrastructure failures — cracked bridges, corroded pipelines, damaged roads — cost billions annually and put lives at risk. Traditional inspections are manual, slow, and inconsistent. We wanted to build a tool that lets a field engineer simply snap a photo and instantly get an AI-powered damage assessment with a professional PDF report, reducing inspection time from hours to seconds.

What it does

AI Field Inspector is a full-stack web application that automates infrastructure damage detection. A user uploads a photo of infrastructure (roads, walls, bridges, etc.), and the system:

  1. Classifies the image as cracked or uncracked using a custom-trained MobileNetV2 deep learning model (100% validation accuracy)

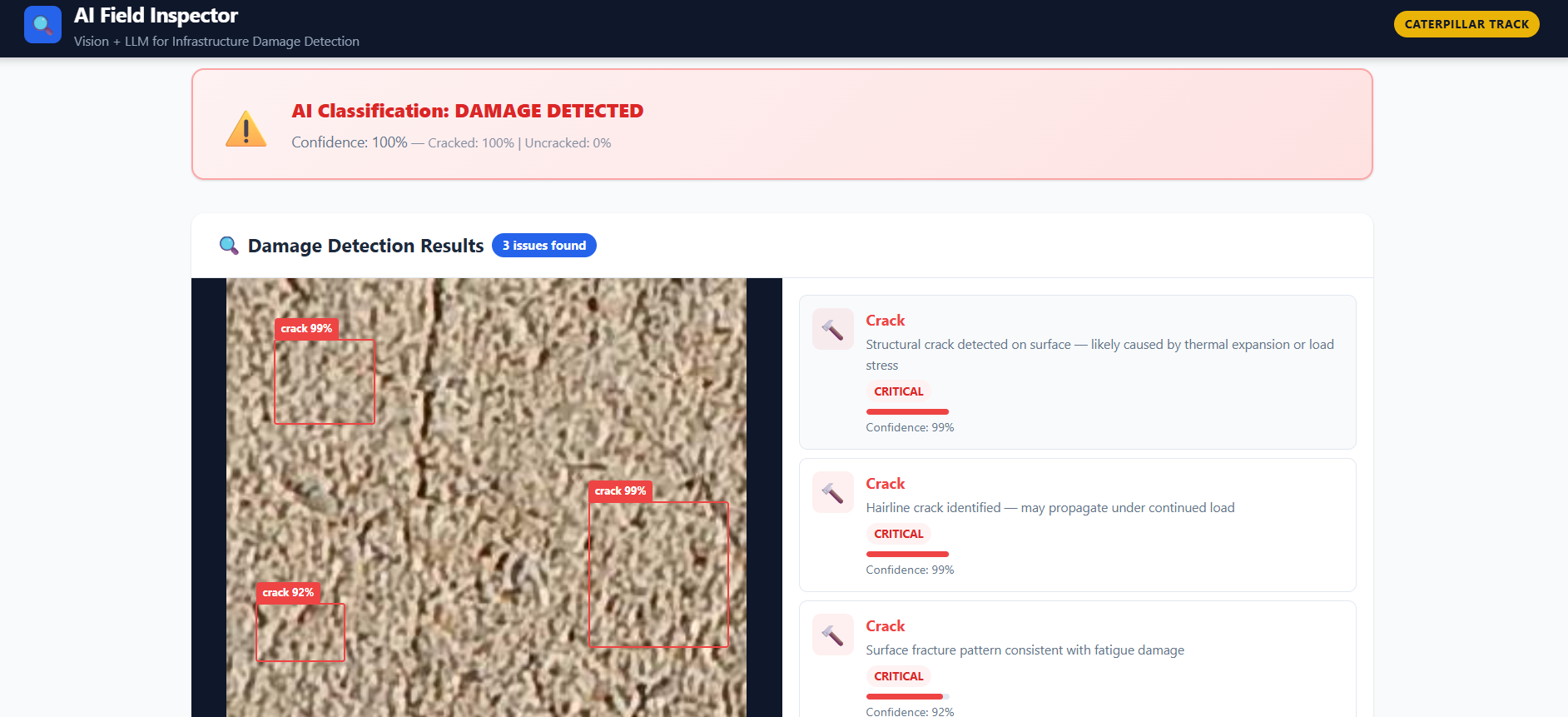

  2. Detects and localizes damage regions with bounding boxes, severity levels (Critical/High/Medium/Low), and confidence scores
  3. Generates a detailed inspection report using Google Gemini 2.0 Flash LLM with actionable recommendations

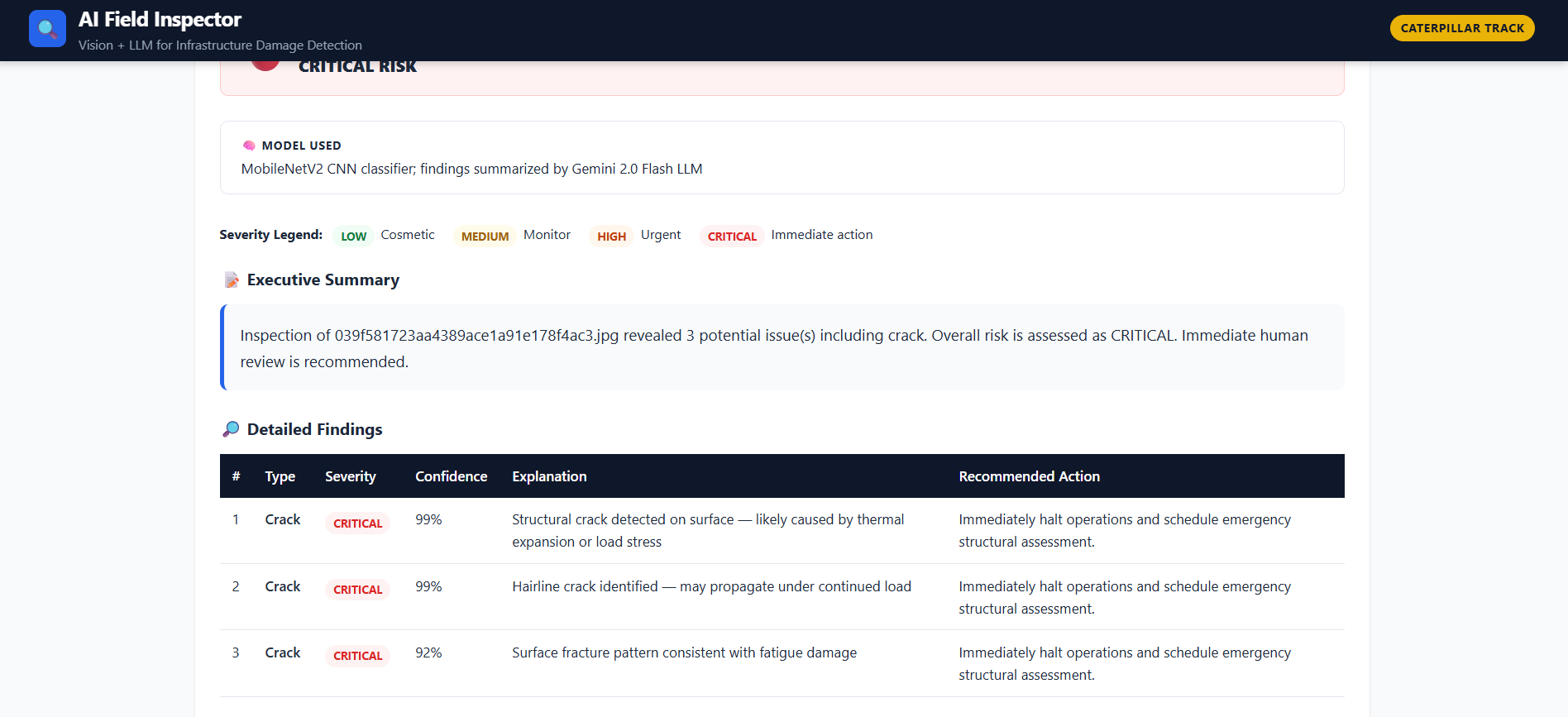

  4. Produces a downloadable PDF report with the image, findings, severity legend, model metadata, and processing time

How we built it

  1. Backend: FastAPI serving a REST API with endpoints for upload, detection, reporting, and full inspection pipelines
  2. ML Model: Trained a MobileNetV2 binary classifier on a dataset of 50 cracked and 50 uncracked infrastructure images using PyTorch, achieving 100% validation accuracy
  3. LLM Integration: Google Gemini 2.0 Flash generates structured, professional inspection reports from detection results with graceful fallback if the API is unavailable
  4. PDF Generation: fpdf2 creates polished PDF reports with embedded images, severity legends, and metadata

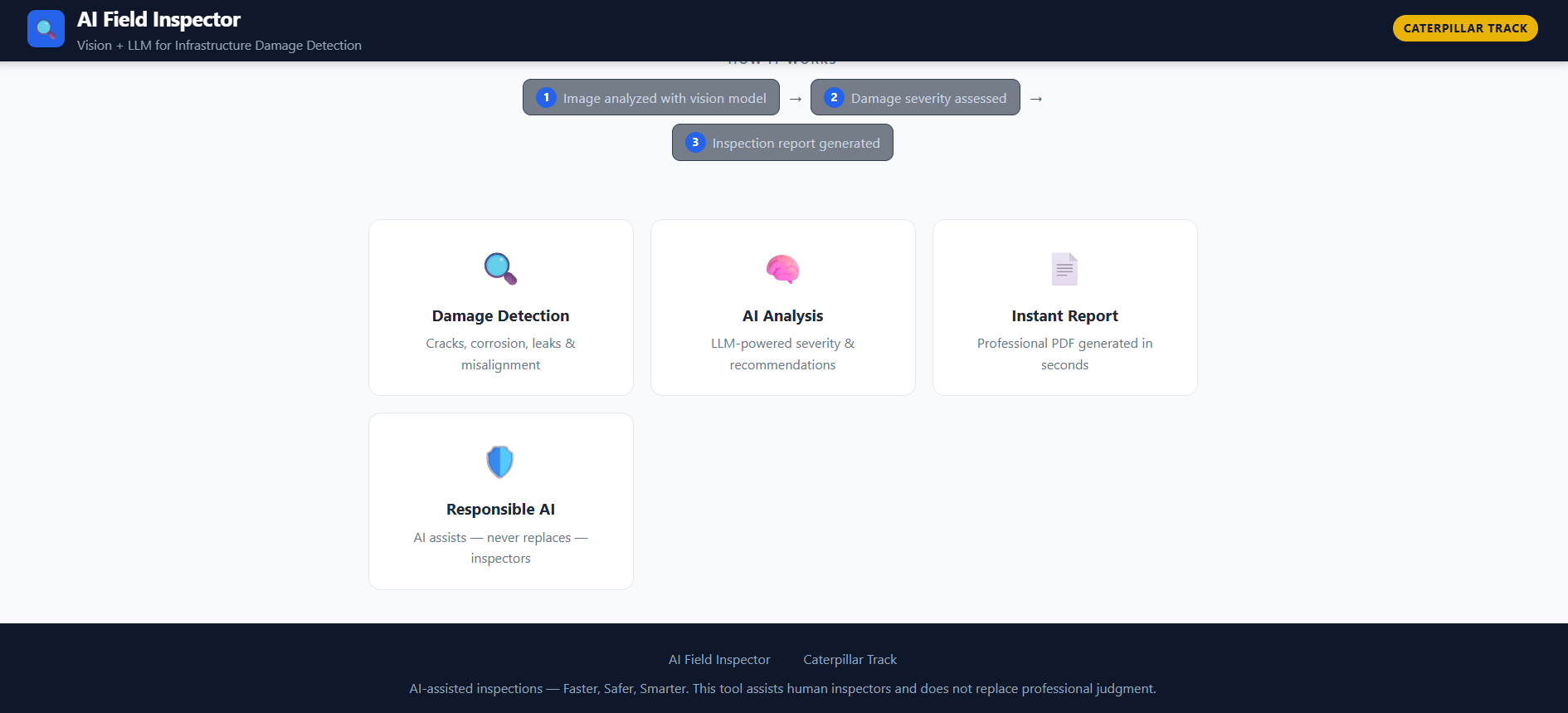

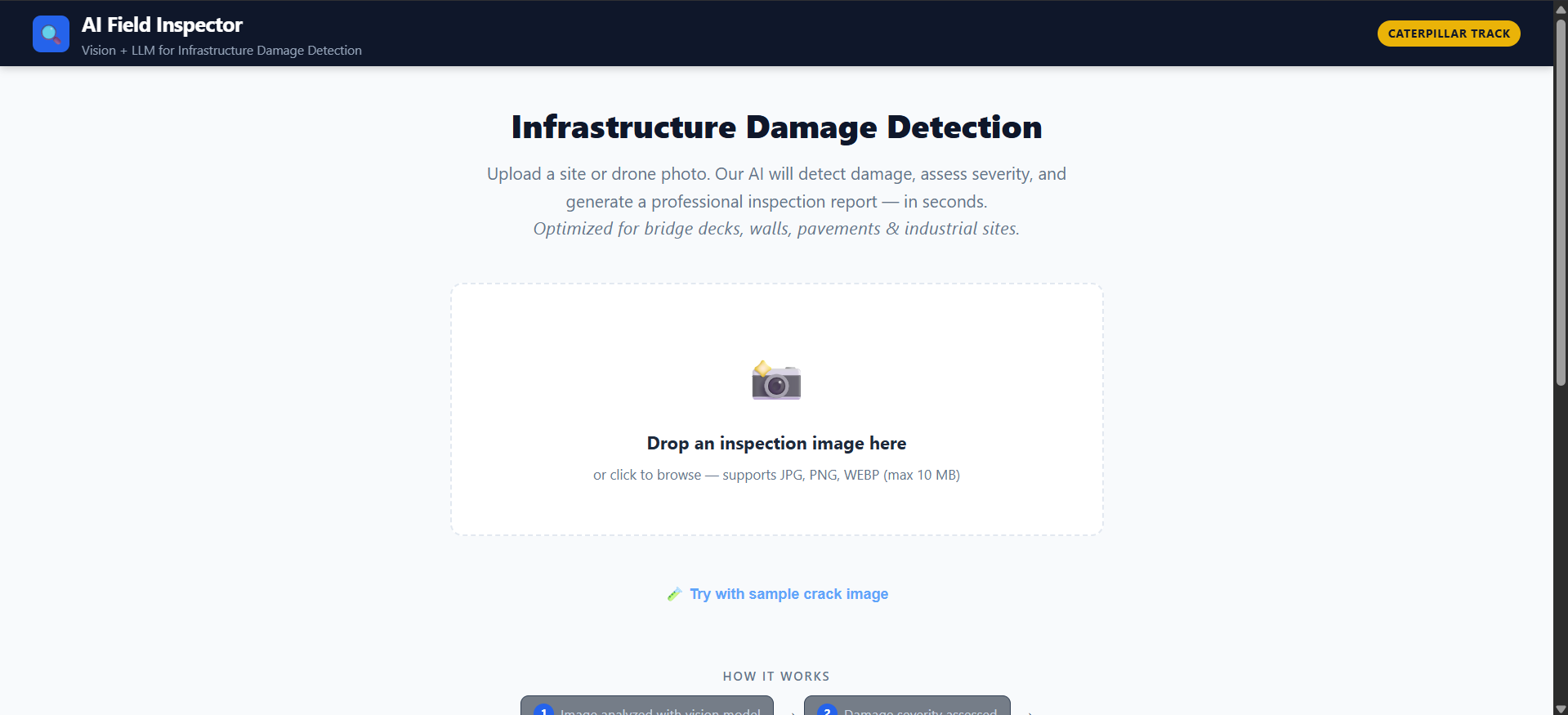

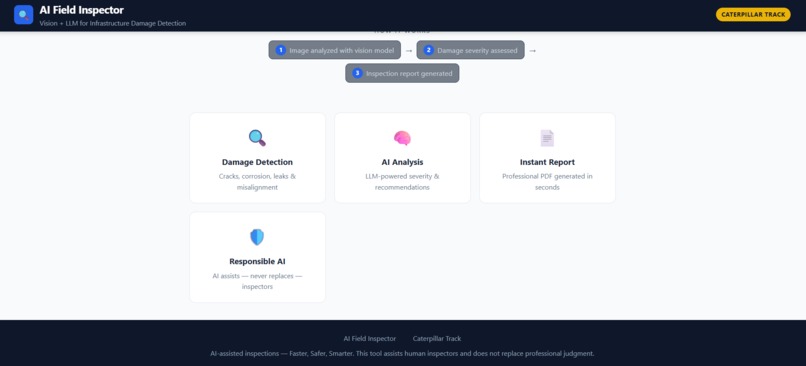

  5. Frontend: React 18 single-page application with drag-and-drop upload, real-time detection visualization with bounding box overlays, and a demo image button

Challenges we ran into

  1. PyTorch + Node.js on one server: Cloud platforms like Railway detect only one runtime. We solved this by creating a custom Dockerfile that installs both Python and Node.js, builds the React frontend at deploy time, and serves everything from FastAPI
  2. Gemini SDK deprecation: The google-generativeai SDK was deprecated mid-development; we migrated to the new google-genai SDK and updated all API calls PDF Unicode crashes: Special characters from LLM-generated reports caused fpdf2 to fail. We built a _sanitize() function to strip problematic characters
  3. File encoding issues: React source files created on Windows had BOM encoding that broke the build; we had to regenerate files with ASCII encoding

Accomplishments that we're proud of

  1. 100% validation accuracy on our crack classification model with a lightweight MobileNetV2 architecture
  2. End-to-end pipeline from image upload to AI-generated PDF report in under 5 seconds Single-service deployment — one Docker container runs the entire stack (React + FastAPI + PyTorch + Gemini)
  3. Graceful degradation — the system works even without YOLO weights, without the Gemini API key, and without GPU, falling back to simulation and template reports
  4. Professional PDF reports with severity legends, model metadata, and processing time metrics

What we learned

  1. How to train and deploy a custom image classifier using transfer learning with MobileNetV2
  2. Integrating multiple AI systems (CNN classifier + LLM report generation) into a cohesive pipeline 3.The complexity of deploying ML models to cloud platforms with memory and disk constraints 4.Building production-ready APIs with proper error handling, fallback mechanisms, and CORS configuration 5.Containerizing full-stack applications with both Python and Node.js runtimes

What's next for AI-Powered Infrastructure Inspection System

  1. Multi-class detection: Expand beyond crack detection to corrosion, water damage, structural deformation, and vegetation overgrowth
  2. YOLO object detection: Integrate YOLOv8 for precise bounding box localization instead of simulated regions
  3. Mobile app: Build a React Native companion app for field engineers to capture and inspect on-site
  4. Historical tracking: Add a database to track inspection history per site, enabling trend analysis and predictive maintenance
  5. Drone integration: Accept aerial/drone imagery for large-scale infrastructure like bridges and power lines
  6. Multi-language reports: Generate inspection reports in multiple languages for global deployment
