Ai-Cad

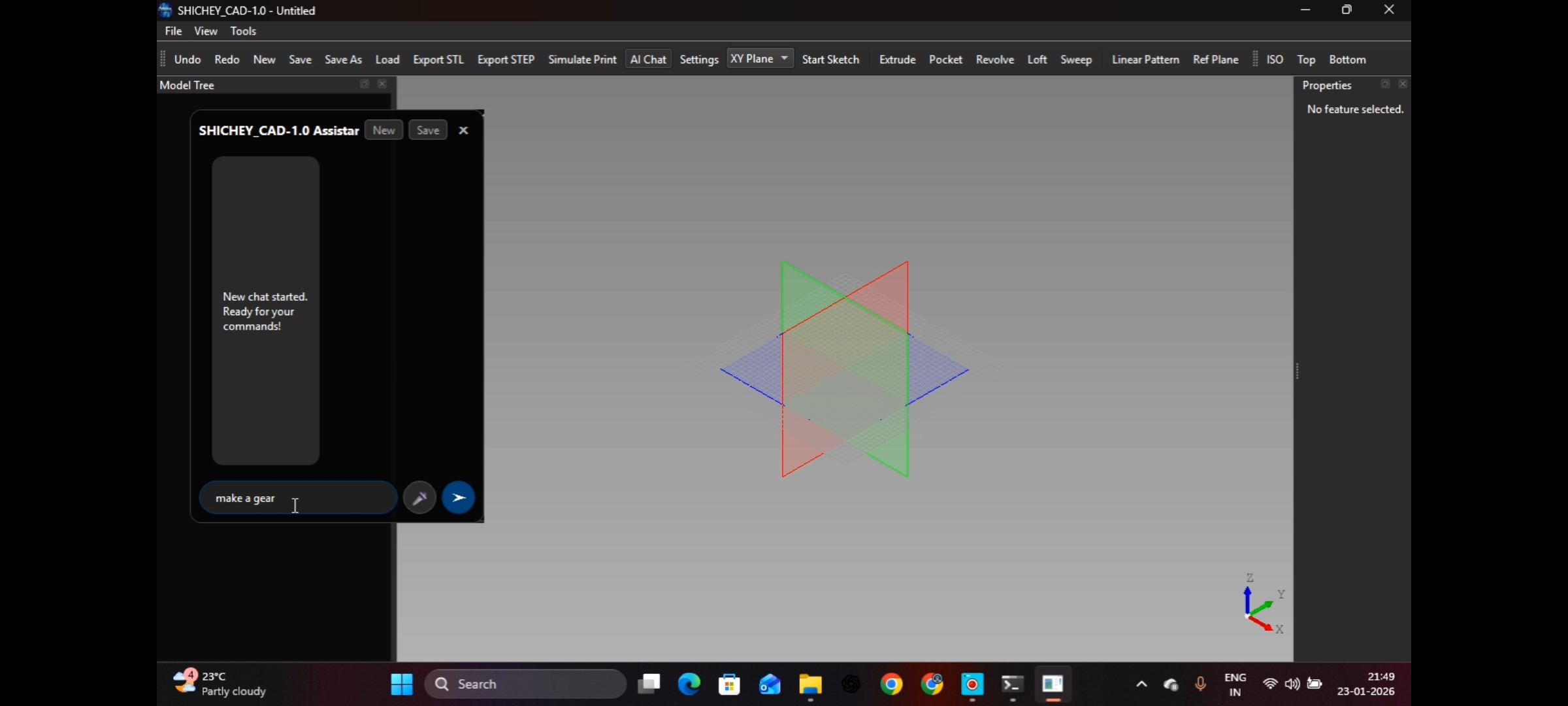

This image shows interface of software

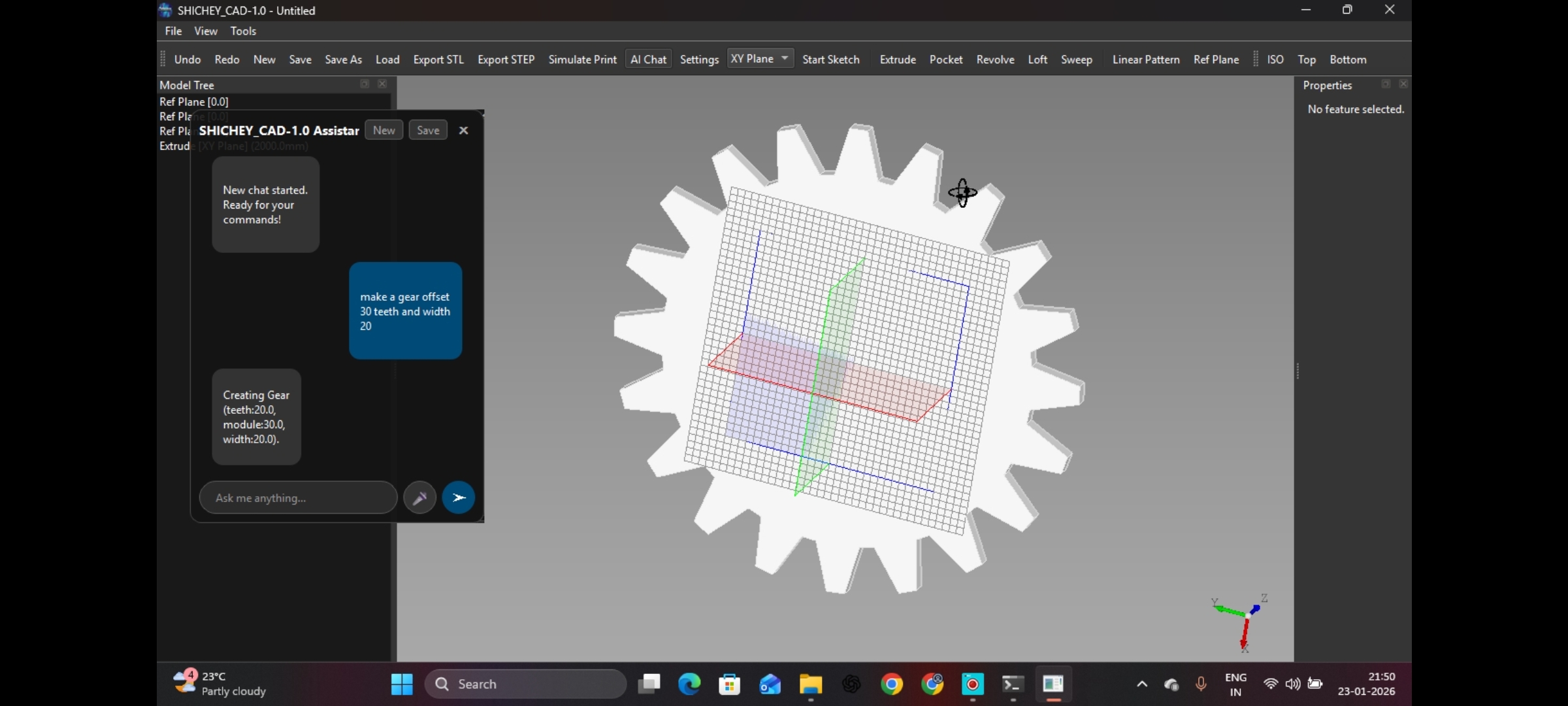

This image shows command to gear model

This project is an AI-assisted CAD software designed to support mechanical engineers during the design process.

The system works offline and uses intelligent prompt-based logic to help users generate CAD models, understand design intent, and prepare designs for simulation workflows.

I built this project using AI tools such as Gemini 3/Gemini 2.5 (while heavy usage of gemini 3) and VS Code to design the interaction logic, workflows, and AI guidance without relying on traditional coding methods.

The goal is to make CAD design faster, more accessible, and easier for beginners and engineers.

Built With

anaconda
gemini
python

Submitted to

Gemini 3 Hackathon

Created by

Hii i am chetanakumar yadagude mechanical engineering student
I contributed to the AI CAD project by designing and refining the system using proper prompt engineering.
I used Gemini 2.5 and Gemini 3 to generate logic, workflows, and CAD automation ideas.
VS Code was used as the main editor to integrate AI-generated outputs into the project structure.
Instead of manual coding, I focused on clear prompts to control CAD actions and backend behavior.
I tested different prompts to improve accuracy, automation, and response quality of the AI CAD system.
This approach helped build a functional AI-assisted CAD workflow without traditional coding knowledge.

Chetanakumar Yadagude
Mechanical Engineering student prompt-driven design systems, and engineering automation.
