ABSTRACT
Internet of Things has revolutionized all the sectors, however in Agriculture there are still a plethora of problems plaguing the farmers. For instance the unavailability of proper information on real-time weather and soil conditions of his land at his disposal, and the lack of smart and integrated machinery to do automation during the times of unconventional weather and environmental situations. These vacuums in agriculture demand the digitization of the ecosystem and building a complete end to end automatized digital solution.
We are taking the initiative to build a fully decentralized solution which allows for the farmers, To sell their goods directly to the customers using our Blockchain Marketplace Gather information about the real-time weather and soil conditions from our single compact sensor and get notified at fingertips using our application Intelligent Crop Maintenance systems(ICMS) that take care of insects and pesticides, water sprinkling, etc. For underground plantations, the farmer is presented with the option to perform automatic plucking of crops which will be performed by the gripper only after his consent Give personalized recommendations based on Market demand and also from the competitive landscape which boosts the likelihood of selling the crops to consumers/ businesses
CONTENT
Use Case Description Architectural Components Architecture Innovative Technologies Artificial Intelligence Applications Summary
USE CASE DESCRIPTION
With globalization and the ever-increasing population, the amount of food produced is at its peak. Hence, governmental organizations are giving maximum emphasis on smart agricultural methods to produce maximum yield which is sustainable and safe to our planet. The pressing problems however are, how to get maximum yield with limited resources (like land, water) and how to avoid the agricultural land getting degenerated due to the overuse of chemicals and pesticides. With 47.96% of total land, 17 million hectares of agricultural land in Germany, there is an enormous opportunity to build smart solutions in the agricultural sector.
The primary aim of our solution is to enhance the longevity of the agricultural land by providing smart recommendations to the farmers on what to grow, based on the real-time conditions of the environment as well as the demands of the market. This will subsequently increase the efficiency of the farmer which leads to an increase in Sales & Revenue by selling the goods directly to the consumers/businesses by using our platform. Intelligent Crop Maintenance Systems (ICMS) allows for automation in repetitive tasks like sprinkling water at the right time based on the soil conditions and preventing insects from affecting the crops.
We not just limit ourselves providing smart solutions to safely growing and maintaining the crops, we also use Big Data Analytics and AI (Artificial Intelligence) to provide predictive analysis on what crops to grow based on the competitive landscape and also give the sales projections to the farmers based on the nature/type of their land.
ARCHITECTURAL COMPONENTS
Sensor Module: References: https://eu.mouser.com/applications/smart-agriculture-sensors/
Our Sensor Module is a complete aggregator of multiple different sub-modules: Submodule 1 measures the soil density, humidity, pH, and soil nutrients level and also measures the clay, organic matter, and moisture content of the soil. Submodule 2 measures the wind direction, relative humidity, solar radiation, and atmospheric pressure along with the temperature. Submodule 3 has WiFi Module to communicate the observed readings to our database https://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=7906489 https://iopscience.iop.org/article/10.1088/1742-6596/978/1/012014/pdf https://eckstein-shop.de/SparkFun-Soil-Moisture-Hygrometer-Detection-Feuchtigkeits-Sensor-Bodenfeuchte https://de.aliexpress.com/item/DFRobot-Schwerkraft-Analog-Spear-Tipp-pH-Sensor-Meter-Kit-wtih-Signal-Sender-Foren-kompatibel-mit-Arduino/32846721226.html
Sensor Module Circuit Diagram:
Web Application: A cross platform web application built with React is used by the farmers to get notifications from the sensor modules and interact with our added services.
Cloud Platform: All the data collected by the sensor modules will be stored for analysis in Cloud platform like AWS/ Things.io to perform Big Data Analysis and derive meaningful insights
Quorum Blockchain: The Supply chain tracking of information when the farmer is selling his products to either main retailers or individual customer is recorded in the distributed ledger for audit and security purposes.
Data Visualization: After performing analysis on the market trend and local soil / weather conditions our AI Model will give prediction and a holistic visualization of the overall yield which can be produced in the farm along with the Return of Investment (ROI) in a easy to interpret way for the farmers.

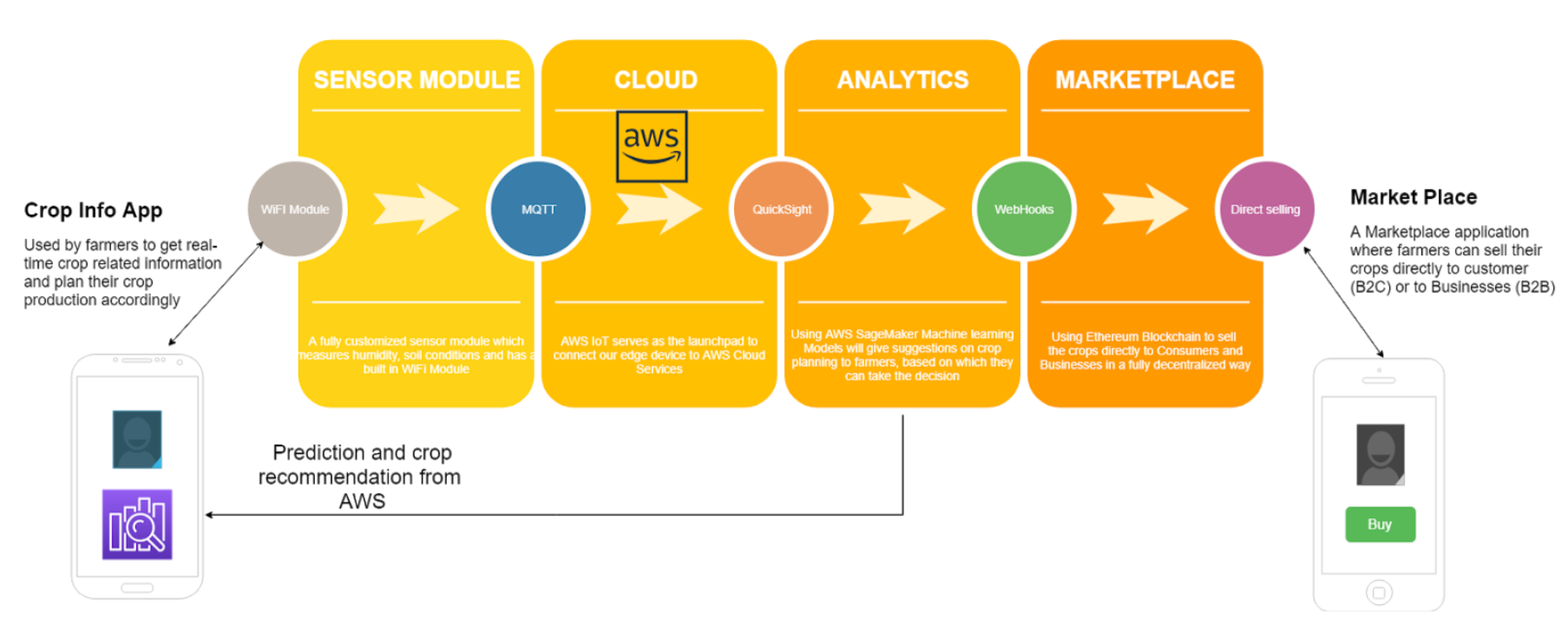

ARCHITECTURE
The Progressive Web Application (PWA) is available in all devices (Android/ iOS / Web Application) which is developed in React.js an open source library from Facebook The sensor module comprises of Sparkfun moisture sensor which gives data about accurate soil conditions and Dallas Semiconductor Temperature sensor along side weather conditions of the particular area using Google APIs AWS Greengrass will be used in the farming zone which allows all the machine to machine communication to happen along with the edge processing in the controller AWS Greengrass has built in AWS IoT SDK’s which will allows the controller to send the data to AWS Cloud, upon reaching the AWS Servers, we will categorize and process the sensor data based on the different MQTT Topics Amazon Sagemaker will be used to train the Machine Learning model which will also be deployed in the edge devices to give recommendations to the farmers regarding the crop planning The farmers will be shown interactive charts explaining the expected return of yield if they use the recommendation provided by the Machine Learning Model using AWS Quicksight Upon successful yield of crops, the farmers can use our Marketplace to distribute and sell the goods directly to the consumers (B2C Channel) or to big retailers (B2B) without any arbitrator or middleman in between using our Private Ethereum Blockchain The Customers buying from the farmers directly will be incentivized by a token based system which allows them to purchase more items in the marketplace in future using tokens
INNOVATIVE TECHNOLOGIES
Blockchain
In order to have a transparent marketplace where Farmers can directly sell their goods we have integrated a Private Ethereum based Blockchain which is not controlled by any single party and runs in multiple nodes / servers in a decentralized way
Machine Learning
Using AWS Sagemaker we can use both custom machine learning models as well as Amazon’s built in interface and make a recommendation engine to give yield return to the farmers
FUTURE ENHANCEMENTS
Tractor as a Service (TaaS)
Instead of availing loans and purchasing equipments at a higher cost, farmers can use our Tractor as a Service only during the time of harvesting and save costs as they pay based on the usage in hourly basis.
Also, farmers having tractors can register their tractor and allow the vehicle to make money passively when it is not of use to them
Drone based Aerial Surveillance as a Service
Covering the total land area of the crop / farming land using drones and providing quick real-time suggestions on the next yield instead of purchasing the equipments using Image Processing and Computer Vision techniques.
Driverless Tractor Complete automatized tractors which take care of the corps based on the schedule from the farmers and make dynamic decisions based on the surrounding conditions
Built With
- api
- blockchain
- bootstrap
- keras
- python
- quorum
- tensorflow
