Accident Prevention, Detection and Reporting Mechanism

Intelligent Vehicle Monitoring System with Drowsiness, Alcohol, and Crash Detection Linked to Google Maps Alerts

Comment

Smart Accident Prevention & Safety System

Inspiration

We live in a world where road safety is often taken for granted, until tragedy strikes. Every day, we hear about accidents caused by drunk driving, drowsiness, or delayed emergency response. Witnessing several such incidents around us, especially those that could’ve been avoided with early detection and immediate reporting, deeply moved us.

That’s when the idea sparked:
What if a smart system could prevent an accident, detect danger at the right time, and report it when it matters the most?

We didn’t want to build just another automated model. We wanted to build something that saves lives.
This is more than a project, this is purpose with passion.

What it Does

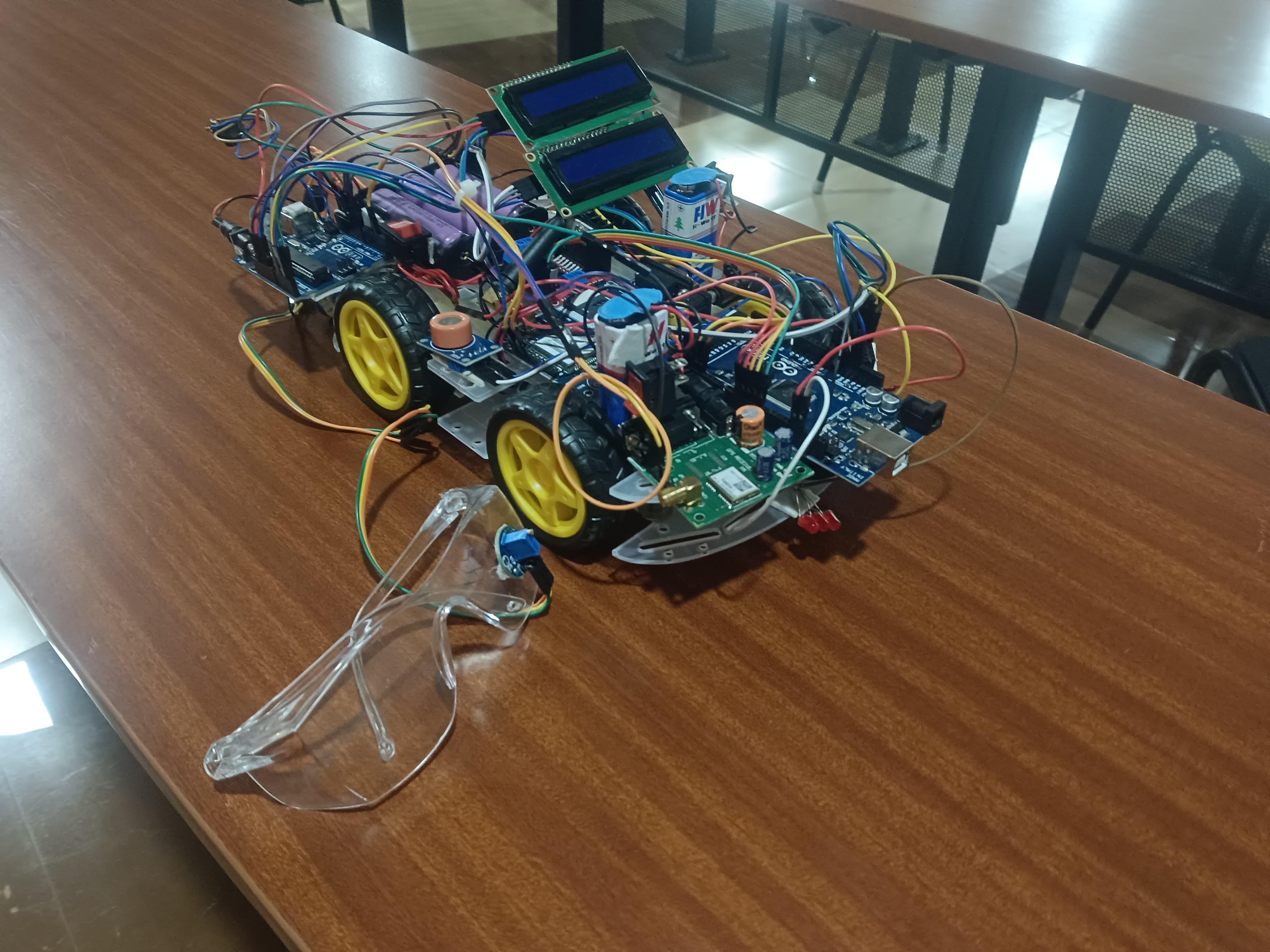

This is a fully functional, dynamically moving car system built for safety. It focuses on three key aspects:

Alcohol Detection

  • Uses MQ3 alcohol sensor to check alcohol levels in the driver's breath.
  • If the threshold is crossed, the car halts automatically and sends an SMS with the Google Maps location.

Drowsiness Detection

  • Monitors the driver’s eye activity via an eye blink sensor.
  • If eyes remain closed for 4–5 seconds, an alarm is triggered inside the car.

Accident Detection & Emergency Reporting

  • An accelerometer checks for sudden impacts.
  • If the force crosses a limit and the driver doesn’t cancel the alert within 30 seconds, it automatically sends a call and SMS with the real-time location to emergency contacts using GPS + GSM with Google Maps location URL.

Every feature is designed to act in real-time with zero compromise on speed or safety.

How We Built It

This project is a fusion of hardware creativity and software logic. Here’s the tech stack that powered it:

  • IDE: Arduino IDE
  • Microcontrollers: Arduino Mega & UNO
  • Motor Control: Gear motors + L298N Motor Driver
  • Communication: HC-05 Bluetooth Module
  • Sensors:
    • MQ3 (Alcohol)
    • Eye Blink Sensor (Drowsiness)
    • Accelerometer (Accident)
  • Location & Alerts: GPS Module (GPS-SIM28ML) + GSM (SIM900A) Module (with Google Maps integration)
  • Model: Custom-built chassis with real-world simulative components
  • Power Supply: Battery + External (dual-mode)

We modularized every feature and synchronized them across different Arduino boards to ensure smooth integration and performance.

Challenges We Ran Into

Execution was the real challenge, not the idea.

  • IR Sensor Control Failure: We began with IR-based control but faced signal issues. Even after testing multiple versions, the precision was poor.
  • Breakthrough: Switching to Bluetooth via HC-05 gave us perfect control and reliability.
  • Microcontroller Sync Issues: Managing two boards (UNO + Mega) introduced pin conflicts, serial communication issues, and sensor mismatches. Debugging these took intense effort.

But every failure became a lesson. And every bug fix brought us one step closer.

Accomplishments We’re Proud Of

  • Selected among the Top 10 out of 540+ projects at our college innovation expo
  • Wrote and tested over 200 code snippets
  • Built a fully functional, moving model that detects, decides, and acts in real-time
  • Went beyond just coding, we soldered, assembled, failed, and finally built something that could save lives

What We Learned

This project completely changed our learning curve:

  • Shifted from writing software to building hardware-software ecosystems
  • Learned:
    • Sensor calibration
    • Voltage regulation
    • GSM & GPS protocols
    • Google Maps API integration
  • Gained real-world skills in:
    • Serial communication
    • Arduino debugging
    • Real-time fail-safe systems

Most importantly, we realized that technology becomes meaningful when it solves real human problems.

What’s Next

We’re just getting started.

Future Enhancements:

  • Google Maps Embedded Display for:
    • Real-time tracking
    • Speed limits
    • Area-specific driving rules
    • Nearby hospitals, police, gas stations
  • Voice alerts based on location data
  • AI-based drowsiness detection using camera systems
  • Cloud storage of:
    • Accident data
    • Alcohol readings
    • Driver behavior logs
  • Potential Google Maps collaboration for a smart dashboard integration

Our vision:
A life-saving toolkit for every vehicle, smart, responsive, and always alert.
