Inspiration - LEO satellite communication!
What it does - it radiates!
How I built it - with wood and wire hangars!
Challenges I ran into - determining dimensions!
What I learned - how to use flux!
What's next for 2m 8-El. Yagi - testing on network/antenna analyzer, building a second yagi, connecting them with a cross-boom and testing again!!

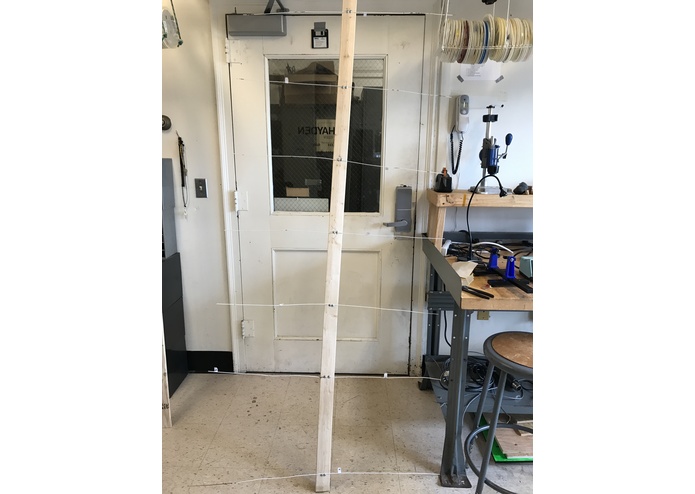

More details - 2m, 8-element yagi - boom is made of wood (pine, I believe), elements are made of wire hangers (steel, I think). 0.2*wavelength spacing between radiator and reflector, 0.15*wavelength spacing between all other neighboring elements. needs feed line to be tested on network/antenna analyzer. next steps are to build an identical yagi and mount both with a crossboom for circular polarization. overall goal is to build antenna for LEO satellite communication. will eventually build crossed yagi with aluminum and mount on AzEl rotor in club space!
Built With
- wire-hangers
- wood
- wood-screws
