Recharger and battery-pack

•

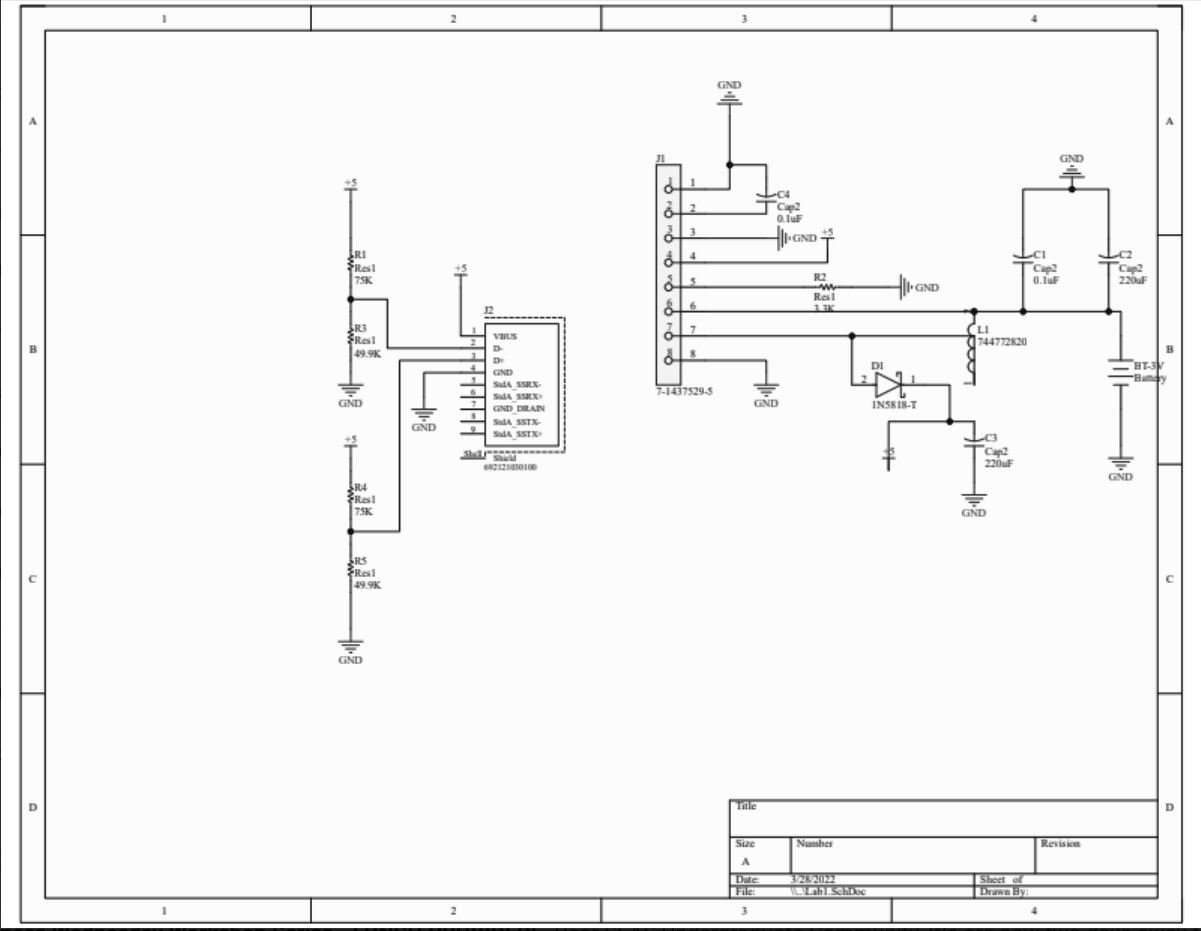

  Schematic

•

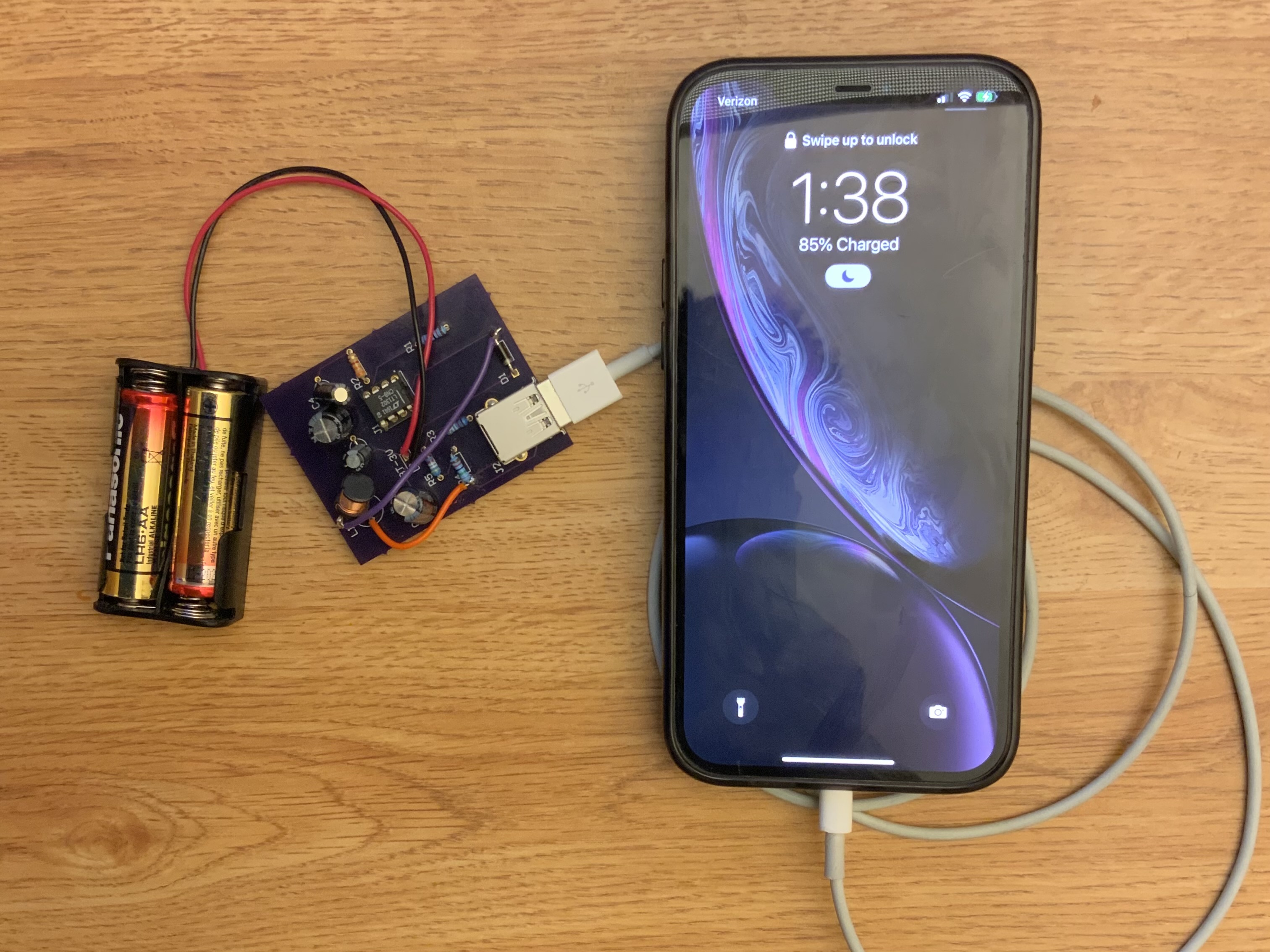

  Chargeing IPhone

•

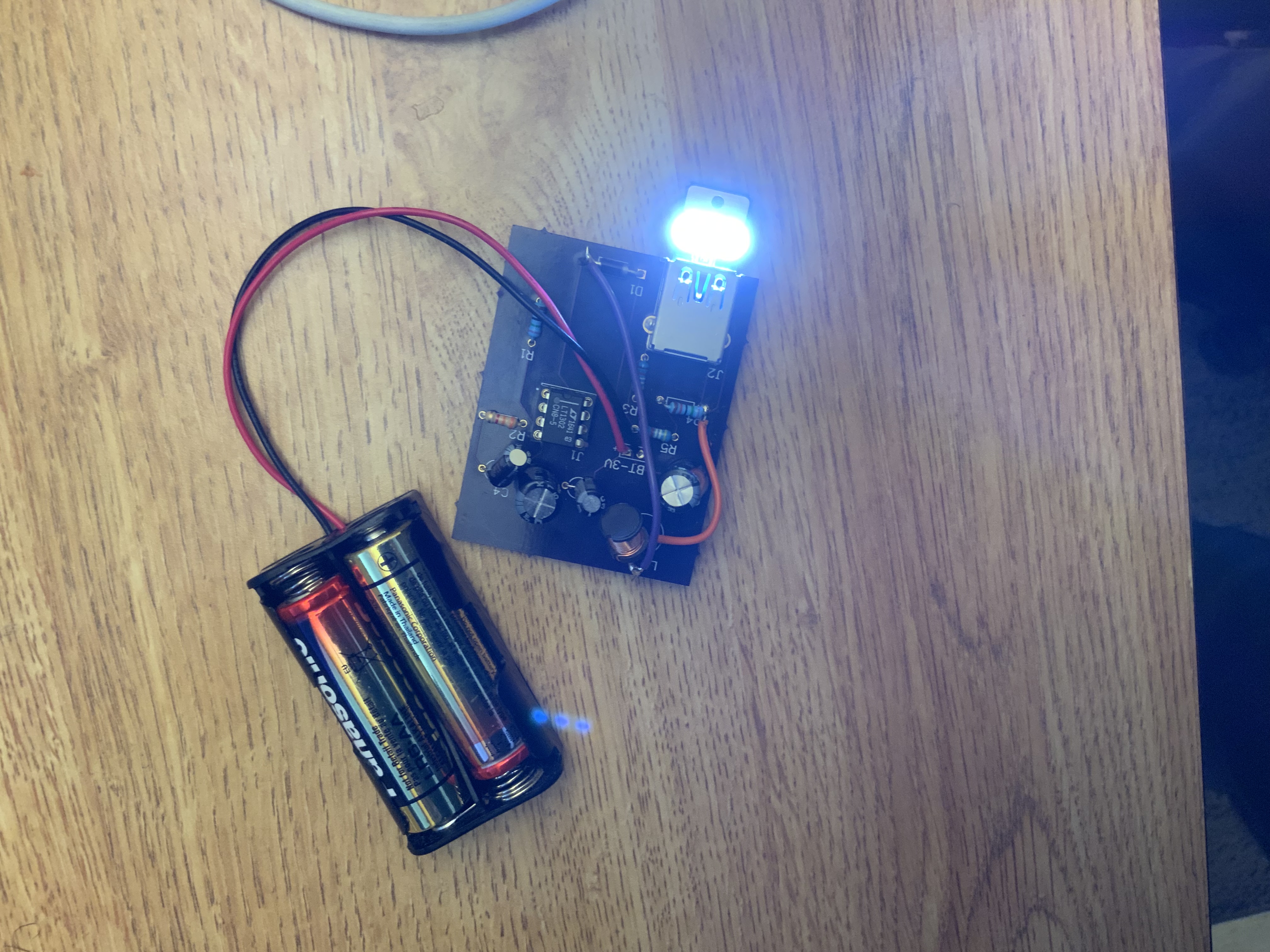

  Testing if the circuit works

•

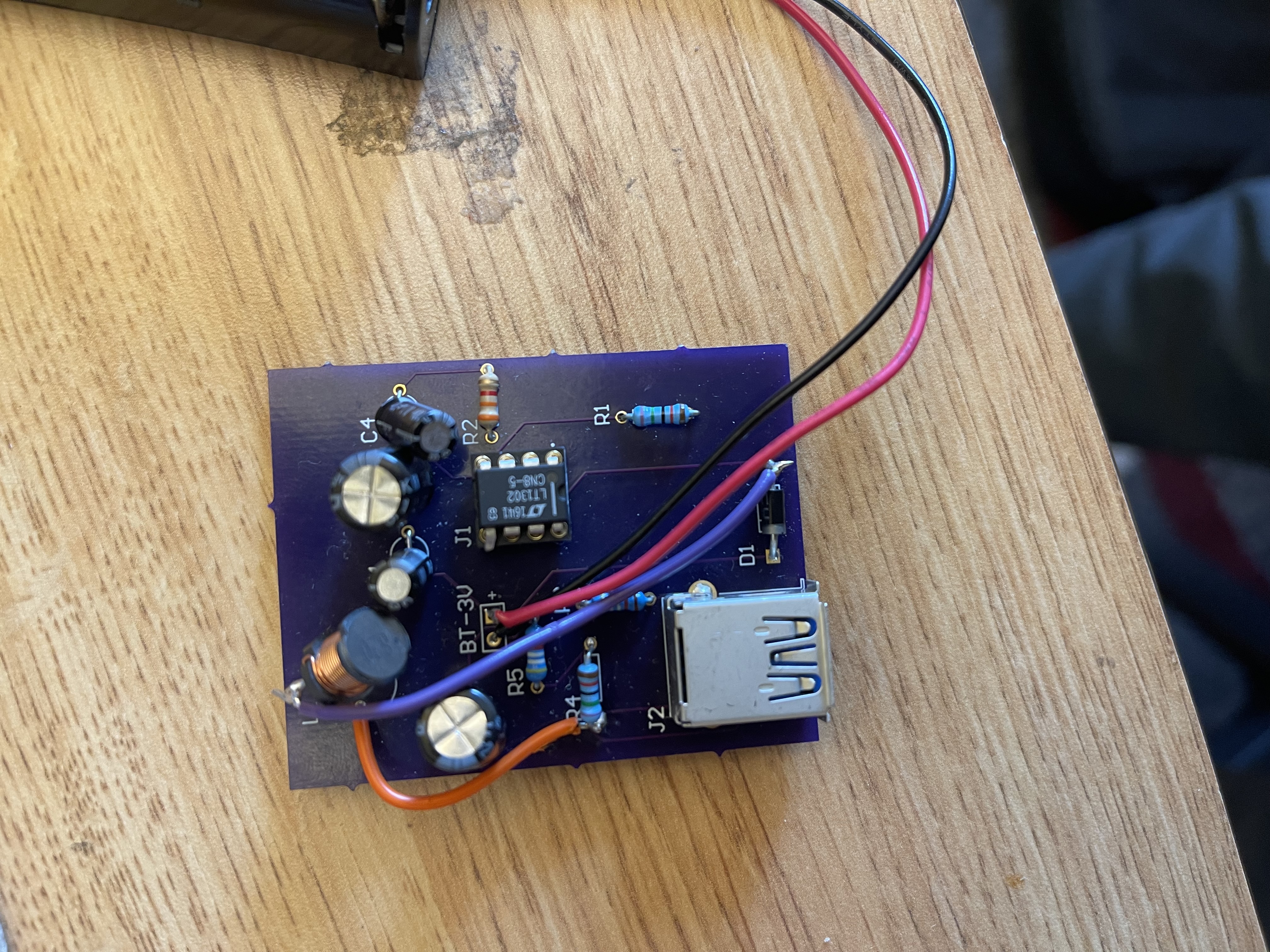

  Close up: Circuit

•

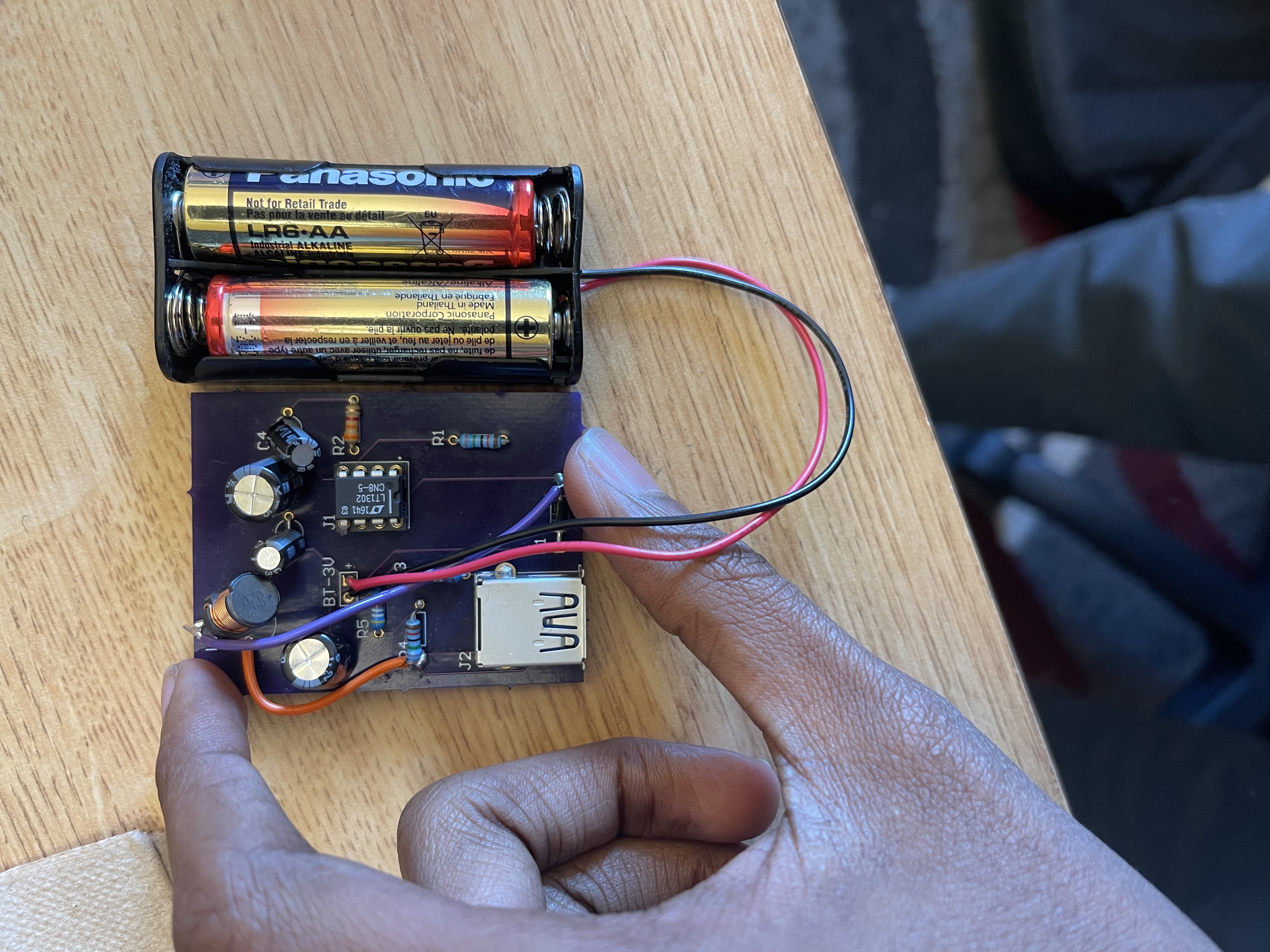

  Close up: Circuit with battery

•

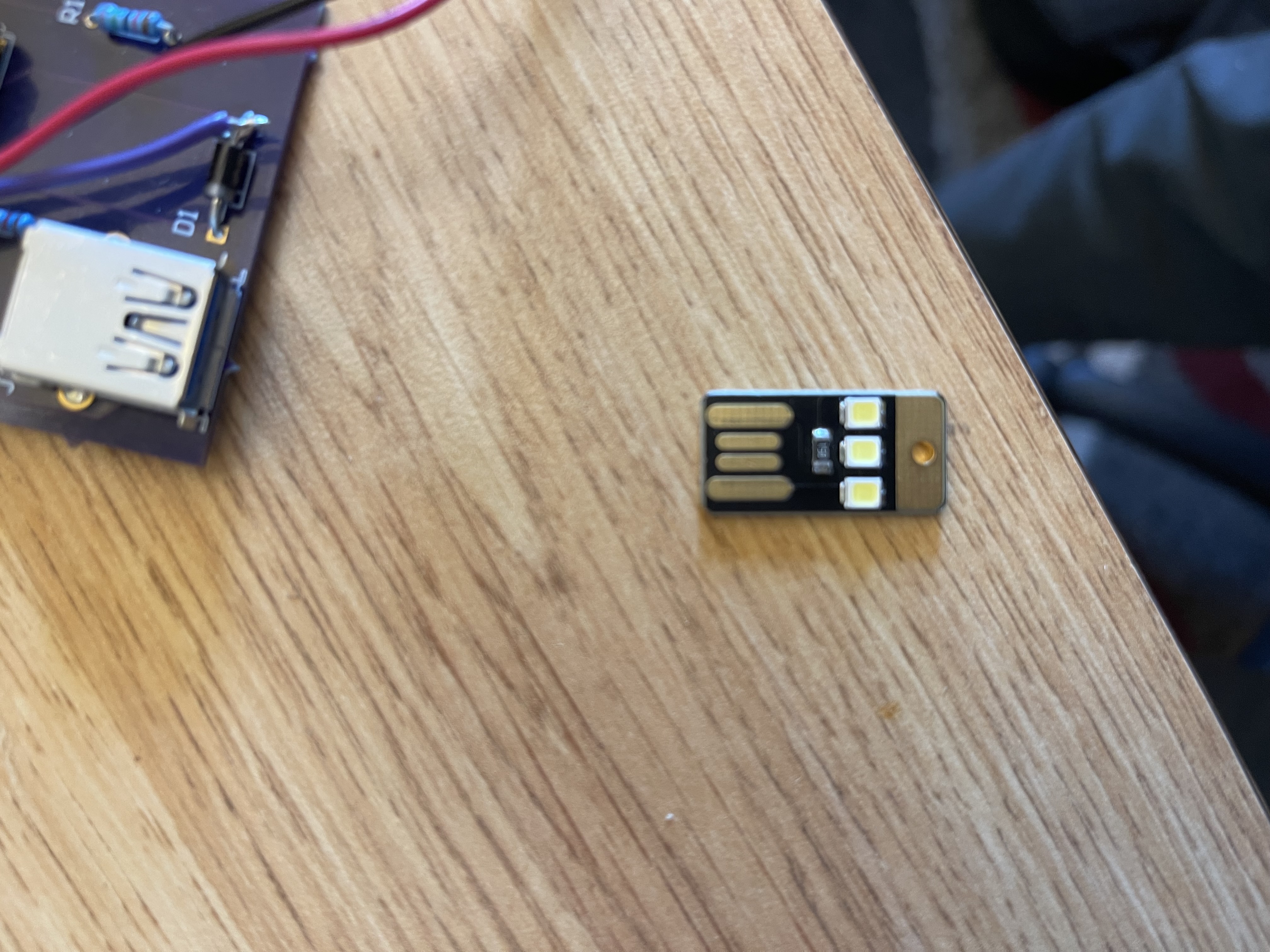

  LED light

•

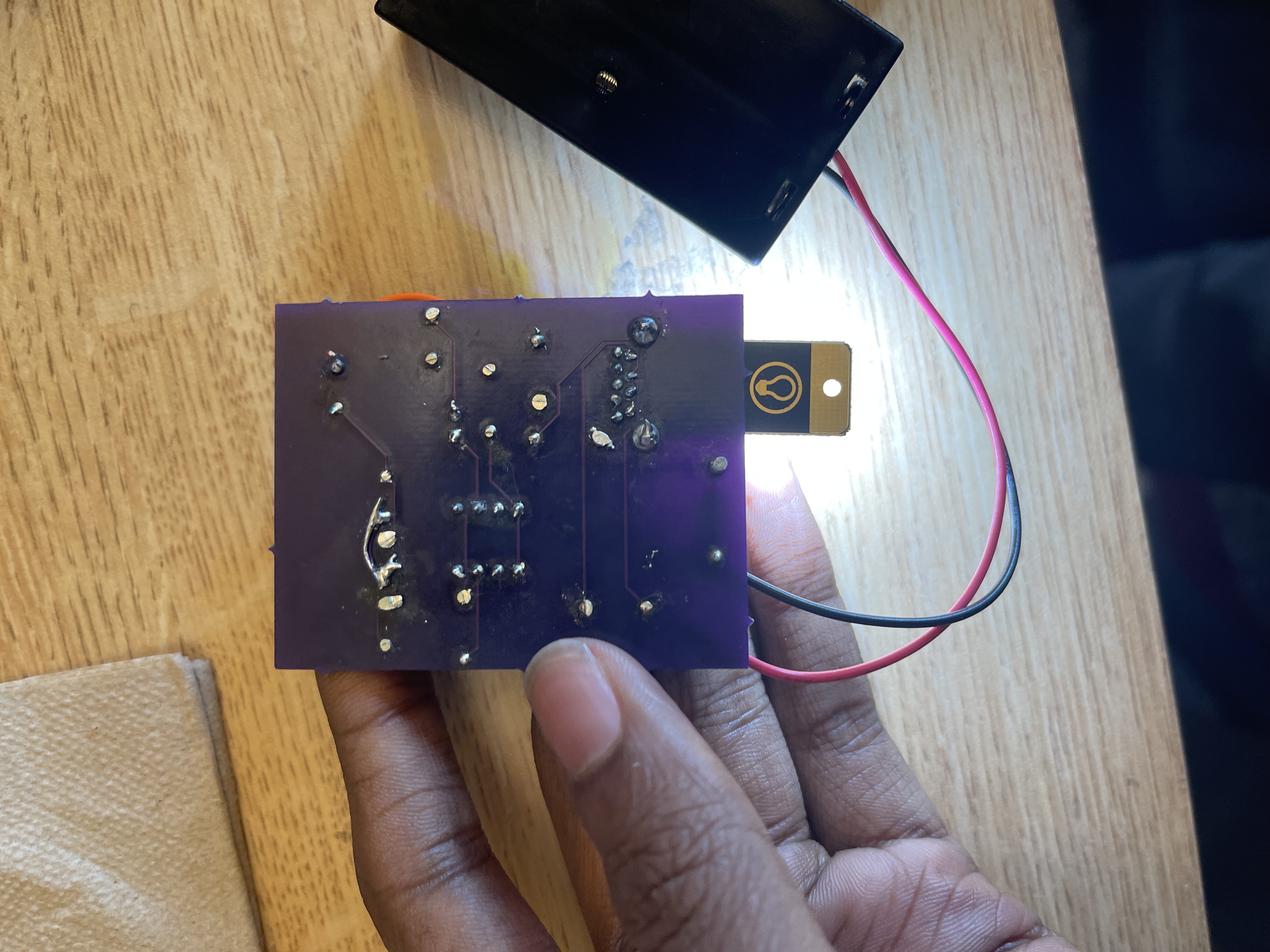

  Backside

This is a battery-packed rechargeable circuit that can charge any of your USB devices. I wanted to learn about devices like an inductor worked in the circuit with a capacitor and generally apply my RC knowledge to PCB design. I also want to make a personal rechargeable battery pack. I have learned a lot of debugging which I had to fix up with the wiring after the circuit got manufactured, which can be seen by the weird wiring on the circuit board.

Built With

• altuim
