A tool designed to aid the astronauts journeying to Mars, the MarsOne provides a wide range of critical data both in a mobile application, and a mission control webpage.
Time on MarsOne
Because Mars has different rotation speeds, the date and time is different from Earth. The MarsOne clock has adjusted time for the correct planet. Current MTC (Coordinated Mars Time) was calculated based off of adjustments from the UTC Unix Epoch.
- Mars sols consist of 24 hours, 37 minutes, and 22.663 seconds
- A Mars year is made up of 668 sols
- Conversion factor from Earth to Mars is 1.027491

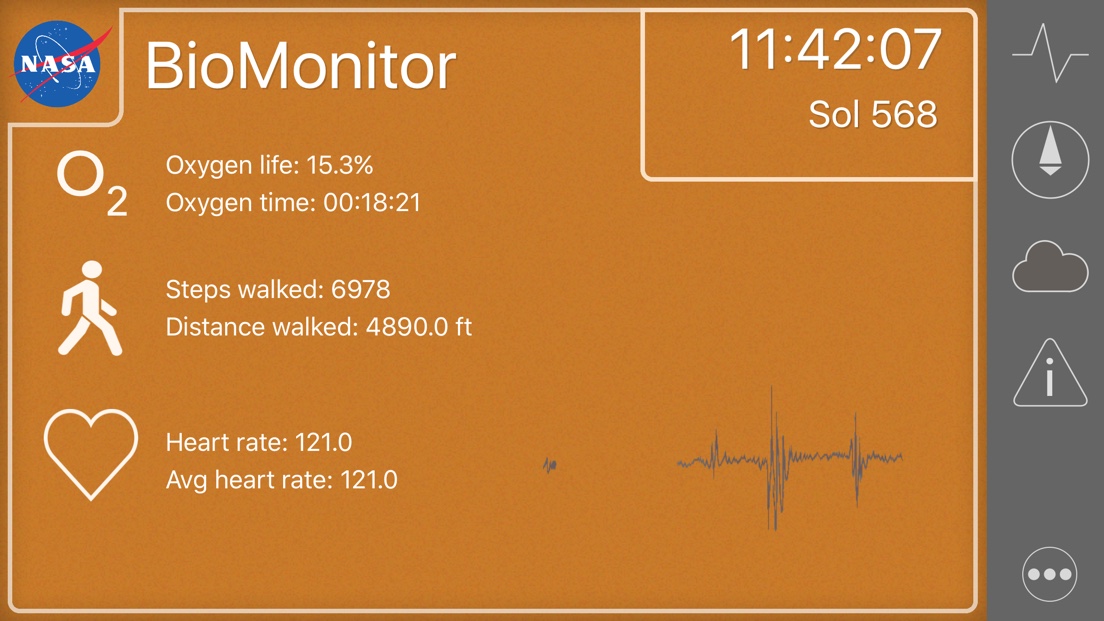

The health monitor tab allows an astronaut to monitor information as they complete missions across Mars. This data is collected from the IOS Health App through an Apple Watch.
- Records both the percentage of oxygen remaining and the time until the tank is empty
- Calculations from an EVA Space Suit gave us the average rate of oxygen usage
- Based off of an assumed 2-Gallon tank of Oxygen
- Records the steps tracked and total distance traveled
- Steps and distance both reset at midnight every day
- Displays current heart rate as well as the average heart rate for the entire day

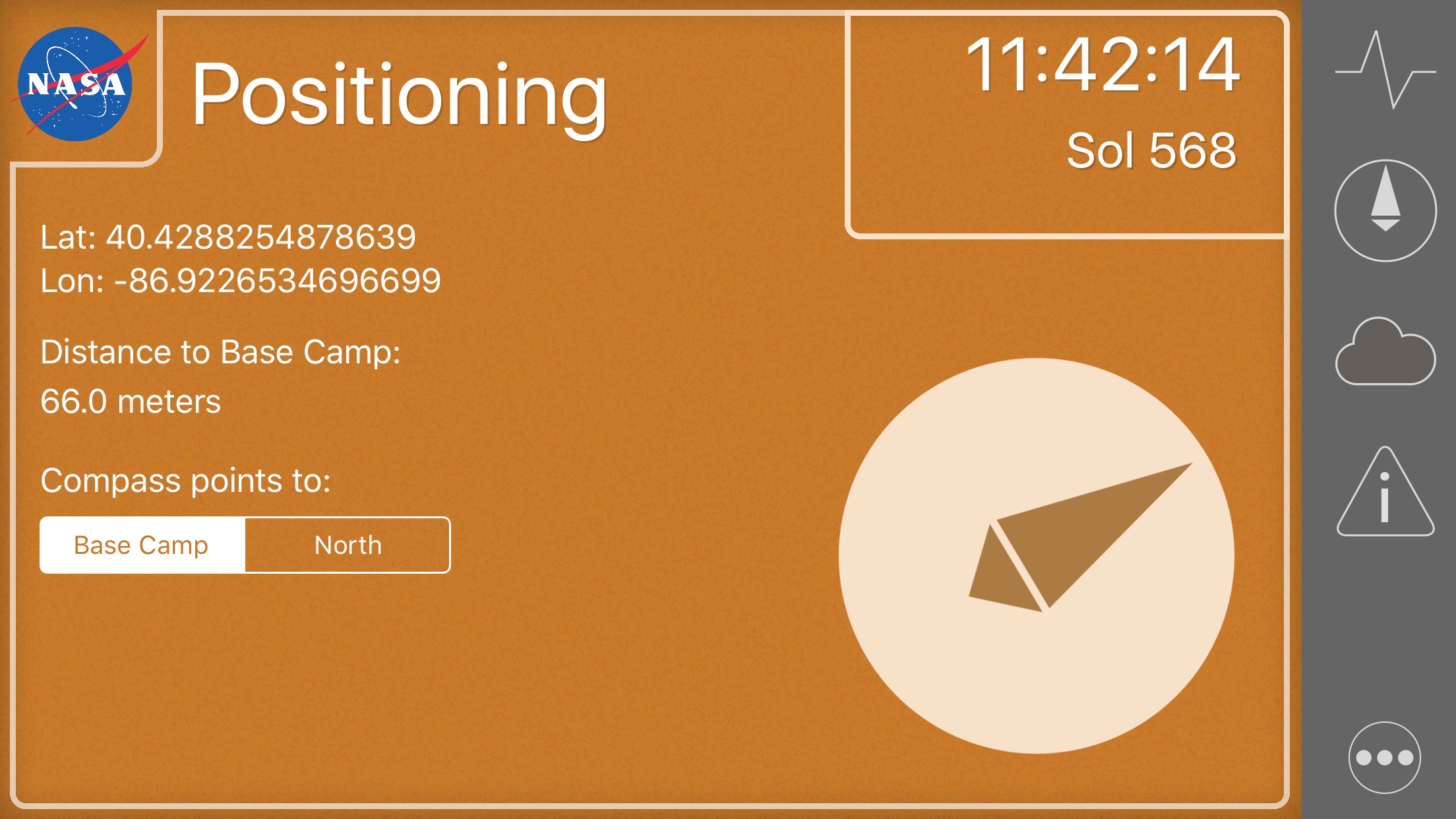

Astronaut locating is calculated using GPS locating. Were this demoed on Mars, a similar calculation could be accomplished with triangulation using the base camp. Includes:
- Current latitude and longitude
- Distance from current location to base camp
- Has 2 settings, to point towards either magnetic north or base camp depending on an astronaut's need

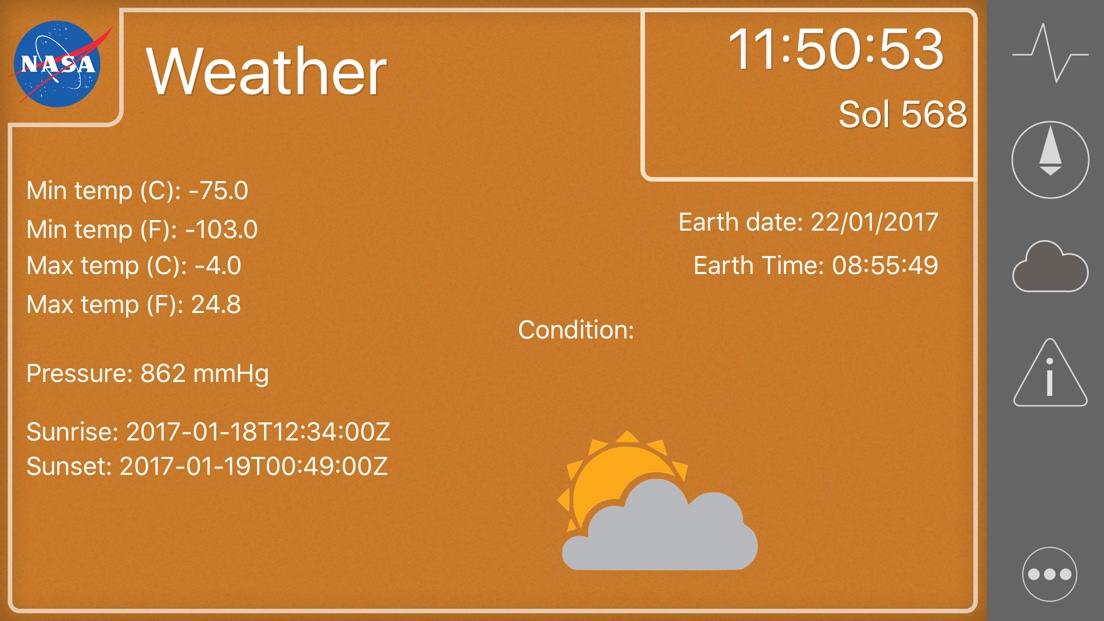

On Mars currently, the Curiosity Rover is collecting data on the weather patterns and data. This data is available in a public API, allowing us to collect information related to the astronaut.
- Maximum/Minimum temperature predicted for the day, displayed in both Celsius and Fahrenheit
- Current pressure
- Sky condition
- Time for both sunrise and sunset
- Earth time and date, so that astronauts can remain connected with their home planet

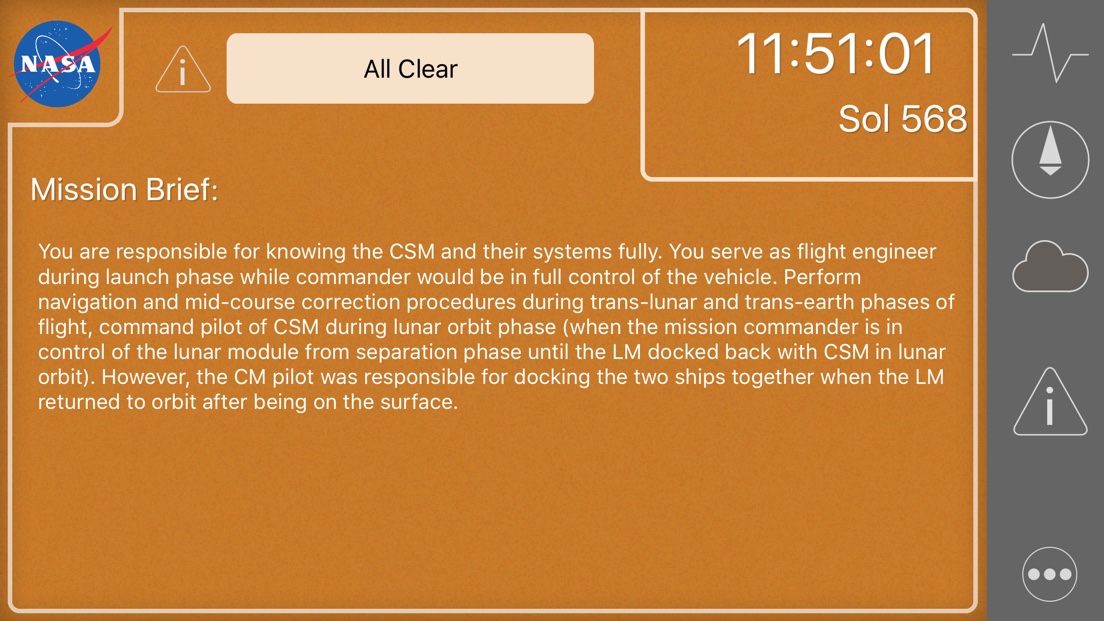

Astronauts will be given periodic tasks to accomplish, conveniently displayed for them to go back and double check whenever. This tab includes a notification system that will alert astronauts when a sandstorm is near to their location and if there is a risk of danger.

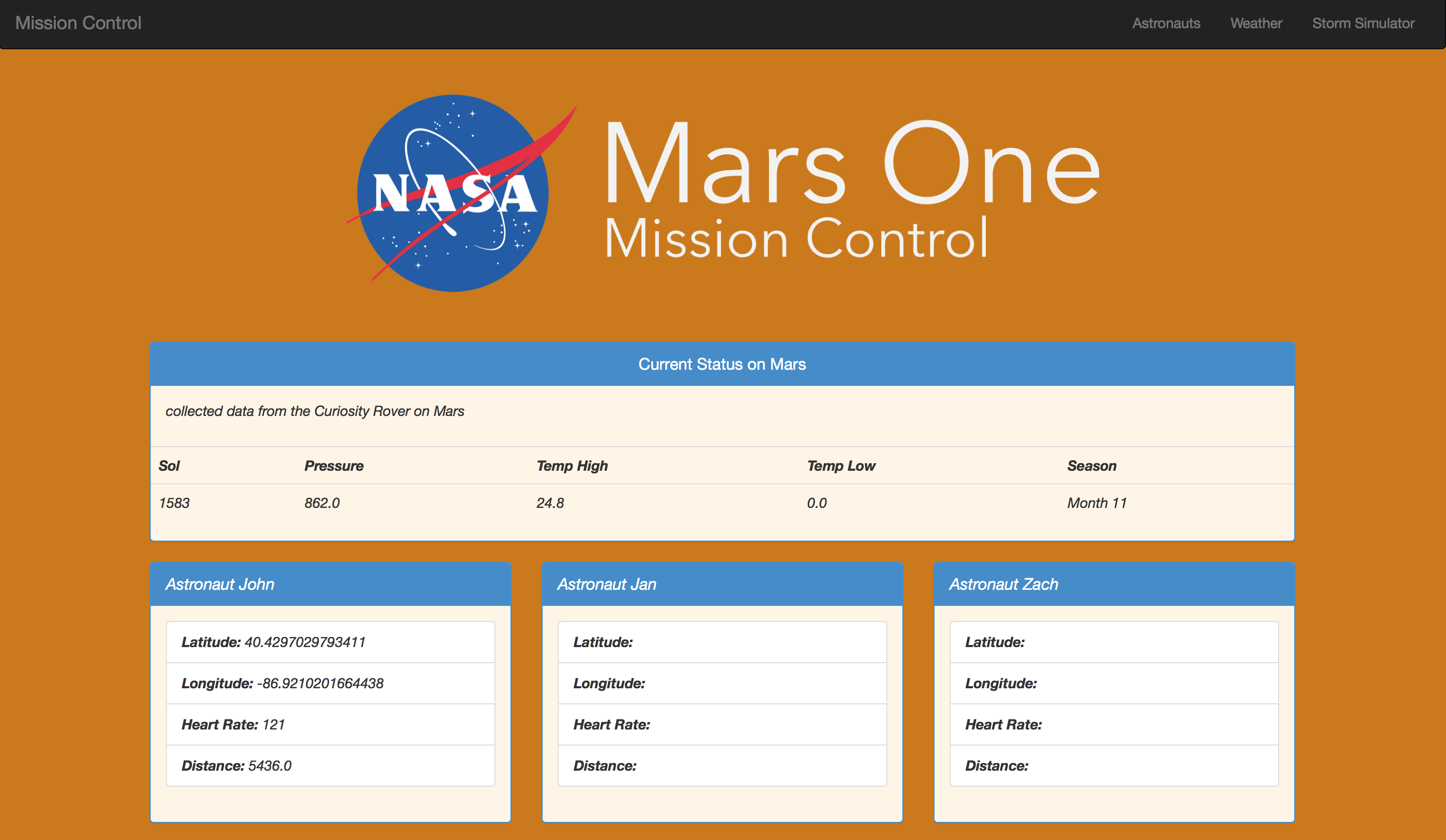

Mission control is a webpage designed for the mission commander on Mars. This page collects all the data from the application, organizing it in a user-friendly view. It includes the weather data from just today, and a short data entry about each astronaut on the quest.

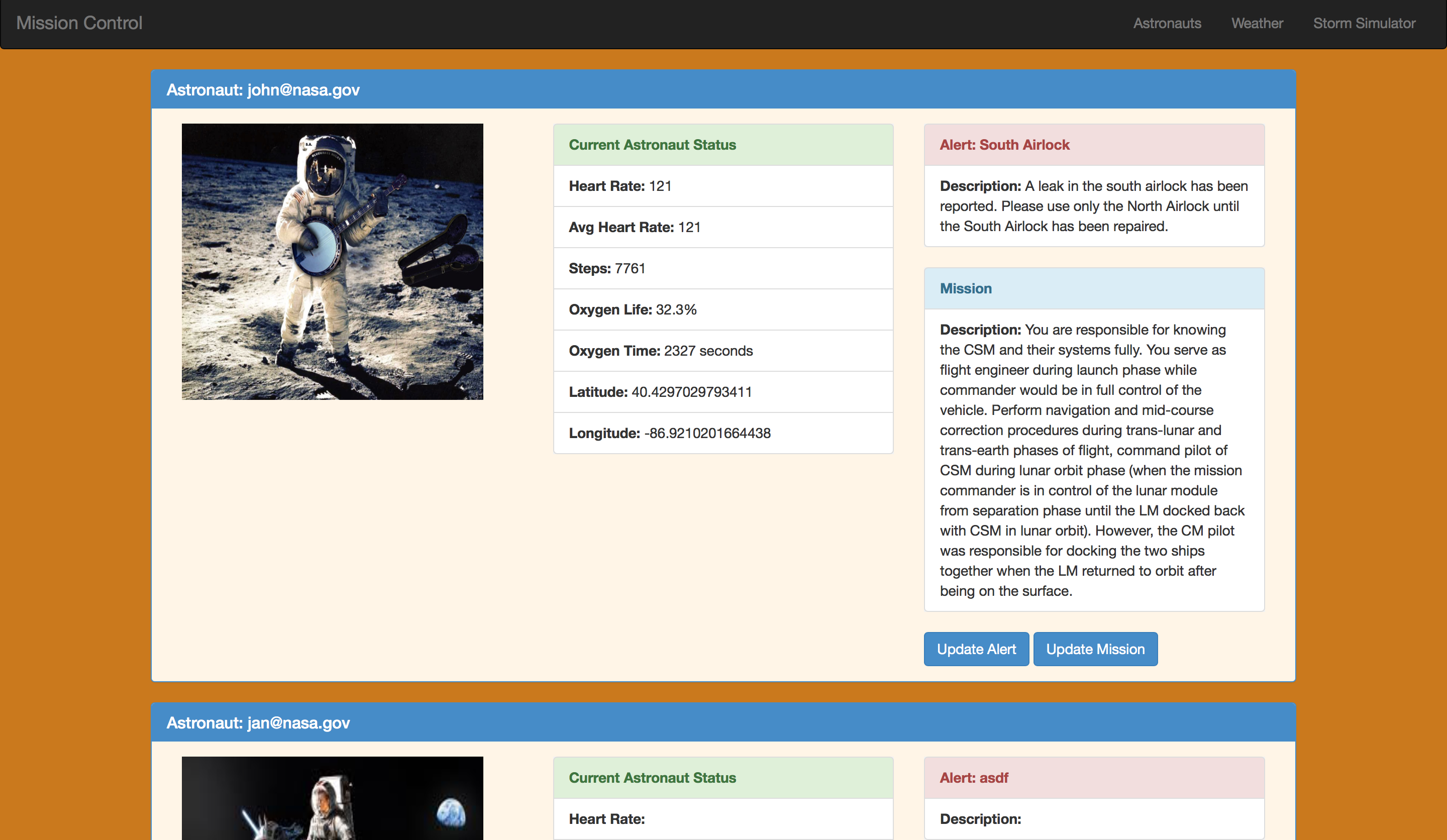

The astronauts page tells you everything you need to know about each member. It displays their profile photo, email, bio stats, alert, and mission.
- Includes options to update their alerts and current mission

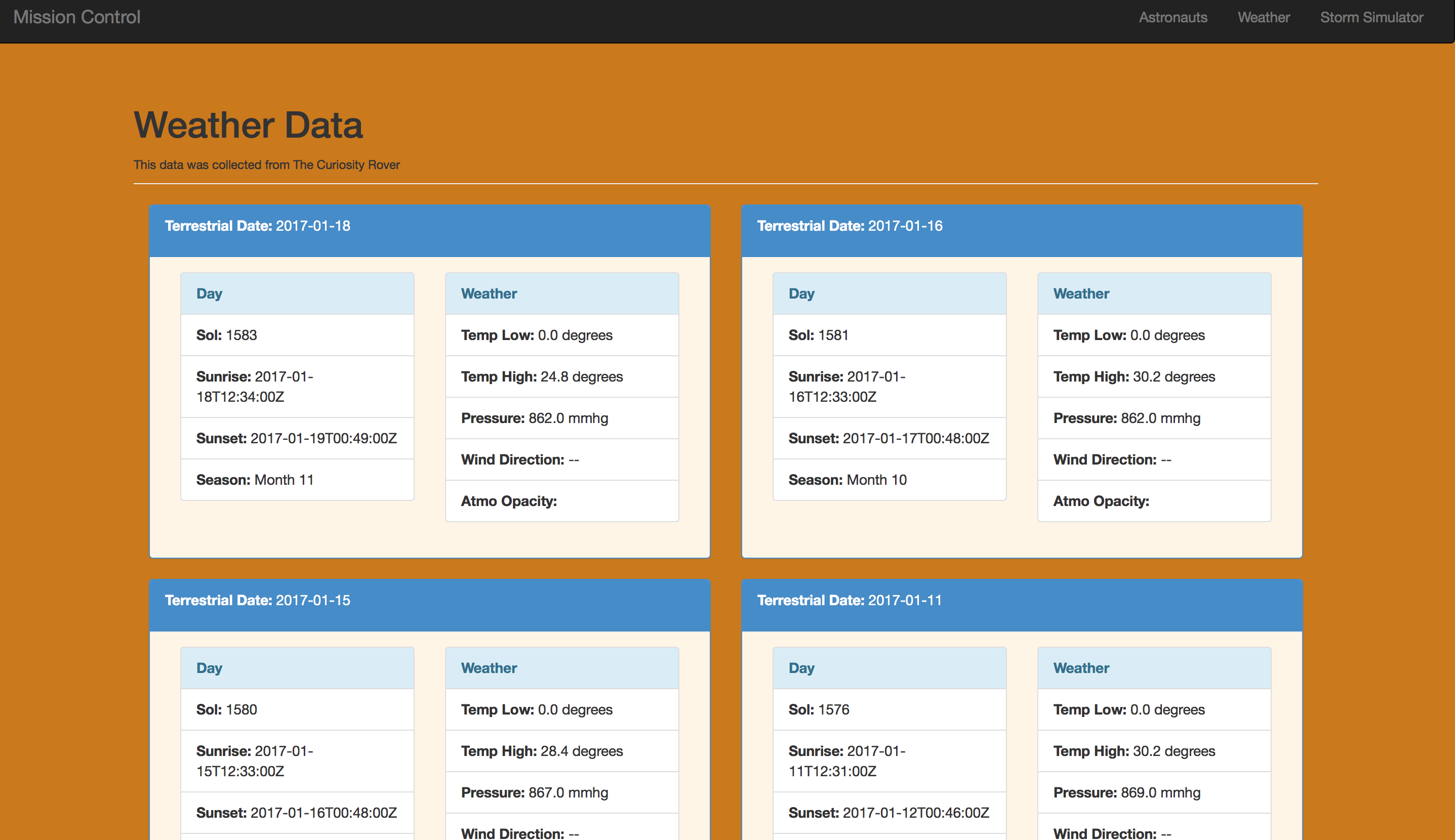

The weather page contains tables of data collected from the Curiosity Rover, organized by terrestrial date.

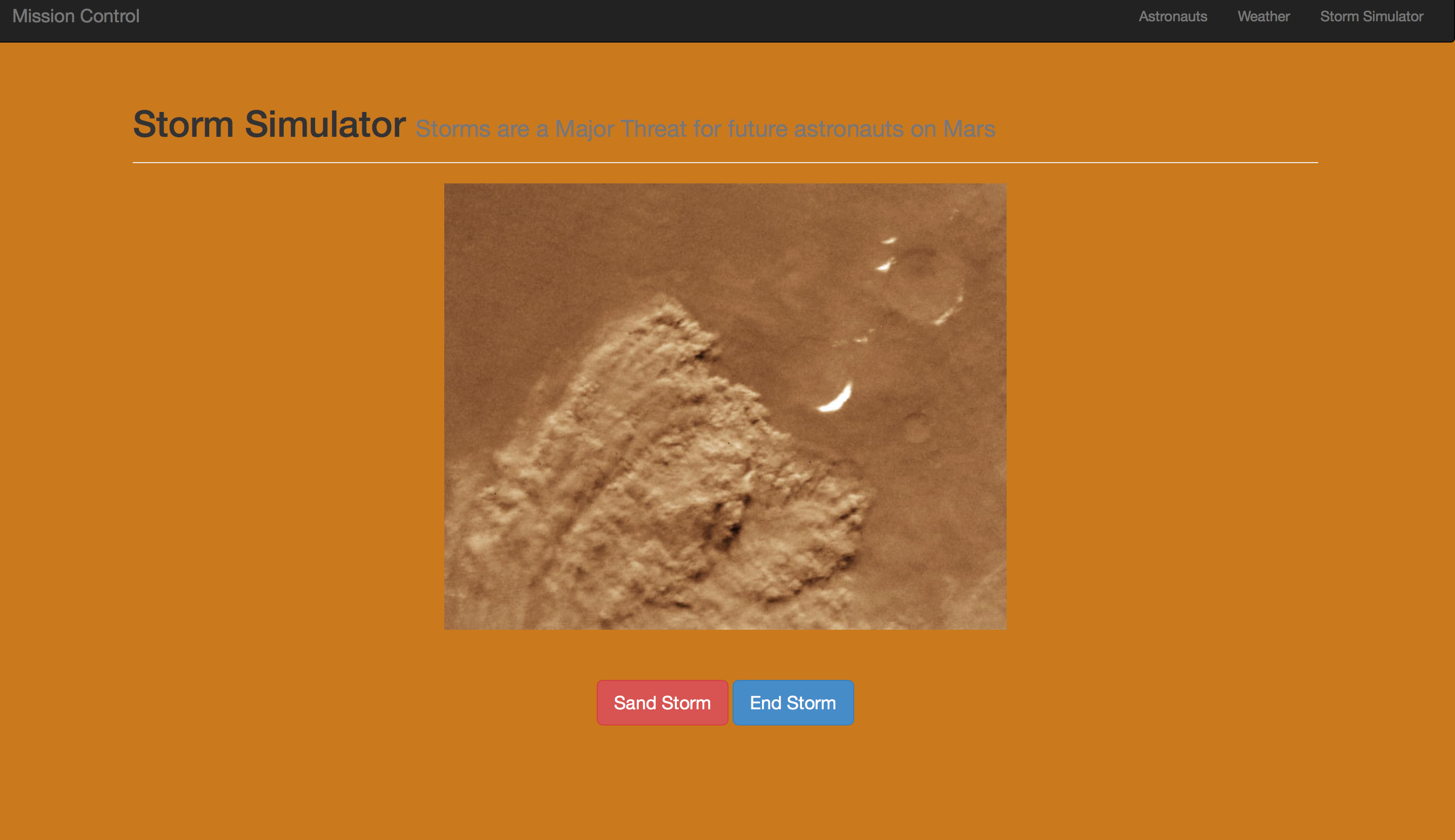

The storm tracking page details approaching sandstorms in real time, to aid mission control in keeping the astronauts as far away from them as possible.
